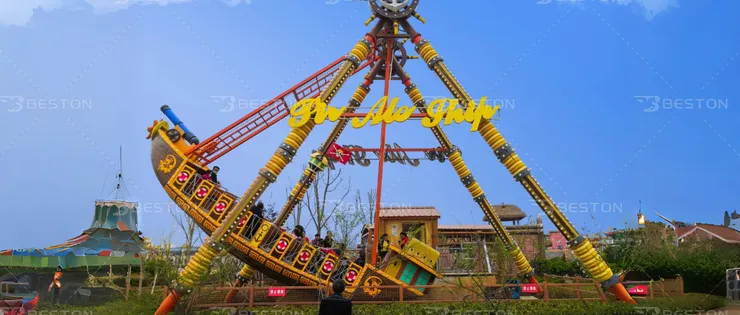

Pirate ship rides are a staple of modern amusement parks, known for their pendulum-like motion and visual appeal. But beneath the excitement lies a complex framework of engineering and structural design. The development of a pirate ship ride is far more than just creating a swinging platform; it’s a feat of mechanical precision, material science, and safety engineering.
Load Distribution and Swing Mechanics
At the heart of the pirate ship ride lies the principle of harmonic motion. The ride operates through a controlled oscillation, pivoting around a central axis. This swing motion creates variable gravitational forces, reaching up to 2.5 g’s at peak points. To accommodate these fluctuating loads, the structural frame is typically constructed using hot-dip galvanized steel, chosen for its superior yield strength and corrosion resistance.
Load distribution is not uniform. Maximum stress occurs at the pivot points and along the primary support arms. Tapered box girders and trussed columns are used to reinforce these critical zones. Engineers must account for not only static and dynamic loads but also fatigue stresses that accumulate over thousands of operational cycles. Vibration damping systems—often comprised of polyurethane bushings and steel-backed rubber pads—mitigate wear and noise throughout the ride’s lifespan.Foundation and Anchor Systems
Equally critical to structural integrity is the ride’s foundation. Pirate ship rides demand a deeply reinforced concrete base, often with anchor bolts extending more than 1.5 meters into the ground. These foundations must counteract the significant horizontal thrust generated during each swing.
To prevent lateral shift or uplift, engineers use a combination of shear keys and tie bars within the foundation. Soil conditions are carefully analyzed prior to installation, and in some cases, micro-piles or soil stabilization methods are applied. These measures ensure the ride remains completely immobile during operation, regardless of external forces such as wind or seismic activity.
Passenger Cabin and Ergonomic Considerations
The cabin—or hull—of the pirate ship is both a structural and aesthetic component. Made from marine-grade fiberglass or coated aluminum, the cabin must maintain rigidity under load while offering passengers an immersive experience. Internally, the structure is reinforced with a steel rib frame that connects directly to the swing arms via spherical bearings.
Seating configuration is typically arranged in rows with tiered elevation to maximize sightlines and weight distribution. The geometry of the seating grid is carefully calculated to align the center of mass with the pendulum’s axis, minimizing strain during acceleration. Restraint systems, including over-the-shoulder harnesses and hydraulic lap bars, are engineered to withstand forces far beyond standard amusement ride requirements.
This attention to detail is why the demand for a pirate ship ride for sale remains high among park operators seeking both reliability and visual impact.
Drive System and Energy Management
The swinging motion is powered by a motorized drive system—usually hydraulic or friction wheel-based. In modern designs, frequency converters regulate motor speed, allowing for smooth acceleration and deceleration curves. These systems are housed in insulated enclosures to reduce heat build-up and comply with IP-rated ingress protection standards.
To maintain balance and extend component life, energy recovery mechanisms are employed. Regenerative braking systems capture kinetic energy during deceleration phases and redirect it to assist in the next launch cycle. This not only conserves energy but also reduces mechanical strain on the drive units. Temperature sensors and pressure gauges are integrated for real-time diagnostics, ensuring predictive maintenance can be performed before breakdowns occur.
Material Selection and Corrosion Resistance
Durability is a core consideration in structural design. Given that most pirate ship rides operate outdoors, materials are selected with an eye toward long-term exposure to UV radiation, humidity, and airborne contaminants. The external structure is often powder-coated with a polyester-based finish, while internal components use zinc-rich primers and epoxy topcoats.
Fasteners, bearings, and hinge points utilize stainless steel or phosphated high-strength alloys to reduce corrosion. Every material choice aligns with international standards, such as ASTM A123 for galvanizing and ISO 12944 for corrosion protection of steel structures. Combined with rigorous quality control during fabrication, these measures guarantee a lifespan exceeding 15 years with proper maintenance.
Safety Systems and Redundancy Protocols
Safety is integrated at every stage of pirate ship ride design. Redundant control systems operate in parallel to the main PLC (programmable logic controller), ensuring that emergency protocols can be activated instantly. Limit switches, inertia sensors, and encoders monitor every movement with millisecond precision.
In case of power failure, mechanical locks engage automatically, and backup power units maintain minimal operation to allow controlled descent. Audible alarms and indicator lights provide constant feedback to operators, while remote monitoring systems can transmit performance data in real time. These layers of protection are essential, especially for parks looking to invest in amusement park equipment for sale that meets international safety certification requirements like EN 13814 or ASTM F2291.
Maintenance Accessibility and Modularity
Structural design extends beyond operation—it also considers ease of inspection and maintenance. Modular components allow for quick disassembly and replacement. Access ladders, maintenance platforms, and inspection ports are built into the framework. Electrical wiring follows color-coded routing channels for faster troubleshooting.
Annual maintenance schedules typically involve ultrasonic weld testing, tension inspections of swing arm cables, and torque verifications of anchor bolts. Smart maintenance tags using RFID or QR codes help track component lifecycles digitally, improving operational efficiency.
Visual Design and Thematic Integration
While structural integrity is paramount, the visual impact cannot be ignored. Pirate ship rides often serve as a park’s thematic centerpiece. Engineers and designers work closely to merge form with function. External panels are stylized to resemble aged wood or iron-plated hulls, enhanced by LED lighting systems and fog machines for dramatic effect.
These design elements must be integrated without interfering with structural performance. Load-bearing elements are often hidden beneath decorative shells, which are attached using non-load bearing methods like magnetic or modular fasteners. This allows for easy updates or replacements without compromising stability.
A pirate ship ride exemplifies the intersection of engineering excellence and immersive design. When evaluating a pirate ship ride for sale, park owners are not just acquiring a thrill attraction—they are investing in a carefully orchestrated machine, where every weld, bolt, and swing is calibrated for safety, performance, and long-term viability. Understanding these structural principles is crucial for those seeking dependable and visually compelling amusement park equipment for sale that can anchor foot traffic and drive repeat visits.
