Double girder gantry cranes are widely used in heavy industries such as steel manufacturing, shipbuilding, construction, and logistics due to their ability to handle large loads, span wide distances, and operate efficiently in both indoor and outdoor environments. As industrial processes demand higher precision, safety, and energy efficiency, the integration of advanced motor control systems like Variable Frequency Drives (VFDs) has become increasingly essential. VFDs, also known as adjustable speed drives or variable speed drives, regulate the speed, torque, and acceleration of electric motors, providing significant advantages in crane operation and performance. This article explores the applications, benefits, and design considerations of VFDs in double girder gantry cranes.
1. Overview of Double Girder Gantry Cranes

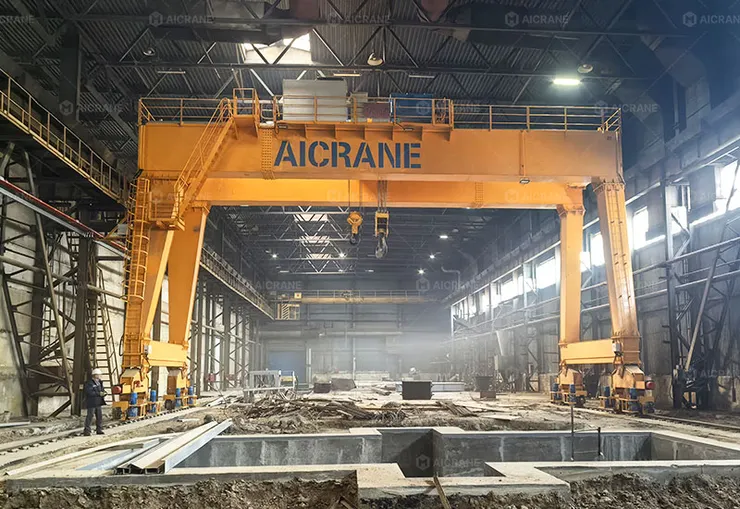

A double girder gantry crane for sale consists of two parallel bridge girders supported by end trucks that run on rails, forming a stable gantry structure. The crane typically includes a hoist trolley that travels along the bridge to lift, transport, and place heavy loads with high precision. Double girder cranes are favored over single girder types for applications involving heavy loads, high lifting heights, and wide spans due to their enhanced load-bearing capacity and structural rigidity.Key components of a double girder gantry crane include:
- Bridge girders: The primary beams supporting the hoist and trolley.
- End trucks: Wheels and support structures that move along rails.
- Hoist and trolley: Mechanisms for lifting and transporting loads horizontally along the bridge.
- Control system: Typically includes push buttons, pendant, or wireless remote control for crane operation.
- Drive system: Motors and power electronics that control motion.
Integrating VFDs into the crane's drive system transforms its operational performance, enhancing speed control, energy efficiency, and safety.
2. Introduction to Variable Frequency Drives
A Variable Frequency Drive is an electronic device that controls the frequency and voltage supplied to an electric motor, thereby adjusting its speed and torque. VFDs can control both AC induction and synchronous motors and are widely used in industrial applications for precise motor control. The main components of a VFD include:
- Rectifier: Converts incoming AC power to DC.
- DC Bus: Stores and stabilizes DC voltage.
- Inverter: Converts DC back to AC at a variable frequency and voltage to control motor speed.
- Control unit: Monitors motor parameters, provides feedback, and executes user commands.
By varying motor speed, VFDs enable smooth acceleration and deceleration, improve energy efficiency, and reduce mechanical stress on crane components.
3. Applications of VFDs in Double Girder Gantry Cranes
VFDs are commonly applied to the main drives in double girder gantry cranes, which include:
3.1. Hoist Motor Control
The hoist mechanism lifts and lowers loads, often requiring precise positioning for safe operations. VFDs applied to hoist motors provide the following advantages:
- Smooth acceleration and deceleration: Reduces load swing and mechanical shock to cables, ropes, and hoist components.
- Precise positioning: Enables controlled movement for placing loads accurately.
- Energy savings: VFDs allow regenerative braking in some systems, returning energy to the grid or reducing motor energy consumption during lowering operations.
- Extended equipment life: Reduced mechanical stress and smoother operation enhance the longevity of the hoist system.
3.2. Bridge Travel Control
The bridge of a double girder crane moves along the rails to transport loads horizontally. Applying VFDs to bridge motors offers:
- Variable speed operation: Operators can adjust bridge speed according to load weight, workspace limitations, or safety requirements.
- Reduced mechanical wear: Smooth acceleration/deceleration reduces wear on wheels, rails, and structural components.
- Enhanced precision: Allows the crane to move slowly for careful load placement while maintaining the ability to accelerate when moving without load.
3.3. Trolley Travel Control
The trolley carries the hoist across the bridge girder. VFDs improve trolley operations by:
- Minimizing load sway: Smooth starts and stops reduce pendulum movement of suspended loads.
- Speed regulation: Offers multiple speed profiles for heavy or delicate load handling.
- Synchronization with other motions: Modern crane control systems can integrate VFDs with hoist and bridge drives for coordinated multi-axis motion.
4. Advantages of VFD Integration in Double Girder Gantry Cranes
The adoption of VFD technology in double girder gantry cranes offers several operational, economic, and safety benefits:
4.1. Energy Efficiency
VFDs adjust motor speed to match load requirements, significantly reducing energy consumption compared to motors running at constant full speed. In cranes with heavy-duty lifting cycles or frequent starts and stops, energy savings can be substantial.
4.2. Improved Safety
Load swing is a major safety concern in crane operations. VFD-controlled acceleration and deceleration reduce dynamic forces and minimize swing, decreasing the risk of accidents and improving operational safety for workers and surrounding equipment.
4.3. Enhanced Precision and Control
VFDs provide precise motor speed control, enabling:
- Accurate positioning of loads in tight spaces.
- Gradual acceleration/deceleration to avoid jolting.
- Better synchronization of multiple motorized movements, which is especially important in tandem crane operations or coordinated hoist and trolley movements.
4.4. Reduced Mechanical Stress
Sudden starts and stops in traditional motor systems generate high mechanical stress, leading to premature wear of motors, gears, brakes, and ropes. VFDs ensure smooth motion, reducing maintenance requirements and extending equipment life.
4.5. Regenerative Braking
Some advanced VFDs support regenerative braking, where energy generated during load lowering is fed back into the electrical system. This reduces overall energy consumption and improves system efficiency.
4.6. Noise Reduction
Variable speed operation reduces the noise generated by sudden motor starts and high-speed movements. This is particularly beneficial in indoor or urban crane applications where noise pollution is a concern.
5. Design Considerations for VFD Integration
While VFDs offer numerous advantages, proper design and implementation are crucial to maximize benefits in double girder gantry cranes:
5.1. Motor Compatibility
VFDs are primarily designed for AC induction motors. Selecting compatible motors rated for variable frequency operation is essential to ensure efficient performance and avoid overheating or excessive vibration.
5.2. Crane Duty Cycle
Crane duty cycle, including lifting frequency, load weight, and travel distance, determines the required VFD specifications. For example, cranes with frequent starts and stops require VFDs with robust thermal protection and high torque capacity.
5.3. Control System Integration
Modern cranes often use PLC or microcontroller-based control systems. VFDs must integrate seamlessly with the crane control interface to provide coordinated hoist, trolley, and bridge operations. Advanced features such as preset speed profiles, soft stop, and anti-sway control can be implemented.
5.4. Harmonic Mitigation
VFDs can generate harmonic distortion in electrical systems, which may affect other sensitive equipment. Proper filtering and transformer design are necessary to minimize harmonics.
5.5. Environmental Considerations
Double girder gantry cranes operating outdoors or in harsh industrial environments must have VFDs rated for wide temperature ranges, dust, moisture, and vibration. Proper cooling and enclosures protect sensitive electronics from environmental damage.
6. Practical Applications and Case Studies
In heavy industries, the use of VFDs in double girder gantry cranes has proven transformative:
- Steel mills: Cranes lifting molten steel slabs benefit from precise hoist control to reduce thermal shock and load swing.
- Shipyards: Large shipyard cranes handling ship components require synchronized bridge, trolley, and hoist motion to ensure accurate alignment during assembly.

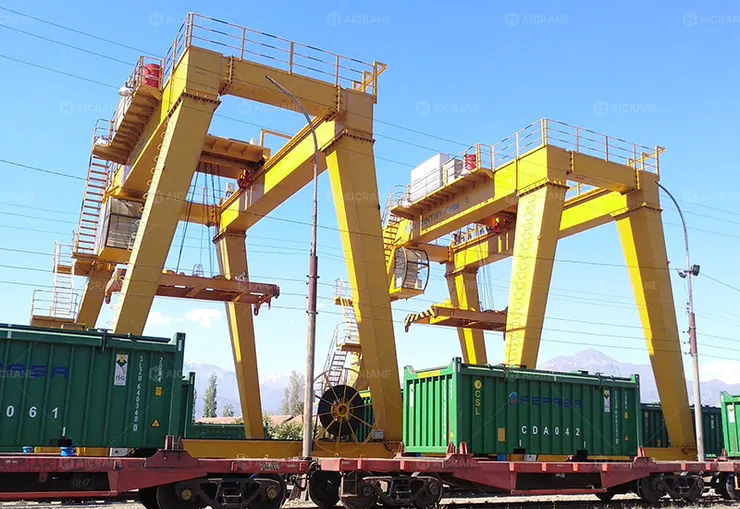

- Logistics and warehouses: VFDs allow cranes to operate at high speed when moving empty containers and slow speed for precise placement, optimizing productivity and safety.
Manufacturers increasingly combine VFDs with smart control systems and sensors, enabling automated load positioning, anti-sway algorithms, and energy monitoring, further enhancing crane efficiency.
7. Future Trends
The integration of VFDs in double girder gantry cranes is evolving with the adoption of Industry 4.0 technologies. Trends include:
- IoT-enabled VFDs: Real-time monitoring of motor performance, energy consumption, and predictive maintenance.
- Smart anti-sway control: Algorithms integrated with VFDs to automatically compensate for load movement.
- Energy recovery systems: More cranes are adopting regenerative drives that feed energy back into the grid.
- Adaptive control systems: VFDs combined with AI-based controllers can optimize motion profiles, improving efficiency and reducing wear.
8. Conclusion
Variable Frequency Drives have revolutionized the operation of double girder gantry cranes by providing precise motor control, energy savings, and enhanced safety. By regulating hoist, bridge, and trolley motions, VFDs reduce mechanical stress, minimize load swing, and allow smooth, controlled operation across a wide range of industrial applications. Proper selection, integration, and maintenance of VFDs ensure that cranes operate efficiently, safely, and reliably over their service life. As technology advances, VFDs will continue to play a pivotal role in the modernization of heavy-duty gantry crane systems, supporting smarter, safer, and more energy-efficient material handling operations.
