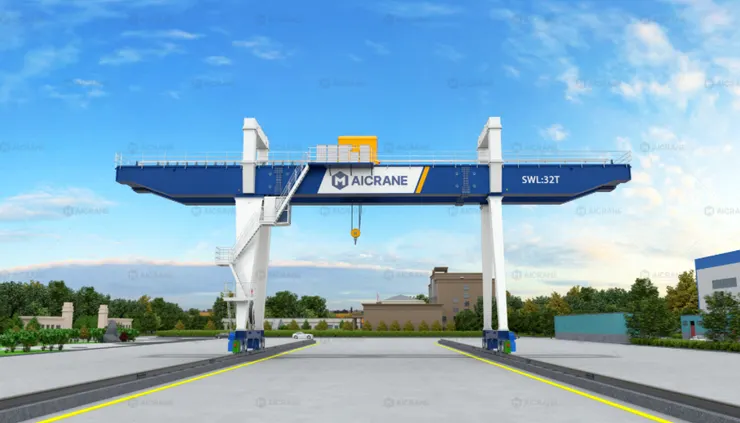

A 30-ton gantry crane sits at the intersection between medium-duty and heavy-duty lifting equipment. It is widely used in steel fabrication yards, precast concrete plants, power projects, shipyards, and large industrial facilities where loads are substantial but flexibility and ground-based operation are required. While lifting mechanisms such as hoists and trolleys are important, the true load-bearing capability of a 30-ton gantry crane lies in its structural design.
Understanding how the structure of a 30-ton gantry crane supports heavy loads is essential for engineers, project planners, and equipment buyers. This article explains the structural principles, load paths, key components, and engineering considerations that enable a 30-ton gantry crane to operate safely, reliably, and efficiently under demanding conditions.
1. Understanding the Structural Role of a 30-Ton Gantry Crane
A gantry crane is a self-supporting lifting structure. Unlike overhead cranes, which transfer loads to a building, a gantry crane must support all forces through its own steel framework and transfer them directly to the ground.
For a 30 ton gantry crane, the structure must safely withstand:
- Static loads from the lifted weight
- Dynamic loads from hoisting, lowering, and trolley travel
- Horizontal forces from crane movement and braking
- Environmental loads such as wind and temperature changes
- Long-term fatigue caused by repeated lifting cycles
The crane structure acts as a continuous load-bearing system, ensuring that forces are distributed evenly and safely across all components.
2. Load Path: How Weight Travels Through the Crane Structure
The most important concept in understanding structural support is the load path—the route through which forces move from the lifted load to the ground.
In a 30-ton gantry crane, the load path typically follows this sequence:
- The load is lifted by the hoist and hook
- The load transfers to the trolley frame
- Forces move into the main girder(s)
- Girders transfer loads to the crane legs
- Legs transmit loads to end beams or bogies
- End beams distribute loads to wheels or rails
- Wheels transfer forces to the foundation or ground
Each structural component is designed to handle its share of the load without overstress, excessive deflection, or instability.

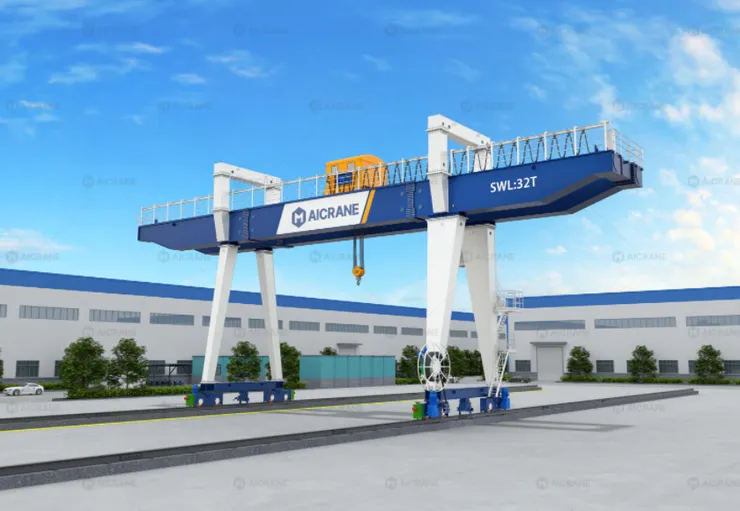

3. Main Girder Structure: The Primary Load Carrier
3.1 Double Girder Configuration
Most 30-ton gantry cranes adopt a double girder structure. Two parallel girders significantly increase bending resistance and torsional stiffness compared to single girder designs.
This configuration allows:
- Better distribution of the 30-ton lifting load
- Reduced bending stress in each girder
- Improved stability during trolley travel
- Lower deflection under full load
3.2 Box Girder Design
The girders are typically designed as box girders, fabricated from steel plates welded into a closed section. Box girders offer:
- High strength-to-weight ratio
- Excellent resistance to vertical bending
- Improved torsional rigidity
- Better fatigue performance
Deflection control is critical. For a 30-ton gantry crane, girder deflection must remain within strict limits to ensure smooth trolley operation and precise load positioning.
4. Crane Legs: Transferring Load to the Ground
4.1 Structural Function of Crane Legs
Crane legs act as vertical columns, transferring loads from the main girders to the ground. In a 30-ton gantry crane, legs must resist:
- Axial compression from vertical loads
- Bending moments caused by wind and crane movement
- Horizontal forces from acceleration, braking, and skewing
Leg structures are often designed as box sections or welded steel frames to ensure sufficient stiffness.
4.2 Rigid and Flexible Leg Design
Many gantry cranes for sale use a combination of:
- Rigid legs, which provide fixed structural support
- Flexible legs, which allow slight deformation
This design helps accommodate uneven ground conditions, thermal expansion, and structural movement without inducing excessive stress.
5. End Beams and Travel Mechanism Support
End beams connect the crane legs and support the traveling mechanisms, including wheels or bogies.
For a 30-ton gantry crane, end beams must:
- Distribute heavy loads evenly across multiple wheels
- Resist torsional forces during crane travel
- Absorb braking and acceleration forces
- Maintain alignment between legs
Proper load distribution at this level is essential to prevent excessive wheel loads and foundation damage.
6. Structural Bracing and Reinforcement Systems
6.1 Role of Bracing
Bracing elements are critical in ensuring structural stability. They prevent:
- Excessive lateral sway
- Torsional deformation
- Structural vibration under dynamic loads
Common bracing elements include:
- Diagonal bracing between legs
- Horizontal bracing at different elevations
- Reinforced joints at high-stress locations
6.2 Reinforcement at Critical Stress Points
Areas such as girder-to-leg connections and leg-to-end-beam joints experience high stress concentrations. Reinforcement plates and stiffeners are added to:
- Spread stress over a larger area
- Reduce fatigue damage
- Improve long-term durability
7. Material Selection and Structural Strength
The ability of a 30-ton gantry crane to support heavy loads depends heavily on material quality.
Structural steel is selected based on:
- Yield strength
- Tensile strength
- Fatigue resistance
- Weldability
High-strength structural steels allow designers to achieve sufficient load capacity while controlling overall crane weight. Protective coatings are applied to prevent corrosion, especially for outdoor installations.
8. Dynamic Load and Fatigue Considerations
A 30-ton gantry crane rarely lifts loads statically. Dynamic effects significantly increase structural demand.
8.1 Dynamic Load Factors
During operation, additional forces arise from:
- Hoisting acceleration and deceleration
- Trolley movement along the girder
- Crane travel along rails
- Emergency braking
Design calculations include dynamic load factors to ensure the structure can safely handle these conditions.
8.2 Fatigue Resistance
Repeated lifting cycles introduce fatigue stresses, particularly at welded joints. Structural design focuses on:
- Smooth load transitions
- High-quality welding
- Stress reduction at connection points
This ensures long service life even under frequent use.
9. Foundation and Ground Support Interaction
The crane structure alone cannot support heavy loads without adequate ground support.
For a 30-ton gantry crane:
- Rail-mounted designs require reinforced concrete foundations
- Wheel-mounted designs require sufficient ground bearing capacity
- Load distribution must prevent excessive settlement
The crane structure and foundation are designed as a combined system, ensuring safe load transfer to the ground.
10. Safety Factors and Structural Standards
A 30-ton gantry crane is not designed to fail at 30 tons. Structural calculations incorporate:
- Safety factors above the rated load
- Compliance with international standards
- Allowances for unexpected loading conditions
This ensures reliable performance even under less-than-ideal operating conditions.
11. Why Structural Design Determines Crane Reliability
The structural system of a 30-ton gantry crane directly affects:
- Operational safety
- Lifting precision
- Maintenance frequency
- Equipment lifespan
A well-designed structure ensures that heavy loads are supported smoothly and safely, without excessive stress or deformation.
12. Conclusion
A 30-ton gantry crane supports heavy loads not through a single component, but through a carefully engineered structural system. The main girders resist bending, crane legs transfer loads vertically, end beams distribute forces evenly, and bracing systems maintain overall stability. Together, these elements create a robust load path that safely transfers 30 tons—or more under design conditions—from the hook to the ground.
Understanding how this structure works allows engineers and buyers to evaluate crane designs more effectively, ensuring safe operation, long service life, and optimal performance in demanding industrial environments.
