FAQs About Ordering a Custom 30 Ton Overhead Crane

Overhead cranes are indispensable in many industrial settings, especially when handling heavy loads efficiently and safely. Among the various load capacities available, a 30 ton overhead crane is a popular choice for industries requiring robust lifting power combined with flexibility and durability.

If you’re considering ordering a custom 30 ton overhead crane, you probably have many questions about the design, specifications, installation, and service options. This article addresses the most frequently asked questions (FAQs) to help you make an informed decision.

1. What exactly is a 30 ton overhead crane?

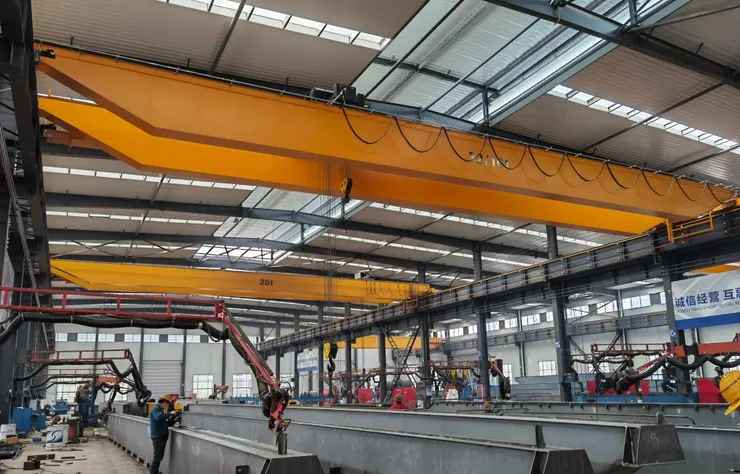

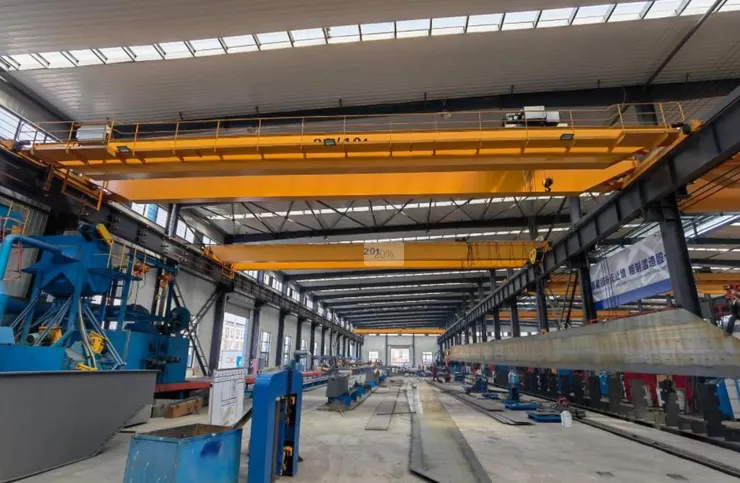

A 30 ton overhead crane is an industrial lifting machine designed to lift, lower, and move heavy loads of up to 30 metric tons (30,000 kilograms) horizontally within a fixed workspace such as a factory, warehouse, or workshop.

It typically consists of a bridge that runs along two parallel runways, a hoist mechanism for lifting, a trolley for horizontal movement, and a control system. The crane can be designed as either a single girder or double girder structure, depending on the span and operational requirements.

2. Why should I consider a custom overhead crane instead of an off-the-shelf model?

Standard cranes may not always meet the unique needs of your facility. Custom overhead cranes offer several advantages:

Tailored to your exact lifting requirements: Custom cranes can be designed for your specific capacity, span, lifting height, and duty cycle.
Optimized for your workspace constraints: You can specify crane dimensions, runway configurations, and mounting options to fit your building.
Specialized features and accessories: Customization allows adding anti-sway devices, radio remote controls, specific safety features, and customized hooks or grabs.
Material and build quality: You can specify steel grades, paint systems, and electrical components to match environmental or operational conditions (e.g., corrosion resistance for outdoor cranes).
Integration with existing equipment: Custom cranes can be designed to work seamlessly with your existing material handling systems.

3. What are the key technical specifications I need to provide when ordering a 30 ton overhead crane?

To ensure the crane is designed precisely for your needs, provide the following information to your crane supplier:

Load capacity: Confirm the maximum lifting weight as 30 tons (or specify if you need some overload margin).
Span: The distance between the runway rails or support columns.
Lifting height: The maximum vertical lift required, usually dictated by the building height and operational needs.
Duty classification: This describes how frequently and intensively the crane will be used (e.g., light, moderate, heavy duty). This affects the design and components.
Work environment: Indoor or outdoor, temperature extremes, corrosive environments, explosive atmospheres, etc.
Runway length and power supply: Length of the crane runway and available electrical power specifications.
Control method: Options include pendant control, radio remote control, cabin-operated, or fully automated systems.
Additional features: Such as anti-collision systems, overload protection, load cells, positioning systems, and so on.

4. What type of hoist is recommended for a 30 ton overhead crane?

For lifting up to 30 tons, the choice of hoist is critical:

Wire rope hoists: Typically preferred for heavy loads like 30 tons due to their durability, high lifting speed options, and suitability for long lifts.
Chain hoists: Usually recommended for lighter capacities, generally under 10 tons, but some heavy-duty chain hoists exist up to 30 tons.
Electric vs. manual: For industrial 30 ton cranes, electric hoists are standard because of efficiency, control precision, and ease of operation.

Your supplier will recommend a hoist type and design based on lifting height, frequency, and application.

5. How long does it take to design and manufacture a custom 30 ton overhead crane?

The timeline varies by project complexity but generally includes:

Initial consultation and engineering design: 2 to 4 weeks. This phase involves discussing requirements, site visits if needed, and producing design drawings.
Manufacturing and assembly: 6 to 12 weeks depending on customization level, availability of materials, and workload.
Testing and inspection: 1 to 2 weeks, including load testing to ensure safety and performance standards.

Overall, expect 10 to 16 weeks from initial order to delivery, but this can vary widely depending on your project’s scope and location.

6. What standards and certifications should a 30 ton overhead crane comply with?

Safety and quality standards are paramount in overhead crane manufacturing and operation. Make sure your custom crane complies with:

ISO 4301-1: Classification of cranes by duty.
ISO 9927: Inspection and maintenance.
EN 15011: European standard for overhead cranes.
ASME B30.2: Safety standards for overhead and gantry cranes (widely used in North America).
OSHA regulations: For workplace safety.
Local codes: Depending on country or region, local standards or certifications might be required.

Your supplier should provide documentation confirming compliance with all relevant standards.

7. What factors affect the price of a custom 30 ton overhead crane?

Several factors influence the overall cost:

Design complexity: Larger spans or higher lifting heights require more steel and specialized engineering.
Type of crane: Single girder cranes tend to be less expensive than double girder cranes.
Duty cycle and service class: Heavy-duty cranes require higher quality components and more robust design.
Customization: Specialized features, automation, or control systems increase costs.
Material quality: Corrosion-resistant materials or special coatings for harsh environments add to the price of overhead crane.
Installation and testing: Whether included or additional.

Typically, a custom 30 ton overhead crane ranges from $50,000 to over $150,000 USD, but this depends heavily on project specifics.

8. Can I retrofit or upgrade an existing crane to 30 ton capacity?

In some cases, yes. However, upgrading an existing crane to handle a higher load requires:

Structural analysis of the crane’s main components (bridge girders, end trucks, runway beams).
Upgrading the hoist and trolley system.
Reinforcing or replacing electrical and control systems.
Comprehensive safety inspection.

Your crane supplier or a structural engineer can assess if your current crane can be upgraded or if a new crane is a better investment.

9. What is involved in the installation of a 30 ton overhead crane?

Installation is a critical phase involving:

Site preparation (ensuring the runway beams or rails are level and structurally sound).
Crane assembly, which can be onsite or partially assembled in the factory.
Electrical wiring and connection to the power supply.
Testing, including no-load and load testing up to the rated capacity.
Operator training and safety briefing.

Professional installation is highly recommended, either by the crane manufacturer’s technicians or experienced local contractors under their guidance.

10. How do I maintain a 30 ton overhead crane to ensure safety and longevity?

Routine maintenance ensures safe operation and extends crane life:

Regular inspections of hooks, wire ropes, brakes, and electrical systems.
Lubrication of moving parts.
Checking and tightening bolts and fasteners.
Load testing annually or as per local regulations.
Keeping a maintenance log.

Many suppliers offer maintenance contracts and after-sales support to help you keep your crane in top condition.

11. What after-sales support can I expect from a crane manufacturer?

Good manufacturers provide:

Technical support: Phone or onsite assistance for troubleshooting.
Spare parts supply: Genuine parts availability.
Maintenance and repair services: Scheduled or emergency.
Training: Operator and maintenance staff training.
Warranty: Typically 1 year or more depending on contract.

Ensure these services are clearly defined before ordering.

Conclusion

Ordering a custom 30 ton overhead crane is a significant investment that requires careful planning and expert guidance. Understanding your operational needs, working closely with a reliable supplier, and asking the right questions can lead to a crane solution that enhances your productivity and safety for years to come.

If you’re ready to discuss your custom crane project or want expert advice, feel free to reach out to crane manufacturers or suppliers who specialize in heavy-duty industrial lifting equipment.
