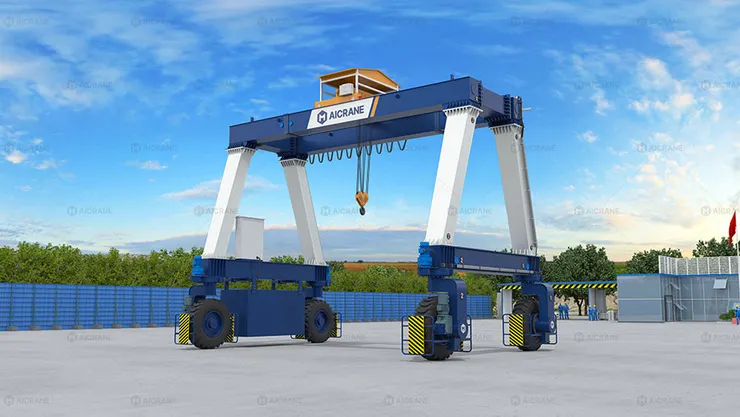

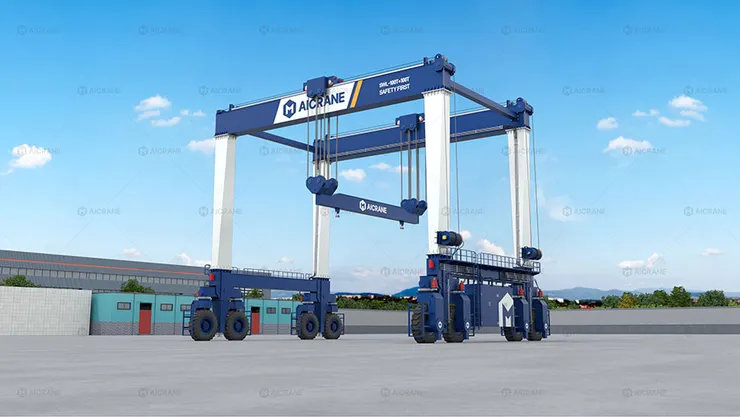

Rubber Tyred Gantry (RTG) cranes are essential material-handling equipment widely used in container terminals, logistics yards, industrial plants, steel mills, and precast concrete production. Unlike rail-mounted cranes, RTG cranes offer a high degree of mobility, allowing operators to move freely across working zones without fixed tracks. This mobility significantly improves operational flexibility, reduces infrastructure costs, and enhances overall yard productivity.
But what exactly makes RTG cranes so mobile? Their ability to maneuver smoothly in tight spaces and adapt to multiple loading positions is not accidental; it is the result of deliberate engineering choices and advanced design features. This article explores the key design elements that enhance the mobility of rubber tyred cranes and explains how these features contribute to efficiency, reliability, and safe operations.
1. Multi-Mode Steering Systems for Superior Maneuverability
One of the most important contributors to RTG crane mobility is the integration of advanced steering modes. A standard fixed steering system would severely limit the crane’s usability in complex layouts. Therefore, most modern RTGs incorporate several steering modes to support different operating scenarios.1.1 0° Straight Steering
This is the basic mode where all wheels are aligned forward. It is ideal for long-distance travel across yards. Straight steering ensures stability, fuel efficiency, and minimal tire wear.
1.2 90° Transverse Steering
This mode enables the crane to move sideways, allowing quick lane changes without rotating the entire structure. It drastically shortens cycle time when shifting between container rows or moving around obstacles.
1.3 Pivot Steering (Spot Turning)
Also known as “spin mode,” pivot steering allows the crane to rotate 360 degrees around its central axis. This is extremely useful in confined spaces where turning radius is limited.
1.4 Diagonal Steering
Diagonal travel supports flexible movement at angles other than 0° or 90°. It is particularly beneficial when the crane must navigate yards with irregular layouts or when working between staggered container stacks.
1.5 All-Wheel Steering
High-end RTGs use independent wheel control, allowing all wheels to steer simultaneously. This provides unmatched control and ultra-smooth repositioning.
Together, these steering modes allow RTG cranes to move quickly, precisely, and safely in any direction, significantly increasing productivity in busy yards.
2. High-Performance Rubber Tyres for Smooth, Stable Travel
The tyres used on RTG cranes are not ordinary industrial tyres. They are large, heavy-duty, heat-resistant rubber tyres specifically engineered for:
- high load-bearing capacity
- continuous operation on abrasive surfaces
- reduced rolling resistance
- vibration absorption
- long service life
2.1 Tyre Composition and Construction
Rubber compounds are optimized for durability and flexibility. Reinforced sidewalls and deep tread designs help absorb shock when traveling over uneven surfaces.
2.2 Low Rolling Resistance
Lower resistance reduces fuel consumption for diesel RTGs and enhances power efficiency for electric RTGs.
2.3 Anti-Skid Properties
High-grip tread helps maintain stability during sudden directional changes, especially useful in port operations where rain and moisture can affect surface conditions.
2.4 Compatibility with Various Surfaces
RTG tyres are designed to operate on:
- concrete
- asphalt
- compacted yard surfaces
This allows operators to move across different working zones without track limitations.
3. Modular and Lightweight Structural Design
A lighter yet strong crane structure improves mobility by reducing energy consumption and making the crane easier to maneuver.
3.1 High-Strength Steel Framework
RTGs are built with high-strength low-alloy steel (HSLA) or European-standard steel, which provides excellent structural integrity while keeping overall weight manageable.
3.2 Optimized Gantry Geometry
Designers use finite element analysis (FEA) to optimize:
- beam shapes
- column profiles
- load paths
This ensures stability without unnecessary mass.
3.3 Modular Assembly
Many RTGs are designed using modular components, enabling easier transportation, quicker on-site assembly, and streamlined maintenance. The reduced structural complexity supports fast and flexible movement throughout the yard.
4. Efficient Power Systems to Support Continuous Travel
Power system design plays a key role in enhancing mobility, especially for long-distance travel.
4.1 Diesel-Powered RTG Cranes
Traditional diesel RTGs use high-torque engines capable of handling heavy loads while maintaining fluid movement. Their mobility advantages include:
- stable power supply
- strong traction performance
- adaptability to remote sites without electrical infrastructure
4.2 Hybrid RTG Cranes
Hybrid RTGs combine a smaller diesel generator with an energy storage system. These offer improved mobility through:
- reduced fuel consumption
- lower emissions
- smoother travel transitions
- quieter operation
4.3 All-Electric RTG Cranes (E-RTGs)
Electric RTGs connected to busbar systems, cable reels, or batteries deliver:
- higher energy efficiency
- precise control
- instant torque response
- lower maintenance
Battery-powered rubber wheeled gantry cranes provide full mobility with zero emissions and are increasingly preferred in green port strategies.
5. Intelligent Control Systems for Precise Travel and Positioning
Modern RTG cranes incorporate advanced automation technologies to enhance travel control and improve mobility under varying yard conditions.
5.1 PLC-Controlled Drive and Steering
Programmable logic controllers (PLCs) coordinate the steering angles and travel speed of each wheel, ensuring synchronized, smooth motion.
5.2 Anti-Sway and Auto-Steering Assistance
Anti-sway systems stabilize the load during travel, allowing operators to move faster without compromising safety. Auto-steering ensures accurate path tracking.
5.3 Variable Frequency Drives (VFDs)
VFDs manage travel motor speed to deliver:
- smooth acceleration and deceleration
- reduced mechanical stress
- precise positioning during lane alignment
5.4 Onboard Diagnostics and Sensors
Sensors continuously monitor:
- wheel alignment
- tyre pressure
- load distribution
- travel speed
- obstacles
These features improve safety and mobility, especially in busy, unpredictable yard environments.
6. Adjustable Wheelbase and Axle Configurations
Some RTG models feature adjustable or optimized wheelbase designs to improve navigating capabilities.
6.1 Longer Wheelbase for Stability
A longer wheelbase reduces sway and provides better stability during long-distance travel.
6.2 Compact Designs for Narrow Spaces
Compact RTGs with reduced width are ideal for small precast yards, steel mills, or manufacturing zones where maneuverability is critical.
6.3 Independent Axle Control
Independent drive axles improve traction and stability when moving on slopes or uneven surfaces.
7. Operator Cab Design for Better Visibility and Control
Mobility is also influenced by how effectively operators can control the crane.
7.1 Elevated Cab Design
High-mounted operator cabs provide a wide field of view, improving navigation during travel.
7.2 Ergonomic Controls
Joystick controls, touchscreen HMIs, and real-time display systems support precise maneuvering.
7.3 Remote Operations
Remote-control RTGs further enhance mobility by allowing operators to control movement from a safe distance with improved situational awareness.
Conclusion
The mobility of a rubber tyred gantry crane is determined by a combination of mechanical, structural, hydraulic, and intelligent control design features. Advanced steering systems, heavy-duty tyres, optimized structural design, powerful drive systems, and smart automation work together to ensure the crane moves freely and safely across diverse yard conditions. These design innovations significantly improve operational flexibility, reduce dependence on fixed infrastructure, and enhance productivity.
As ports, logistics centers, and industrial facilities demand greater efficiency and flexibility, RTG cranes will continue to evolve with even more advanced mobility-enhancing technologies such as autonomous navigation, GPS alignment, and energy-efficient drive solutions. Investing in a crane with superior mobility ensures long-term adaptability, lower operating costs, and improved workflow across all lifting operations.
