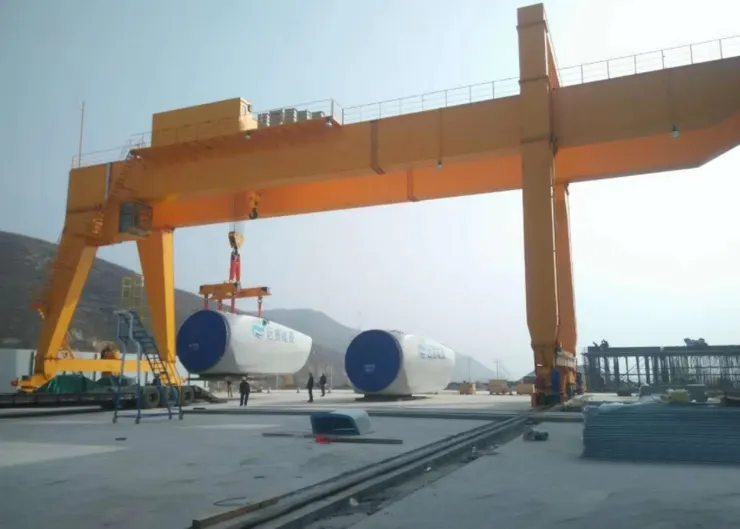

A 100-ton gantry crane is a major piece of heavy lifting equipment used in shipyards, steel mills, precast concrete yards, construction sites, and logistics terminals. At this scale, structural safety becomes the foundation of reliable and accident-free operation. Any weakness in the steel structure, joints, controls, or stability system can lead to severe equipment damage, downtime, and major safety hazards for operators and surrounding personnel. For this reason, industry standards such as FEM, ISO, CMAA, and GB/T provide strict requirements for the design and manufacturing of high-capacity gantry cranes.
This article outlines the key structural safety features required to ensure that a 100 ton gantry crane for sale can operate efficiently, safely, and consistently in challenging industrial environments.
1. High-Strength Materials and Robust Structural Design
The most critical aspect of a 100-ton gantry crane’s safety is the structural integrity of its main components - girders, legs, trolleys, end trucks, and connections.
To achieve long-term stability under heavy loads, the structure must incorporate:
High-Strength Steel
Crane girders and legs typically use Q345B, Q355, Q460, or similar high-strength steel grades with excellent yield strength and toughness. This provides adequate resistance to bending, torsion, and fatigue stress during repeated load cycles.
Full-Penetration Welds and Advanced Welding Technology
For a crane that frequently handles 100 tons or more, weld quality is as crucial as steel grade. Required safety measures include:
- Full-penetration welds for critical joints
- Certified welders using AWS or EN standards
- Ultrasonic, magnetic particle, or radiographic testing for defect detection
- Automated or robotic welding for complex sections
These practices prevent cracks or weld failures that could compromise the crane’s load-bearing capability.
Optimized Girder Structure
Double girder designs are standard for 100-ton gantry cranes due to their superior rigidity and reduced deflection. Engineers must calculate:
- Maximum allowable deflection under full load
- Girder camber correction
- Torsional resistance for long-span cranes
- Reinforcement plates at trolley runway zones
Proper structural geometry ensures stable handling of heavy loads in dynamic working conditions.

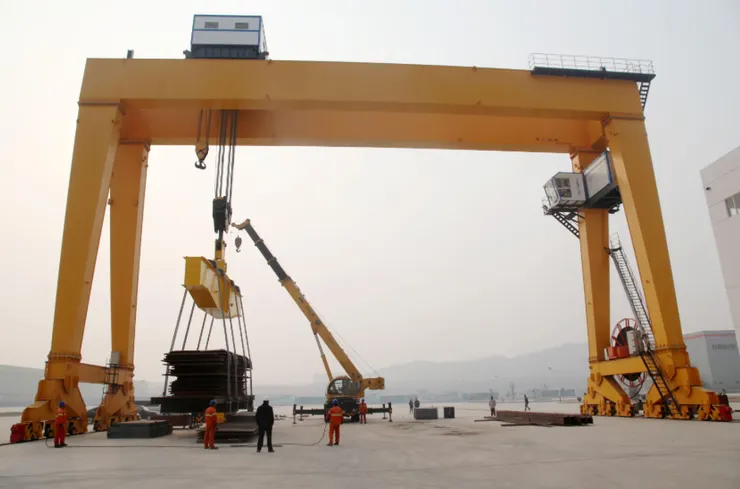

2. Stable and Reinforced Leg Structures
The legs of a gantry crane play a major role in load transfer and overall stability. Safety requirements include:
Box-Type Leg Structure
Box-shaped legs, rather than H-beam or lattice designs, provide higher rigidity and resistance to buckling - especially important for cranes working in outdoor yards or long-span operations.
Reinforcement Ribs and Internal Stiffeners
Inside the box legs, reinforcement ribs distribute load evenly and prevent local deformation. This ensures the legs can handle both vertical loads and lateral forces caused by wind or trolley movement.
Strong Joint Connections
Bolted, welded, or flange-type joints between the legs, girders, and end beams must be stress-tested and designed for:
- Bending strength
- Torsional rigidity
- Fatigue resistance over millions of load cycles
Reliable joints ensure long-term structural stability and prevent leg buckling or misalignment.
3. Heavy-Duty End Beams and Travel Mechanisms
End beams and wheel assemblies must be engineered to safely support a 100-ton load while ensuring smooth travel.
High-Load Wheels and Axles
Wheels are typically made of 65Mn or ZG340-640 cast steel with wear-resistant surfaces to withstand the pressure of continuous heavy loads.
Longitudinal and Transverse Travel Synchronization
For double-leg gantry cranes, synchronization systems prevent skewing or twisting during travel. Requirements include:
- Dual-motor or inverter-based synchronization
- Over-travel protection
- Rail clamps and guide devices
- Real-time monitoring of wheel loads
Proper synchronization is essential to avoid structural deformation caused by uneven movement.
4. Enhanced Stability and Anti-Tipping Features
A 100-ton gantry crane must remain stable under load, during travel, and in strong wind conditions. Key safety features include:
1. Wind-Resistant Design
Cranes operating outdoors must comply with wind load standards for operational and parked conditions. Safety systems include:
- Wind pressure-resistant structural design
- Anemometers for wind speed monitoring
- Automatic shutdown at preset wind limits
- Rail clamps and storm anchors
These features prevent crane overturning during storms or sudden weather changes.
2. Anti-Tipping and Anti-Skewing Mechanisms
Uneven wheel loads or rail irregularities can cause sideslip or tipping. Required safety solutions include:
- Anti-skew deviation sensors
- Electronic correction control
- Mechanical stoppers
- Overload-based wheel load balancing
These mechanisms ensure smooth, stable operation, especially on long tracks.
5. Heavy-Duty Trolley and Hoisting Mechanisms
The trolley is the central part of the crane’s lifting system. For 100-ton lifting operations, structural features must ensure maximum safety and minimal vibration.
Reinforced Trolley Frame
The trolley frame should be constructed using heavy-duty welded box sections, incorporating stiffeners to resist bending and torsion.
High-Strength Wire Ropes or Chains
For 100-ton cranes, multi-stage reeving systems are used with:
- Thick high-strength wire ropes
- Anti-rotation design
- Safe rope winding patterns
- Rope deviation protection
Safety Clutches and Brake Systems
All hoisting mechanisms require:
- Dual braking (service + emergency brakes)
- Fail-safe electromagnetic brakes
- Overspeed protection
- Redundant brake pads to guarantee stopping reliability
These features prevent uncontrolled load drops or runaway trolley movement.
6. Overload Protection and Structural Monitoring Systems
Structural safety is significantly enhanced with real-time monitoring technology.
Load Cells and Overload Limiters
Mandatory for 100-ton operations, these systems ensure:
- Accurate load measurement
- Audible and visual warnings
- Immediate shutdown if overload is detected
Real-Time Structural Stress Monitoring
Advanced cranes may include:
- Torsion and stress sensors
- Fatigue tracking systems
- Wheel load monitoring
These systems allow preventive maintenance and early detection of potential structural issues.
7. Seismic and Environmental Protection
In regions prone to earthquakes or harsh operating conditions, additional structural safety measures are required.
Seismic Reinforcement
Design adjustments can include:
- Base isolation pads
- Shock-absorbing joints
- Strengthened leg supports
Corrosion and Weather Resistance
For cranes operating in coastal, chemical, or humid environments:
- Hot-dip galvanization
- Marine-grade paint coatings
- Stainless steel fasteners
Proper protection prevents structural degradation and extends service life.
8. Safe Access Platforms and Walkways
Maintenance personnel must be able to inspect the crane safely. Required features include:
- Anti-slip walkway grating
- Guardrails and fall-protection systems
- Safe ladder designs
- Access platforms near hoisting and electrical systems
Providing secure access ensures safe maintenance without risk of falls or injury.
Conclusion
A 100-ton gantry crane carries enormous responsibilities, not just in lifting heavy materials but in ensuring safety, reliability, and long-term performance in demanding industrial environments. As the load increases, structural safety becomes even more critical. Choosing a crane with the right structural features - high-strength steel, reinforced legs, advanced welding, anti-tipping systems, load monitoring technologies, and environmental protection - not only prevents accidents but also maximizes operational efficiency and equipment lifespan.
Manufacturers like Aicrane provide comprehensive engineering solutions tailored to these requirements, ensuring that every 100-ton gantry crane meets or exceeds international safety standards.
