The Structure of Single Girder and Double Girder Overhead Cr

Overhead cranes are vital pieces of equipment used in various industries, such as manufacturing, construction, and logistics, to lift, move, and position heavy loads. Among the most commonly used types of overhead cranes are the single girder and double girder cranes. While both types share the same fundamental function, their structure and applications vary significantly. In this article, we will explore the key structural differences between single girder and double girder overhead cranes, their individual components, and the factors influencing their selection for specific tasks.

1. What is an Overhead Crane?

An overhead crane is a type of lifting equipment that consists of a horizontal bridge that moves along two parallel runways. The crane's bridge is mounted on the runways, allowing it to travel back and forth across the area where it is installed. The crane is typically equipped with a hoisting mechanism that can lift, lower, and move loads in a vertical direction, while the bridge's movement allows for horizontal movement across the space.

There are two main configurations of overhead cranes—single girder and double girder cranes. Both systems have distinct designs and offer varying benefits depending on the specific requirements of the application.

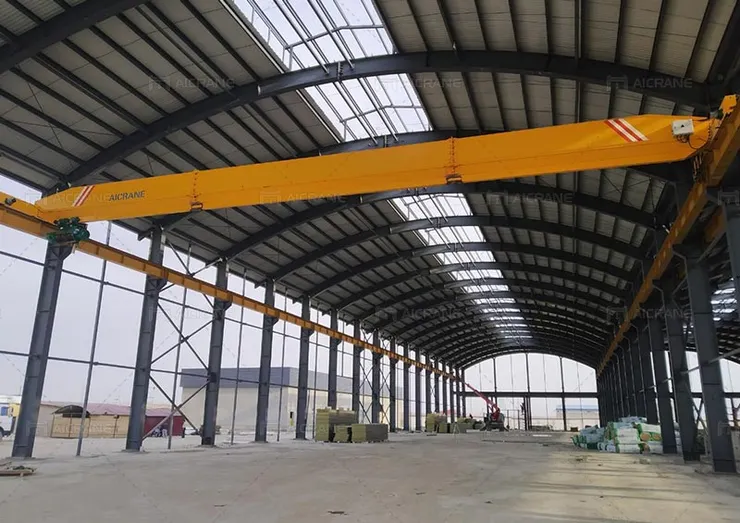

2. Single Girder Overhead Crane Structure

A single girder overhead crane is a simpler and lighter design compared to its double girder counterpart. As the name suggests, the single girder crane uses only one main beam (girder) to support the hoisting mechanism. This type of crane is often used for lighter lifting applications and in environments where space and cost considerations are paramount.

Key Components of Single Girder Cranes:

• Girder: The main horizontal beam, usually made of steel, that carries the load. The single girder is supported on both sides by end trucks, which allow the crane to travel along the runway.
• End Trucks: These are mounted at both ends of the girder and contain wheels that allow the crane to move along the runway. The wheels are designed to run on tracks installed on the runway structure.
• Hoist: The hoist is the lifting mechanism that is mounted on the girder. It moves along the girder, lifting and lowering the load. In a single girder crane, the hoist is typically suspended from the girder and travels along its length.
• Runway System: The runway system includes the rails, supporting structure, and wheels for the crane to travel along. The runway is mounted on columns or other supporting structures and is usually designed to handle the weight of the crane and its load.

Advantages of Single Girder Cranes:

• Cost-Effective: Single girder cranes generally have lower manufacturing and installation costs due to their simpler design. They are ideal for applications where a lighter crane is sufficient for the tasks at hand.
• Space-Saving: The design of the single girder crane allows for more headroom and better utilization of vertical space. This is especially beneficial in environments with limited height clearance.
• Lower Maintenance: Fewer components and a simpler structure mean that single girder cranes tend to require less maintenance compared to double girder cranes.

Limitations of Single Girder Cranes:

• Limited Load Capacity: Single girder cranes are generally suitable for lifting lighter loads, typically up to 20 tons, although higher capacities can be achieved with more robust designs.
• Limited Span: The span of a single girder crane is often shorter compared to a double girder crane, making it less suitable for applications that require wide coverage.

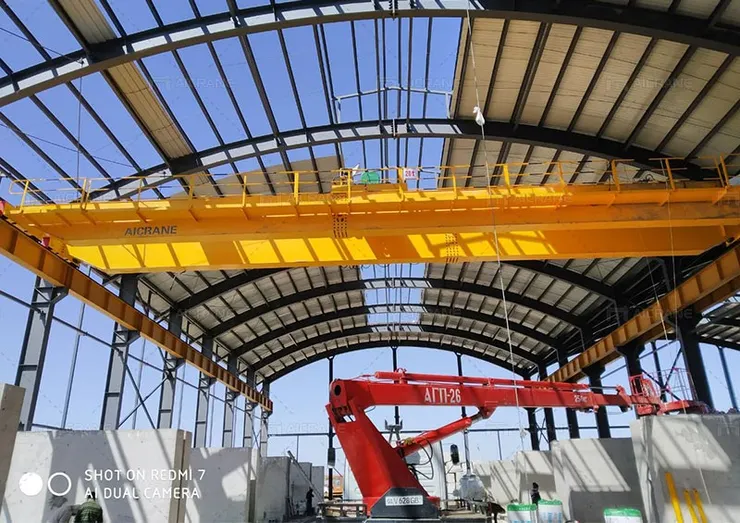

3. Double Girder Overhead Crane Structure

The double girder overhead crane is a more robust and versatile design compared to the single girder crane. As the name implies, this type of crane uses two parallel girders to support the hoisting mechanism. The double girder design allows for higher load capacities, longer spans, and more complex lifting operations, making it ideal for heavy-duty applications.

Key Components of Double Girder Cranes:

• Two Girders: In a double girder crane, there are two parallel girders that are mounted on end trucks. The girders are often made of heavy-duty steel to support the increased load capacities.
• End Trucks: Similar to single girder cranes, double girder cranes have end trucks at both ends of the girders. These trucks contain wheels that allow the crane to move along the runway.
• Hoist: In most double girder cranes, the hoist is mounted on a trolley that moves along the top of the two girders. This design allows for greater lifting heights and more efficient use of vertical space.
• Runway System: Like single girder cranes, double girder cranes have a runway system consisting of rails, supporting structures, and wheels. The runway system is often more substantial in double girder cranes to accommodate the higher weight and larger size.

Advantages of Double Girder Cranes:

• Higher Load Capacity: Double girder cranes can handle much heavier loads, often ranging from 10 to 500 tons or more, making them ideal for industrial and manufacturing environments.
• Longer Span: The use of two parallel girders allows for greater span lengths, meaning double girder cranes can cover a larger area than their single girder counterparts. This makes them suitable for applications that require wide coverage, such as in large warehouses or factories.
• Better Lifting Height: Double girder cranes allow for greater lifting heights, as the hoist is typically mounted on the trolley at the top of the girders. This design maximizes the headroom available for lifting.
• Improved Stability: The two-girder design provides more structural stability, reducing the risk of deflection or bending under heavy loads.

Limitations of Double Girder Cranes:

• Higher Cost: The added complexity of the double girder design makes it more expensive to manufacture and install. Additionally, the crane's larger size requires more materials, increasing both the initial and operational costs.
• Larger Footprint: Double girder cranes require more space for installation due to their larger size and structural components. This can be a limitation in areas with restricted space.
• Higher Maintenance Requirements: The increased number of components in a double girder crane means that maintenance costs and downtime may be higher compared to single girder cranes.

4. Which Crane is Right for Your Needs?

Choosing between a single girder and double girder overhead crane depends largely on the specific requirements of your application. If your lifting needs are relatively light, and you have limited space or budget, a single girder crane may be the best choice. On the other hand, if you require a higher load capacity, longer span, or more lifting height, a double girder crane is the better option.

Factors to consider include:

• Load Weight: For lighter loads, a single girder crane will suffice. For heavier loads, you will need the added strength and stability of a double girder crane.
• Span and Reach: A double girder crane is more suitable for wide areas, while a single girder crane is more compact and efficient in confined spaces.
• Height Requirements: Double girder cranes generally offer more headroom and greater lifting height, making them ideal for high-clearance operations.

Conclusion

Both single girder and double girder overhead cranes offer significant advantages, depending on the requirements of the project. The single girder crane is a cost-effective solution for lighter, smaller lifting tasks, while the double girder crane is a more robust, versatile choice for heavy-duty operations. By understanding the structure, benefits, and limitations of each type, you can make an informed decision that ensures optimal performance and efficiency in your lifting operations.
