In industrial operations, choosing the right type of crane system is crucial for ensuring optimal performance, safety, and cost-effectiveness. Two of the most commonly used overhead crane systems are top running cranes and underhung cranes. Both systems offer different advantages and are suited to various applications, but when it comes to making a cost-effective decision, there are several factors that need to be taken into account. In this article, we will explore the cost considerations between top running cranes and underhung crane solutions, looking at aspects like installation costs, maintenance, operational costs, and long-term investment value.
1. Understanding the Two Crane Types
Before delving into cost considerations, it’s important to understand the basic differences between the two crane systems:

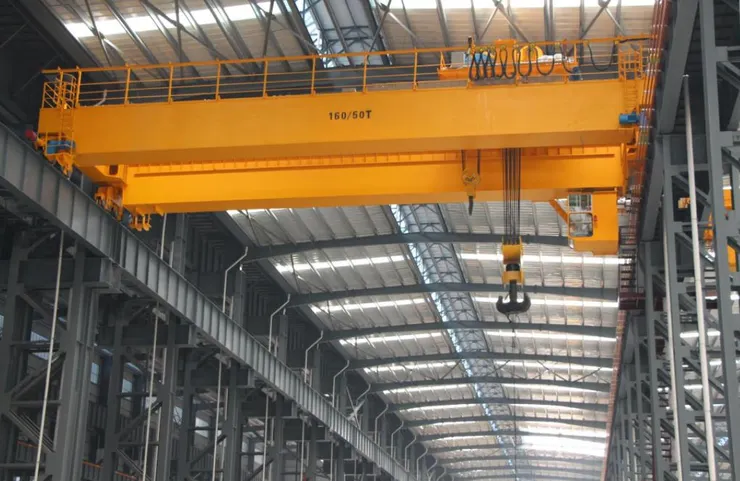

Top Running Cranes
Top running cranes are overhead cranes where the crane’s wheels run on a rail system mounted on the ceiling structure of the building. This type of crane is often used for heavy-duty lifting applications due to its robust design, larger load capacity, and superior stability. Top running cranes are often preferred in larger facilities where the lifting capacity and range of motion need to be maximized.

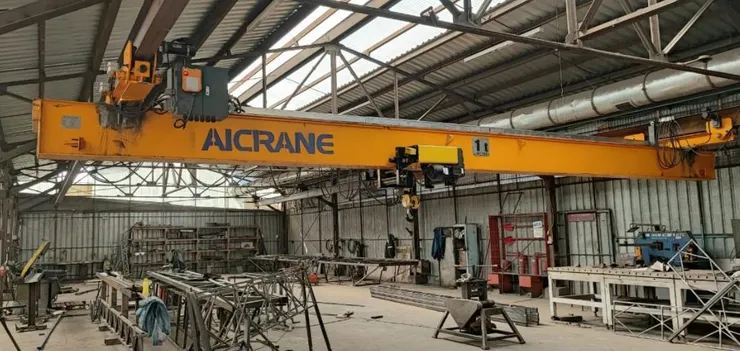

Underhung Cranes
Underhung cranes, also known as underslung cranes, feature a design where the crane’s trolley and hoist run along tracks mounted beneath the building’s overhead structure. These cranes are more common in smaller workshops and light-duty operations, as they are lighter and have a smaller profile. They are suitable for environments where space is limited and the loads being lifted are relatively light.
2. Initial Costs: Installation and Equipment Purchase
Top Running Cranes
The initial cost of a top running crane system is generally higher compared to underhung crane solutions. Several factors contribute to this higher initial investment:
- Infrastructure: Top running cranes require a stronger and more complex structural framework to support the rails and crane components. The ceiling structure must be capable of handling the additional weight and forces exerted by the crane.
- Components: The components of top running cranes, such as the rails, trolley system, and drive mechanisms, are larger and more robust to accommodate the heavier lifting capacities and increased stability. This leads to higher material costs.
- Installation: Installation costs for top running cranes tend to be higher due to the complexity involved in positioning and securing the crane tracks, especially for larger systems. In some cases, modifications to the building structure may be required to accommodate the crane.
Underhung Cranes
Underhung cranes typically have a lower initial cost due to the simpler design and lighter structural requirements. The primary reasons for the lower initial cost include:
- Simpler Infrastructure: Underhung cranes don’t require as heavy a ceiling structure, as the crane rails are mounted directly beneath the building's roof structure. This makes the installation process easier and more affordable.
- Lighter Components: The crane components, such as the rails and trolleys, are smaller and less complex compared to those in top running cranes, resulting in lower material costs.
- Lower Installation Cost: Since the crane system is lighter and simpler, installation tends to be quicker and less expensive. There is typically no need for extensive structural reinforcements.
3. Maintenance Costs: Long-Term Considerations
Top Running Cranes
Top running cranes are generally designed for higher-duty operations, which means they may require more frequent maintenance and servicing due to their heavier lifting capacity and more complex components. Some maintenance-related cost considerations for top running cranes include:
- Component Wear: Given the larger size and higher capacity, parts such as the trolley system, wheels, and drive motors tend to wear out more quickly under heavy loads. These components may need to be replaced more often, leading to higher ongoing maintenance costs.
- Inspection and Repairs: Regular inspection of the structural integrity of the crane system and the building’s ceiling is crucial, as the weight of the crane system places greater strain on the infrastructure. If any part of the structure needs to be reinforced or repaired, it can add to maintenance expenses.
- Spare Parts: Due to the complexity of top running crane systems, the availability and cost of spare parts might be higher. Additionally, repairs can be more time-consuming, leading to increased labor costs.
Underhung Cranes
Underhung cranes are generally easier and cheaper to maintain. This is because they are used for lighter-duty applications, and their simpler design reduces the likelihood of significant wear and tear. Key considerations include:
- Fewer Components: Since underhung cranes have fewer moving parts and simpler mechanisms, they require less frequent repairs and replacements. They tend to be more cost-effective in terms of spare parts and servicing.
- Lower Maintenance Labor: With fewer parts to inspect and repair, maintenance labor costs are typically lower. Additionally, maintenance tasks are often less time-consuming compared to top running cranes.
- Less Structural Stress: The lower weight and lighter construction of underhung cranes mean there is less stress on the building's structure, reducing the likelihood of needing costly repairs or reinforcements.
4. Operational Efficiency and Energy Costs
The operational costs of both crane types are significantly impacted by the lifting capacity, speed, and frequency of use.
Top Running Cranes
- Energy Efficiency: Top running cranes are often more energy-efficient due to their higher lifting capacity and the ability to handle larger loads. This means fewer crane movements are required to complete the same tasks, potentially reducing energy consumption in high-volume applications.
- Higher Power Requirements: Since top running cranes are used for heavier operations, they typically require more powerful motors and drives. This can lead to higher electricity costs for operations.
Underhung Cranes
- Lower Energy Consumption: Underhung cranes are typically used for lighter loads, which often translates to lower energy consumption. The motors and drives used in underhung crane systems are less powerful, leading to savings on electricity bills for operations involving lighter loads.
- Operational Efficiency: While underhung cranes are more efficient in smaller-scale applications, they may require more frequent operation for the same lifting tasks, which could lead to increased energy consumption in cases where larger lifting capacities are needed.
5. Space and Facility Considerations
Top Running Cranes
- Larger Space Requirements: Top running cranes require more ceiling clearance to accommodate the crane rails, trolleys, and lifting components. This might require building modifications if the available space is insufficient.
- Maximized Lifting Height: On the positive side, top running cranes provide greater lifting height and lifting capacity, making them ideal for larger and more space-demanding operations.
Underhung Cranes
- Space-Efficient Design: Underhung cranes take up less headroom, which can be a significant advantage in facilities with limited vertical space. The lighter design also allows these cranes to be used in smaller spaces.
- Limitations on Lifting Capacity: Underhung cranes are generally limited in terms of lifting capacity and height, which may restrict their usefulness in applications requiring heavier lifting and greater operational range.
6. Long-Term Investment and Resale Value
Top Running Cranes
- Higher Initial Investment, but Better Long-Term Value: While top running cranes come with a higher initial cost, they are designed for heavy-duty applications and can offer a better long-term investment, especially in industries with high lifting requirements. Their durability and higher load capacity make them suitable for future-proofing operations as production demands increase.
- Resale Value: The higher quality and capacity of top running cranes typically mean that they have a higher resale value, should the business need to upgrade or sell the crane system in the future.
Underhung Cranes
- Lower Initial Investment, but Limited Scope for Expansion: While underhung cranes are cheaper to install, they might not offer the same return on investment in the long run if the business experiences significant growth or needs to handle larger loads in the future.
- Lower Resale Value: Due to their lighter design and lower capacity, underhung cranes often have a lower resale value. However, for smaller businesses or operations with limited space and less demanding lifting requirements, they may still be a sound investment.
7. Conclusion: Choosing the Right Crane for Your Business
Both top running cranes and underhung crane systems offer their own set of advantages and disadvantages when it comes to overhead crane cost. The best choice for your business will depend on the specific needs of your operation, the type of materials you are lifting, and your long-term growth projections.
If your business requires high lifting capacity, efficiency, and durability for heavy-duty applications, then top running cranes might be the more cost-effective solution in the long run, despite the higher initial investment. On the other hand, if you operate in a smaller facility with lighter lifting needs, underhung cranes offer a more affordable option with lower initial and ongoing costs.
Ultimately, understanding your specific needs and considering both short-term and long-term costs will guide you in making the right decision for your crane system.
