Gantry cranes are essential tools for heavy lifting in various industries, from construction and manufacturing to logistics and warehousing. When it comes to choosing the right gantry crane structure, understanding your facility’s requirements, the type of lifting tasks, and the unique demands of your work environment is critical. For those considering a 10-ton gantry crane, selecting the appropriate structure will help ensure operational efficiency, safety, and cost-effectiveness.
In this article, we will guide you through the key considerations in choosing the right 10 ton gantry crane structure for your facility, covering the types of gantry crane structures, important specifications to consider, and tips for making the right decision.
1. Understanding the Different Types of Gantry Cranes
Before diving into the specifics of selecting the right gantry crane, it’s essential to understand the various types of gantry cranes available:

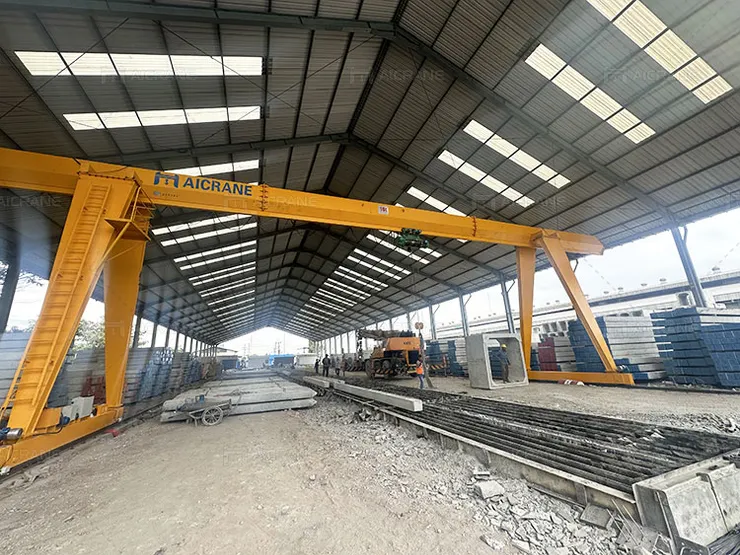

- Single Girder Gantry Crane: The single girder gantry crane features a single beam, which supports the hoist mechanism and provides a straightforward, cost-effective lifting solution. It is ideal for smaller lifting tasks, like lifting lighter loads and operating in smaller spaces. However, it might not be as durable or suited for handling heavy-duty lifting tasks compared to double girder cranes.
- Double Girder Gantry Crane: Double girder cranes come with two beams, providing superior strength, durability, and lifting capacity. This structure is more stable and can support larger lifting capacities, making it the better choice for more demanding tasks. A 10-ton gantry crane can work efficiently in a double girder configuration, especially in environments with heavy loads or frequent use.
- Rubber-Tyred Gantry Crane (RTG): RTGs are mobile cranes that are commonly used in container yards or other outdoor environments. The flexibility and mobility they offer make them ideal for large, open spaces that require frequent repositioning of the crane.
- Wall-Mounted Gantry Crane: If you have limited space and need a crane that can operate along a specific area, a wall-mounted crane may be an option. This crane is fixed to a wall or support structure, ideal for handling lighter loads in confined areas.
For most facilities looking to lift 10 tons of material, a double girder gantry crane is likely the most suitable option. It provides the strength needed for frequent and heavy lifts while offering stability and increased safety.
2. Key Specifications to Consider
When selecting the right 10-ton gantry crane structure for your facility, you need to evaluate several important specifications to ensure that the crane meets your operational requirements. These include:
Lifting Capacity
Lifting capacity is the most important factor in choosing a gantry crane. A 10-ton gantry crane can handle weights up to 10 tons, but it’s essential to choose a model that matches your facility’s typical lifting tasks. If you expect frequent heavy lifts close to the crane’s capacity, consider opting for a crane with a higher lifting capacity for added safety and reliability.
Span
The span refers to the distance between the crane’s two support legs. This measurement is crucial because it determines how wide an area the crane can cover. A 10-ton gantry crane can be designed to fit a wide range of span measurements depending on your facility’s space and layout.
A larger span may be necessary if your facility handles wide or bulky materials, or if the crane will need to cover multiple workstations. However, a larger span may also result in higher construction costs, so make sure to balance span requirements with available space.
Lifting Height
Lifting height is the maximum distance that the crane’s hook or hoist can raise the load. If your facility involves tall storage racks or equipment, you’ll need a gantry crane with an appropriate lifting height. Keep in mind that some applications might require additional height for specialized tasks, such as lifting materials over equipment or machinery.
When deciding on the ideal lifting height for your crane, consider the clearance requirements for overhead obstructions, as well as the space needed for the crane to maneuver within your facility.
Crane Travel and Speed
The speed at which the gantry crane travels horizontally and vertically will influence productivity in your facility. If your operations require fast cycle times and frequent positioning, it’s important to select a crane with an appropriate travel speed. However, keep in mind that higher speed also increases wear and tear on the crane and may require additional maintenance.
If your 10-ton crane is primarily used for heavy lifting tasks in a limited space, a slower travel speed might be sufficient. However, for applications that involve frequent transport or fast cycle times, look for cranes with adjustable speed settings to optimize performance.
Work Duty and Frequency of Use
The work duty of a crane refers to the frequency and intensity of the tasks it performs. Gantry cranes are classified according to their work duty (A1 to A8), with A1 representing light-duty and A8 representing heavy-duty operation. For a 10-ton crane, selecting the right work duty classification will depend on your facility’s workload.
For instance, if your 10-ton gantry crane will be in constant use, performing multiple lifts throughout the day, an A5 or A6 work duty rating may be appropriate. If the crane will only be used occasionally or for lighter tasks, a lower-duty classification might suffice.
Control System and Safety Features
The control system of a gantry crane plays a critical role in its ease of use and safety. Some gantry cranes come with remote control options, allowing the operator to control the crane from a distance, while others offer ground-based control. Consider whether your facility would benefit from wireless controls or if traditional wired controls are adequate.
In terms of safety, look for cranes with built-in features such as:
- Overload protection: Prevents the crane from lifting loads that exceed its rated capacity.
- Limit switches: Ensures that the crane doesn’t exceed its maximum travel range, preventing accidents.
- Anti-sway systems: Reduces the swinging of loads, improving safety and efficiency.
3. Material and Design Considerations
The material and design of the gantry crane will influence both its longevity and performance. Look for cranes made from high-quality steel or other durable materials that can withstand the wear and tear of heavy-duty lifting. Ensure that the design is engineered to fit the space and operational requirements of your facility.
Space and Environment
The available space in your facility is one of the most important considerations when choosing a gantry crane. For a 10-ton crane, you need to make sure there is enough clearance for the crane’s movement, as well as room for the crane’s legs and any equipment it needs to lift. If your facility has a constrained layout or low ceiling height, a customized gantry crane may be required.
Additionally, consider the environment in which the crane will be operating. If your facility deals with harsh conditions, such as high humidity, extreme temperatures, or corrosive materials, you may need to opt for specialized coatings and materials to protect the crane from environmental damage.
4. Maintenance and After-Sales Support
Regular maintenance is crucial to keeping your gantry crane in good working order. When selecting a crane supplier, inquire about the manufacturer’s warranty and after-sales support services. Choose a supplier with a strong reputation for providing timely and efficient support, including on-site maintenance, repair services, and spare parts availability.
Routine inspections and preventative maintenance can extend the lifespan of your crane and prevent costly breakdowns.
5. Cost Considerations
The gantry crane cost is always a factor when making a purchasing decision. While it’s tempting to opt for the cheapest option, it’s essential to consider the long-term value of the crane. Cheaper cranes may come with fewer features, lower-quality components, or a shorter lifespan, which could lead to higher maintenance costs over time.
To ensure that you’re getting the best value, compare quotes from different suppliers and look for a crane that offers the right balance of price, performance, and durability.
Conclusion
Choosing the right 10-ton gantry crane structure for your facility requires careful consideration of various factors, including lifting capacity, span, lifting height, work duty, and safety features. By understanding your specific needs and aligning them with the right crane specifications, you can select a crane that will enhance your operational efficiency, safety, and productivity.
Take the time to evaluate different crane types and structures, understand the unique requirements of your facility, and choose a reliable supplier who can provide excellent after-sales support. With the right gantry crane in place, you can ensure that your heavy lifting tasks are performed efficiently and safely for years to come.
