智慧合約檢測工具Mythril掃描合約教學以及如何安裝到docker

2023/03/14閱讀時間約 10 分鐘
Mythril 是可以對Solidity 程式碼及EVM 字節碼的安全分析工具,使用符號執行等方式檢測合約,可以幫助開發和安全人員發現合約中潛在的漏洞和弱點。
Mythril是由ConsenSys Diligence所開發,檢測為乙太坊、Hedera、Quorum、Vechain、Roostock、Tron 和其他與 EVM 兼容的區塊鏈構建的智慧合約中的安全漏洞,目前為免費的開源工具,可以在GitHub找到相關的原始碼。
Mythril

安裝方式:

docker

docker pull mythril/myth

pip

pip3 install mythril
其他安裝方式可以查看文件
使用docker 運行mythril並分析本地合約的方式:
docker run -v $(pwd): (path) mythril/myth analyze /(path)/(contract name).sol
這邊提供一個有重入漏洞的合約範例
// SPDX-License-Identifier: MIT
pragma solidity ^0.8.13;
contract EtherStore {
  mapping(address => uint) public balances;
  function deposit() public payable {
  balances[msg.sender] += msg.value;
  }
function withdraw() public {
  uint bal = balances[msg.sender];
  require(bal > 0);
  (bool sent, ) = msg.sender.call{value: bal}("");
  require(sent, "Failed to send Ether");
  balances[msg.sender] = 0;
  }
// Helper function to check the balance of this contract
function getBalance() public view returns (uint) {
  return address(this).balance;
  }
}

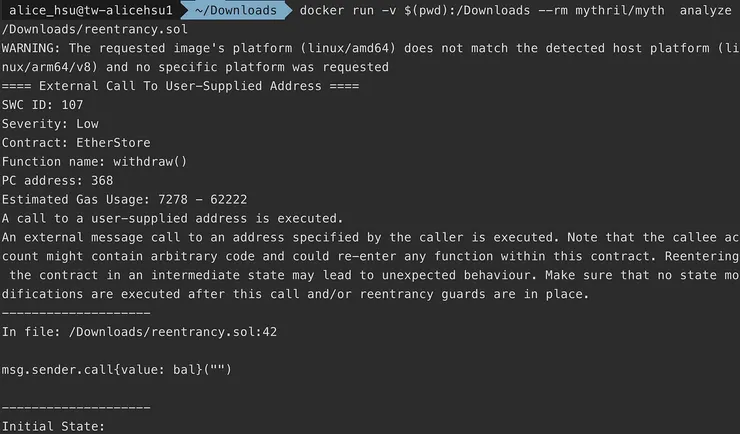

使用docker運行Mythril分析合約之畫面
完整掃描結果如下:
==== External Call To User-Supplied Address ====
SWC ID: 107
Severity: Low
Contract: EtherStore
Function name: withdraw()
PC address: 368
Estimated Gas Usage: 7278 - 62222
A call to a user-supplied address is executed.
An external message call to an address specified by the caller is executed. Note that the callee account might contain arbitrary code and could re-enter any function within this contract. Reentering the contract in an intermediate state may lead to unexpected behaviour. Make sure that no state modifications are executed after this call and/or reentrancy guards are in place.
--------------------
In file: /Downloads/reentrancy.sol:42
msg.sender.call{value: bal}("")
--------------------
Initial State:
Account: [CREATOR], balance: 0x21000537b4, nonce:0, storage:{}
Account: [ATTACKER], balance: 0x20200000000000000, nonce:0, storage:{}
Transaction Sequence:
Caller: [CREATOR], calldata: , value: 0x0
Caller: [ATTACKER], function: deposit(), txdata: 0xd0e30db0, value: 0x1
Caller: [ATTACKER], function: withdraw(), txdata: 0x3ccfd60b, value: 0x0
==== State access after external call ====
SWC ID: 107
Severity: Medium
Contract: EtherStore
Function name: withdraw()
PC address: 556
Estimated Gas Usage: 7278 - 62222
Write to persistent state following external call
The contract account state is accessed after an external call to a user defined address. To prevent reentrancy issues, consider accessing the state only before the call, especially if the callee is untrusted. Alternatively, a reentrancy lock can be used to prevent untrusted callees from re-entering the contract in an intermediate state.
--------------------
In file: /Downloads/reentrancy.sol:45
balances[msg.sender] = 0
--------------------
Initial State:
Account: [CREATOR], balance: 0x21200082d2d9, nonce:0, storage:{}
Account: [ATTACKER], balance: 0x4801000000228c000, nonce:0, storage:{}
Transaction Sequence:
Caller: [CREATOR], calldata: , value: 0x0
Caller: [ATTACKER], function: deposit(), txdata: 0xd0e30db0, value: 0x1
Caller: [ATTACKER], function: withdraw(), txdata: 0x3ccfd60b, value: 0x0

掃描鏈上合約:

mythril可以藉由設定rpc掃描鏈上的智慧合約。

掃描主網(mainnet)合約

Mythril 默認會嘗試查詢infura,因此需要前往infura註冊帳號。
Step 1 : create new api key
create new api key

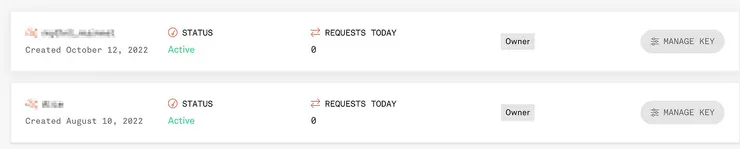

Step 2 : manage key
manage key

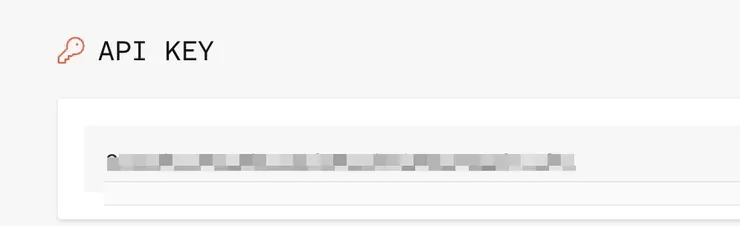

Step 3 :  api key
api key
docker run --rm mythril/myth analyze -a [contract address] --rpc infura-mainnet https://mainnet.infura.io/v3/0df6422189fd41f7bf22587cb3d9bda2 --rpctls True --infura-id [yourApiKey]

掃描BSC(Binance Smart Chain)合約

docker run --rm mythril/myth analyze -a [contract address] --rpc bsc-dataseed1.binance.org:443 --rpctls True --infura-id [yourApiKey]

掃描本地鏈上的合約 (以下以Ganache舉例)

在docker中使用時,與文件有些許不同,需要使用以下指令。
Step 1 : 下載Ganache並在Remix上設定環境

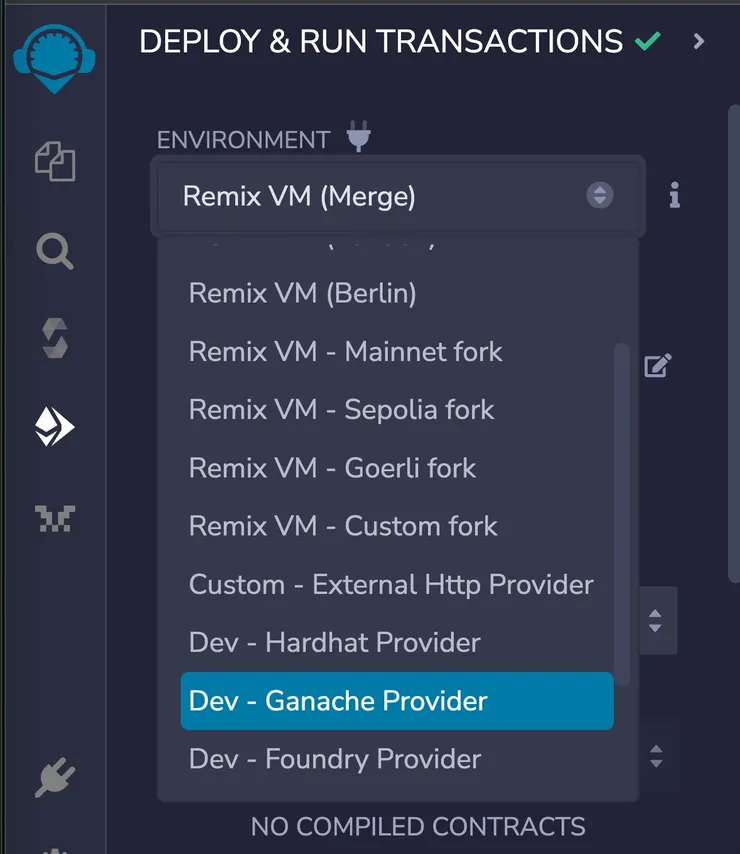

選擇Ganache Provider
Step 2 : 發布合約後執行以下指令
docker run --rm mythril/myth analyze -a [contract address] --rpc host.docker.internal:[portNumber]

輸出格式

Mythril預設將掃描結果呈現在終端機,可以使用 -o 修改輸出格式。
輸出的檔案格式為text、markdown、json和jsonv2。

結論

Mythril旨在發現常見漏洞,並無法精確發現應用程序業務邏輯中的問題,自動化工具有助於檢查常見的 Solidity 漏洞或缺少​​的智慧合約最佳實踐的案例,檢測工具容易受到誤報的影響,需要藉由手動驗證進行協助。
