Bathroom Downlights Buying Guide: How To Select and Install

1. Introduction

The bathroom is an essential space in daily life, whether for morning routines or nighttime relaxation. Proper lighting enhances the user experience, yet many people rely solely on a single overhead light, leading to uneven illumination or insufficient brightness.

Bathroom downlights are a popular choice due to their recessed design, soft lighting, and space-saving benefits. This article will provide a comprehensive guide on selecting the right bathroom downlights, important installation considerations, and the best lighting configurations to create a comfortable, safe, and well-lit bathroom space.

2. Bathroom Lighting Design & Requirements

Before selecting bathroom downlights, it’s essential to understand the lighting needs of different areas, as well as the appropriate color temperature and brightness levels to ensure both functionality and comfort.

A. Lighting Needs for Different Areas

• Vanity Area: Requires soft and even lighting for activities like face washing, shaving, and applying makeup. A combination of vanity lights, strip lights, and downlights is recommended to reduce shadows.
• Toilet Area: Proper lighting enhances comfort and prevents dim environments that can affect reading or phone use. Soft-glow downlights in the ceiling are ideal to avoid glare.
• Shower Area: Since this area is exposed to moisture, waterproof downlights (IP65 or higher) should be used, and light should not be directed at the showerhead to prevent glare.

B. Choosing the Right Color Temperature & Brightness

• For Makeup & Grooming: 4000K (neutral white light) is recommended to ensure accurate skin tone reflection.
• For a Relaxing Atmosphere: 3000K (warm white light) creates a cozy ambiance, ideal for unwinding in the bath.
• Brightness Recommendations:
• • General Areas: Around 75-150 lux for basic visibility.
  • Vanity Area: 150-300 lux for detailed tasks.

3. Criteria for Selecting Bathroom Downlights

A. Waterproof & Dustproof Rating (IP Rating)

Bathrooms are humid environments, so choosing downlights with IP44 or higher is crucial for safety:

• IP44: Splash-resistant, suitable for general bathroom areas (e.g., vanity and toilet areas).
• IP65: Protect against water jets, ideal for shower zones or above bathtubs.

★How to choose downlights with different IP ratings in the bathroom: Discover IP Ratings In LED Lighting For Your Home

B. Light Source Type & Color Rendering Index (CRI)

• LED Downlights: Recommended for their energy efficiency, low heat emission, and long lifespan.

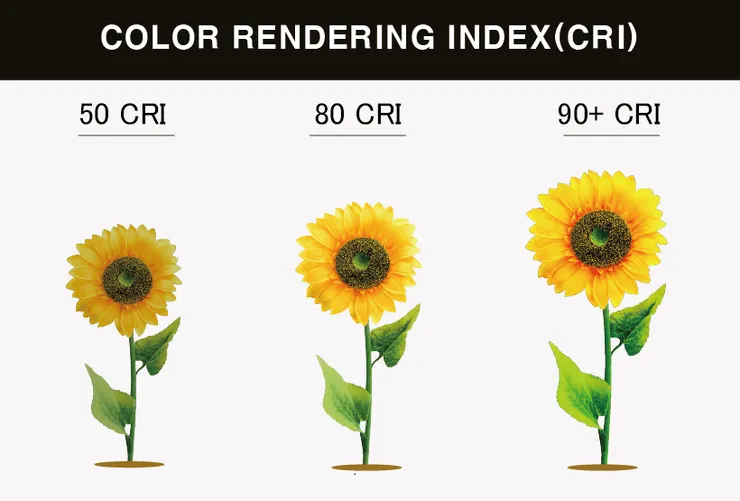

• CRI 90: Ensures accurate color rendering, which is crucial for makeup application.

C. Downlight Cutout Sizes & Installation Requirements

Different downlight sizes suit different spaces:

• 75mm Downlights: 75mm downlights with 36° beam angle are suitable for medium-sized bathroom lighting with uniform light distribution. 75mm downlights with 24° beam angle are also ideal for bathroom accent lighting.
• 95mm Downlights: Best for larger bathrooms or high-ceiling designs to provide broader illumination.
• 7w/10w/13w/15w/18w Downlights: Downlights with different wattage suit different cases and areas. Normally 7w downlights could be used above the mirror for accent lighting while 10w+ downlights are usually used for general lighting in the bathroom.

D. Determining the level of Brightness

Lumens measure the total amount of light emitted by a light source in a unit of time. The appropriate lumen output depends on the room’s function and size:

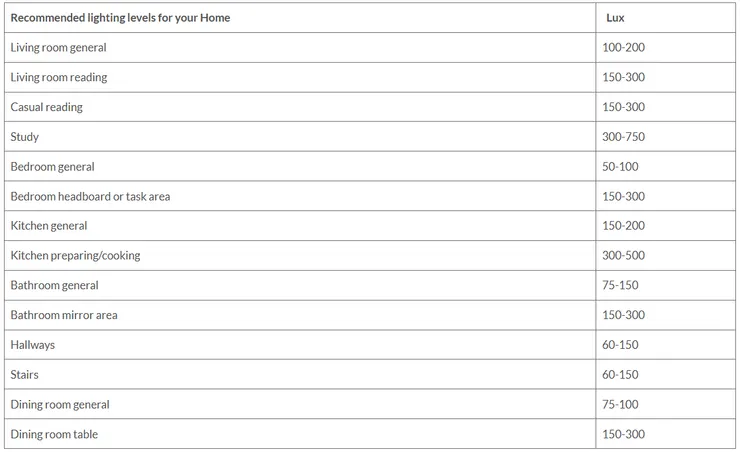

| Recommended Lighting Levels For Residential Spaces/Home Lighting

e. Dimmable & Smart Features

• Dimmable Lighting: Allows brightness adjustment to create different atmospheres for morning, evening, or bath time.
• Smart Sensors: Nighttime sensor lights enhance convenience and reduce glare from sudden brightness.

4. Installation & Configuration Tips for Bathroom Downlights

A. General Lighting

• 75mm or 95mm downlights can be evenly placed on the ceiling to provide uniform brightness.
• Strip lighting can be incorporated to create soft, indirect illumination and avoid overly concentrated light sources.

B. Task Lighting

• Vanity Area: 55mm or 75mm downlights can be installed above the mirror normally, paired with vanity lighting to minimize shadows.
• Makeup Area: Downlights with high CRI (90+) are recommended for accurate color representation.

C. Mood Lighting

• Under-Counter Sensor Light Strips: Provide gentle lighting at night and enhance a luxurious feel.

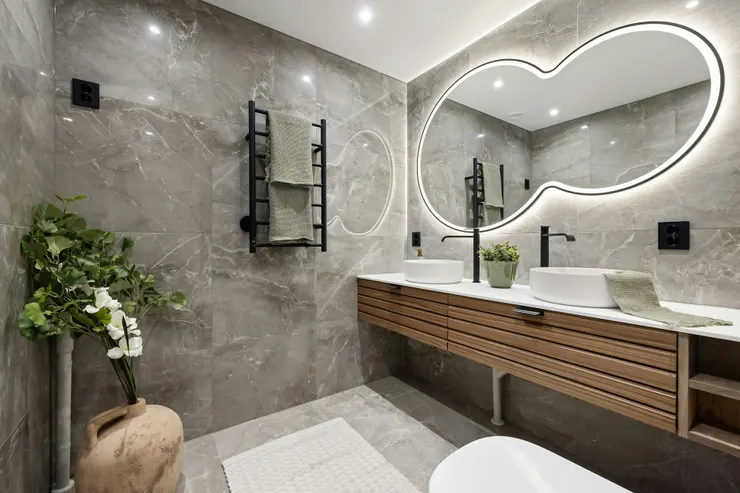

• Strip Lighting: Install waterproof LED strips around the mirror to add depth to the space.

D. Safety Considerations

• Avoid direct lighting in the shower area, positioning downlights in the appropriate area for softer illumination.
• Install the lights by professional teams to reduce electrical hazards.

5. Recommended Downlight Configurations for Different Bathroom Sizes

A. Small Bathroom (5㎡)

• 55mm or 75mm downlights ×1 (Lighting for Vanity Area)
• 75mm downlights ×2 (Main Lighting)
• Light Strips ×1 (Installed around the mirror)

B. Medium Bathroom (8㎡)

• 75mm or 95mm downlights ×3-4 (Evenly distributed on the ceiling)
• 75mm or 95mm downlights ×1-2 (Lighting for Vanity Area)
• IP65 downlight ×1 (Lighting for Shower Area)
• Light Strips ×2 (Under-cabinet & Mirror mood lighting)

C. Large Luxury Bathroom (10㎡+)

• 95mm downlights ×5-6+ (Evenly distributed on the ceiling)
• 75mm or 95mm downlights ×2+ (Lighting for Vanity Area)
• IP65 downlight ×1+ (Lighting for Shower Area)
• Light Strips ×2 (Under-cabinet & Mirror mood lighting)

Note: The above information is only for reference, the lighting design, cutout size, and wattage of downlights should be adapted to the real situation and owner requirements.

6. Conclusion

Choosing the right bathroom downlights significantly enhances lighting quality, space ambiance, and functionality. It’s important to select downlights based on different area needs, ensuring appropriate IP ratings, color temperature, wattage, and cutout sizes for a safe and visually appealing setup.

By effectively configuring general, task, and mood lighting while integrating smart controls or dimming features, your bathroom can become not only more practical but also a relaxing and luxurious part of your home!

Welcome to contact us for Home lighting design!

E-mail: sales@tj2lighting.com

Whatsapp: +886 988-147729

Line: @034wnuyy

More Information:

How LED downlights and Lighting design Enhance Your Home?

RD-LED-DEEP downlights-New Arrivals | august 2023

How to Choose LED Downlights for Your Home? Most useful guideline!

How to Choose The Right Recessed Downlight? ultimate Guide for Interior Designers and Architects!

LED Recessed Downlights Buying Guide: Types, Select and Install! 【Interior Design】

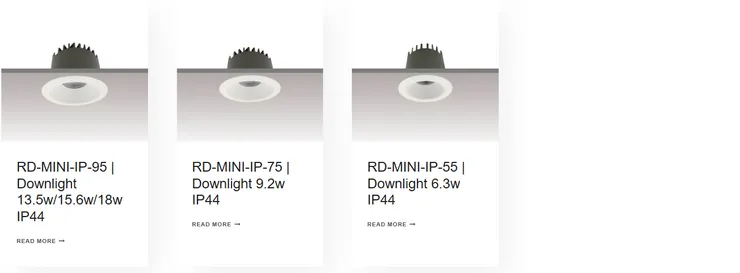

| Recommend LED Downlights
