Customized Corrosion Protection for Shipyard Gantry Cranes

Shipyard gantry cranes are critical assets in maritime operations, responsible for lifting and transporting heavy loads such as ship components, containers, and raw materials. Operating in coastal environments exposes these cranes to harsh conditions, including salt-laden air, humidity, high winds, and fluctuating temperatures, all of which accelerate the corrosion of metal structures. Without effective corrosion protection, gantry cranes can experience reduced structural integrity, frequent maintenance needs, and shortened service life. This makes customized corrosion protection solutions not just an optional feature but a necessity for shipyards aiming to maintain operational efficiency and safety.

The Challenge of Corrosion in Shipyards

The consequences of corrosion in shipyard gantry cranes are multifaceted:

1. Structural Weakness: Rust reduces the load-bearing capacity of crane components, posing safety risks during lifting operations.
2. Operational Downtime: Frequent repairs and maintenance interrupt crane availability, affecting the shipyard’s overall productivity.
3. Higher Lifecycle Costs: Replacement of corroded parts and preventive maintenance increases operational costs.
4. Safety Hazards: Weakened crane structures are prone to mechanical failure, which could result in accidents and potential damage to cargo or ships.

Given these risks, implementing a robust, tailored corrosion protection strategy is essential for shipyard gantry cranes.

Principles of Customized Corrosion Protection

Effective corrosion protection for gantry cranes in shipyards is not a one-size-fits-all solution. Customization ensures that protective measures address the specific environmental conditions, operational loads, and maintenance capabilities of each crane. Several key principles guide the design of a customized corrosion protection system:

1. Environmental Assessment

Before any protective strategy is applied, a thorough assessment of the crane’s operating environment is necessary. Factors such as proximity to the sea, average wind speeds, rainfall patterns, temperature variations, and exposure to industrial pollutants are considered. For instance, cranes operating near open docks with high salt spray exposure require more aggressive protection than those located in partially sheltered areas.

2. Material Selection

Material choice is the foundation of corrosion resistance. While steel is the most common construction material for gantry cranes, its susceptibility to rust necessitates the use of protective coatings or alternative materials. High-strength, weathering steel (Corten) or stainless steel components can be incorporated in critical areas, reducing long-term corrosion risk. In addition, protective alloys or galvanization may be applied to specific structural elements like joints, bolts, and trolley rails, where corrosion tends to initiate first.

3. Coating Systems

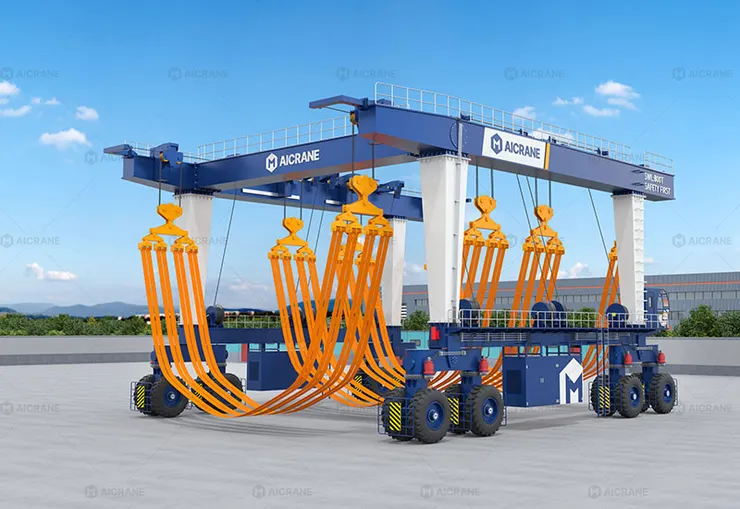

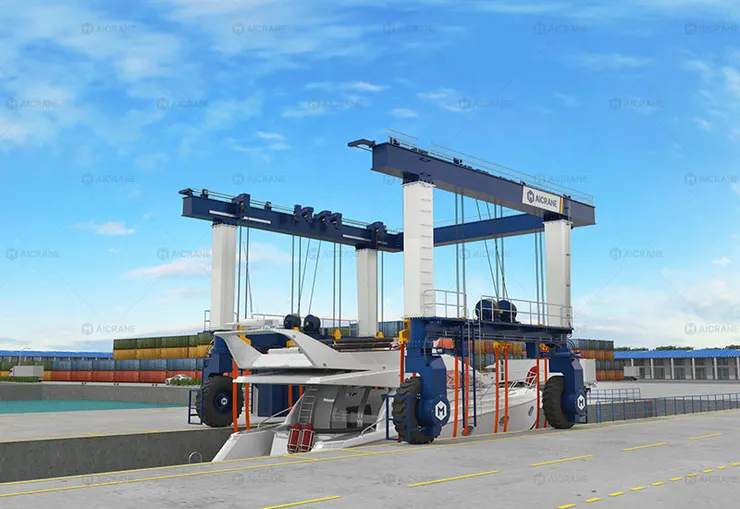

Customized coating systems are among the most effective strategies for corrosion protection. Modern shipyard gantry cranes or boat hoists often utilize multi-layer coating systems tailored to their exposure levels. A typical system may include:

• Surface Preparation: Abrasive blasting to remove existing rust and create a clean, rough surface for coating adhesion.
• Primer Layer: Epoxy primers provide adhesion and corrosion resistance by forming a barrier between steel and the environment.
• Intermediate Layer: Epoxy or polyurethane intermediates add thickness, UV resistance, and additional barrier protection.
• Topcoat Layer: Polyurethane or polysiloxane coatings offer weather and UV resistance while providing the desired color coding for safety and visibility.

The coating system is often tailored based on the expected lifespan of the crane, environmental aggressiveness, and maintenance accessibility. For example, cranes in extremely humid or saline environments may require thicker multi-layer coatings, whereas partially sheltered cranes may need only a standard epoxy-polyurethane system.

4. Cathodic Protection

For highly exposed areas or critical components, cathodic protection can supplement coating systems. Sacrificial anodes or impressed current systems prevent steel from oxidizing by redirecting corrosion currents. This technique is commonly applied in marine shipyards where structural parts are permanently exposed to saltwater spray.

5. Design Modifications

Corrosion protection is not limited to coatings and materials. Structural design modifications can reduce areas where water and salt accumulate. Examples include:

• Adding drainage channels to prevent water pooling on crane beams.
• Using sloped surfaces rather than horizontal ones to avoid stagnant water.
• Designing closed sections with proper ventilation to reduce humidity accumulation.

6. Maintenance and Monitoring

Even the best protective systems require ongoing maintenance and monitoring. Shipyard operators can implement predictive maintenance programs that use regular inspections, ultrasonic thickness measurements, and corrosion sensors to detect early signs of degradation. A customized maintenance plan ensures that touch-ups, repainting, or component replacements occur before corrosion compromises crane safety or performance.

Case Study: Coastal Shipyard Gantry Crane

Consider a 100-ton double girder gantry crane installed in a coastal shipyard in Northern Europe. Operating under frequent sea spray and high winds, the crane requires enhanced protection compared to standard warehouse cranes. A customized corrosion protection plan for this crane might include:

• Use of high-strength weathering steel for the main girders.
• Abrasive blasting followed by a three-layer epoxy-polyurethane coating system.
• UV-resistant topcoat with anti-fouling properties for exposure to direct sunlight and salt particles.
• Sacrificial anode system for critical trolley rails and cable drums.
• Design adjustments to include water drainage channels and sloped beam surfaces.
• Bi-annual inspections combined with corrosion sensors to track early signs of rust.

This customized solution extends the service life of the crane, reduces downtime, and lowers long-term maintenance costs, demonstrating the value of tailored protection strategies.

Benefits of Customized Corrosion Protection

Implementing a customized corrosion protection strategy provides several tangible benefits for shipyard operations:

1. Extended Crane Lifespan: Properly protected cranes can last decades, even in harsh marine environments.
2. Reduced Maintenance Costs: Fewer repairs and replacements lead to significant operational savings.
3. Enhanced Safety: Stronger, corrosion-free structures reduce the risk of mechanical failures and accidents.
4. Operational Reliability: Minimizing downtime ensures smooth handling of ship components and materials, improving overall productivity.
5. Compliance with Industry Standards: Adhering to international standards for marine equipment ensures safety, reliability, and insurance compliance.

Conclusion

Shipyard gantry cranes operate in one of the most challenging industrial environments. Exposure to salt-laden air, moisture, wind, and varying temperatures accelerates corrosion, threatening both safety and operational efficiency. Customized corrosion protection, combining environmental assessment, material selection, advanced coating systems, cathodic protection, design modifications, and regular maintenance, is essential to maximize the lifespan and performance of these cranes.

Investing in tailored corrosion protection solutions allows shipyards to minimize operational downtime, reduce long-term costs, and maintain high safety standards. As shipyard operations continue to evolve with larger vessels and heavier loads, the importance of corrosion-resistant gantry cranes will only grow. Shipyard managers who prioritize customized corrosion protection ensure that their cranes remain reliable, efficient, and safe for decades of service.
