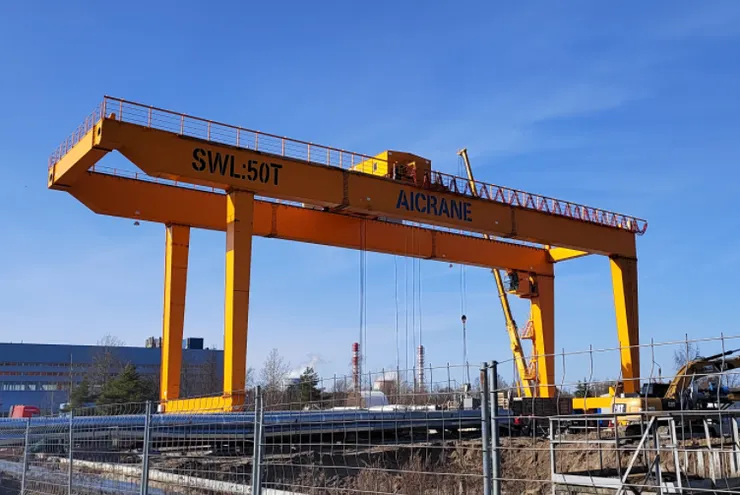

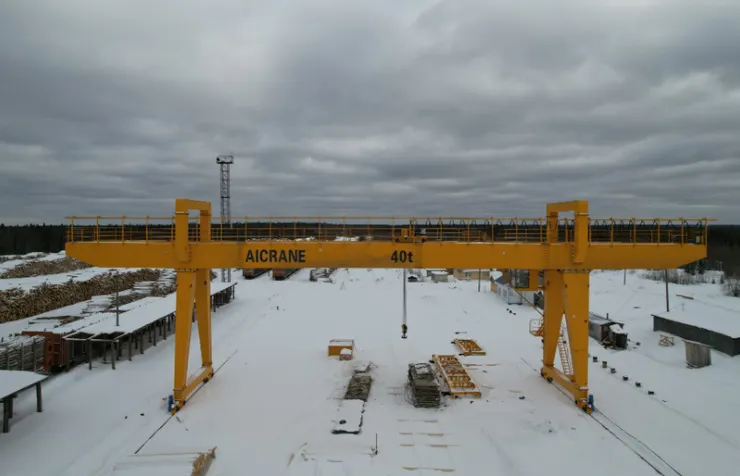

Long span double girder gantry cranes are critical lifting solutions in heavy industry, ports, shipyards, steel plants, precast concrete yards, and logistics hubs. Their large spans and high lifting capacities allow them to handle substantial loads over wide areas—often transforming material handling efficiency and throughput. However, the benefits come with considerable cost challenges. From initial capital investment to long-term operation and maintenance, the total cost of ownership (TCO) can be substantial.
Understanding what drives these costs and how to manage them effectively is essential for buyers, engineers, and asset managers. This article explores in depth the major cost challenges associated with long span double girder gantry cranes and offers strategic insights into cost optimization.
1. Upfront Capital Expense: A Major Barrier
1.1 High Manufacturing and Material Costs
One of the most significant cost challenges is the upfront capital expense of purchasing a long span double girder gantry crane. These cranes require:
- Large quantities of high-strength steel for girders and legs
- Precision fabrication to maintain structural integrity over long spans
- Heavy-duty components, including wheels, motors, gearboxes, and control systems capable of supporting and moving very heavy loads
The cost of materials like structural steel fluctuates with global markets, tariffs, and supply chain conditions. During periods of high steel prices, gantry crane costs can spike dramatically.
Fabrication and welding complexity also increases with span length. A long span must resist bending and torsion forces, which requires thicker sections, more reinforcement, and precise engineering—adding to labor and machining costs.
1.2 Custom Engineering and Design Fees
Unlike standardized smaller cranes, long span units often require custom design solutions. Each project has unique span requirements, load profiles, site constraints, and integration needs (e.g., automation, PLC controls), leading to:
- Longer design times
- Additional engineering resources
- Stress analysis and structural validation
These design costs are usually built into the double girder gantry crane price but can vary widely based on project complexity.
2. Logistics, Transportation, and Delivery Challenges
Once manufactured, the crane must be transported to the site—a non-trivial task for long-span structures.
2.1 Oversized Loads and Permitting
Long span gantry components often exceed standard shipping dimensions, especially:
- Girders that span wide working areas
- Legs that are tall or heavy
- Auxiliary components (cabin, control panels)
Transporting oversized loads involves:
- Special permits
- Escorted transport
- Route planning to avoid low bridges or tight turns
These logistics costs can escalate quickly, especially for international projects.
2.2 Risk and Damage During Transit
Large, heavy components are more susceptible to damage during transport. Protective packaging, shock absorption systems, and insurance further add to logistics costs.
3. Installation and Site Preparation Costs
Installation is another major cost component that is often underestimated.
3.1 Site and Foundation Works
Long span gantry cranes require robust foundations or rails with exceptionally tight tolerances. Poorly prepared sites can lead to alignment issues and long-term operational problems. Site preparation might include:
- Ground leveling
- Concrete foundation pours with precise reinforcement
- Rail installation and alignment
These civil works can cost as much or more than the crane itself in some cases.
3.2 Skilled Installation Labor
Due to their complexity, long span gantry cranes require skilled riggers, welders, and crane technicians for assembly and commissioning. In many regions, the availability of qualified labor raises costs.
3.3 Equipment for Assembly
Assembly often requires auxiliary equipment:
- Large mobile cranes
- Lifting frames
- Scaffolding
- Rigging gear
These rental costs can accumulate rapidly on complex installations.
4. Operational Costs: Beyond the Purchase Price
Once installed, long span gantry cranes incur ongoing operational costs that significantly impact total ownership.
4.1 Power Consumption
Larger cranes with high lifting capacities and long travel distances consume considerable electrical power. Operating multiple cranes intensifies energy demand, raising utility costs.
4.2 Maintenance and Downtime
Maintenance of structural, mechanical, and electrical systems is both necessary and expensive. Regular inspection and servicing include:
- Lubrication
- Bearing and wheel checks
- Brake system testing
- Motor and gearbox servicing
- Control system diagnostics
Unexpected breakdowns or part failures can lead to unplanned downtime, which is costly in terms of lost productivity.
5. Spare Parts and Component Replacement Costs
Long span cranes use heavy-duty, specialized parts that can be expensive to replace.
- Custom wheels and wheel assemblies
- Specialty gearboxes and motors
- Custom cable reels and festoon systems
- Programmable controllers and sensors
Lead times on specialty items can be lengthy, forcing facilities to keep expensive spare parts in inventory.
6. Safety Compliance and Regulatory Costs
Safety regulations often require investments in:
- Guardrails and safety cages
- Anti-collision devices
- Overload protection systems
- Emergency stop systems
- Fire protection systems
Compliance with local or international safety standards (OSHA, ISO, etc.) increases upfront and ongoing costs but is essential for worker safety and liability mitigation.
7. Financing and Interest Expenses
Many companies finance heavy industrial equipment rather than paying cash upfront. Interest payments on loans or lease financing add to overall cost.
Long span cranes with longer delivery and installation cycles may defray costs over extended periods, but financing fees accumulate over time.
8. Hidden and Indirect Costs
Long span double girder gantry crane projects often incur hidden expenses:
8.1 Project Management Overheads
Coordinating manufacturing, transport, installation, and commissioning across multiple stakeholders incurs project management costs.
8.2 Training and Ramp-Up Time
Operators and maintenance staff need training on new equipment. During this learning curve, efficiency may be lower, representing an indirect cost.
8.3 Integration with Facility Systems
Integrating crane controls with existing facility infrastructure (power, networking, safety interlocks) can require custom work and additional electrical engineering.
9. Strategies for Managing Cost Challenges
Despite the inherent expense, strategic planning can reduce overall costs and improve return on investment.
9.1 Early, Comprehensive Planning
Define needs carefully:
- Required span and capacity
- Duty cycles and work classifications
- Future growth and scalability
Early planning enables accurate engineering, avoids redesigns, and reduces scope creep.
9.2 Competitive Bidding and Supplier Vetting
Getting multiple bids from reputable crane manufacturers can reveal cost differences and foster competitive pricing. Evaluating supplier experience and track record is critical—cheapest is not always best.
9.3 Modular and Standardized Design Where Possible
Adopting standardized components reduces engineering costs and simplifies spare parts inventory.
9.4 Investment in Quality Saves Long Term
Choosing high-quality parts and proven designs may cost more upfront but reduce maintenance, downtime, and replacement costs later.
9.5 Consider Total Cost of Ownership (TCO)
Instead of focusing on purchase price alone, evaluate TCO, including:
- Energy efficiency
- Maintenance cycles
- Expected service life
- Resale value
This approach promotes smarter capital allocation.
9.6 Plan for Spare Parts and Support Early
Negotiating spare parts pricing and support contracts upfront can reduce long-term expenses when parts are needed.
10. Future Cost Influencers
Several trends may influence future cost patterns in long span gantry cranes:
10.1 Automation and Smart Controls
Automated features (e.g., PLC control, remote operation, predictive maintenance) add upfront cost but can reduce operational expenses and improve safety.
10.2 Energy Efficiency Technologies
Variable frequency drives (VFD), regenerative braking, and smart power management are becoming mainstream. While they raise initial cost, they reduce energy consumption over the crane’s life.
10.3 Supply Chain Dynamics
Global material costs and logistics continue to be affected by macroeconomic conditions, tariffs, and geopolitical factors.
Conclusion
Long span double girder gantry cranes are indispensable in heavy material handling environments, offering unparalleled capability. Yet, their high upfront costs, complex logistics, and significant operational expenses pose real financial challenges.
By understanding the components of cost—from material and engineering to installation, maintenance, and regulation compliance—companies can make informed decisions. Through careful planning, competitive procurement, and a focus on total cost of ownership, the financial burden of long span gantry crane projects can be managed effectively.
The key lies in proactive cost analysis, strategic supplier selection, investment in quality, and long-term operational planning—ensuring that the crane not only meets performance needs but also delivers value throughout its service life.
