Carbon-to-Hydrogen Molar Ratio in Biochar: A Key Quality Ass

The C/H molar ratio refers to the ratio of carbon atoms to hydrogen atoms in the molecular composition of biochar. This ratio is a direct reflection of the biochar’s chemical structure and stability. A higher C/H ratio typically indicates a greater degree of carbonization, suggesting enhanced stability, higher fixed carbon content, and better resistance to degradation in the environment.

For example:

• High C/H ratio (>30): Indicates a well-carbonized biochar, suitable for long-term carbon sequestration and soil amendment.
• Low C/H ratio (<10): Reflects less carbonization, which might limit the biochar’s durability and effectiveness in certain applications.

Why is the C/H Molar Ratio Important?

1. Indicator of Stability

Biochar with a high C/H molar ratio is more resistant to microbial degradation, making it ideal for applications requiring long-term carbon sequestration. This characteristic is particularly beneficial in climate change mitigation strategies.

2. Impact on Soil Health

Biochar with a stable structure contributes to improved soil health by enhancing water retention, nutrient availability, and microbial activity. These benefits are closely linked to the chemical stability implied by a high C/H ratio.

3. Energy Content

For biochar used as a renewable energy source, such as in biomass combustion or co-firing, a high C/H ratio correlates with higher energy density and combustion efficiency.

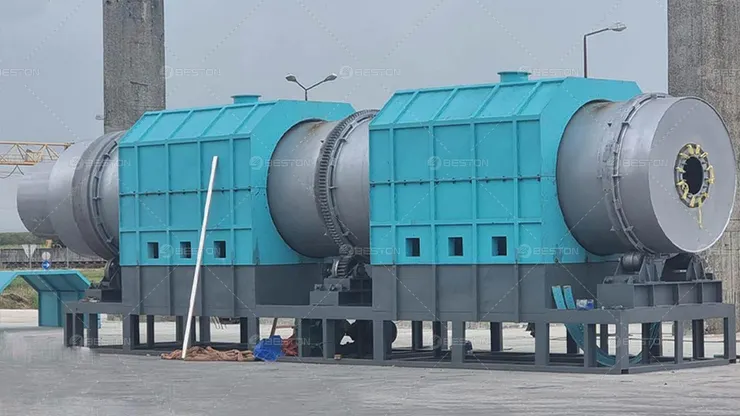

Role of Biochar Pyrolysis Equipment

The quality of biochar, including its C/H molar ratio, is largely influenced by the pyrolysis process. Advanced biochar pyrolysis equipment enables precise control over key parameters such as temperature, residence time, and heating rate, all of which affect the biochar's molecular composition.

1. Temperature Control

Temperature is the most critical factor influencing the C/H ratio. Higher pyrolysis temperatures (above 500°C) typically result in a higher C/H molar ratio by promoting the release of hydrogen-rich volatile compounds. Modern biochar pyrolysis equipment is equipped with advanced temperature control systems to ensure consistent results.

2. Feedstock Customization

Different biomass feedstocks yield biochar with varying C/H ratios. For instance, woody biomass often produces biochar with a higher C/H ratio compared to agricultural residues. State-of-the-art pyrolysis systems allow operators to customize the process based on the specific feedstock used.

3. Continuous Operation

Fully automated biochar pyrolysis equipment ensures a steady production process, reducing variations in product quality. Continuous systems are particularly advantageous for large-scale biochar production.

Measuring the C/H Molar Ratio

The C/H molar ratio of biochar can be determined using techniques such as elemental analysis. In this process, the percentage of carbon (C) and hydrogen (H) in the biochar sample is measured, and the molar ratio is calculated using the atomic weights of these elements.

For example:

• Carbon content: 80%
• Hydrogen content: 2%
• C/H molar ratio = (80/12) / (2/1) = 33.3

This value indicates a highly carbonized biochar with excellent stability and performance characteristics.

Optimizing Biochar Production for Desired C/H Ratios

Achieving the optimal C/H molar ratio requires a combination of process expertise and advanced technology. Best practices include:

• Selecting feedstocks with high lignin content for higher carbon yield.
• Operating at temperatures that balance energy efficiency and carbonization levels.
• Utilizing sophisticated biochar pyrolysis equipment for precise control over all process parameters.

The C/H molar ratio is a key metric in evaluating the quality of biochar. With the help of advanced biochar pyrolysis equipment, producers can achieve biochar with tailored characteristics for specific applications. By focusing on this critical quality indicator, the biochar industry can contribute significantly to sustainability goals in agriculture, energy, and environmental management.
