How Electric Overhead Cranes Lift and Move Loads

Electric overhead cranes, also known as EOT cranes, are essential equipment for lifting and moving heavy loads in various industries, including manufacturing, construction, and warehousing. These cranes are designed to handle substantial weight and work in environments where precision and reliability are crucial. In this article, we will provide a detailed breakdown of how electric overhead cranes operate to lift and move loads, exploring their key components, mechanisms, and safety features that make them indispensable in industrial operations.

1. Overview of Electric Overhead Cranes

An Electric Overhead Traveling (EOT) crane is a type of crane system that consists of a horizontal beam or girder, a trolley that moves along the girder, and a hoist mechanism that lifts or lowers a load. The electric overhead crane is typically mounted on a fixed structure, such as the ceiling of a warehouse or factory. Unlike mobile cranes, which are used for outdoor applications, EOT cranes are designed for indoor use, where space constraints and the need for precise load handling are paramount.

EOT cranes are powered by electricity and come in different types, including single girder and double girder cranes, depending on the required load capacity and span of the lifting system. These cranes are highly efficient and are used for a wide variety of applications, from lifting raw materials in steel mills to assembling machinery in manufacturing plants.

2. Key Components of an Electric Overhead Crane

To fully understand how electric overhead cranes lift and move loads, it's essential to familiarize ourselves with their key components. These include the crane's structure, hoist system, trolley, and control system.

a. The Crane Structure

The structure of an electric overhead crane consists of the main girder or beam, which is usually made of high-strength steel to support heavy loads. The girder is mounted on two end trucks or supports, which are positioned on rails or tracks that run along the length of the crane's span.

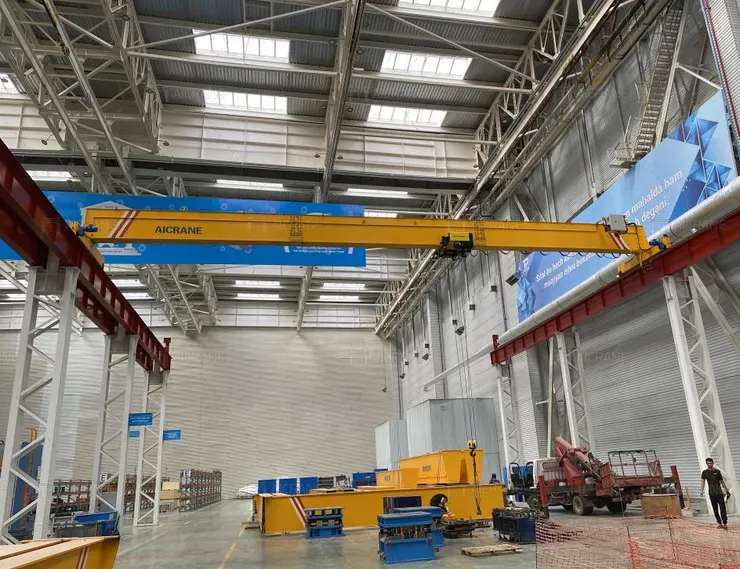

• Single Girder Cranes: These cranes have one horizontal beam that carries the load, typically used for lighter loads (up to 20-30 tons).

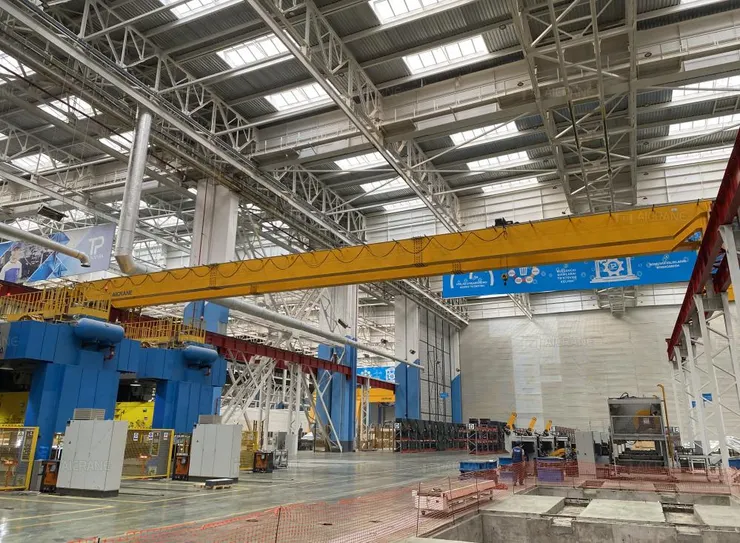

• Double Girder Cranes: These double girder overhead cranes feature two parallel beams, providing enhanced strength and stability, making them suitable for heavy-duty applications (up to 500 tons or more).

b. Hoist Mechanism

The hoist is the primary mechanism responsible for lifting and lowering loads. It consists of several parts, including the motor, drum, wire rope or chain, and hook or lifting device. The hoist is powered by an electric motor that drives the drum, causing it to wind or unwind a cable (or chain) attached to the load.

• Electric Motor: The electric motor generates the power required to lift and lower the load. It is typically designed for high efficiency and durability.
• Drum and Wire Rope: The drum is a cylindrical component that winds the wire rope around it. The wire rope is designed to handle heavy loads and provides the flexibility needed to raise or lower the load.
• Hook or Lifting Device: The hook, or any other lifting attachment, is used to connect the load to the crane. It is designed to hold and secure the load during the lifting process.

c. Trolley

The trolley is the moving component of the crane, which travels along the crane's girder to transport the load. The trolley moves horizontally along the beam, allowing the hoist to be positioned over the load or the desired location within the crane's working area. The trolley is powered by an electric motor and travels along the crane's track with precision.

d. Control System

The control system of an electric overhead crane is essential for operating the crane safely and efficiently. Modern cranes often feature advanced control systems that allow operators to maneuver the crane with high accuracy.

• Pendant Controls: These are handheld control units connected to the crane that allow operators to control the crane's movements, such as lifting, lowering, and moving the trolley.
• Radio Controls: Some cranes are equipped with radio remote control systems, allowing operators to control the crane from a distance, which is particularly useful in hazardous environments.
• Cabin Controls: For larger cranes, operators may work from a cabin positioned on the crane itself, providing a clear view of the load and the surrounding environment.

3. How Electric Overhead Cranes Lift Loads

The process of lifting and moving loads with an electric overhead crane involves a series of coordinated steps. Here's a breakdown of how this works:

a. Initiating the Lifting Process

Once the load has been secured to the hook or lifting device, the operator activates the crane's control system to begin lifting the load. The electric motor in the hoist mechanism receives a signal from the operator's control input and starts to rotate the drum. As the drum turns, the wire rope winds around the drum, causing the hook to rise.

• Load Monitoring: In many modern electric overhead cranes, load monitoring systems are used to ensure that the load being lifted does not exceed the crane's rated capacity. This helps prevent accidents caused by overloading.

b. Traveling with the Load

After the load has been lifted to the desired height, the operator uses the trolley to move the load horizontally along the crane's beam. The trolley's electric motor powers the movement, and it runs along the crane's tracks, typically supported by wheels or rollers.

• Precision Control: The operator can use the control system to move the load along the beam with high precision. This is especially important in applications like assembly lines, where the load needs to be positioned exactly where it is needed.

c. Lowering the Load

Once the load is in the correct position, the operator can lower it by reversing the motor’s direction. As the drum unwinds, the wire rope lengthens, and the load is gradually lowered to its desired location. This process requires careful control to ensure the load is safely and smoothly placed.

• Variable Speed Control: Most electric overhead cranes come with variable speed controls, allowing the operator to adjust the speed at which the load is lifted or lowered. This ensures better control over the load and minimizes the risk of accidents.

4. Safety Features of Electric Overhead Cranes

Safety is a critical consideration in the operation of electric overhead cranes. Several safety features are built into these systems to protect both the operator and the load:

• Overload Protection: This feature prevents the crane from lifting loads that exceed its rated capacity. If the load exceeds the safe working limit, the crane’s safety system will activate and stop the crane from operating.
• Emergency Stop Button: An emergency stop button is typically installed in the crane’s control system. This allows the operator to quickly halt all crane movements in the event of an emergency.
• Limit Switches: Limit switches are installed to prevent the crane from traveling beyond its designated working area. These switches automatically stop the trolley or hoist when it reaches its maximum travel distance.
• Anti-Sway Technology: Some advanced electric overhead cranes are equipped with anti-sway technology to prevent loads from swinging while being moved. This helps improve the safety and stability of the crane.

5. Advantages of Electric Overhead Cranes

Electric overhead cranes offer numerous advantages, making them the preferred choice for many industries:

• Efficiency: EOT cranes can handle heavy loads with precision and speed, improving overall operational efficiency.
• Space-Saving: Because they are mounted overhead, these cranes do not require additional floor space, which helps maximize the available workspace.
• Safety: The advanced safety features of electric overhead cranes help minimize the risk of accidents and ensure safe operation in high-risk environments.
• Cost-Effective: With proper maintenance, electric overhead cranes offer long-term reliability and lower operational costs compared to other types of cranes.

6. Conclusion

Electric overhead cranes are indispensable tools in industrial settings where heavy lifting is required. By understanding the key components and mechanisms involved in the lifting process, businesses can better utilize these cranes to improve efficiency, safety, and precision in their operations. Whether it's a single girder crane for lighter loads or a double girder crane for heavy-duty applications, electric overhead cranes offer a reliable and cost-effective solution for lifting and moving loads. With advanced control systems, safety features, and robust construction, these cranes play a vital role in ensuring smooth and secure operations in a variety of industries.
