Hydraulic Transmission Efficiency in Rubber Tyred Crane

更新 發佈閱讀 21 分鐘

Rubber Tyred Gantry (RTG) cranes are essential machines in container handling terminals, rail yards, and industrial facilities, where they are used for stacking and moving containers or heavy loads with flexibility and precision. Among various drive technologies used in RTG cranes, hydraulic transmission systems are commonly applied due to their robustness, controllability, and high lifting power.

However, a critical factor that impacts the overall performance, fuel consumption, and operating cost of hydraulic rubber tyre gantry cranes is hydraulic transmission efficiency. Understanding what influences this efficiency and how to optimize it is essential for terminal operators, engineers, and crane owners who aim to improve productivity and reduce maintenance costs.

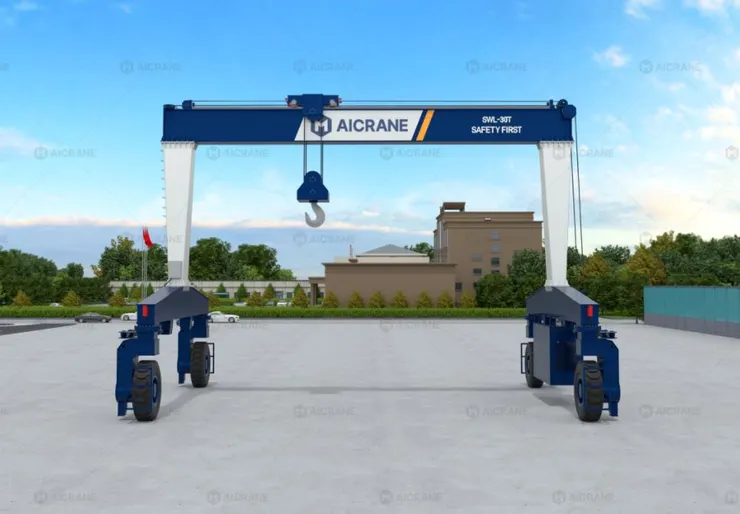

raw-image


Understanding Hydraulic Transmission in RTG Cranes

Hydraulic transmission refers to the method of transmitting energy from the crane's prime mover - typically a diesel engine or electric motor - through pressurized hydraulic fluid to various actuators (like cylinders or hydraulic motors). These actuators are responsible for performing the crane's core functions: hoisting, trolley movement, gantry travel, and steering.

The process involves:

  1. Energy conversion at the pump: mechanical energy to hydraulic energy
  2. Transmission through hydraulic lines: pressure and flow delivery
  3. Energy conversion at actuators: hydraulic energy back to mechanical motion

While this process enables smooth and powerful operations, transmission losses can occur at every stage, affecting overall system efficiency.

What Is Hydraulic Transmission Efficiency?

Hydraulic transmission efficiency is a measure of how effectively the hydraulic system converts input energy into useful mechanical output. It is typically expressed as a percentage and calculated using the formula:

Efficiency=Useful Output Power/Input Power​×100%

For example, if an RTG crane's hydraulic system receives 100 kW of power from the diesel engine and only delivers 75 kW of useful work at the actuators, its hydraulic transmission efficiency is 75%.

This efficiency can vary widely depending on:

  • Design of the hydraulic circuit
  • Type and condition of components
  • System pressure and flow rate
  • Operating temperature
  • Quality and viscosity of hydraulic fluid

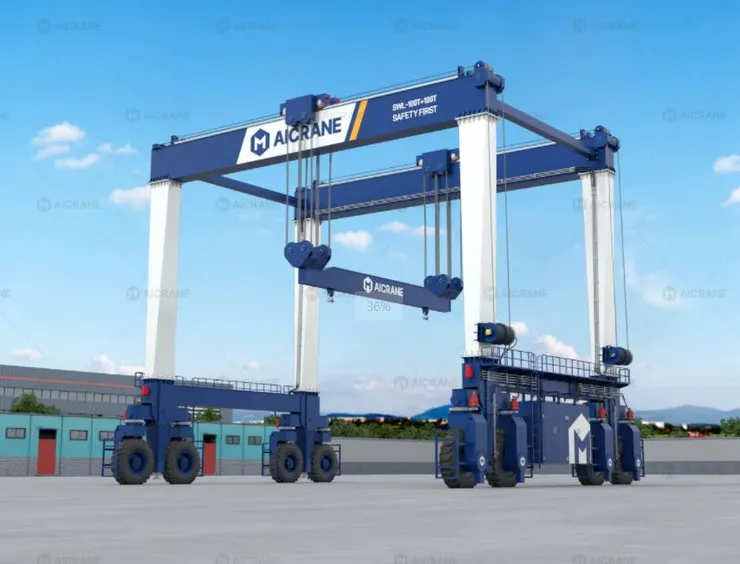

raw-image


Factors Affecting Hydraulic Transmission Efficiency

1. Pump Efficiency

Hydraulic pumps are responsible for generating flow and pressure. Inefficient pumps lose energy due to internal leakage (volumetric loss) and mechanical friction (mechanical loss). Using high-efficiency axial piston pumps or variable displacement pumps can improve system efficiency significantly.

2. Hydraulic Fluid Properties

The viscosity of the hydraulic oil greatly affects system performance. If the oil is too thick, it creates flow resistance and energy loss due to friction. If it’s too thin, it leads to internal leakage and reduced pressure. Choosing the correct oil viscosity grade for the ambient temperature and regularly monitoring fluid condition are crucial.

3. Valve Design and Pressure Drops

Flow control, directional, and pressure relief valves are vital but can introduce significant pressure losses if not properly sized or adjusted. Energy is wasted when oil flows through small orifices or long, narrow lines. Proportional or load-sensing valves can reduce unnecessary throttling losses.

4. Heat Generation and Thermal Losses

Inefficiencies manifest as heat. Excessive heat buildup reduces oil viscosity and damages seals, further degrading performance. Without proper cooling systems (like heat exchangers), efficiency deteriorates over time. Maintaining oil temperature between 40°C and 60°C is ideal for most RTG cranes.

5. Leakage in the System

Internal leakage within pumps, valves, or actuators reduces volumetric efficiency. External leaks waste fluid and pressure, pose environmental risks, and contribute to reduced lifting capability. Routine maintenance, seal inspections, and prompt replacement of worn components are key to controlling leaks.

6. Actuator Efficiency

Hydraulic motors and cylinders can experience friction losses and seal drag. Older or worn actuators often consume more energy to perform the same amount of work. Proper cylinder alignment and use of energy-efficient hydraulic motors help optimize actuator efficiency.

Typical Efficiency Ranges in Hydraulic RTG Cranes

In real-world applications, the hydraulic transmission efficiency in RTG cranes typically ranges from 70% to 85%, depending on system design and operating conditions. High-end gantry cranes using optimized hydraulic circuits, variable displacement pumps, and advanced control valves can reach the upper end of this range.

However, poorly maintained systems or designs with outdated technology may fall below 70%, resulting in excessive fuel consumption, slower response, overheating, and increased wear and tear.

How to Improve Hydraulic Transmission Efficiency in RTG Cranes

✅ 1. Use of Load-Sensing Systems

Load-sensing hydraulic systems deliver pressure and flow only as needed. This eliminates unnecessary energy use and reduces heat generation. It adjusts pump output to match load demand in real-time, improving efficiency by 10–20% in some applications.

✅ 2. Energy Recovery Techniques

Modern hydraulic systems in RTG cranes can be equipped with energy recovery systems that store energy during lowering or braking cycles (e.g., accumulators or regenerative valves). This recovered energy is then reused, improving fuel efficiency.

✅ 3. Routine Oil Analysis and Fluid Management

Regular testing of hydraulic oil helps detect contamination, viscosity changes, or oxidation. Replacing degraded oil and filters extends component life and improves system responsiveness.

✅ 4. Upgrading Components

Replacing outdated fixed-displacement pumps with variable-displacement models, or using more efficient hydraulic motors and proportional valves, can lead to noticeable efficiency gains.

✅ 5. Design Optimization

Streamlining hydraulic circuits by minimizing hose length, eliminating unnecessary valves, and reducing bends in piping lowers flow resistance. This can reduce pressure drops and improve flow characteristics.

Cost and Operational Impact of Improved Efficiency

Improving hydraulic transmission efficiency directly contributes to:

  • Lower fuel consumption: Reduced energy losses mean engines or motors work less to achieve the same output.
  • Increased lifting productivity: Higher efficiency results in faster lifting cycles and shorter container handling times.
  • Lower maintenance costs: Efficient systems run cooler, reducing wear on components and extending service intervals.
  • Reduced environmental impact: Lower fuel use and fewer leaks help operators meet environmental regulations and sustainability goals.

Over time, these benefits translate into higher ROI (Return on Investment) for port and terminal operators who invest in efficient hydraulic RTG crane systems.

Real-World Example

In a case study from a container terminal in South America, replacing an aging fleet of hydraulic RTG cranes with newer units featuring variable displacement pumps and load-sensing technology improved hydraulic transmission efficiency from 68% to 83%. This resulted in:

  • A 17% reduction in fuel consumption per hour
  • 22% decrease in average oil temperature
  • 30% lower maintenance costs over the first year

The investment paid off in less than three years through operational savings alone.

Conclusion

Hydraulic transmission efficiency plays a pivotal role in the performance and cost-effectiveness of Rubber Tyred Gantry cranes. While hydraulic systems offer powerful lifting capabilities and responsive control, they must be carefully designed, operated, and maintained to minimize energy losses.

By optimizing hydraulic components, managing fluid quality, and leveraging modern control technologies, crane owners and terminal operators can ensure their RTG cranes run efficiently, reliably, and economically. As container traffic and terminal demands continue to grow, enhancing hydraulic transmission efficiency is not just a technical consideration - it's a strategic necessity.
