Rubber Tyred Gantry (RTG) cranes are widely used in container terminals, intermodal yards, and logistics facilities due to their flexibility, mobility, and operational efficiency. When considering the purchase of an RTG crane, one of the most critical aspects for decision-makers is understanding the breakdown of its initial costs. Knowing the key cost components helps businesses budget accurately, evaluate vendors effectively, and identify opportunities for optimization. In this article, we’ll explore in detail the main components that contribute to the initial cost of an RTG crane, offering insights to help you make informed investment decisions.

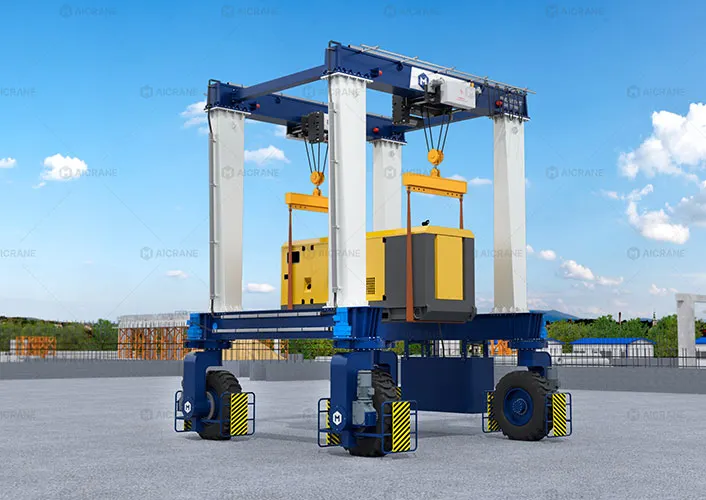

1. Base Crane Structure and Mechanical Components
At the core of the rubber tyred gantry crane price is the mechanical structure. This includes:- Steel Framework: The gantry frame is composed of high-grade structural steel that supports the lifting and traveling mechanisms. The size, material quality, and strength of the frame directly impact both the cost and performance.
- Lifting Mechanism: The hoisting system comprises winches, drums, wire ropes, and sheaves designed to handle container weights, usually ranging from 20 tons to 65 tons.
- Trolley Mechanism: The trolley travels laterally across the gantry to position the spreader above the load. This includes the trolley frame, motors, wheels, and control systems.
- Spreader: The spreader connects to the container’s corner castings and is often adjustable for 20ft, 40ft, and 45ft containers. Higher-quality or automatic spreaders cost more but improve handling speed.
These structural and mechanical elements typically represent a significant portion of the base cost, ranging from 40% to 50% of the overall initial investment.

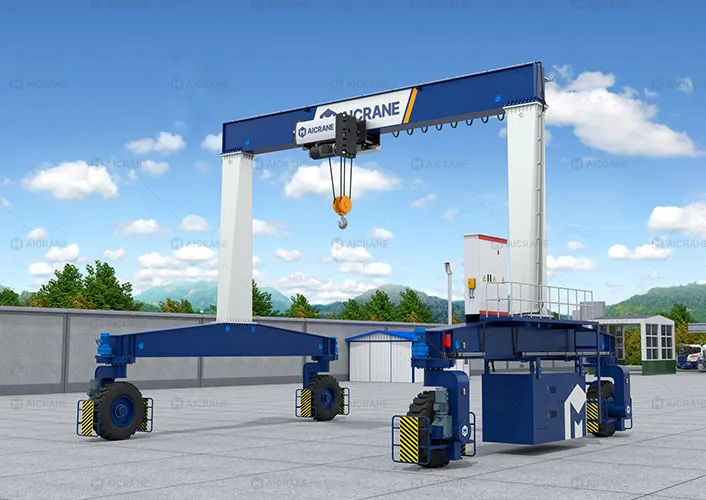

2. Drive Systems and Power Supply
RTG cranes require powerful drive systems to handle movement in multiple directions - hoisting, trolley travel, and crane travel. These include:
- Electric Drive Systems: Most modern RTG cranes are electrically powered, either through diesel generators (diesel-electric) or electric cable reels (electric RTGs).
- Diesel Generators: In diesel-electric RTGs, the diesel engine and generator set is a major cost component. Fuel efficiency, emissions standards (e.g., Tier 4 compliance), and engine brand can affect the cost significantly.
- Cable Reel System or Conductor Bar (E-RTG): If the crane is powered through cables from the yard power grid, the installation of cable reel systems or conductor bars adds to the upfront cost but reduces long-term fuel consumption and emissions.
Drive and power systems account for around 15% to 25% of the initial cost depending on the power source and operational preferences.
3. Control and Automation Systems
The level of automation and control sophistication heavily influences RTG crane costs. Key systems include:
- PLC-Based Control Systems: These programmable logic controllers coordinate the movement and safety systems of the crane.
- Remote Control or Cabin Control: Operators can control RTGs from onboard cabins or remotely, each requiring different levels of infrastructure.
- Anti-Sway Technology: Advanced RTGs use anti-sway systems to minimize load swinging, improving safety and efficiency. These systems, while more expensive, increase productivity.
- Collision Avoidance Systems: RTGs operating in busy yards often include radar or laser-based anti-collision systems.
- Positioning Systems: GPS, RFID, or laser-based positioning systems help automate and optimize container stacking.
Investments in control and automation typically make up 10% to 20% of the initial gantry crane cost, depending on the level of technology integration.

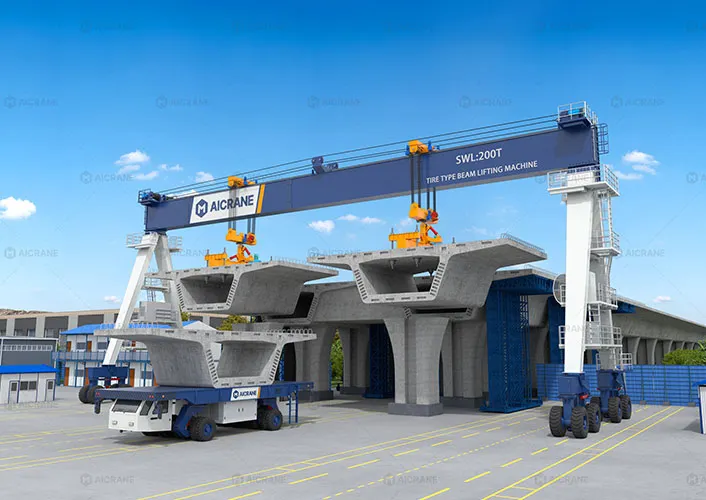

4. Customization and Design Modifications
RTG cranes are often customized to meet the unique needs of each port or yard. Customization may include:
- Crane Span and Lifting Height: A wider or taller crane increases the amount of steel used and requires larger motors, affecting both material and engineering costs.
- Working Conditions: RTGs intended for heavy-duty use or extreme environments (coastal, hot, or cold climates) need specialized protection like insulation, rust-proof coatings, or reinforced components.
- Dual Trolley or Twin-Lift Capabilities: These features allow handling of two containers simultaneously, improving productivity but increasing costs.
- Operational Duty Class: The crane’s duty classification (e.g., A5, A6, A7) defines its robustness and usage cycle and directly impacts design and cost.
Custom design considerations can account for 10% to 15% of the initial investment.
5. Transportation and Logistics
Once the crane is manufactured, transporting it to the customer site is a major cost component, particularly for international deliveries. Costs include:
- Disassembly for Shipping: Large components often need to be dismantled for containerized or breakbulk transport.
- Packaging and Container Loading: Ensuring safe and damage-free transportation adds to the cost.
- Overland and Ocean Freight: Costs vary depending on distance, routes, shipping method, and international tariffs or duties.
Shipping and logistics typically represent 5% to 10% of the total cost, depending on location and transport mode.
6. Installation and Commissioning
Once delivered, RTG cranes require:
- On-Site Assembly: Reassembling the crane structure and systems with the help of trained personnel and heavy lifting equipment.
- Electrical and Control System Setup: Wiring, calibrating, and testing automation and power systems.
- Testing and Commissioning: Load testing, safety checks, and fine-tuning.
Some manufacturers offer online installation guidance to reduce costs, while others provide full on-site services. Installation and commissioning costs can range from 5% to 10% of the initial outlay.
7. Training and Documentation
Operator and maintenance personnel need to be trained on safe and effective use of the RTG crane. Initial cost packages often include:
- On-Site or Virtual Training: For equipment operators, maintenance teams, and safety supervisors.
- Operation Manuals: Detailed user and service manuals for the crane and its subsystems.
- Spare Parts List: Includes initial stock of wear parts and maintenance kits.
Training and documentation may only constitute 1% to 3% of the total cost, but they are essential for safe and efficient crane operation.
8. Optional Features and Add-Ons
Optional features can significantly increase the upfront cost but offer long-term operational advantages. These include:
- Energy Recovery Systems: Capture and reuse energy from downward hoisting movements.
- Weather Protection: Canopies, enclosed cabins, and component insulation for protection against weather elements.
- Remote Diagnostics: IoT and cloud-based platforms for remote monitoring and diagnostics.
- Noise Reduction Packages: Especially important in urban port environments.
While optional, these features can add 5% to 10% to the overall budget depending on what’s selected.
Conclusion
Understanding the main components of RTG crane initial costs is crucial for project planning and budgeting. From the core mechanical structure and drive systems to automation, customization, transportation, and installation, each element contributes to the total investment. Depending on the complexity, size, and level of automation, the initial cost of a typical RTG crane may range from USD $800,000 to over $2 million.
Businesses looking to invest in RTG cranes should work closely with suppliers to evaluate which features are essential and which can be phased in later. A transparent cost breakdown allows better comparison between vendors and ensures that no hidden charges arise during procurement. Ultimately, understanding what you’re paying for is the first step in making a cost-effective, long-term investment in container handling efficiency.
