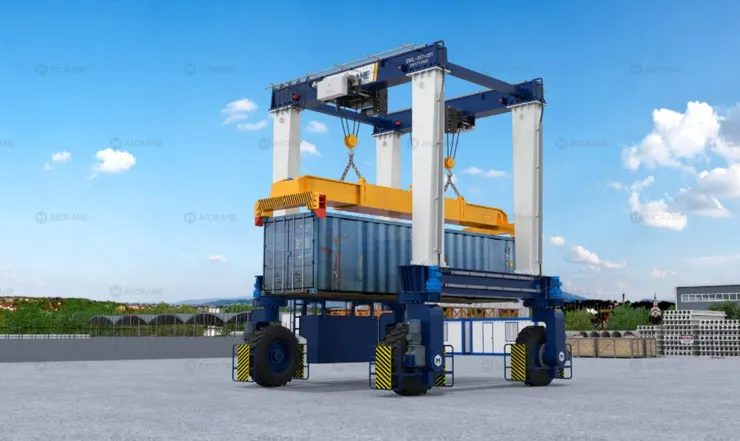

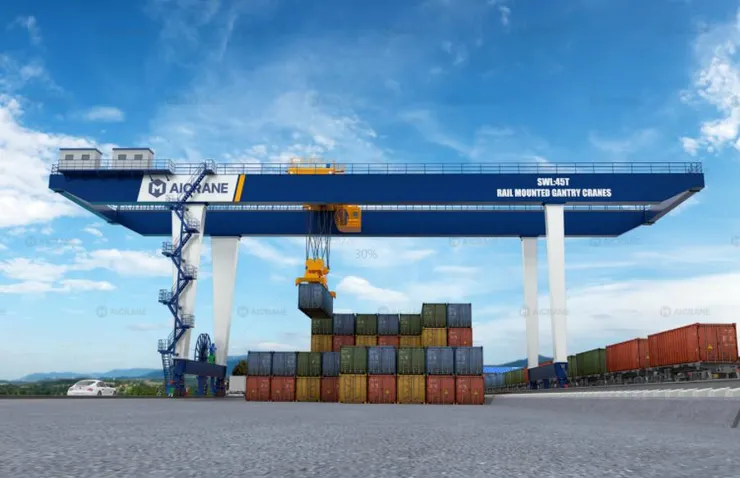

As global trade continues to expand and containerization dominates cargo transportation, the demand for efficient, reliable, and tailored container handling equipment is at an all-time high. Among the most critical pieces of equipment in ports, container terminals, intermodal yards, and rail yards are container cranes - such as rail mounted gantry (RMG) cranes, rubber tyred gantry (RTG) cranes, and ship-to-shore (STS) cranes.
While off-the-shelf solutions can serve basic needs, many port operators and logistics providers require custom container crane designs to meet unique handling conditions, capacity demands, and site constraints. In this article, we explore the step-by-step process of designing a customized container crane, from the initial consultation to final delivery and installation.
Why Custom Container Crane Design Matters
Container terminals are not one-size-fits-all. Differences in terminal layout, container volumes, climate conditions, operating hours, and local regulations mean that a crane built for one facility may not work efficiently in another. Custom-designed container cranes help:
- Maximize yard space and throughput
- Adapt to unique site layouts and work cycles
- Improve safety, reliability, and energy efficiency
- Future-proof the facility against growing container traffic
Step 1: Initial Consultation and Needs Assessment
The design journey begins with a comprehensive consultation between the crane manufacturer and the client. This step ensures that all operational requirements are clearly understood and documented.
Key topics discussed include:
- Type of crane required: RTG, RMG, STS, or hybrid solution
- Load specifications: container sizes (20ft, 40ft, 45ft), weight, and handling frequency
- Yard layout: span requirements, stacking height, travel distance, turning radius
- Power source: diesel, electric, or hybrid
- Control method: cabin, remote control, or semi/fully automated system
- Environmental factors: wind loads, temperature extremes, seismic considerations
- Local standards or certifications required
At this stage, the client may also provide drawings or photos of the site, performance expectations, and future expansion plans.
Step 2: Site Evaluation and Technical Survey
Once the initial data is gathered, the engineering team may conduct an on-site survey (or remote assessment via video and site drawings) to verify all critical parameters.
Survey includes:
- Accurate measurements of the yard or quay
- Ground conditions for rail or tyre load calculations
- Power supply availability
- Obstructions like buildings, poles, or slopes
- Path planning for crane movement
This detailed evaluation ensures the crane can operate safely and efficiently within the site's physical constraints.
Step 3: Conceptual Design and Technical Proposal
Based on the input from the previous steps, the engineering team develops a preliminary conceptual design. This includes 2D or 3D layouts, mechanical structure schematics, and technical specifications.
Proposal includes:
- Span, height, and capacity recommendations
- Drive mechanisms and control system details
- Electrical systems and energy-saving options
- Custom features like spreader type, slewing capability, or anti-sway technology
- Estimated crane weight and wheel loads
- Compliance with ISO, FEM, DIN, or other relevant standards
The proposal also includes a project timeline, estimated cost, and warranty/service coverage.
Step 4: Client Feedback and Design Refinement
At this stage, the client reviews the proposed design. Depending on feedback, the engineering team will refine the specifications, modify structures, or include additional features.
Typical adjustments may involve:
- Increasing or reducing span or lifting height
- Changing the crane’s lifting mechanism or spreader type
- Adjusting work duty ratings based on usage intensity
- Adding automation features or integrating with TOS (Terminal Operating System)
Multiple review rounds may take place to ensure every design detail aligns with the operational needs.
Step 5: Final Design and Engineering Drawings
Once the design is approved, the engineering team prepares finalized production drawings, bills of materials, and detailed documentation for fabrication.
This phase involves:
- 3D structural models with full load calculations
- Electrical system diagrams
- Control logic for PLC or automation systems
- Safety mechanism integration (e.g., emergency stops, overload protection)
- Engineering calculations for structural strength, stability, and fatigue
All documentation is reviewed by senior engineers and may also be submitted for third-party certification if required by the client.
Step 6: Fabrication and Quality Control
With drawings approved, the crane enters the manufacturing phase. All components are produced in-house or sourced from trusted suppliers under strict quality control.
Key production steps:
- Steel cutting, welding, and structural assembly
- Machining of wheels, axles, gearboxes, etc.
- Electrical cabinet and motor assembly
- Lifting mechanism (hoist and trolley) integration
- Painting, anti-corrosion treatment, and surface finishing
Each part is tested for dimensional accuracy and compliance with standards. A factory acceptance test (FAT) may be conducted to demonstrate functionality before shipping.
Step 7: Delivery and On-Site Installation
Once manufacturing is complete, the crane is disassembled and prepared for transportation to the client’s site. Shipping logistics are carefully coordinated to minimize transit time and handling.
At the destination, the crane is:
- Assembled by skilled technicians or the client’s local team (with support)
- Mounted on rails or tyres as per design
- Connected to the power and control systems
Aicrane, for example, offers both on-site installation service and remote guidance via video, documents, and online technical support.
Step 8: Testing and Commissioning
Before handover, the crane undergoes a series of on-site performance tests, including:
- Lifting and lowering trials with actual or test loads
- Traveling, steering, and braking function checks
- Safety system tests (e.g., limit switches, alarms)
- Control responsiveness and automation performance
- Integration with terminal systems (if applicable)
Any adjustments required are made during this phase to ensure optimal operation.
Step 9: Training and Handover
Once commissioning is successful, the manufacturer provides training to operators, maintenance personnel, and safety supervisors.
Training includes:
- Crane operation and controls
- Emergency procedures
- Preventive maintenance guidelines
- Troubleshooting techniques
A comprehensive operation manual, wiring diagrams, and spare parts list are also provided.
Step 10: After-Sales Support and Maintenance
The relationship doesn’t end after delivery. Reputable crane suppliers like Aicrane provide:
- Regular inspection schedules
- Remote diagnostics and troubleshooting
- Spare parts availability
- Optional extended warranties or service contracts
- Support for upgrades or modifications
Long-term support ensures your custom-designed crane continues to perform reliably for years.
Conclusion
Designing a custom container crane is a highly collaborative and technical process that involves far more than simply selecting a model from a catalog. From initial consultation and conceptualization to on-site installation and lifelong service, each phase is critical to achieving the optimal solution for your container handling needs.
Whether you are upgrading an existing terminal or building a new intermodal yard, a tailor-made container crane offers the flexibility, efficiency, and future-proofing necessary in today’s competitive logistics landscape.
