Rubber Tyred Gantry (RTG) cranes play a vital role in container terminals, intermodal yards, and logistics centers, offering the flexibility and mobility required for dynamic container handling operations. However, as with any heavy equipment, regular maintenance is essential to ensure long-term reliability, safety, and performance. One of the most effective ways to minimize downtime and reduce lifecycle costs is to integrate ease of maintenance into the structural design of RTG gantry cranes.
In this article, we’ll explore the key structural features that support maintenance-friendly RTG crane design, and how these features benefit both operators and maintenance teams.

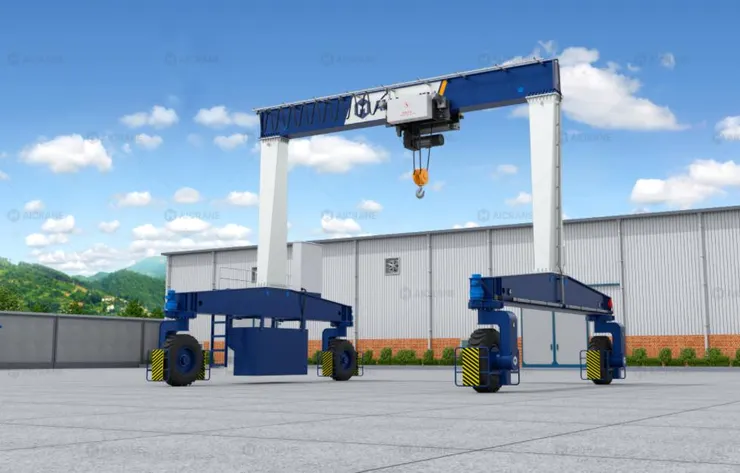

1. Accessibility in Structural Layout
A fundamental aspect of designing RTG gantry cranes for maintenance is ensuring easy access to all critical components. This involves the structural configuration of platforms, ladders, stairs, and walkways.
a. Platforms and Walkways
Strategically placed maintenance platforms allow technicians to safely access the trolley, hoist mechanism, and electrical cabinets. Platforms with non-slip grating, handrails, and toe guards enhance both safety and convenience.
b. Ladders and Stairs
Well-designed vertical ladders or inclined staircases with safety cages allow workers to reach upper gantry beams or control cabinets. The angle and material of these ladders are selected to reduce fatigue and improve safety during inspection or repairs.
c. Service Access Points
Inspection hatches or removable covers on beams, girders, or cable trays simplify checking structural integrity, wiring, and connections. Incorporating these into the design avoids dismantling large sections of the gantry mobile crane for small maintenance tasks.

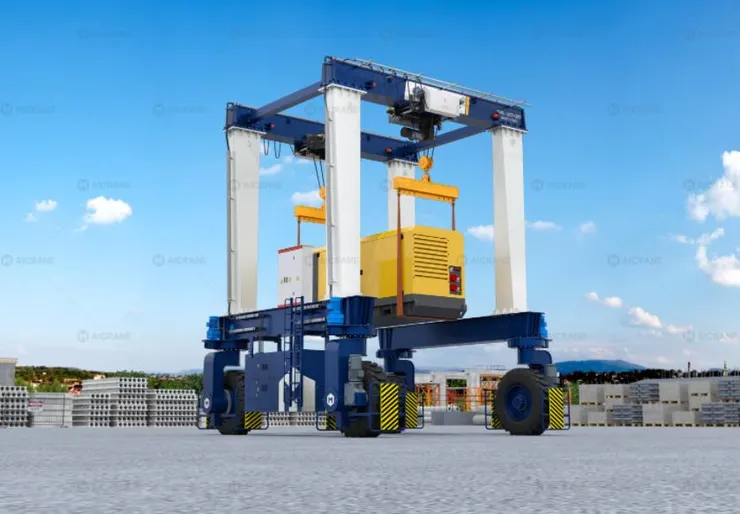

2. Modular Structural Components
Designing RTG cranes with a modular approach not only simplifies manufacturing and transportation, but also makes maintenance and component replacement easier.
a. Modular Boom or Beam Sections
If a girder or boom section is damaged, a modular structure allows the replacement of individual sections rather than the entire beam. This feature drastically reduces repair time and cost.
b. Plug-and-Play Subsystems
Some components such as trolley frames, electrical enclosures, and motor mounting brackets can be designed as plug-and-play units. This allows easy detachment for workshop repairs without removing surrounding structures.
3. Structural Integration of Cabling and Hoses
Cables, hydraulic hoses, and signal lines must be protected from wear while remaining accessible for inspection. The structural design can aid significantly in this.
a. Built-In Cable Trays and Conduits
Instead of external mounting, modern RTG cranes often use integrated cable trays inside the girder or along the leg structures. These provide shelter from weather and reduce damage risk while keeping cables organized and easy to inspect.
b. Retractable Cable Reels or Festoon Systems
A dedicated space or mounting frame for the cable festoon system or reel drum ensures easy maintenance of power lines and trolley movement cables. It prevents twisting, excessive tension, or sagging which could otherwise cause failures.
4. Corrosion-Resistant Structural Coatings
Environmental conditions, especially in coastal container terminals, can cause severe corrosion, weakening the crane’s structure and increasing maintenance needs.
a. Hot-Dip Galvanization and Marine Coatings
Applying hot-dip galvanization or marine-grade epoxy coatings to structural components protects them from corrosion. These coatings reduce the frequency of repainting and structural repair.
b. Pre-Coated Structural Sections
Structural sections can be pre-coated during manufacturing, ensuring uniform quality and saving on future re-coating labor and costs.
5. Integrated Diagnostic Points
Modern RTG crane structures can incorporate features that make structural diagnostics easier and more efficient.
a. Load Monitoring Points
Built-in strain gauges or load sensors on critical structural points (like girder midspan or leg connections) help detect overloading or fatigue.
b. Vibration Isolation Mounts
Using vibration-isolating bushings or mount plates for key structural joints reduces wear and makes diagnostic results more accurate.
6. Simplified Trolley and Hoist Access
Since the trolley and hoist are among the most serviced parts of the crane, structural design should accommodate their frequent inspection and repair.
a. Maintenance Rail on Main Beam
A maintenance rail allows technicians to manually move the trolley to a safe position for repairs, especially when power is down.
b. Hoist Frame Design
A hoist module that can be removed vertically or sideways without disassembling the main beam improves maintenance efficiency.
7. Drainage and Water Management in Structural Design
RTG cranes often operate outdoors, where rainwater can accumulate and cause rust or electrical hazards if not managed properly.
a. Sloped Surfaces and Drainage Holes
Structural members like the main girder, leg beams, and platform surfaces should be sloped or feature drainage holes to prevent water accumulation.
b. Enclosed Areas with Drain Taps
Any enclosed structural cavity should have inspection access and drain taps to remove trapped moisture.
8. Anti-Fatigue and Crack Monitoring
Designing structural elements to resist fatigue over thousands of load cycles is vital to minimize future structural failures.
a. Rounded Edge Design
Sharp corners in structural elements can become stress concentration points. Rounded or filleted edges help distribute stress evenly and reduce crack initiation.
b. Crack Detection Points
Including visual inspection lines or crack sensors in critical welds and junctions helps maintenance teams catch issues before they become failures.
9. Design for Upgradability and Retrofitting
The structure should allow for future upgrades, such as new sensors, control systems, or power conversion units.
a. Reserved Mounting Points
Including spare mounting plates or bolt holes allows future installation of condition monitoring systems or camera mounts without welding or drilling.
b. Retrofit-Friendly Design
Retrofitting electric drive systems or hybrid engines becomes easier when space and structural reinforcement are planned from the start.
Conclusion
Incorporating ease of maintenance into the structural design of RTG gantry cranes is not merely about convenience—it’s a smart strategy that reduces downtime, lowers total cost of ownership, and enhances operational safety. From accessible platforms and modular structures to corrosion-resistant coatings and integrated diagnostics, thoughtful design pays dividends over the crane’s lifecycle.
When selecting an RTG crane or working with a rubber tired gantry crane manufacturer, be sure to prioritize these structural maintenance-friendly features. They’re not just engineering choices—they’re investments in your crane’s future performance and reliability.
