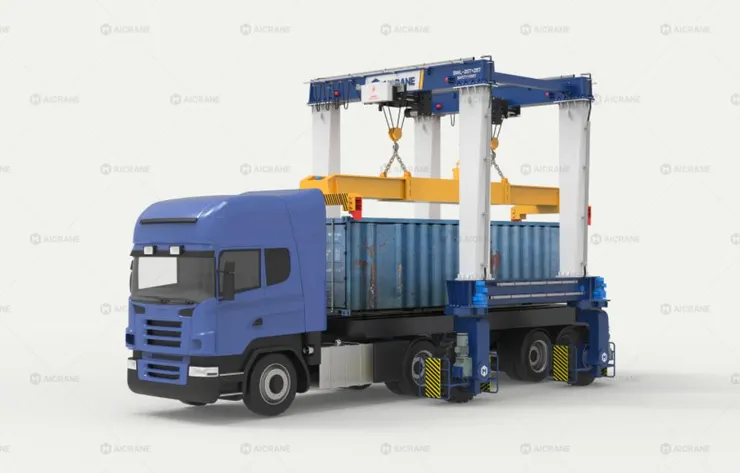

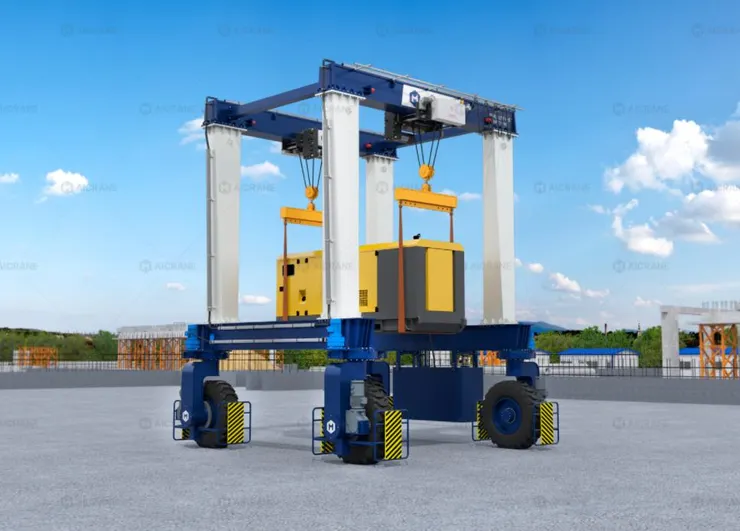

A Rubber Tyred Gantry Crane (RTG) is a versatile piece of equipment commonly used in container terminals, logistics, and heavy-duty lifting operations. These cranes are designed to move containers or other large loads within a terminal, offering flexibility, mobility, and efficiency. One of the most crucial components of the RTG crane is its steering system, which allows the crane to navigate the tight spaces within a port or warehouse environment.
In this article, we will explore how the rubber tire gantry crane steering system works, its key components, the different types of steering systems, and the benefits of having an efficient steering mechanism in RTGs.
Understanding the RTG Crane Steering System
The steering system of an RTG crane is responsible for controlling the movement of the crane in various directions, ensuring smooth and precise operations. Unlike traditional fixed gantry cranes, RTGs are mobile and use rubber tires for movement. The crane is equipped with wheels that allow it to travel along the ground, and the steering system controls the orientation of these wheels to direct the crane's movement.
The steering system is designed to provide flexibility and ease of maneuvering in confined spaces, as RTGs are often used in busy container yards with limited room for movement. The system works in coordination with the crane's drive mechanism, which is powered by either an electric motor or a diesel engine. The system’s primary goal is to move the crane along predefined paths and to lift, transport, and stack containers or heavy loads efficiently.
Key Components of the RTG Steering System
To understand how the RTG crane steering system works, let’s break it down into its key components:
1. Steering Axles and Wheels
The steering axles are the most critical components that allow the RTG crane to change direction. The RTG crane is usually equipped with four to six wheels, each supported by a steering axle. These wheels are fitted with tires, typically solid rubber or air-filled types, to ensure smooth movement on the ground. The steering axle allows the wheels to pivot, thus enabling the crane to turn.
The wheels are usually arranged in a two-axle or four-axle configuration depending on the design. In larger RTGs, multiple steering axles may be employed to distribute the weight and enhance stability while maneuvering.
2. Steering Mechanism
The steering mechanism controls the movement of the wheels via a hydraulic or electronic system. This mechanism converts the operator’s inputs into mechanical actions that rotate the steering axles and change the direction of the crane.
- Hydraulic Steering: In many RTG cranes, the steering system is powered by hydraulic cylinders connected to the steering axle. When the operator moves the steering controls, hydraulic fluid is directed to the cylinders, causing them to extend or retract and thus change the angle of the steering axle.
- Electronic Steering: In modern RTGs, electronic steering systems are becoming increasingly popular. These systems use electric motors and electronic sensors to control the movement of the steering axle. Electronic steering provides a higher degree of precision and can be integrated with automated control systems, making it easier for the operator to maneuver the crane without complex mechanical components.
3. Drive Motors and Hydraulic Pumps
The drive motors of the RTG crane provide the power necessary to move the crane along the ground. These motors can either be electric or diesel-powered and are usually connected to the wheels via a drive axle or gearbox. When the steering system commands a turn, the drive motors adjust to ensure that the wheels maintain the required speed and torque for smooth steering.
For hydraulic steering systems, hydraulic pumps are used to supply fluid pressure to the cylinders. These pumps are powered by the main engine of the crane and ensure that the hydraulic steering system operates efficiently.
4. Control System and Operator Interface
The RTG crane’s control system is the interface between the operator and the crane. It allows the operator to steer the crane by adjusting the direction and speed of movement. Traditional RTG cranes use a manual control panel with levers, but modern systems often use joystick controls or computerized touchscreens.
- Joystick Control: The joystick control system gives the operator real-time feedback on the crane’s movement. This system is precise and easy to operate, requiring minimal physical effort while giving operators the flexibility to steer the mobile gantry crane in various directions.
- Automated Control Systems: Some advanced RTG cranes are equipped with automated steering systems that adjust the steering based on predefined algorithms or inputs from a global positioning system (GPS). This automation minimizes human error and enhances operational efficiency.
5. Steering Mode Selection
Many RTG cranes offer different steering modes, allowing the operator to choose the most suitable steering option depending on the task and environment. Common steering modes include:
- Front Steering: In this mode, only the front wheels are used for steering, providing the crane with good maneuverability in open spaces.
- Rear Steering: Rear steering can be used when the crane needs to make tight turns, with the rear wheels turning to direct the crane’s path.
- All-Wheel Steering: This mode engages all of the wheels for steering, offering the best turning radius and maneuverability, especially in congested or confined environments like container terminals.
- Crab Steering: In this mode, all wheels move in the same direction, allowing the crane to move sideways. This is particularly useful when precise positioning is required.
Types of Steering Systems in RTG Cranes
There are two main types of steering systems used in RTGs:
1. Conventional Steering System
The conventional steering system is a mechanical setup that uses hydraulic cylinders or motorized systems to turn the steering axles. This type of system is widely used in older RTGs and is typically more straightforward but may require more maintenance due to the mechanical components involved.
2. Electric Steering System
Modern RTG cranes are increasingly equipped with electric steering systems. These systems provide precise control with fewer mechanical components, reducing maintenance needs. The electric system also integrates well with automated crane operations, making it ideal for modern container terminals that prioritize automation and efficiency.
Benefits of an Efficient Steering System in RTGs
An efficient steering system is essential for improving the overall performance and productivity of an RTG crane. Here are some of the benefits:
1. Improved Maneuverability
The steering system allows the RTG to move easily within tight spaces, which is critical in container yards where space is limited. With proper steering, the crane can turn corners, navigate narrow lanes, and access containers stacked in tight formations.
2. Enhanced Safety
A well-functioning steering system ensures that the RTG crane operates smoothly, reducing the risk of accidents caused by sudden turns or erratic movements. Efficient steering also helps the operator maintain better control, especially when handling heavy loads.
3. Increased Productivity
The more precise and responsive the steering system, the faster and more efficiently the crane can perform tasks. RTGs are often used in high-volume environments like container terminals, and a reliable steering system contributes to faster cycle times and greater throughput.
4. Reduced Wear and Tear
By using advanced steering mechanisms and tires suited to the terrain, the RTG crane’s steering system can reduce wear on the tires and other components. This leads to lower maintenance costs and longer equipment lifespan.
Conclusion
The steering system of a Rubber Tyred Gantry Crane is one of its most vital components, ensuring that the crane can maneuver effectively in tight spaces, whether it's within a container terminal or on a construction site. Understanding how these systems work—from hydraulic and electronic controls to the different steering modes—can help operators maximize the crane's performance, safety, and longevity.
As RTG cranes continue to evolve with newer technologies, their steering systems are becoming more automated and precise, improving both operational efficiency and safety in environments where speed and accuracy are crucial.
