Oracle - AutoUpgrade

工程師Kxodia的技術報告
工程師Kxodia的技術報告
2022/01/15閱讀時間約 11 分鐘
個人網站: https://kxodia.com
Oracle Database AutoUpgrade 可以讓 DBA 在沒有過多人工干預的情況下，升級一個或多個資料庫，只需一個命令和一個配置文件，Autoupgrade會產生preupgrade來執行以符合一些升級條件，也會產生post-upgrade的要執行的文件，要是升級失敗也能自動重新嘗試或執行rollback。
可以通MOS下載最新的AutoUpgrade工具AutoUpgrade Tool (Doc ID 2485457.1)
關於可支援的資料庫版本，可以參考 Database Server Upgrade/Downgrade Compatibility Matrix (Doc ID 551141.1)
  • 11g ORACLE_HOME=/u01/app/oracle/product/11g/dbhome_1
  • 19c ORACLE_HOME=/u01/app/oracle/product/19c/dbhome_1

【安裝目標資料庫軟體】

unzip LINUX.X64_193000_db_home.zip -d /u01/app/oracle/product/19c/dbhome_1
$ ./runInstaller
《Silent mode 安裝》
  1. 編輯response file
$cd /u01/app/oracle/product/19c/dbhome_1/install/response/
$ cp db_install.rsp db_install.bk
$ cat db_install.rsp|grep -v '#'|grep -v ^$|grep -v '=$'
oracle.install.responseFileVersion=/oracle/install/rspfmt_dbinstall_response_schema_v19.0.0
oracle.install.option=INSTALL_DB_SWONLY
UNIX_GROUP_NAME=oinstall
INVENTORY_LOCATION=/u01/app/oraInventory
ORACLE_HOME=/u01/app/oracle/product/19c/dbhome_1
ORACLE_BASE=/u01/app/oracle
oracle.install.db.InstallEdition=EE
oracle.install.db.OSDBA_GROUP=dba
oracle.install.db.OSOPER_GROUP=dba
oracle.install.db.OSBACKUPDBA_GROUP=dba
oracle.install.db.OSDGDBA_GROUP=dba
oracle.install.db.OSKMDBA_GROUP=dba
oracle.install.db.OSRACDBA_GROUP=dba
oracle.install.db.rootconfig.executeRootScript=true
oracle.install.db.rootconfig.configMethod=ROOT
oracle.install.db.CLUSTER_NODES=rac1,rac2
2. 執行precheck
$ ./runInstaller -executePrereqs -silent -responseFile /u01/app/oracle/product/19c/dbhome_1/install/response/db_install.rsp
Launching Oracle Database Setup Wizard...
Prerequisite checks executed successfully.


3. 若安裝時檢查有錯，可加入-ignorePrereqFailure 忽略


$ ./runInstaller -silent -responseFile /u01/app/oracle/product/19c/dbhome_1/install/response/db_install.rsp -ignorePrereqFailure
 Enter password for 'root' user:




【Autoupgrade - create_sample_file】


$ java -jar autoupgrade.jar -create_sample_file config


編輯config file


[oracle@rac1 autoupgrade]$ cat sample_config.cfg  |grep -v ^$ |grep -v ^#
global.autoupg_log_dir=/u01/app/oracle/cfgtoollogs/autoupgrade
upg1.log_dir=/u01/app/oracle/cfgtoollogs/autoupgrade/orcl         # Path of the log directory for the upgrade job
upg1.sid=orcl                                              # ORACLE_SID of the source DB/CDB
upg1.source_home=/u01/app/oracle/product/11g/dbhome_1  # Path of the source ORACLE_HOME
upg1.target_home=/u01/app/oracle/product/19c/dbhome_1  # Path of the target ORACLE_HOME
upg1.start_time=NOW                                       # Optional. [NOW | +XhYm (X hours, Y minutes after launch) | dd/mm/yyyy hh:mm:ss]
upg1.upgrade_node=rac1                                # Optional. To find out the name of your node, run the hostname utility. Default is 'localhost'

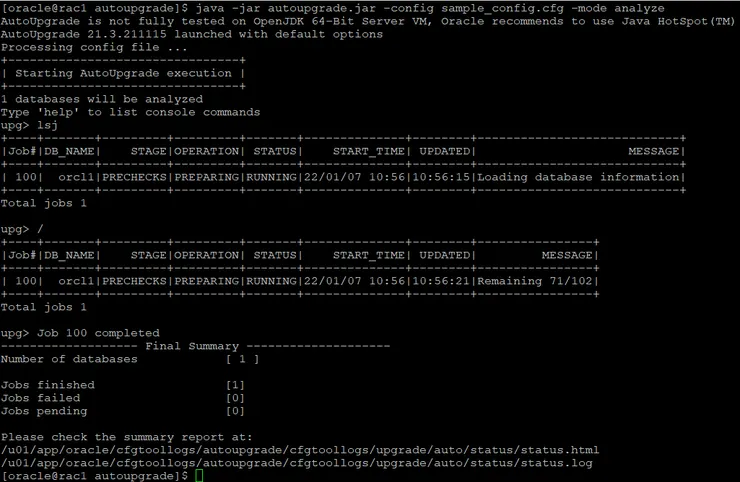

【Autoupgrade - analyze】


autoupgrade analyze

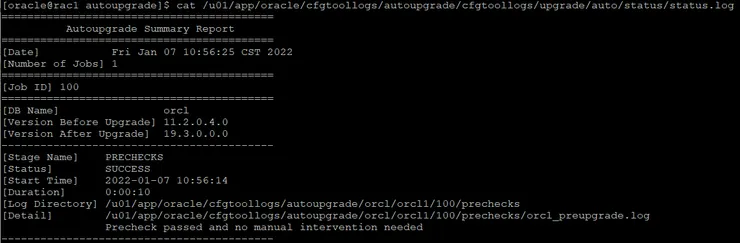

檢視status log內記錄著資訊，包含preupgrade log 路徑


status.log


檢視preupgrade.log 內包含 “REQUIRED ACTIONS”


=======================================
Status of the database prior to upgrade
=======================================
      Database Name:  orcl1
     Container Name:  Not Applicable in Pre-12.1 database
       Container ID:  Not Applicable in Pre-12.1 database
            Version:  11.2.0.4.0
     DB Patch Level:  UNKNOWN
         Compatible:  11.2.0.4.0
          Blocksize:  8192
           Platform:  Linux x86 64-bit
      Timezone File:  14
  Database log mode:  ARCHIVELOG
           Readonly:  false
            Edition:  EE
......
...
.
==============
BEFORE UPGRADE
==============
  REQUIRED ACTIONS
  ================
  None
  RECOMMENDED ACTIONS
  ===================
1.(AUTOFIXUP)...
2.(AUTOFIXUP)...
=============
AFTER UPGRADE
=============
  REQUIRED ACTIONS
  ================
  None
  RECOMMENDED ACTIONS
  ===================
3.(AUTOFIXUP)
4.Gather statistics...
...


【Autoupgrade - deploy】

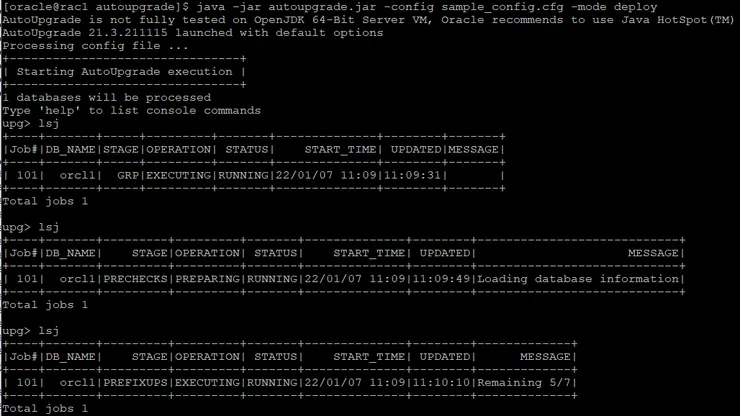

執行deploy開始執行自動升級


$ java -jar autoupgrade.jar -config sample_config.cfg -mode deploy

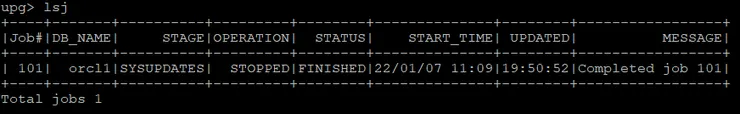

lsj可以看到目前執行狀態與進度


autoupgrade deploy


autoupgrade ls job

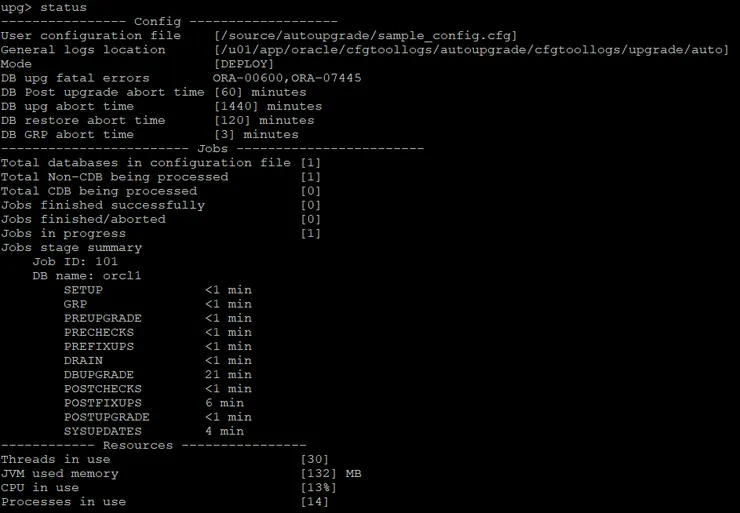

status 可以看到詳細進度、花費時間、耗用資源


autoupgrade status

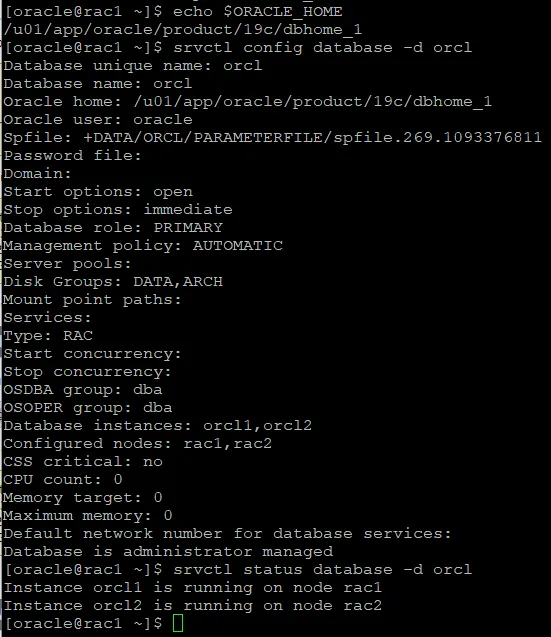

檢視資料庫資源，自動更換oracle home到19c


檢視資料庫狀態

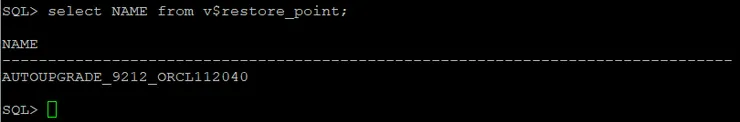

【刪除restore point】


預設自動建立restore point，記得將其刪除。


restore point




【筆記】


upg> restore all_failed


upg> restore -job


 java -jar autoupgrade.jar -config config.cfg -restore -jobs


想要還原時，不可以動config檔案


AutoUpgrade is not fully tested on OpenJDK 64-Bit Server VM, Oracle recommends to use Java HotSpot(TM)
Previous execution found loading latest data
Total jobs recovered: 1
The content of the user config file /home/oracle/scripts/UPGR.cfg was altered after a deploy which may lead to corruption or invalid settings,
the AutoUpgrade will stop for safety, make sure to restore the original content of the file prior running the tool again
or if you wish to start from the beginning then remove or change the autoupg_log_dir directory
