先說聲抱歉，本篇並不會多做太多ingress的說明，今天主要是要跟大家分享關於nginx ingress controller的基本操作。

因為將程式碼也放上來，所以整體長度會比較長，也請大家見諒，但內容實務上有測試執行是可以運作的。

本文將說明以下部分：

預先準備
流程
實際操作
將domain name 映射到Ingress LB IP

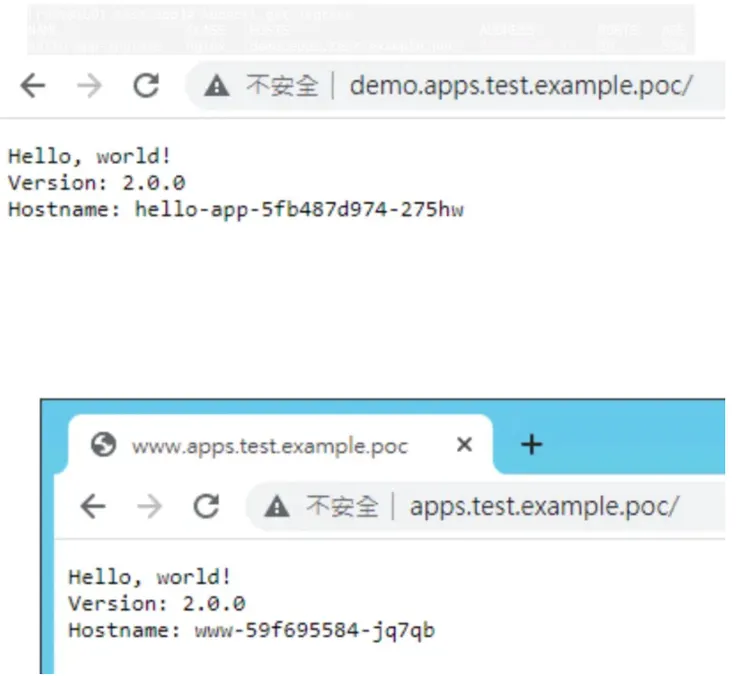

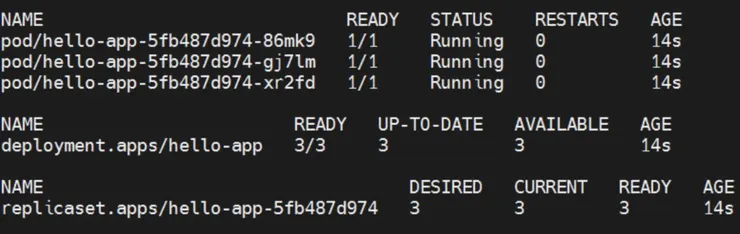

部署Demo App 驗證
結論

1.預先準備

1) Kubernetes cluster

(2) Admin access to kubernetes cluster

(3) 1個合法的domain，讓ingress controller Loadbalance IP來指向 (optional)

(4) 如果是On-prem的話，可以先建立類似metallb這樣的服務

(5) Nginx ingress controller有以下2種

kubernetes社群發佈的Nginx ingress controller
Nginx 發佈的Nginx ingress controller

2.流程

Step1. 建立 ingress-nginx namespace

Step2. 建立Nginx admission controller所需要的service account/Roles/ClusterRoles

Step3. 確認webhook設定

Step4. 建立/更新Webhook CA bundles的工作

Step5. 建立Nginx controller controller deployment所需要的service account/Roles/ClusterRoles

Step6. 建立Nginx controller configmap

Step7. 建立nginx controller與admission controller的service

Step8. 部署ingress controller

3.實際操作

#--------------------------------------------------
# S3-1. 建立namespace
#--------------------------------------------------
[root]# kubectl create ns ingress-nginx

#--------------------------------------------------
# S3-2. 建立Nginx admission controller role & SA
# 建立ROle/ClusterRole並綁定到SA
#--------------------------------------------------
[root]# vim admission-service-account.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  annotations:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - secrets
  verbs:
  - get
  - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: nginx-nginx
  name: ingress-nginx-admission
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
rules:
- apiGroups:
  - admissionregistration.k8s.io
  resources:
  - validatingwebhookconfigurations
  verbs:
  - get
  - update

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx

[root]# kubectl apply -f admission-service-account.yaml
serviceaccount/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created

※ kubernetes admission controller：

負責驗證在k8s元件建立前的驗證或更新。以上讓admission controller來驗證ingress物件，並將admission controller程式碼寫在nginx controller內監聽8443 Port (也可以省略admission controller)，有了這個驗證，可以確保建立出來的ingress物件的設定正確且不會打壞規則。

#--------------------------------------------------
# S3-3. 確認webhook設定
#--------------------------------------------------
[root]# vim validating-webhook.yaml
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
  - v1
  clientConfig:
    service:
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
      path: /networking/v1/ingresses
    failurePolicy: Fail
    matchPolicy: Equivalent
    name: validate.nginx.ingress.kubernetes.io
    rules:
    - apiGroups:
      - networking.k8s.io
      apiVersions:
      - v1
      operations:
      - CREATE
      - UPDATE
      resources:
      - ingresses
    sideEffects: None

[root]# kubectl apply -f validating-webhook.yaml
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created

#--------------------------------------------------

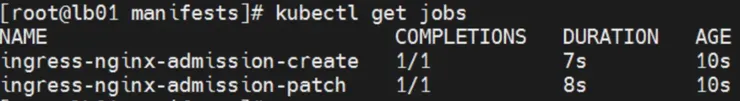

# S3-4. 建立/更新Webhook CA bundles的工作
# 尤於ValidatingWebhookConfiguration只能在https下運行，故需要一個CA bundle
#--------------------------------------------------
[root]# vim jobs.yaml
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
      name: ingress-nginx-admission-create
    spec:
      containers:
      - args:
        - create
        - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
        - --namespace=$(POD_NAMESPACE)
        - --secret-name=ingress-nginx-admission
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1
        imagePullPolicy: IfNotPresent
        name: create
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
      name: ingress-nginx-admission-patch
    spec:
      containers:
      - args:
        - patch
        - --webhook-name=ingress-nginx-admission
        - --namespace=$(POD_NAMESPACE)
        - --patch-mutating=false
        - --secret-name=ingress-nginx-admission
        - --patch-failure-policy=Fail
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1
        imagePullPolicy: IfNotPresent
        name: patch
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission

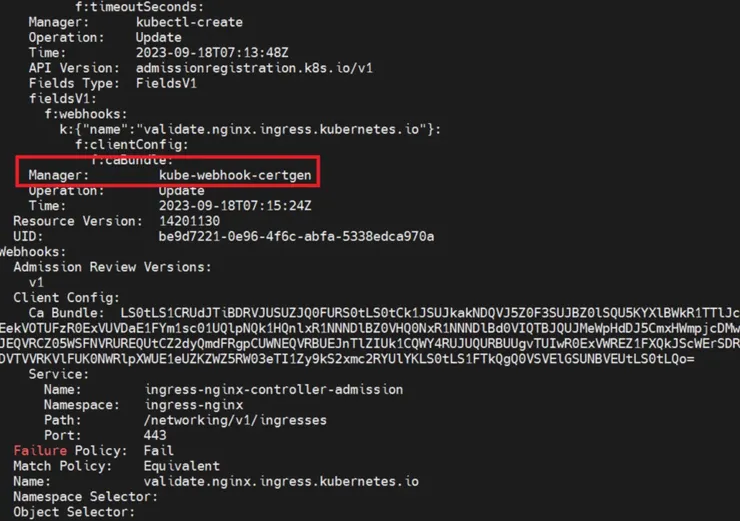

※ 執行後，可以再去確認`ValdatingWebhookConfiguration`有沒有patch bundle
[root]# kubectl describe ValidatingWebhookConfiguration ingress-nginx-admission

#--------------------------------------------------
# S3-5. 建立Nginx controller controller deployment所需要的service
# account/Roles/ClusterRoles
#--------------------------------------------------
[root]# vim ingress-service-account.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - namespaces
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - configmaps
  - pods
  - secrets
  - endpoints
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resourceNames:
  - ingress-controller-leader
  resources:
  - configmaps
  verbs:
  - get
  - update
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - create
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - endpoints
  - nodes
  - pods
  - secrets
  - namespaces
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx

[root]# kubectl apply -f ingress-service-account.yaml
serviceaccount/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created

#--------------------------------------------------
# S3-6. 建立Nginx controller configmap
# (使用configmap就可以自訂nginx設定，例如自訂標頭…)
#--------------------------------------------------
[root]# vim configmap.yaml
---
apiVersion: v1
data:
  allow-snippet-annotations: "true"
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx

[root]# kubectl apply -f configmap.yaml

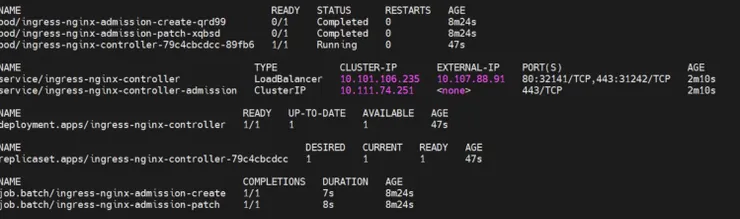

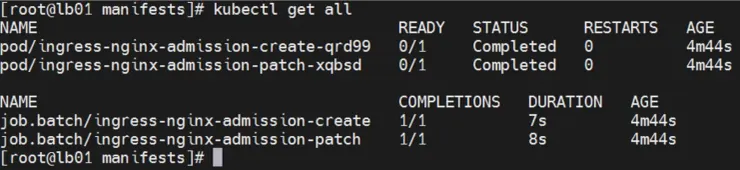

[root]# kubectl get all

#--------------------------------------------------
# S3-7. 建立nginx controller與admission controller的service
#--------------------------------------------------
[root]# vim services.yaml
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  externalTrafficPolicy: Local
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - appProtocol: http
    name: http
    port: 80
    protocol: TCP
    targetPort: http
  - appProtocol: https
    name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: LoadBalancer
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  ports:
  - appProtocol: https
    name: https-webhook
    port: 443
    targetPort: webhook
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: ClusterIP

[root]# kubectl apply -f services.yaml
service/ingress-nginx-controller created
service/ingress-nginx-controller-admission created

※ 建立出來的`ingress-nginx-controller`會在對應的cloud platform建立Loadbalancer
可以用以下方式取得load balancer的IP/DNS：
[root]# kubectl --namespace ingress-nginx get services -o wide -w ingress-nginx-controller
--> 10.107.88.91

#--------------------------------------------------
# S3-8. 部署ingress controller
#--------------------------------------------------
[root]# vim deployment.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  minReadySeconds: 0
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app.kubernetes.io/component: controller
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/name: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
    spec:
      containers:
      - args:
        - /nginx-ingress-controller
        - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
        - --election-id=ingress-controller-leader
        - --controller-class=k8s.io/ingress-nginx
        - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
        - --validating-webhook=:8443
        - --validating-webhook-certificate=/usr/local/certificates/cert
        - --validating-webhook-key=/usr/local/certificates/key
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: LD_PRELOAD
          value: /usr/local/lib/libmimalloc.so
        image: k8s.gcr.io/ingress-nginx/controller:v1.1.1
        imagePullPolicy: IfNotPresent
        lifecycle:
          preStop:
            exec:
              command:
              - /wait-shutdown
        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        name: controller
        ports:
        - containerPort: 80
          name: http
          protocol: TCP
        - containerPort: 443
          name: https
          protocol: TCP
        - containerPort: 8443
          name: webhook
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        resources:
          requests:
            cpu: 100m
            memory: 90Mi
        securityContext:
          allowPrivilegeEscalation: true
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - ALL
          runAsUser: 101
        volumeMounts:
        - mountPath: /usr/local/certificates/
          name: webhook-cert
          readOnly: true
      dnsPolicy: ClusterFirst
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
      - name: webhook-cert
        secret:
          secretName: ingress-nginx-admission

[root]# kubectl apply -f deployment.yaml
[root]# kubectl get pod -n ingress-nginx

#--------------------------------------------------
# S3-09. 部署ingress class
#--------------------------------------------------
[root]# vim ingressclass.yaml
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: nginx
spec:
  controller: k8s.io/ingress-nginx
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
  - v1
  clientConfig:
    service:
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
      path: /networking/v1/ingresses
  failurePolicy: Fail
  matchPolicy: Equivalent
  name: validate.nginx.ingress.kubernetes.io
  rules:
  - apiGroups:
    - networking.k8s.io
    apiVersions:
    - v1
    operations:
    - CREATE
    - UPDATE
    resources:
    - ingresses
  sideEffects: None

[root]# kubectl create -f ingressclass.yaml
[root]# kubectl get ingressclass
NAME    CONTROLLER             PARAMETERS   AGE
nginx   k8s.io/ingress-nginx   <none>       4m21s

4.將domain name 映射到Ingress LB IP

Ingress的主要目的是接收外部流量將其導至在K8S上運行的服務。所以實務上DNS要對應到Ingress controller的LB IP(此處為10.107.88.91, 內部建立的DNS要與其進行對應)。

可以透過對應的DNS來提供。

有二種方式：

Single DNS Mapping：直接把一整個domain全部mapp到ingress controller LB IP => 用這種方式可以實現一個domain給ingress controller與多個Path的流量路由

www.example.com ---> Loadbalancer IP
[OR]
http://www.example.com/app1
http://www.example.com/app2
http://www.example.com/app1/api
http://www.example.com/app2/api

Wildcard DNS Mapping：如果使用這種方式，就可以透過ingress使用dynamic DNS endpoints的功能。當使用wildcard在DNS時，需要加入ingress所需要的DNS與nginx ingress controller要負責路由的service endpoint。

*.example.com --> Loadbalancer IP
*.apps.example.com --> Loadbalancer IP

這種方式可以單一ingress controller之下有多個dynamic subdomain，並且每個DNS可以有自已的path-based routing。

# URL one

http://demo1.example.com/api
http://demo1.example.com/api/v1
http://demo1.example.com/api/v2

# app specific urls

http://grafana.apps.example.com
http://prometheus.apps.example.com

# URL two

http://demo2.apps.example.com/api
http://demo2.apps.example.com/api/v1
http://demo2.apps.example.com/api/v2

#------------------------------------------------------
# S4-1. wildcard DNS Mapping
#------------------------------------------------------
[lb01]# vim /var/named/named.test.example.poc
--> Add
*.apps.test.example.poc.           IN A    10.107.88.91

[lb01]# systemctl restart named

5.部署Demo App 驗證

#------------------------------------------------------
# S5-1. edit app yaml
#------------------------------------------------------
[root]# vim hello-app.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-app
  namespace: dev
spec:
  selector:
    matchLabels:
      app: hello
  replicas: 3
  template:
    metadata:
      labels:
        app: hello
    spec:
      containers:
      - name: hello
        image: "gcr.io/google-samples/hello-app:2.0"

[root]# kubectl create -f hello-app.yaml

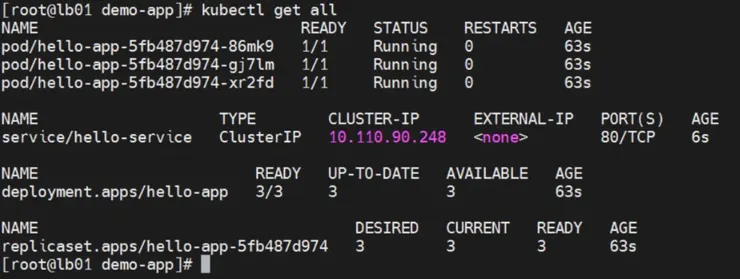

[root]# kubectl get all -n dev

#------------------------------------------------------
# S5-2. create svc
#------------------------------------------------------
[root]# vim hello-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: hello-service
  namespace: dev
  labels:
    app: hello
spec:
  type: ClusterIP
  selector:
    app: hello
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP

[root]# kubectl create -f hello-svc.yaml

※建立給App使用的Ingress

目標：建立ingress，並且外部可以透過DNS 以fqdn的方式存取到App (http://demo.test.example.poc)

運作：ingress controller pod會連接到ingress api 確認路由規則

#------------------------------------------------------
# S5-3. edit ingress.yaml
#------------------------------------------------------
[root]# vim ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: test-ingress
  namespace: dev
spec:
  ingressClassName: nginx
  rules:
  - host: "demo.apps.test.example.poc"
    http:
      paths:
        - pathType: Prefix
          path: "/"
          backend:
            service:
              name: hello-service
              port:
                number: 80
[root]# kubectl create -f ingress.yaml

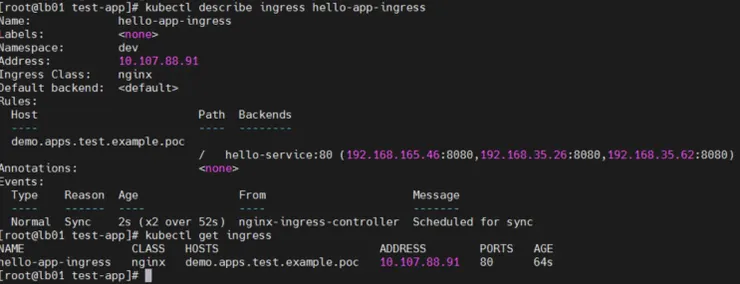

[root]# kubectl describe ingress -n dev

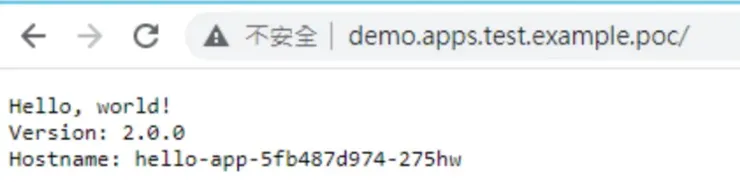

==> http://demo.apps.test.example.poc

#------------------------------------------------------
# S5-4. 建立另一個服務，測試不同domain name都走到同一支ingress controller
#------------------------------------------------------
[root]# cat www-app.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: www
spec:
  selector:
    matchLabels:
      app: www
  replicas: 2 # tells deployment to run 2 pods matching the template
  template:
    metadata:
      labels:
        app: www
    spec:
      containers:
      - name: nginx
        image: gcr.io/google-samples/hello-app:2.0
        ports:
        - containerPort: 80

[root]# cat www-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: www-ingress
  namespace: dev
spec:
  ingressClassName: nginx
  rules:
  - host: "www.apps.test.example.poc"
    http:
      paths:
        - pathType: Prefix
          path: "/"
          backend:
            service:
              name: www-svc
              port:
                number: 80
[root]# cat www-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: www-svc
  namespace: dev
  labels:
    app: www
spec:
  selector:
    app: www
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP

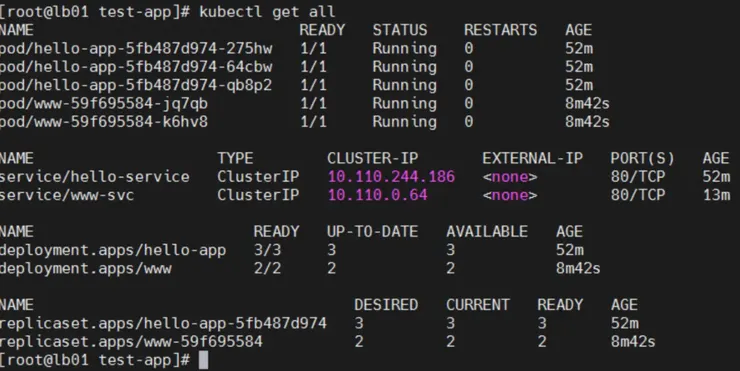

[root]# kubectl create -f www-app.yaml
[root]# kubectl create -f www-svc.yaml
[root]# kubectl create -f www-ingress.yaml

#------------------------------------------------------

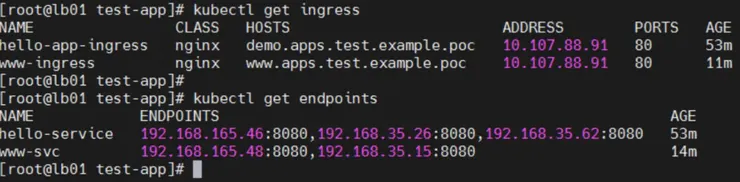

# S5-5. 測試
#------------------------------------------------------
[lb01]# curl demo.apps.test.example.poc
[lb01]# curl www.apps.test.example.poc

6.結論

因為將程式碼的部分也直接給大家看內容，所以篇幅有點太長，但為了大家如果想要直接使用這些內容，就不用再跳到其他外部網站，在閱讀上比較方便，也請大家見諒。

在容器化的世界了解ingress是很重要的，本篇雖然沒有從頭開始講解，但透過實務上的操作之後，再回過頭了重新了解ingress的基礎也許會更有感覺。

今天的分享就到這邊為止，下期再見。

超健忘閒人的沙龍kubernetes怕忘記

超健忘閒人的沙龍

15會員

40內容數

記錄IT社畜的自我學習筆記，如同專題名稱，主要是怕自已忘記自已做過什麼、學到什麼。索性就分享我自已在學習Kubernetes這條路上的各種測試、學習心得。

留言0

查看全部

發表第一個留言支持創作者！

超健忘閒人的沙龍的其他內容

Kubernetes新手必看實務流程-Part3: 安裝後的基本任務與問題排除

本文將演示在安裝完 Kubernetes Cluster 後的基本元件安裝，包括 Calico/Calicoctl、Metric Server 和 Dashboard UI 的安裝方法以及相關問題與解決方式。

#Kubernetes #K8S #Linux

Kubernetes新手必看實務流程-Part2: 建立您的第一組K8S 叢集

這篇文章教你如何搭建Kubernetes Cluster，包括節點安裝前設定、軟體套件安裝、Control-Plane部署和加入運算節點等步驟。在建置之後，作者會分享一些基礎服務的安裝。希望這篇文章對你有所幫助。

#安裝 #部署 #Kubernetes

Kubernetes新手必看實務流程-Part1: RHEL環境準備

本文章將說明如果您想要從頭建置一組具有Loadbalancer HA架構的Kubernetes Cluster時，你可能會需要做的事前準備工作。

#Kubernetes #Container #K8S

搭建Kubernetes網路基石：CNI的安裝與比較

本文將說明在安裝完Kubernetes Cluster之後，接下來必須要進行的CNI Plugin安裝建置方式，同時也透過這篇文章進行基本的CNI說明與比較。 1. Container Network Interface (CNI)

#kubernetes #k8s #container

使用Static Pod 創建高可用外部etcd叢集：詳解步驟

從官網可以知道，我們在建立一組高可用的Kubernetes Cluster時，針對ETCD有二種做法，一種是與Master節點共用，另一種則是將ETCD再獨立出來三個節點成為一組Cluster來進行運作。本文將說明如何建置出外部的ETCD Cluster，並以Static Pod的方式運行與管理

#kubernetes #etcd #k8s

CoreDNS簡單除錯：解決你遇到的一般問題

最近在部署一些解決方案時，碰到了關於名稱解析上的一些問題，雖然有時候不難解決，但我發現如果清楚K8S有關於名稱解析的概念，會對除錯的時間與過程有很大的幫助。透過本篇文章，除了幫自已留下問題查找的過程，同時也希望利用文章來整理自已對CoreDNS元件的一些觀念，同時也可以分享給大家參考。

#Kuberntes #Linux #Container

Kubernetes新手必看實務流程-Part3: 安裝後的基本任務與問題排除

本文將演示在安裝完 Kubernetes Cluster 後的基本元件安裝，包括 Calico/Calicoctl、Metric Server 和 Dashboard UI 的安裝方法以及相關問題與解決方式。

#Kubernetes #K8S #Linux

Kubernetes新手必看實務流程-Part2: 建立您的第一組K8S 叢集

#安裝 #部署 #Kubernetes

Kubernetes新手必看實務流程-Part1: RHEL環境準備

本文章將說明如果您想要從頭建置一組具有Loadbalancer HA架構的Kubernetes Cluster時，你可能會需要做的事前準備工作。

#Kubernetes #Container #K8S

「天天秋嗨嗨」：vocus 秋季徵文，五大主題 & 獎品登場！

這個秋，Chill 嗨嗨！穿搭美美去賞楓，裝備款款去露營⋯⋯你的秋天怎麼過？秋日 To Do List 等你分享！秋季全站徵文，我們準備了五個創作主題，參賽還有機會獲得「火烤兩用鍋」，一起來看看如何參加吧～

#天天秋嗨嗨 #秋季旅遊 #秋季穿搭

MimiVsJames的美股投資分享

2024/11/13

11/20 NVDA財報前Preview, 財報前股價波動走勢觀察

11/20日NVDA即將公布最新一期的財報, 今天Sell Side的分析師, 開始調高目標價, 市場的股價也開始反應, 未來一週NVDA將重新回到美股市場的焦點, 今天我們要分析NVDA Sell Side怎麼看待這次NVDA的財報預測, 以及實際上Buy Side的倉位及操作, 從

#美股 #美股投資 #投資理財

Ethan的沙龍

2024/02/27

維持皮膚健康與活力｜6款超人氣保濕、舒緩敏感化妝水評比

Hi 大家好，我是Ethan😊 相近大家都知道保濕是皮膚保養中最基本，也是最重要的一步。無論是在畫室裡長時間對著畫布，還是在旅途中面對各種氣候變化，保持皮膚的水分平衡對我來說至關重要。保濕化妝水不僅能迅速為皮膚補水，還能提升後續保養品的吸收效率。曾經，我的保養程序簡單到只包括清潔和隨意上乳液

#保養 #產品 #分享

EK.Technology 日常

2023/09/05

Azure kubernetes內安裝Nginx作為Ingress Control

在雲端建立AKS後，運行後有許多Container會被外部服務呼叫使用。但我們知道當我們佈署到AKS，如果要被外面服務呼叫，就要在YAML將Type設定成Loadbalance，一旦這樣設定，就會變成每個Container就會多出一個對外的IP，Container變多了，對外IP就會擴增很快，也不好

#安裝 #測試 #資訊安全
