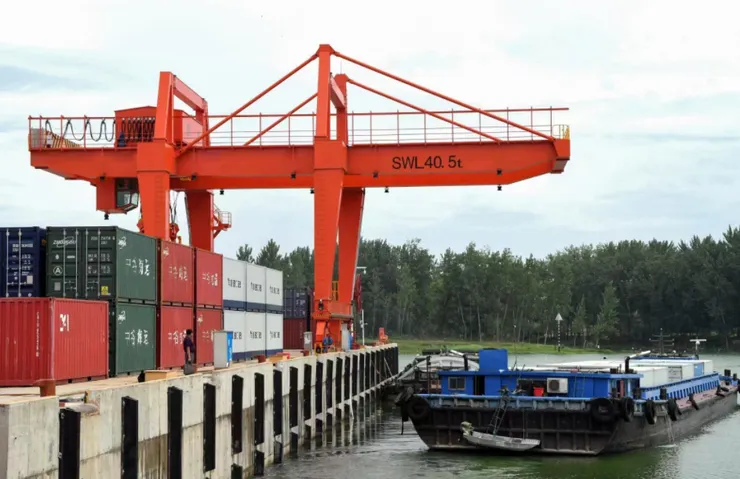

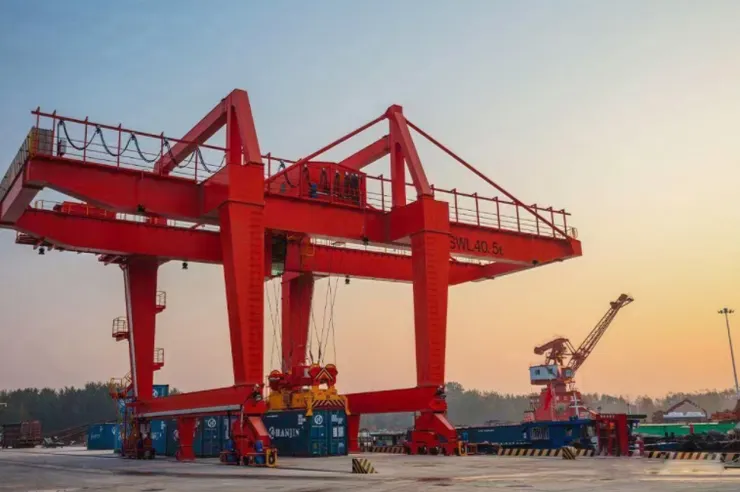

Port gantry cranes operate in one of the most demanding structural environments in the lifting industry. Installed in open coastal areas, container terminals, and bulk cargo ports, these cranes are continuously exposed to strong winds, typhoons, sudden gusts, and complex aerodynamic effects caused by large steel structures. Among all external forces acting on a port gantry crane, wind load is one of the most critical factors influencing structural safety, serviceability, and long-term reliability.
Failure to properly account for wind effects can lead to rail derailment, excessive deformation, fatigue damage, or even catastrophic overturning accidents. Therefore, wind load analysis and anti-overturning structural design are fundamental elements in the engineering of rail-mounted gantry (RMG) cranes, container gantry cranes, and ship-to-shore cranes used in ports.
This article explores how wind loads affect port gantry cranes, the mechanisms of overturning risk, and the key structural design strategies used to ensure stability and safety under extreme wind conditions.
1. Understanding Wind Load in Port Gantry Crane Design
1.1 Characteristics of Wind Loads in Port Environments
Unlike indoor cranes, port gantry cranes are fully exposed to natural wind conditions. Wind loads acting on a crane are influenced by several factors:
- Wind speed and direction
- Crane geometry and projected area
- Elevation above ground
- Surrounding terrain and buildings
- Dynamic effects such as gusts and turbulence
Ports are often located in coastal regions where wind speeds are significantly higher and more variable than inland areas. Seasonal storms, monsoons, and typhoons can generate extreme wind pressures far exceeding normal operating conditions.
1.2 Static Wind Load vs. Dynamic Wind Effects
Wind effects on gantry cranes can be divided into two categories:
- Static wind load, caused by steady wind pressure acting on the crane structure
- Dynamic wind effects, including gusts, vortex shedding, and oscillation
While static wind load governs overall stability and overturning resistance, dynamic wind effects can cause fatigue, resonance, and amplification of structural responses if not properly controlled.
2. Overturning Risk Mechanism of Port Gantry Cranes
2.1 Why Gantry Cranes Are Vulnerable to Overturning
Port gantry cranes are particularly susceptible to overturning because of:
- Large height-to-width ratio
- High center of gravity
- Wide exposed surfaces (girders, legs, trolleys)
- Rail-mounted or wheel-supported foundations
Under strong crosswinds, wind pressure generates a horizontal force and an overturning moment about the rail or wheel contact line. If the overturning moment exceeds the stabilizing moment provided by crane self-weight and anchoring systems, overturning may occur.
2.2 Critical Overturning Scenarios
Overturning risk is highest under the following conditions:
- Crane parked with boom or cantilever exposed to wind
- Crane without rail clamps or tie-down devices engaged
- Empty or lightly loaded crane (lower stabilizing weight)
- Wind acting perpendicular to crane span
- Uneven rail settlement or wheel unloading
Design must consider worst-case scenarios, not just normal operating conditions.
3. Design Wind Speeds and Applicable Standards
3.1 Design Wind Speed Categories
Port gantry crane design typically considers multiple wind speed levels:
- Operating wind speed – maximum wind speed allowed for crane operation
- Non-operating (parking) wind speed – crane secured but not working
- Survival wind speed – extreme wind event (e.g., typhoon, hurricane)
Survival wind speeds can reach 50–70 m/s or higher, depending on regional climate and port location.
3.2 International Design Standards
Wind load and anti-overturning design are governed by international standards such as:
- ISO 4302 / ISO 4304
- EN 13001 series
- FEM rules for crane design
- ASCE and local port authority regulations
These standards define wind pressure coefficients, load combinations, safety factors, and stability verification methods.
4. Structural Design Strategies Against Wind Load
4.1 Increasing Structural Self-Weight and Stability Margin
One of the most fundamental anti-overturning measures is ensuring sufficient stabilizing weight. This includes:
- Optimized steel structure mass distribution
- Lowering the center of gravity where possible
- Reinforcing lower structural components such as portal frames and bogies
However, increasing weight must be balanced against cost, rail load limits, and energy efficiency.
4.2 Optimized Structural Geometry and Wind-Resistant Profiles
Structural shape plays a crucial role in reducing wind load:
- Streamlined box girders reduce wind pressure coefficients
- Open lattice or truss structures allow partial wind penetration
- Rounded edges reduce vortex shedding and turbulence
Modern port container gantry cranes often use aerodynamically optimized girders to minimize wind-induced forces without excessive material usage.
4.3 Anti-Overturning via Track Gauge and Wheelbase Design
A wider track gauge and optimized wheel spacing increase the stabilizing moment arm, improving resistance against overturning. Key considerations include:
- Proper distribution of wheel loads under wind
- Avoidance of wheel uplift
- Compatibility with quay rail infrastructure
Track gauge selection is a critical early-stage design decision affecting long-term stability.
5. Mechanical Anti-Overturning Systems
5.1 Rail Clamps and Storm Brakes
Rail clamps are among the most effective anti-overturning devices. They:
- Secure the crane to rails during strong winds
- Prevent sliding and uplift
- Work in conjunction with storm brakes
High-capacity hydraulic or mechanical rail clamps are designed to withstand extreme wind forces specified for survival conditions.
5.2 Tie-Down Anchors and Ground Anchoring Systems
In typhoon-prone regions, additional anchoring systems may be used:
- Tie-down rods connecting crane legs to ground anchors
- Fixed storm pins or locking devices
These systems provide redundant protection when wind loads exceed design expectations.
5.3 Wind Alarms and Automatic Safety Systems
Modern port gantry cranes integrate wind monitoring systems:
- Anemometers continuously measure wind speed
- Control systems trigger alarms and automatic shutdown
- Rail clamps engage automatically at preset wind thresholds
Automation significantly reduces human error during sudden wind events.
6. Structural Strength and Fatigue Under Wind Loading
6.1 Wind-Induced Stress and Deflection Control
Beyond overturning, wind loads cause bending, torsion, and shear stresses in crane structures. Designers must ensure:
- Acceptable deflection limits for girders and legs
- Sufficient stiffness to avoid excessive sway
- Structural integrity under combined wind and seismic loads
Finite element analysis (FEA) is widely used to evaluate wind-induced stress distribution.
6.2 Fatigue Considerations from Repeated Wind Action
Even moderate winds, when acting repeatedly over time, can lead to fatigue damage. Critical fatigue-prone areas include:
- Welded joints
- Bolted connections
- Rail-to-wheel interfaces
Design for wind load must therefore consider both ultimate strength and fatigue life.
7. Parking and Operational Design Considerations
7.1 Safe Parking Position Design
Port gantry cranes are often designed with dedicated storm parking positions, considering:
- Minimum wind-exposed area
- Orientation relative to prevailing wind direction
- Proximity to anchoring devices
Correct parking design significantly reduces wind load effects.
7.2 Operational Wind Speed Limits
Crane control systems define maximum allowable wind speeds for:
- Lifting operations
- Trolley travel
- Gantry travel
Clear operational limits ensure that cranes are not exposed to unsafe wind conditions during use.
8. Integrated Wind-Resistant Design Philosophy
Effective wind load and anti-overturning design is not achieved through a single measure, but through an integrated system approach, combining:
- Structural optimization
- Mechanical restraint systems
- Intelligent monitoring and control
- Compliance with international standards
This holistic approach ensures that port gantry cranes remain safe, reliable, and operational throughout their service life, even in extreme coastal environments.
Conclusion
Wind load is one of the most decisive external forces influencing the safety and stability of port gantry cranes. Without proper anti-overturning structural design, even the most advanced lifting equipment can become vulnerable to severe accidents during strong wind events.
By carefully analyzing wind characteristics, applying robust structural design principles, integrating mechanical anti-overturning systems, and adopting intelligent monitoring technologies, modern port gantry cranes can achieve high levels of wind resistance and operational safety.
For port operators, EPC contractors, and crane manufacturers, investing in comprehensive wind load and anti-overturning design is not merely a regulatory requirement—it is a critical safeguard for personnel, assets, and uninterrupted port operations.
