Medium-capacity overhead cranes, typically in the 20–50 ton range, are indispensable assets in industries such as steel fabrication, power generation, shipping, and precast concrete production. These cranes serve as the backbone of material handling operations, enabling efficient, safe, and precise lifting of heavy loads. While their operation may appear straightforward, the engineering considerations behind designing, selecting, and installing a medium-capacity crane are complex and require meticulous attention to detail. This article delves into the key engineering aspects that must be addressed to ensure optimal performance, safety, and longevity of 20 to 50 ton overhead cranes.
1. Load Capacity and Safety Factors
The most critical factor in crane engineering is the accurate determination of load capacity. For medium-capacity overhead cranes, this typically ranges from 20 to 50 tons. Engineers must not only account for the maximum rated load but also include safety factors to handle unexpected overloads, dynamic forces, and potential load eccentricity.Key considerations include:
- Dynamic Loading: Lifting and lowering heavy loads generates dynamic forces, which can exceed the static weight of the load. Acceleration, deceleration, and sudden stops must be accounted for in the structural design.
- Impact and Shock Loads: Operations such as snagging or abrupt stops introduce impact forces. Structural components, including the crane girders, trolley beams, and hook assemblies, must withstand these forces without permanent deformation.
- Safety Factor: For cranes in this capacity range, safety factors typically range from 1.25 to 1.5, meaning the crane should withstand loads 25–50% above its rated capacity under extreme conditions.
Proper load analysis ensures both operational safety and regulatory compliance with standards such as CMAA, FEM, and ISO.
2. Structural Design and Material Selection
The structural integrity of a crane is vital for both performance and safety. Engineers must carefully select materials, design girders, and optimize the overall crane framework to ensure durability and stability.
Girders and Beams:

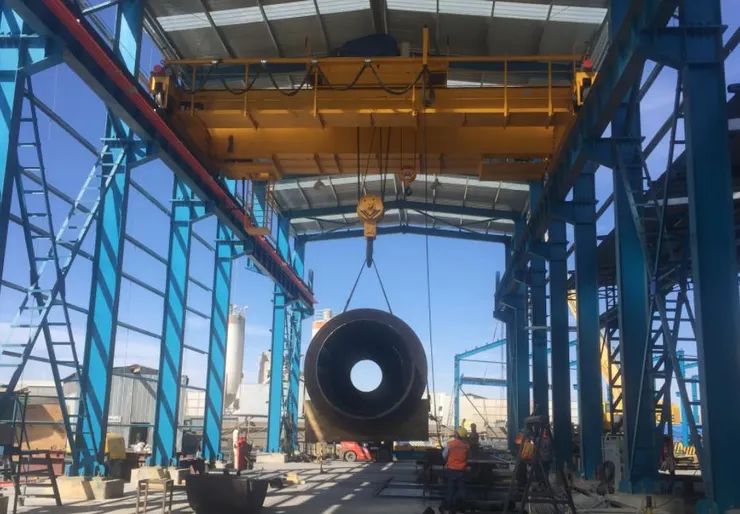

- Medium-capacity cranes commonly use double girder designs for enhanced stability and reduced deflection. Double girders distribute the load more evenly and allow for greater spans and lifting heights.
- Single girder cranes may be considered for smaller spans or lower headroom but typically have limited lifting height and reduced load distribution efficiency.
Materials:
- High-strength structural steel, such as Q345B or equivalent, is preferred for cranes in the 20–50 ton range. These materials provide excellent tensile strength, fatigue resistance, and weldability.
- Corrosion resistance is another crucial consideration, particularly for outdoor cranes or facilities with high humidity. Protective coatings, galvanization, or weather-resistant steels may be employed.
Deflection and Stiffness:
- Engineers must calculate girder deflection under full load. Excessive deflection can reduce lifting accuracy and compromise safety. Typically, the maximum allowable deflection is L/800 to L/1000 of the span, where L is the girder span.
3. Hoist and Trolley Selection
The hoist and trolley system is the heart of the crane. Proper selection ensures smooth lifting, precise load positioning, and long-term reliability.
Hoist Types:
- Electric Wire Rope Hoists: Ideal for 20–50 ton capacity cranes, wire rope hoists provide higher lifting speeds and longer service life. They are also better suited for high-frequency lifting operations.

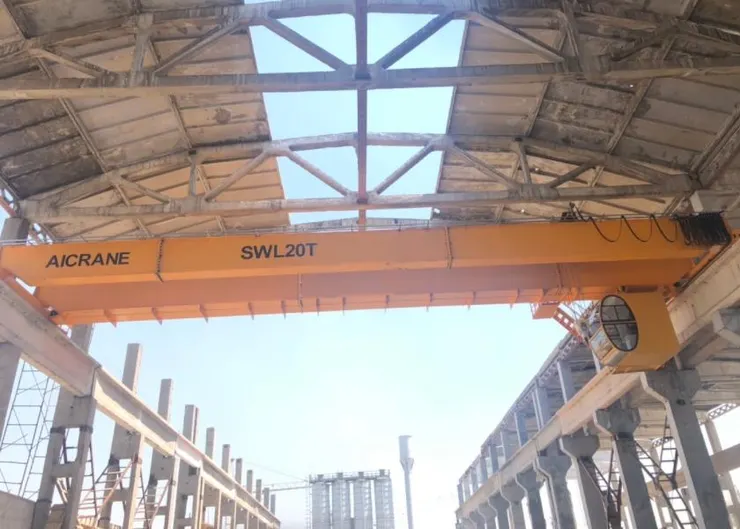

- Electric Chain Hoists: Rarely used for this capacity range due to chain limitations, but may be applicable for lighter medium-capacity cranes such as 20 ton overhead cranes.
Trolley Considerations:
- Travel Speed: For efficiency, the trolley should be capable of variable speed control, enabling operators to adjust lifting speed based on load and precision requirements.
- Load Distribution: Trolleys must distribute the load evenly across crane girders. Engineers must ensure that the trolley and wheel design minimizes point loads on the runway rails.
- End Trucks: These support the crane on the runway rails. Wheel profiles, material hardness, and lubrication systems must be carefully engineered to reduce wear and vibration.
4. Electrical and Control Systems
Modern medium-capacity cranes rely on advanced electrical and control systems to improve safety, precision, and efficiency.
Control Options:
- Pendant Control: Reliable and cost-effective, ideal for confined spaces.
- Radio Remote Control: Provides flexibility for operators, particularly in noisy or hazardous environments.
- Cab Control: Suitable for long-span cranes where operator visibility is crucial.
Variable Frequency Drives (VFDs):
- VFDs are commonly used for hoist, trolley, and bridge movements. They allow smooth acceleration and deceleration, reduce mechanical stress, and improve energy efficiency.
Safety Systems:
- Limit switches, overload protection, anti-collision devices, and emergency stop circuits are critical.
- Load monitoring systems can continuously track weight and alert operators if the crane approaches its maximum capacity.
5. Runway and Foundation Design
The crane runway is as important as the crane itself. Improper runway design can result in excessive vibration, structural fatigue, and reduced crane lifespan.
Rail Alignment and Support:
- Rails must be precisely aligned to avoid uneven wheel loading. Misalignment can cause premature wear and trolley instability.
- Expansion joints may be required for long runways to accommodate thermal expansion and prevent structural stress.
Foundation Considerations:
- Medium-capacity cranes generate significant forces that must be safely transferred to the building structure. Foundations must support both static and dynamic loads.
- Floor flatness is crucial; uneven surfaces can induce torsion in the crane frame, leading to mechanical failures.
6. Environmental and Operational Factors
Crane engineering must consider the environment in which the crane will operate. Factors such as temperature, humidity, dust, and exposure to corrosive agents impact both design and maintenance requirements.
- Indoor vs Outdoor Operation: Outdoor cranes require weatherproofing, corrosion-resistant materials, and possibly enclosures for electrical components.
- Temperature Extremes: Low temperatures can affect steel ductility and hydraulic system performance, while high temperatures can overheat motors and electronics.
- Operational Duty Cycle: Cranes with frequent lifts (high-duty cycles) require more robust components and regular maintenance schedules.
7. Maintenance and Longevity Considerations
Engineering for ease of maintenance is often overlooked but is critical for crane reliability.
Accessible Components:
- Hoists, motors, and gearboxes should be positioned for easy inspection and lubrication.
- Walkways and service platforms can facilitate safe maintenance operations.
Predictive Maintenance:
- Modern cranes can integrate sensors to monitor vibration, temperature, and load patterns. Predictive maintenance reduces downtime and extends service life.
Spare Parts Availability:
- Selecting standard components and ensuring spare parts availability reduces operational interruptions and maintenance costs.
8. Compliance with Standards
Compliance with national and international standards ensures safety, reliability, and market acceptance. Key standards include:
- ISO 4301-1: Cranes – Classification and Service Duty
- CMAA 70 and 74: Overhead Cranes Standards for Design, Manufacture, and Maintenance
- FEM 1.001 and 1.003: European crane design guidelines
Adherence to these standards ensures that all engineering calculations, safety margins, and operational features meet recognized industry requirements.
9. Conclusion
Designing a 20–50 ton medium-capacity overhead crane requires a holistic engineering approach that balances performance, safety, and operational efficiency. Engineers must carefully consider load capacities, structural integrity, hoist and trolley selection, control systems, runway design, environmental factors, maintenance access, and regulatory compliance. Proper attention to these considerations ensures that medium-capacity overhead cranes can deliver precise, reliable, and safe lifting operations for decades, ultimately improving productivity and reducing operational risk for industrial facilities.
For companies planning to invest in medium-capacity overhead cranes, collaboration with experienced crane manufacturers and engineers is essential. A well-engineered crane not only meets current lifting requirements but also anticipates future operational demands, providing a long-term solution for heavy-duty material handling.
