Structural Design Challenges for Heavy-Duty Overhead Cranes

更新 發佈閱讀 20 分鐘

Heavy-duty overhead cranes, with lifting capacities of 50 tons and above, play a critical role in industries such as steel manufacturing, shipbuilding, heavy machinery assembly, power plants, and large-scale construction. Designing these cranes involves overcoming numerous structural engineering challenges to ensure safety, reliability, and long-term performance. The complexity increases significantly compared to lighter cranes due to the enormous loads, dynamic effects, and operational demands.

This article explores the key structural design challenges faced when engineering heavy duty overhead cranes, highlighting the factors affecting crane girder design, stability, fatigue, material selection, load distribution, and compliance with safety standards.

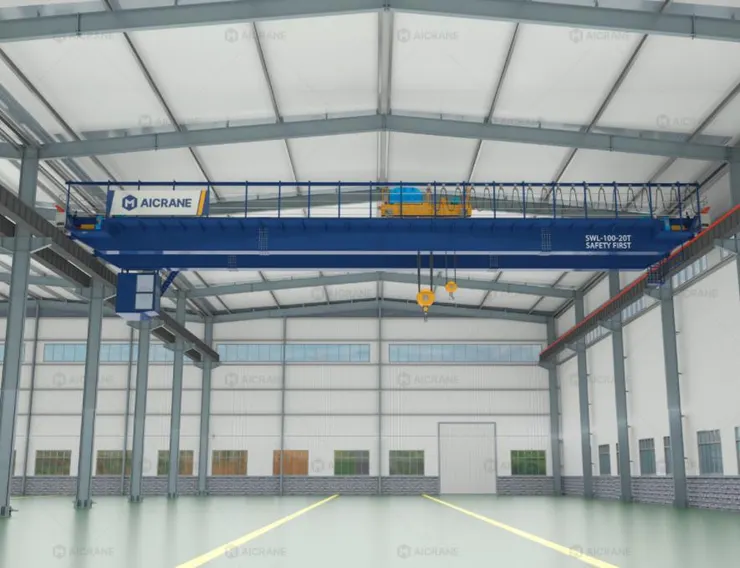

raw-image


1. Understanding the Scope and Load Characteristics

Heavy-duty cranes must support massive loads that can reach hundreds of tons. These loads are not static; they include dynamic effects such as acceleration, deceleration, shock loads during lifting, trolley movement, and potential load sway.

Key Load Types:

  • Dead Load: Self-weight of the crane components.
  • Live Load: Weight of the lifted load plus rigging equipment.
  • Impact Load: Additional forces due to acceleration, braking, and sudden load changes.
  • Lateral Loads: Sideways forces from wind, crane motion, or seismic activity.
  • Crane Crash Loads: Forces resulting from accidental collisions.

Designing the crane structure to safely withstand these combined load cases without excessive deformation or failure is a primary challenge.

2. Girder and Beam Design Challenges

The girders or main beams are the backbone of heavy-duty overhead cranes. Their design is crucial since they bear the majority of the load transmitted from the hoist and trolley to the crane runway.

Structural Challenges Include:

  • High Bending Moments: The heavy loads create very large bending moments, requiring girders with substantial moment capacity and stiffness. This necessitates careful cross-sectional design to balance strength and weight.
  • Deflection Control: Excessive deflection can affect crane operation accuracy and cause premature wear on mechanical components. Deflection limits must be strict, often well below those used for lighter cranes.
  • Shear and Torsion: Large concentrated loads from hoists can induce significant shear forces and torsional effects, especially when the hoist is near the girder ends or when using multiple hoists.
  • Local Stress Concentrations: Areas near trolley wheels, hoist attachments, and girder connections are prone to stress concentrations. Detailed finite element analysis (FEA) is required to optimize these regions.
  • Cantilever Beams: Many heavy-duty cranes incorporate cantilever sections for hoist positioning. These cantilevers face complex stress states and require robust design to avoid excessive bending and twisting.

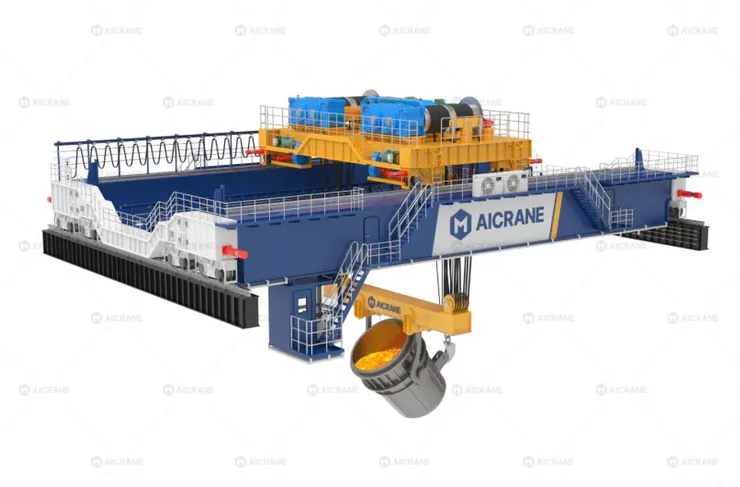

raw-image


3. Material Selection and Fabrication Constraints

Choosing the appropriate steel grades and fabrication methods impacts the structural integrity and longevity of heavy cranes.

Material Considerations:

  • High-Strength Steel: Often required to reduce girder weight while meeting strength demands. However, high-strength steels may have reduced ductility and require careful welding procedures.
  • Fatigue Resistance: Since cranes operate with repetitive loading cycles, steel with good fatigue properties is preferred to avoid crack initiation and propagation.
  • Weldability: Heavy-duty cranes demand extensive welding. Materials must be weldable with minimal residual stresses and distortion.
  • Corrosion Resistance: For outdoor cranes or harsh environments, materials or coatings that prevent corrosion are necessary to maintain structural integrity.

Fabrication challenges include controlling dimensional tolerances, residual stresses from welding, and ensuring the quality of large, complex welds.

4. Stability and Structural Safety

Heavy-duty overhead cranes must remain stable under all load and operational conditions.

Stability Challenges:

  • Buckling Risk: Large girders with slender sections are susceptible to lateral-torsional buckling. Designers must optimize section shapes and include bracing where necessary.
  • Crane Runway Interaction: The structural design must account for how the crane loads transfer to the runway beams and supporting structure. Uneven load distribution can cause localized failures.
  • Seismic and Wind Loads: In seismic regions or outdoor installations, lateral forces can cause significant instability. The crane structure and runway must be designed as a system to resist these loads safely.
  • Anti-Sway Systems: To reduce load sway and increase stability, cranes may include anti-sway mechanisms or damping devices, which add complexity to structural integration.

5. Fatigue and Dynamic Load Considerations

Heavy-duty cranes operate with frequent load cycles. Even if the loads are within static limits, cyclic stresses can cause fatigue failure over time.

Fatigue Design Issues:

  • Load Spectrum Analysis: Designers must understand the expected frequency and magnitude of load cycles, including trolley movements and hoist operations.
  • Stress Concentration Minimization: Welds and sharp geometric transitions are common fatigue initiation points. Smooth transitions and proper weld designs are critical.
  • Dynamic Amplification Factors: Dynamic effects can amplify stresses. Accurate modeling and testing help to apply realistic safety factors.

6. Structural Integration with Mechanical and Electrical Systems

The structural design must harmonize with the mechanical hoist system, trolley, crane controls, and electrical components.

  • Space Constraints: The structure must accommodate motors, gearboxes, brakes, and cable systems without compromising structural strength.
  • Mounting and Accessibility: Load-bearing elements must also provide secure and accessible mounting points for equipment maintenance.
  • Thermal Expansion: Large steel structures expand and contract with temperature changes, affecting alignment and stress distribution.
  • Noise and Vibration Control: Structural design influences noise and vibration transmitted during crane operation, which impacts both worker comfort and mechanical longevity.

7. Compliance with Standards and Codes

Heavy-duty eot cranes must meet rigorous national and international design codes such as ISO 4301, FEM standards, CMAA specifications, and relevant national regulations.

  • Load and Safety Factors: Codes dictate minimum safety margins, load combinations, and testing procedures.
  • Testing Requirements: Structural components undergo static and dynamic load tests to verify design assumptions.
  • Documentation and Traceability: Material certifications, welding records, and quality control documents must be maintained.

8. Cost and Weight Optimization

While strength and safety are paramount, designers must optimize crane weight and cost:

  • Weight Reduction: Heavier cranes increase foundation and runway costs. Using high-strength materials and optimized cross-sections helps reduce weight.
  • Manufacturing Costs: Complex fabrication increases costs. Design for manufacturability principles should be applied.
  • Maintenance Considerations: Easy access for inspection and repair prolongs crane life and reduces downtime.

Conclusion

Designing heavy-duty overhead cranes with capacities of 50 tons and above presents multifaceted structural challenges. Engineers must balance high load capacity, structural safety, fatigue resistance, and operational reliability, while adhering to stringent codes and optimizing costs. Advances in material science, computational modeling, and fabrication techniques continue to improve the performance and safety of these critical industrial machines.

Successful crane structural design demands a holistic approach integrating mechanical, electrical, and operational considerations, ensuring heavy-duty cranes perform efficiently and safely over decades of service.
