Gantry cranes are essential in modern material handling and industrial operations, offering flexibility, high lifting capacity, and efficient handling of heavy loads. However, the total cost of a gantry crane is significantly influenced by its core components: motors, hoists, and girders. Understanding the cost structure of these critical elements can help companies make informed decisions about purchasing, maintenance, and customization of gantry cranes. This article provides an in-depth look at each major component, its cost factors, and how choices in design and quality affect overall expenditure.
Gantry Crane Overview
Gantry cranes consist of several interrelated components, including the crane structure (main girders, legs, and runway), hoisting equipment (hoists, motors, trolleys), and control systems. These components work together to lift, move, and precisely position heavy loads. The gantry crane cost is not uniform; it varies according to the crane’s capacity, span, operating environment, and customization level. While auxiliary features like remote control or anti-sway mechanisms contribute to cost, the motors, hoists, and girders form the core of both functionality and expense.Motors: The Driving Force of Gantry Cranes
Motors power the movement of the crane along its rails, the trolley travel across the gantry, and the hoist mechanism that lifts the load. They are fundamental to operational efficiency and reliability.
Types of Motors
- Electric Motors: The most common choice, typically three-phase AC motors, provide precise control and are compatible with variable frequency drives (VFDs). High-capacity cranes may require larger, more robust motors capable of handling heavy loads over extended periods.
- Hydraulic Motors: Often used in specialized or extremely heavy-duty applications, hydraulic motors offer smooth operation under high load but require additional hydraulic systems and maintenance.
- Variable Frequency Drive (VFD) Motors: These provide energy efficiency, smoother acceleration and deceleration, and better positioning control. VFDs can reduce mechanical stress on other components, indirectly lowering maintenance costs.
Factors Affecting Motor Costs
Motor costs depend on several parameters:
- Power rating: Higher load capacities require motors with greater horsepower, which are more expensive.
- Duty cycle: Continuous-duty motors are built to withstand long operation hours and are costlier than intermittent-duty motors.
- Brand and quality: Premium motor brands with higher efficiency ratings usually come at a higher price but offer better longevity and reliability.
- Control options: Integration with VFDs or PLC control systems adds to the cost but enhances operational flexibility.
Typical Price Range
For small to mid-sized gantry cranes (up to 50 tons), motors can range from $1,500 to $5,000 each. Heavy-duty industrial gantry cranes (50 tons and above) may require motors costing $8,000 to $20,000 or more, depending on the specifications.

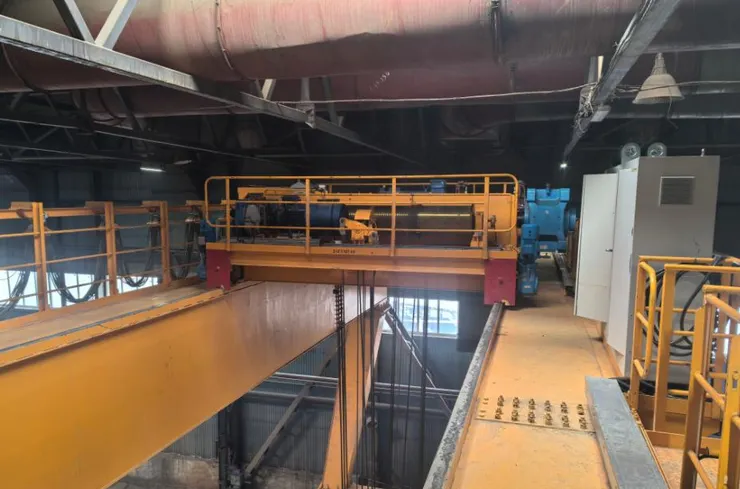

Hoists: The Heart of Lifting Operations
The hoist is responsible for lifting, lowering, and controlling the load. Its reliability directly affects the safety, efficiency, and lifespan of the gantry crane.
Types of Hoists
- Wire Rope Hoists: Suitable for heavy loads and long lifts, wire rope hoists are durable and provide high lifting speeds. Their construction allows for precise control and long service life.
- Chain Hoists: Ideal for lighter loads, chain hoists are simpler in design and lower in cost. They are easier to maintain but may have slower lifting speeds and shorter duty cycles.
- Electric vs. Manual Hoists: Electric hoists are more expensive but provide faster, more consistent lifting and reduced labor. Manual hoists are cheaper but limited in capacity and operational convenience.
Cost Influencing Factors
Several factors determine hoist cost:
- Load capacity: Larger lifting capacities require stronger hoists, with reinforced motors, gears, and structural elements, significantly increasing price.
- Lift height: Hoists designed for taller lifting applications need more rope or chain length and higher motor power.
- Duty rating: Hoists designed for continuous or heavy-duty use are more robust and expensive.
- Precision and speed: Advanced hoists with variable speed control, precise positioning, or anti-sway mechanisms cost more but improve operational safety and efficiency.
Typical Price Range
Small electric hoists (1–10 tons) may cost between $1,000 and $5,000. Mid-range hoists (10–50 tons) typically fall between $5,000 and $15,000. Heavy-duty hoists for 100-ton or larger cranes can exceed $50,000, depending on customization and additional safety features.
Girders: The Structural Backbone
Girders, including the main beams and supporting frames, form the structural backbone of a gantry crane. They support the weight of the load, the hoist, and the dynamic forces generated during movement.
Girder Design Types
- Single Girder: Comprises one main beam and is suitable for lighter loads and smaller spans. Single-girder designs are cost-effective and easier to install.

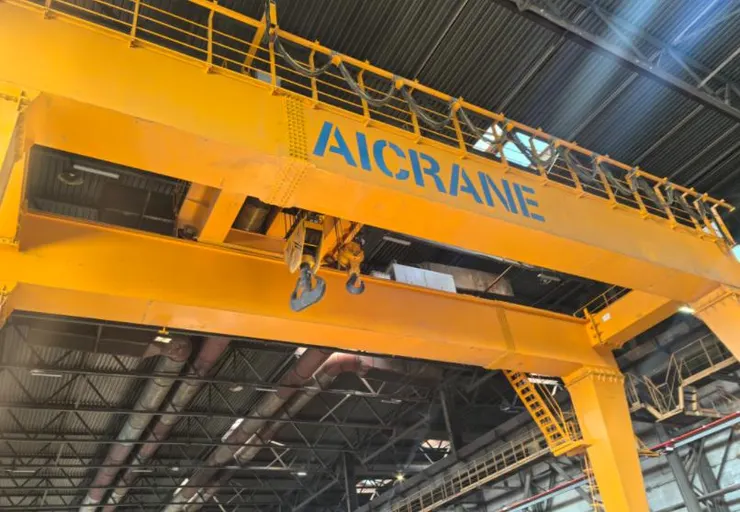

- Double Girder: Features two main beams, allowing higher load capacities, longer spans, and more precise load distribution. Double girder cranes are more expensive but essential for heavy-duty industrial applications.
- Box Section vs. I-Beam: Box section girders provide higher torsional rigidity and are preferred for heavy-duty or long-span cranes, while I-beam girders are less expensive and suitable for moderate loads.
Factors Affecting Girder Costs
- Material selection: High-quality structural steel, often with specific yield strength, impacts the price.
- Span and height: Longer spans require more steel and fabrication effort.
- Load capacity: Heavier lifting capacities necessitate thicker, stronger girders.
- Fabrication complexity: Welded, reinforced, or custom-shaped girders increase manufacturing costs.
Typical Price Range
For small gantry cranes, main girders can cost from $3,000 to $10,000. Medium-sized double girder cranes may range from $10,000 to $30,000, while heavy-duty industrial girders for large cranes often exceed $50,000 to $100,000 depending on span and customization.
Cost Interrelationships and Considerations
The cost of motors, hoists, and girders is interrelated. Upgrading one component often necessitates reinforcing others. For instance:
- Increasing hoist capacity may require stronger girders and more powerful motors.
- Longer spans demand heavier girders, larger motors, and sometimes more advanced hoists to maintain lifting efficiency.
- Investing in high-quality motors and hoists may increase upfront costs but reduces maintenance and downtime, improving long-term ROI.
Additionally, indirect costs such as installation, commissioning, and future maintenance should be considered when evaluating component expenses.
Balancing Performance and Cost
While budget constraints often guide decisions, optimizing component selection is key to long-term efficiency:
- Motors: Choose based on duty cycle and load; avoid over-specification which increases initial cost without proportional benefit.
- Hoists: Match lifting capacity and operational speed to application needs; consider advanced features if precision and safety are priorities.
- Girders: Ensure structural integrity for the intended load and span; avoid under-specification that could lead to premature wear or structural failure.
Conclusion
Understanding the costs of gantry crane components is crucial for manufacturers, buyers, and operators. Motors, hoists, and girders account for the bulk of investment, and their selection affects both operational performance and long-term maintenance. By carefully evaluating each component based on capacity, duty cycle, and quality, businesses can strike a balance between upfront cost and operational efficiency. Investing wisely in these components ensures safety, reliability, and longevity, ultimately maximizing the return on gantry crane investment.
