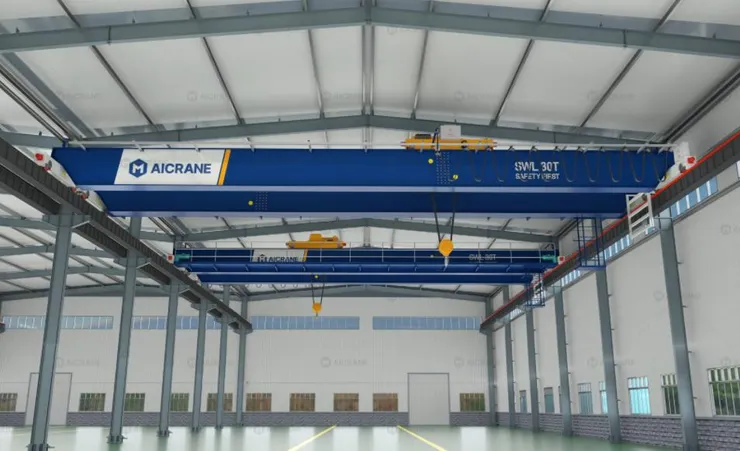

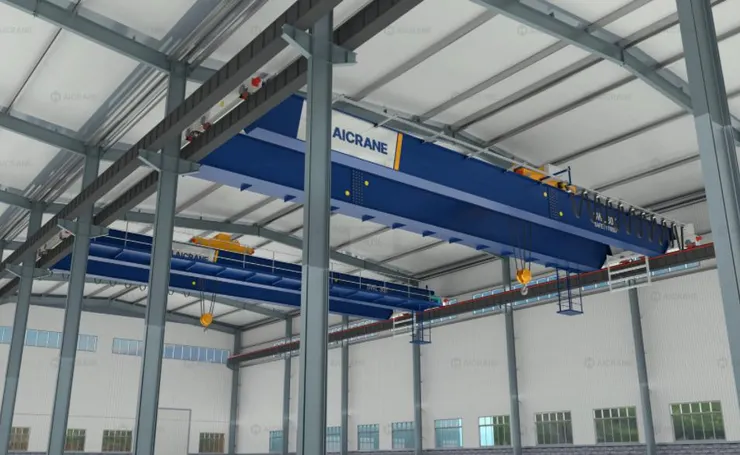

A 30-ton bridge crane is a critical piece of industrial equipment used across numerous industries such as steel fabrication, automotive manufacturing, shipbuilding, energy, and construction. Its structural design plays a pivotal role in ensuring safe, efficient, and durable operation. A well-designed 30-ton bridge crane must accommodate dynamic loads, provide structural stability, and maintain operational flexibility under various work conditions. This article delves into the fundamental principles that govern the structural design of a 30-ton bridge crane.
1. Understanding the Crane Structure
The main components of a 30 ton bridge crane typically include the following:- Bridge Girder(s): These span the width of the crane runway and carry the trolley and hoist.
- End Trucks: Support the bridge girder and enable crane movement along the runway.
- Hoist and Trolley System: Used to lift and move the load horizontally along the bridge.
- Runway Beams and Columns: Form the supporting infrastructure.
- Control Systems: Provide operation commands and safety monitoring.
Designing these components requires a deep understanding of both mechanical and structural engineering, taking into account static and dynamic forces, material behavior, and safety standards.
2. Load Analysis and Classification
One of the first steps in structural design is accurately defining the loads the crane will handle:
Types of Loads:
- Dead Load: The self-weight of the crane components including girders, trolley, hoist, etc.
- Live Load: The weight of the maximum load the crane will lift (30 tons in this case).
- Impact Load: Dynamic effects due to starting, stopping, and sudden application or release of load.
- Wind Load: Particularly relevant in outdoor or semi-outdoor applications.
- Seismic Load: Considered in earthquake-prone regions.
Duty Classification:
According to standards like FEM and CMAA, cranes are classified into different duty groups (A1 to A8) based on frequency of use and load spectrum. A crane used in a high-production factory will need a more robust structure than one used occasionally in a warehouse.
3. Main Girder Design Principles
The main girder carries the most significant portion of the crane’s stress and must be designed to withstand bending and torsional forces. There are typically two types:
- Single Girder: Lighter and more economical but limited in span and lifting capacity.
- Double Girder: Preferred for 30-ton cranes due to higher load capacity and greater span flexibility.
Design Considerations:
- Cross Section: Box-type or I-beam sections are commonly used. Box girders offer better torsional rigidity.
- Material: High-strength, low-alloy steels (such as Q345B or ASTM A572) are used for better performance under stress.
- Deflection Limits: Typically limited to 1/1000 of the span to avoid performance degradation.
- Fatigue Resistance: Critical for cranes in repetitive or high-frequency operations.
4. End Truck and Wheel Load Distribution
End trucks carry the bridge and transmit the load to the runway beams. The wheel loads are crucial in determining the strength of supporting structures and the rail system.
Key Design Criteria:
- Wheelbase: Must provide enough stability and minimize rail wear.
- Wheel Material: Hardened steel with high wear resistance is essential.
- Load Distribution: Uniform distribution avoids overloading individual wheels or rails.
Finite Element Analysis (FEA) is commonly used to simulate load distribution and optimize end truck designs for minimal stress concentrations.
5. Runway and Support Structure
The runway beams and support columns must sustain the weight of the crane and the load, including all dynamic forces.
Design Guidelines:
- Column Spacing and Foundation Strength: Must accommodate vertical and horizontal forces.
- Rail Alignment and Fixation: Proper rail installation ensures smooth crane travel and prevents derailment.
- Thermal Expansion: Structural allowances must be made for expansion and contraction in large spans.
6. Stability and Sway Control
For a 30-ton bridge crane for sale, lateral and longitudinal stability are crucial for safe operations. Improper sway control can lead to load oscillations, structural fatigue, and even accidents.
Strategies:
- Cross Bracing: Prevents lateral displacement of the girders.
- Anti-sway Systems: Electronic anti-sway systems reduce pendulum motion during trolley travel.
- Buffer Systems: Shock-absorbing buffers protect the crane from end collisions.
7. Design Standards and Compliance
To ensure safety and performance, structural design must comply with international and regional standards, including:
- CMAA 70 – US standard for top-running bridge and gantry cranes.
- FEM 1.001 – European design rules for cranes.
- ISO 4301 – Classification of cranes.
- GB/T 3811 – Chinese standard for crane design.
These standards define load factors, allowable stress, safety margins, and inspection criteria.
8. Corrosion Protection and Durability
The working environment of a crane significantly affects its lifespan. In humid, corrosive, or high-temperature environments, the structure must be protected.
Measures:
- Surface Treatment: Including shot blasting, primer coating, and top painting.
- Galvanization: For parts exposed to aggressive weather conditions.
- Maintenance Access: Design must allow easy inspection and servicing.
9. Modular and Custom Design Considerations
Today, many bridge cranes are designed with modular concepts to allow for easier transportation, assembly, and maintenance.
Design Features:
- Bolted Connections: Allow for on-site assembly and replacement.
- Segmented Girders: Useful for shipping large cranes in standard containers.
- Customization: Tailored span, lifting height, and hoist configurations to fit different building layouts.
10. Conclusion
The structural design of a 30-ton bridge crane is a multidimensional engineering task that balances safety, strength, efficiency, and economic feasibility. From girder configuration to load dynamics, each component must be meticulously planned, simulated, and tested. In addition to complying with international standards, successful crane designs must adapt to client-specific applications and environments.
Advanced tools such as CAD modeling, FEA simulations, and digital twin technology are increasingly used to optimize design, reduce weight, enhance durability, and streamline manufacturing. As industries continue to demand higher lifting capacities and greater precision, the structural design principles of 30-ton bridge cranes will continue to evolve toward smarter, safer, and more sustainable systems.
