Overhead cranes are critical assets in steel plants, where they perform essential material handling operations like moving molten metal, transporting steel coils and billets, and feeding raw materials into furnaces. The cost of an overhead crane for a steel plant can vary significantly based on multiple factors such as crane type, capacity, span, working environment, and added features like automation or special safety systems. In this article, we’ll explore the cost range of overhead cranes used in steel manufacturing facilities, break down the influencing factors, and offer guidance to help buyers make informed investment decisions.
Average Cost Range of Overhead Cranes for Steel Plants

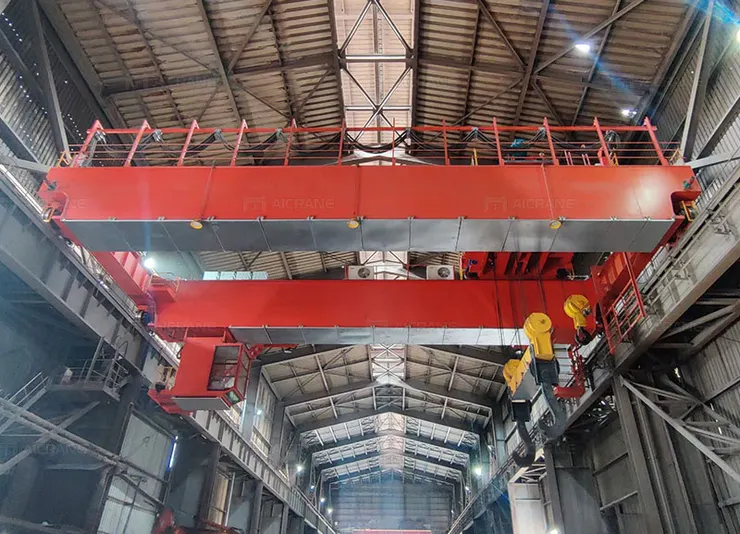

The cost of an overhead crane designed for steel plants typically ranges from as low as $30,000 to more than $1,000,000. The variation depends on the crane’s type, size, specifications, level of customization, and working environment.For example, a basic single girder EOT crane with a lifting capacity between 5 and 20 tons and a span of 10 to 25 meters may cost anywhere from $30,000 to $80,000. In contrast, a more advanced double girder EOT crane, with a capacity ranging from 20 to 100 tons, may fall in the range of $70,000 to $300,000.

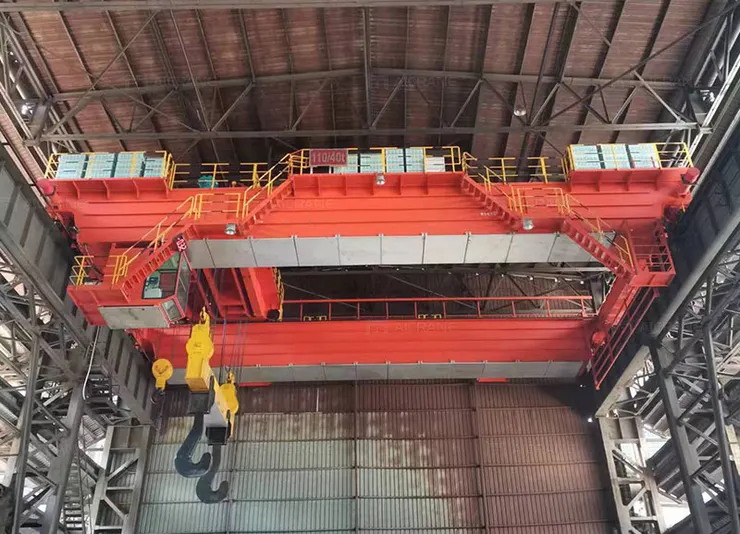

More complex systems like ladle handling cranes—which are designed to move molten metal—can range from $250,000 to over $1 million. These cranes typically handle 100 to 500 tons and include redundant safety features and heat-resistant components. Specialized cranes for coil handling or magnet lifting often cost between $80,000 and $400,000, depending on the required lifting capacity and control system.
Key Cost Influencing Factors
1. Crane Type and Application
Steel plants use various types of overhead cranes based on their specific applications:
- Ladle Cranes for transporting molten metal are among the most expensive due to high safety, precision, and heat-resistance requirements.
- Magnet Cranes or coil handling cranes are designed for lifting finished steel products like coils or plates.
- Slab or billet handling cranes must be heavy-duty and extremely reliable due to high frequency and weight loads.
The more specialized the application, the higher the crane’s price due to the engineering required.
2. Load Capacity
The crane’s lifting capacity significantly influences the cost. Larger capacities require stronger components, bigger motors, heavier steel structures, and larger gearboxes. For example:
- A 20-ton crane may cost around $70,000.
- A 200-ton ladle crane may cost $600,000 or more.
3. Span and Lifting Height
Wider spans and higher lifting heights require larger steel structures and more robust engineering, which drives up material and manufacturing costs. Customizations like long cantilevers or dual trolleys further increase the price.
4. Working Class / Duty Cycle
Steel plant cranes typically operate under heavy or very heavy duty cycles (A5–A8). Cranes with high working duty classifications are more expensive due to the need for reinforced mechanical and electrical systems to endure constant or extreme use.
5. Environment and Special Conditions
Steel plants are harsh environments with high temperatures, dust, and corrosive gases. These conditions require:
- Heat-resistant cables, motors, and control systems
- Special painting or anti-corrosion coatings
- Explosion-proof or spark-proof components (in certain areas)
All these additions increase the crane cost significantly.
6. Control System and Automation
Manual or semi-automatic control is less expensive. However, many modern steel plants opt for:
- PLC-based control systems
- Remote monitoring and diagnostics
- Automatic positioning systems
- Integration with MES/ERP systems
While automation increases upfront investment, it can reduce labor costs and improve safety and precision in the long run.
7. Power Supply System
The choice of power supply (festoon system, conductor bars, cable reels) and type of motor drive (single-speed, dual-speed, or frequency inverter) also affects the final price. More sophisticated systems cost more but improve operational performance.
8. Customization Requirements
Every steel plant has unique layout, bay structure, and handling processes. Tailor-made steel mill cranes (non-standard spans, custom lifting attachments, multi-trolley systems) will cost more due to engineering time and non-standard fabrication.
Other Costs Beyond the Equipment
Purchasing the crane itself is only part of the total investment. The following associated costs must also be considered:
1. Design and Engineering
Engineering consultation for plant layout, structural reinforcement, and crane system design may add 5–10% to the cost.
2. Installation and Commissioning
Depending on the complexity, installation can cost anywhere between $5,000 to $50,000, including labor, tools, and test weights. Overseas installation costs are higher due to travel and accommodation.
3. Foundation and Civil Work
Heavy-duty cranes may require reinforcement of the factory structure or new supports. These civil works can add significantly to the total project cost.
4. Spare Parts and Maintenance Packages
Some suppliers offer spare parts kits and preventive maintenance contracts for an additional fee. These are essential for mission-critical applications in steel production.
5. Training and After-sales Support
Proper training for operators and maintenance staff is important and may be included in the package or charged separately. After-sales support plans are highly recommended.
Real-World Examples
- Aicrane 275-Ton Overhead Crane for Power Station Construction: Priced in the range of $700,000–$900,000, this double girder crane with high lifting height and span was custom engineered for heavy equipment handling in a power station project.
- 100-Ton Ladle Crane in Steel Plant: Designed with redundancy systems, dual trolleys, and heat shielding for molten metal handling, the cost exceeded $500,000.
How to Get an Accurate Quote
To receive an accurate and reliable quote for an overhead crane in your steel plant, suppliers usually ask for:
- Required lifting capacity
- Span and lifting height
- Work duty/classification (e.g., A5, A6, A7, or A8)
- Specific application (e.g., coil handling, molten metal transfer)
- Control mode (cab, pendant, remote, or automated)
- Site environment (temperature, dust, corrosive agents)
- Power supply requirements
- Any special features or attachments needed
Providing detailed specifications will help the crane manufacturer design a tailored solution and deliver a precise cost estimate.
Tips for Managing Crane Investment
- Choose a Trusted Manufacturer: Reputable suppliers provide high-quality products, professional support, and reliable after-sales service.
- Avoid Under-Specification: Saving upfront by choosing lower-duty components can result in higher maintenance and shorter lifespan.
- Invest in Safety Features: In steel plants, accidents can be catastrophic. Overload protection, emergency brakes, and fail-safe systems are worth the cost.
- Consider Total Cost of Ownership: While initial price matters, evaluate long-term costs such as energy consumption, maintenance, and downtime.
Conclusion
The cost of an overhead crane for a steel plant varies widely depending on the crane type, capacity, environment, and customization needs. From around $30,000 for small single girder units to well over $1 million for large, specialized ladle cranes, the investment must align with operational demands and safety requirements.
When planning a crane purchase, it’s important to look beyond just the price tag and focus on durability, efficiency, and service life. By working with a knowledgeable and experienced crane manufacturer, steel plant operators can ensure a reliable lifting solution that supports productivity and safety for years to come.
