In industrial environments that demand precision lifting and transportation of heavy materials, double girder overhead cranes play a vital role. These robust cranes are widely used in steel plants, manufacturing workshops, power stations, and logistics hubs. A critical component that ensures the seamless functionality of these cranes is the trolley. Although the trolley may seem like just another part of the crane system, its design, capabilities, and operation are essential to the performance, efficiency, and safety of the entire overhead crane.
This article explores the role of the trolley in double girder overhead crane operation, its design features, functionalities, and how it influences load handling and productivity.

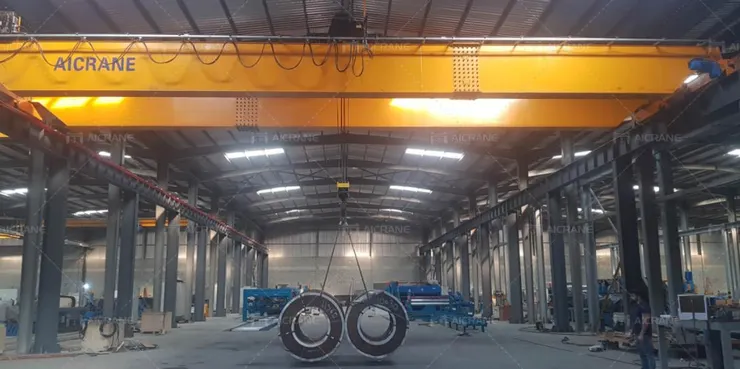

Understanding the Double Girder Overhead Crane
Before delving into the trolley, it's important to understand the basic structure of a double girder overhead crane. This crane type consists of two parallel bridge girders supported by end trucks that move along the runway beams. The trolley moves along the top of these girders, carrying the hoist and lifting mechanism that raises and lowers the load.
Compared to single girder cranes, double beam overhead cranes are used for heavier loads, longer spans, and more frequent lifting due to their superior strength and stability. They can support lifting capacities ranging from 10 tons to well over 300 tons, depending on the configuration.

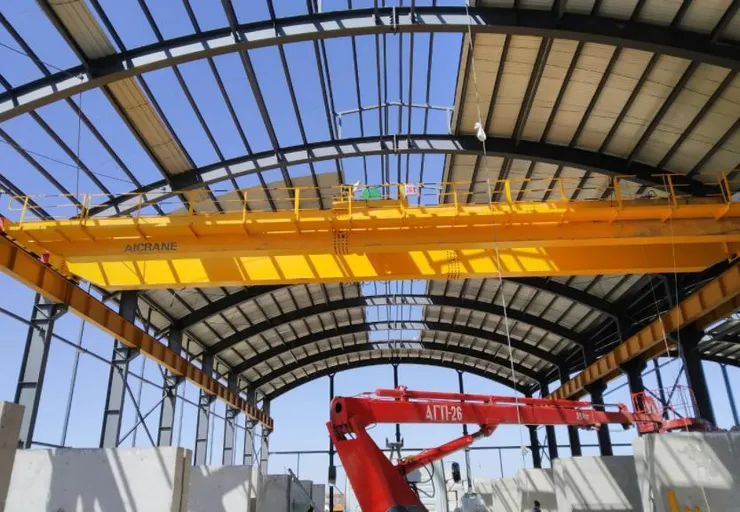

What is a Trolley in a Double Girder Overhead Crane?
The trolley is the mobile platform mounted on top of the two bridge girders of the crane. It is responsible for two main functions:
- Supporting the hoist and lifting mechanism.
- Enabling horizontal movement of the hoist along the bridge span.
The trolley travels along the crane bridge while the hoist mounted on the trolley performs the vertical lifting or lowering of the load. This horizontal and vertical movement combination enables full spatial control over the load.
Key Components of the Trolley System
A well-designed trolley system includes the following core components:
- Trolley Frame: The structural base that houses all other components.
- Travel Mechanism: Includes wheels, motors, and gearboxes that allow the trolley to move along the bridge girder.
- Hoisting Mechanism: Often includes a wire rope hoist or chain hoist mounted on the trolley frame.
- Drives and Controls: The motors, brakes, and inverter systems that control trolley movement.
- Safety Devices: Limit switches, anti-collision sensors, and overload protection systems.
Functional Role of the Trolley in Crane Operation
The trolley’s functional contribution to a double girder overhead crane is multi-dimensional. Below are the critical roles it plays:
1. Load Transportation Across the Bridge Span
The trolley provides horizontal mobility to the hoisting mechanism, allowing the crane operator to position the load at any point along the length of the bridge. This is particularly crucial in large industrial facilities where materials need to be precisely positioned along the entire span of the crane.
2. Precise Positioning and Load Handling
The trolley is designed to move smoothly and accurately, providing precise control over load positioning. This is essential in tasks like machinery assembly, where even slight positioning errors can result in equipment damage or operational inefficiencies.
3. Distribution of Load Stress
Trolleys in double girder eot cranes typically ride on top-running wheels that distribute the load evenly across the girders. This helps prevent localized stress and extends the life of both the crane structure and the runway.
4. Support for Heavy Lifting
Unlike under-running cranes, double girder designs can accommodate more robust trolleys with larger hoisting units. This makes them capable of handling heavier loads and dual hoist systems. In many cases, two trolleys can be installed on the same crane to lift long or unwieldy loads in tandem.
Trolley Travel Mechanism: Smooth and Controlled Movement
Modern double girder cranes use motorized trolleys with variable frequency drives (VFDs) for precise speed control and smooth acceleration/deceleration. This reduces mechanical stress and improves safety. Advanced models also include anti-sway technology to reduce load oscillation during trolley movement, improving load stability and positioning accuracy.
Types of Trolleys Used in Double Girder Overhead Cranes
Different types of trolleys can be used depending on operational requirements:
1. Fixed Trolley
The hoist is fixed in place on the trolley frame, suitable for standard lifting operations. It’s commonly used where side shifting or rotating the load is not required.
2. Rotating Trolley
This type allows load rotation, offering flexibility in handling bulky or irregularly shaped loads.
3. Open Winch Trolley
For extremely heavy-duty applications, open winch trolleys offer greater lifting capacity and durability. These systems are customizable with specialized components such as multiple drums, larger motors, and braking systems.
4. Double Trolley Systems
Some double girder cranes utilize two trolleys, especially in power plants or precast yards. This allows for lifting longer items or performing synchronized lifting operations.
Design Considerations for Trolley Selection
Several factors influence the design and selection of a trolley system for double girder cranes:
- Load capacity: Determines the strength and size of the trolley frame, wheels, and hoist.
- Span length: Longer spans may require more powerful motors and braking systems.
- Duty cycle (work class): Higher duty requires more robust and durable components.
- Environmental conditions: Dusty, humid, or explosive environments call for special design considerations, including sealed motors and flameproof components.
- Control type: Options include pendant control, wireless remote control, or cabin control, depending on complexity and user preference.
Maintenance and Safety of Trolley Systems
Since the trolley is a moving part under significant load, regular inspection and maintenance are crucial. Key maintenance tasks include:
- Lubricating wheels and gears.
- Inspecting hoist cables and drum alignment.
- Checking brake systems and motor performance.
- Ensuring limit switches are functional.
Safety systems like overload limiters, emergency stops, and collision avoidance sensors are typically integrated with the trolley. These reduce the risk of accidents and enhance operational reliability.
Conclusion: The Trolley as the Heart of Double Girder Crane Functionality
The trolley is more than just a moving platform—it is central to the efficiency, control, and safety of double girder overhead crane operations. Its ability to traverse the length of the crane, carry the hoist, and accurately position heavy loads makes it indispensable in modern material handling systems.
When selecting or designing a double girder overhead crane for sale, it is essential to give careful consideration to the trolley system, ensuring it matches the operational demands, safety requirements, and working environment. With the right trolley, overhead cranes become more than just lifting machines—they become precision tools that elevate productivity and safety to new heights.
