Gantry cranes are among the most vital pieces of equipment in industrial, construction, and port operations. These versatile machines enable the lifting and transport of heavy loads across varying distances. One of the most critical parameters in gantry crane design is capacity—the maximum load a crane can safely lift. This single factor significantly impacts the crane's structural design, influencing everything from material selection and frame dimensions to wheel load distribution and foundation requirements. In this article, we explore in detail how gantry crane capacity affects structural design and what considerations engineers must make when designing cranes of varying capacities.
1. Understanding Gantry Crane Capacity
Gantry crane capacity refers to the maximum weight the crane can handle under normal operating conditions, typically expressed in tons (e.g., 10t, 50t, 100t). This capacity includes not only the weight of the load but also factors like the weight of any lifting attachments or spreaders, dynamic forces during operation, and safety margins.
The capacity can range from light-duty (1-15 tons) to heavy-duty cranes (50-500+ tons), and this wide range creates dramatically different structural design requirements.
2. Influence on Structural Components
a. Girder Design
The girder, especially in double girder gantry cranes, carries the primary lifting load. Higher capacity cranes require girders with:
- Greater cross-sectional area: To resist bending and shear stresses.
- High-strength materials: Typically, high-tensile steel grades are used.
- Reinforcements: Heavy-duty cranes may include box-type or welded I-beam girders for improved torsional rigidity.
For example, a 10-ton gantry crane may utilize a standard I-beam girder, while a 200-ton crane would require a custom-fabricated box girder with reinforced welding seams and bracing.
b. Legs and End Carriages
The crane legs (or supports) bear the full vertical load and must resist buckling and lateral loads. As capacity increases:
- Legs become wider and thicker.
- More complex joints are used, including gusset plates and rigid connections.
- End carriages must be designed to support higher wheel loads and ensure even load distribution across multiple wheels or bogies.
3. Impact on Trolley and Hoist Mechanism
The hoisting system is directly tied to the crane’s rated capacity. The structural design of the trolley must accommodate:
- Larger hoist motors and gearboxes.
- Higher-rated drums, ropes, or chains.
- Sturdier trolleys to bear the increased vertical and lateral forces.
For example, a gantry crane 100 ton will typically use a twin hoist or double-drum arrangement with synchronized lifting and sophisticated load distribution to reduce structural strain.
4. Wheel Load and Rail Requirements
The wheel load is the amount of weight transmitted from the crane to the ground via the wheels. It is a critical factor that scales with crane capacity.
- Heavy capacity cranes exert much higher concentrated loads on wheels and rails.
- More wheels or larger diameter wheels are needed to distribute these loads.
- Rails or tracks must be selected based on maximum wheel load, which may involve high-strength steel rails embedded in reinforced concrete.
Failure to properly account for wheel load in high-capacity cranes can lead to premature wear, misalignment, or even structural failure.
5. Foundation and Support Structure
The structural design of the ground or foundation supporting the gantry crane becomes more demanding with increased capacity:
- Reinforced concrete pads or continuous beams are often necessary.
- Anchoring systems must withstand uplift and lateral forces during crane movement or emergency stops.
- Soil bearing capacity must be tested to ensure it can sustain high point loads, especially in outdoor or port environments.
A 20-ton gantry crane might function well on a basic industrial slab, but a 300-ton crane will require engineered footings with deep piles or anchors.
6. Bracing and Stability Requirements
Crane stability is paramount, especially when handling massive loads in windy conditions or across uneven terrain. As capacity rises:
- Cross bracing and horizontal stabilizers become more robust.
- Lateral wind forces have a greater effect and must be mitigated through aerodynamic design and bracing.
- In rubber-tired gantry cranes, anti-sway systems and hydraulic stabilizers may be included.

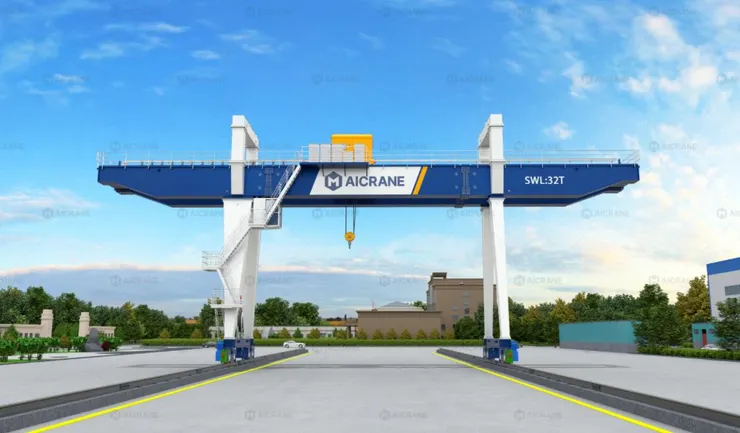

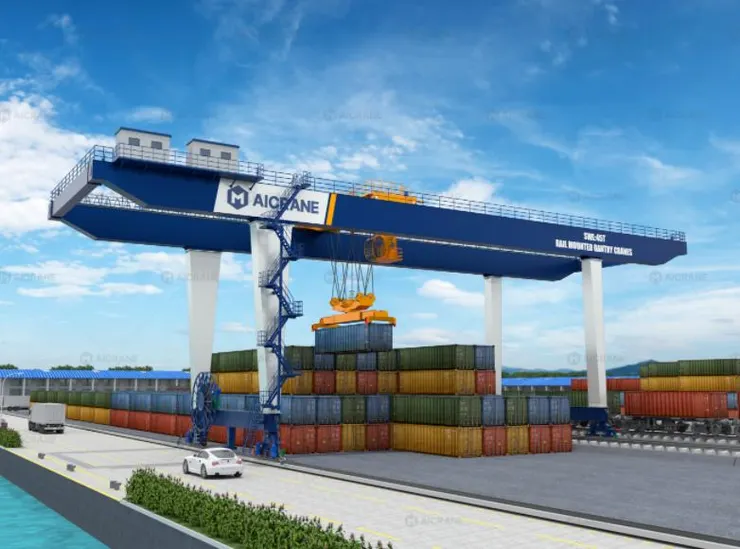

For rail-mounted gantry cranes, the runway rails must also be aligned precisely, and expansion joints are often required for thermal movement.
7. Work Duty and Fatigue Considerations
Higher capacity cranes often operate under heavier duty cycles (e.g., A5, A6, or even A7 classification), especially in steel mills, shipyards, and precast plants. Structural design must:
- Consider fatigue loading due to repeated stress cycles.
- Use finite element analysis (FEA) to optimize and validate structural performance.
- Design joints, welds, and reinforcements to withstand both static and dynamic stress.
Ignoring fatigue in high-capacity cranes can cause microcracking and eventual catastrophic failure.
8. Safety and Redundancy Design
High-capacity gantry cranes require more rigorous safety mechanisms, which in turn affect structural design:
- Redundant load paths are often engineered to prevent collapse in case of failure.
- Limit switches, overload sensors, and fail-safe brakes must be integrated with the supporting structure.
- Structural deflection limits become stricter to ensure safe and stable lifting.
Design standards such as FEM, CMAA, and ISO require more robust structural performance metrics for cranes above 100 tons capacity.
9. Customization and Modularity
As capacity increases, the ability to mass-produce structural components diminishes. High-capacity gantry cranes often involve:
- Custom-engineered solutions tailored to the load, span, and lifting height.
- Modular designs for easier transportation and on-site assembly.
- Consideration for future upgrades, such as increasing capacity or automation integration.
For instance, a 400-ton gantry crane for wind turbine production may include a modular double girder design with multiple synchronized hoists.
10. Cost and Lead Time Considerations
Higher capacity directly increases:
- Material costs due to more steel and advanced grades.
- Engineering and testing costs, especially if full-load testing is required.
- Manufacturing time due to complexity and custom fabrication.
- Installation complexity, often requiring specialist teams and equipment.
Thus, crane buyers must balance required capacity with cost-effectiveness, possibly opting for multiple lower-capacity cranes instead of a single large one when feasible.
Conclusion
The capacity of a gantry crane is a fundamental driver of its structural design. From the selection of materials and design of the girders and legs, to the wheel configuration, foundation design, and safety systems, every component must be carefully engineered to accommodate the intended load. As capacity increases, the complexity, cost, and safety requirements of the crane rise proportionally. Whether designing a light-duty 5-ton crane for a warehouse or a 300-ton monster for a shipyard, understanding how capacity affects structure is key to creating efficient, reliable, and safe lifting solutions.
For businesses looking to purchase a gantry crane, working with an experienced supplier that provides structural engineering expertise and customization options is essential. A properly designed gantry crane not only ensures safe operations but also delivers long-term value and performance.
