Overhead cranes play a critical role in heavy industrial environments such as steel mills, manufacturing plants, shipyards, and warehouses. Among these, the 40-ton overhead crane stands out as a workhorse capable of handling significant loads with precision and reliability. One of the essential components of this powerful lifting equipment is the control cab—the nerve center from which the crane operator commands every lift, movement, and operation. The structure of the control cab and its associated operator safety features are crucial for the efficiency, comfort, and safety of crane operation. This article delves into the structural design of the control cab in a 40-ton overhead crane and the key safety features integrated to protect operators and ensure smooth operation.
1. Importance of the Control Cab in Overhead Crane Operation
In a 40 ton overhead crane, the control cab serves as the central point from which the operator manages all crane functions, including load lifting, trolley and bridge movement, hoist control, and safety monitoring. It allows for real-time supervision of operations, especially when handling complex lifts or working in high-risk environments such as hazardous materials handling or confined spaces.While some cranes are operated remotely or via pendant controls, control cabs are indispensable when continuous, high-precision, or long-duration lifting is required. For such operations, the physical presence of the operator near the load enhances control accuracy and situational awareness.
2. Structural Design of the Control Cab
2.1. Mounting Location and Accessibility

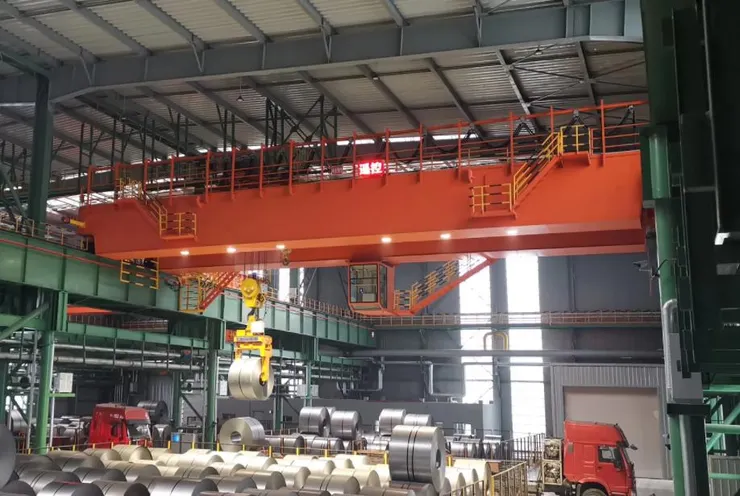

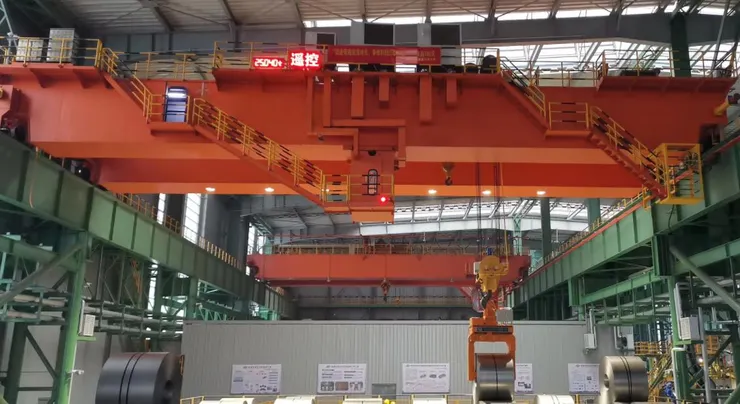

The control cab in a 40-ton overhead crane is typically mounted on the bridge girder, close to the trolley mechanism. Its placement provides the operator with a clear line of sight to the hoist and load path. Depending on the application, the cab can be side-mounted or underslung below the girder.
Access to the cab is usually provided via ladders and platforms equipped with safety railings and anti-slip surfaces. In some designs, an enclosed access passage or stair system is included to protect the operator from environmental hazards while ascending or descending.
2.2. Cab Structure and Materials
The structure of the control cab is built to withstand industrial rigors, mechanical vibrations, and extreme environmental conditions. Common features include:
- Reinforced steel or aluminum framework: Provides structural integrity and durability.
- Thermal insulation: Keeps the internal temperature manageable in hot or cold climates.
- Soundproofing materials: Reduce noise levels from motors, gears, and external industrial processes.
- Shock absorbers and anti-vibration mounts: Improve operator comfort and protect sensitive electronics.
Glazed windows made from laminated or tempered safety glass ensure unobstructed visibility while protecting the operator from flying debris or accidental impacts.
3. Ergonomics and Operator Comfort
Operator fatigue is a major factor in workplace accidents. The control cab of a 40-ton overhead crane is designed with ergonomics in mind to ensure that operators can work efficiently without strain or discomfort.
Key ergonomic features include:
- Adjustable operator seat with suspension: Minimizes vibration impact and ensures optimal posture.
- Climate control systems (heating, ventilation, air conditioning): Maintain a comfortable working environment.
- Anti-glare windows and interior lighting: Enhance visibility and reduce eye strain.
- User-friendly control panels: Designed for easy reach and operation, often with joystick or touchscreen interfaces.
A well-designed control cab not only improves the operator’s working conditions but also contributes to better productivity and operational accuracy.
4. Operator Safety Features
Safety is paramount in crane operation, and the control cab is equipped with numerous features to safeguard the operator.
4.1. Emergency Stop Systems
Emergency stop buttons are installed both within the cab and at accessible locations on the crane structure. These allow for the immediate halting of crane movement in case of malfunction or unexpected danger.
4.2. Load Monitoring and Alarm Systems
The control cab is equipped with load cells and monitoring instruments that provide real-time data on the weight of the lifted load. Visual and audible alarms warn the operator if the crane approaches its rated load limit or if there are anomalies such as load sway or uneven weight distribution.
4.3. Fire Protection Systems
Depending on the operational environment, the control cab may be equipped with fire-resistant materials and built-in fire extinguishing systems. Fire alarms and smoke detectors further enhance protection in case of electrical short circuits or nearby fires.
4.4. Anti-Collision and Limit Switch Systems
Modern 40-ton cranes feature anti-collision systems to prevent contact with other cranes or obstacles. Limit switches help restrict crane travel beyond designated boundaries, reducing the risk of overtravel or accidental collisions.
4.5. Fall Protection and Entry Safety
Operators must often enter the cab from significant heights. To ensure safe access, the crane structure incorporates fall protection systems such as harness anchor points, non-slip platforms, and guardrails. Additionally, doors are fitted with locking mechanisms to prevent accidental opening during crane movement.
5. Integration with Crane Control Systems
The control cab houses the core crane control interface, which may be based on either conventional relay-based systems or advanced PLC (Programmable Logic Controller) systems. These systems allow operators to:
- Set pre-programmed hoisting and traveling paths
- Monitor system diagnostics and performance metrics
- Integrate with anti-sway systems to ensure smooth load movement
- Interface with cameras and sensors for enhanced situational awareness
Touchscreen HMIs (Human-Machine Interfaces) and joystick consoles are commonly used to improve responsiveness and operator interaction with the control system.
6. Customization and Standards Compliance
Depending on industry requirements, the control cab can be customized for:
- Hazardous area operation: Including explosion-proof construction for oil, gas, or chemical industries
- Extreme weather: Insulated cabs with reinforced glass and sealed enclosures for desert, arctic, or maritime environments
- Special applications: E.g., high-altitude cabins with pressure and temperature control for specific mining or defense applications
All control cab designs must comply with international safety and design standards, including those set by:
- FEM (European Federation of Materials Handling)
- ISO (International Organization for Standardization)
- OSHA (Occupational Safety and Health Administration)
- ASME B30.2 (Overhead and Gantry Cranes standards)
Working with a reputable EOT crane supplier ensures compliance with these standards, offering peace of mind for buyers and operators alike.
Conclusion
The control cab of a 40-ton overhead crane is much more than a box on a bridge—it is a sophisticated, ergonomic, and safety-centric command center. A well-designed control cab enhances operational precision, reduces operator fatigue, and minimizes the risk of accidents. With proper structural design and integrated safety features, the control cab transforms crane operation into a safer, more efficient process.
For industries seeking a reliable lifting solution, partnering with a trusted EOT crane supplier is essential. They can provide customized control cab configurations and safety enhancements tailored to specific site conditions and usage requirements. By prioritizing both operator safety and system performance, a well-structured control cab contributes significantly to the success of heavy-duty material handling operations.
