In many industrial settings, space is a premium commodity. Facilities such as small workshops, fabrication yards, warehouses, or urban construction sites often face challenges when it comes to installing standard lifting equipment due to height restrictions, tight floor space, or limited working areas. In such scenarios, compact single girder gantry cranes offer an ideal lifting solution that combines efficient material handling with intelligent space management.
This article explores how compact single girder gantry crane designs are specifically engineered for confined environments, the advantages they offer, key design considerations, and the industries that benefit most from their use.
Understanding Single Girder Gantry Cranes

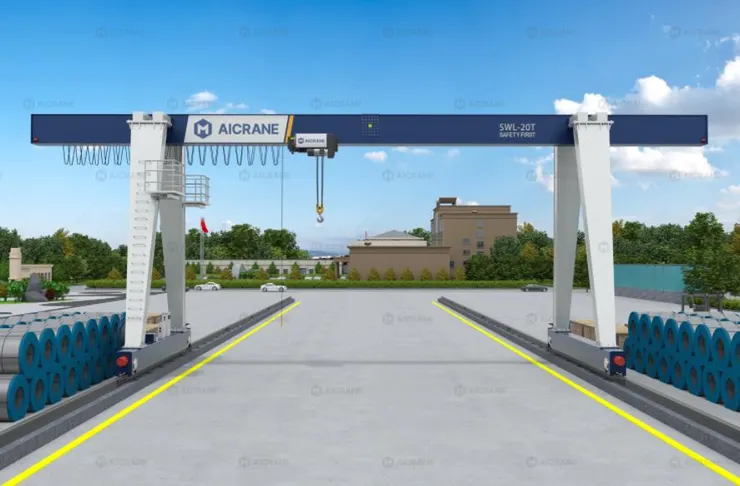

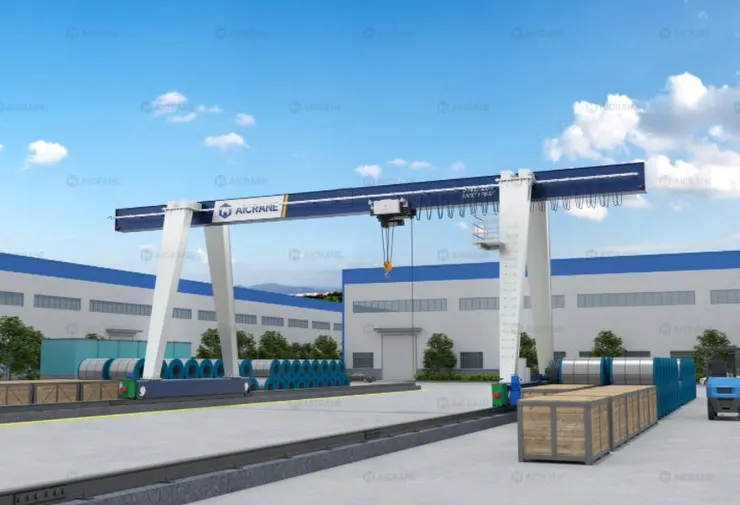

A single girder gantry crane is a type of gantry crane that features a single horizontal beam (girder) supported by end legs that move along ground rails or wheels. The hoist mechanism runs along the bottom flange of the girder, offering a lightweight and efficient lifting solution compared to double girder systems.
In compact designs, these cranes are tailored to fit smaller workspaces while maintaining safe and effective lifting capacities. They can be either fixed or mobile (rubber-tired or rail-mounted), with various configurations to suit the space constraints of different applications.
Why Compact Gantry Cranes Are Crucial for Limited Space
1. Efficient Use of Vertical and Horizontal Space
Conventional cranes often require significant overhead clearance, which may not be available in smaller buildings or temporary structures. Compact single girder gantry cranes are specifically engineered with low headroom designs, allowing the hoist to operate closer to the girder and maximize the lifting height even in restricted vertical spaces.
Horizontally, compact gantry cranes utilize a narrower footprint and more slender supporting structures, allowing operators to maneuver and install them in areas with minimal available space.
2. Portability and Flexibility
Many compact gantry cranes are designed with mobility features, such as polyurethane wheels or rail systems, enabling users to relocate the crane easily within the facility. This is especially beneficial for operations that require temporary lifting equipment or frequent reorganization of work areas.
3. Cost-Effective Infrastructure Requirements
Unlike overhead bridge cranes, which need runway beams and complex support structures, single girder gantry cranes can operate independently without significant building modifications. This makes them more affordable to install in confined or older buildings where structural reinforcements are costly or unfeasible.
Key Design Features of Compact Single Girder Gantry Cranes
1. Low Headroom Trolley
In compact designs, the hoist is often integrated into a low headroom trolley, allowing for maximum hook height. The distance from the floor to the hook in its highest position is optimized to avoid ceiling obstructions while still offering an adequate lifting range.
2. Adjustable Span and Height
Some portable gantry cranes offer adjustable span and height, allowing the crane to be customized on-site based on the available workspace. This adaptability is particularly useful in workshops where machinery, racks, or partitions may block access to specific areas.
3. Lightweight Materials
The use of lightweight yet strong materials such as aluminum or high-strength steel enables compact gantry cranes to maintain structural integrity while minimizing weight and size. This makes assembly, disassembly, and relocation easier without compromising lifting capacity.
4. Ergonomic and Remote Controls
To further aid operation in confined spaces, compact gantry cranes often include wireless remote controls or pendant controls with ergonomic designs. This allows operators to maneuver the load precisely while maintaining a safe distance and avoiding cramped control zones.
Typical Applications of Compact Gantry Cranes
1. Small-Scale Manufacturing Workshops
In facilities where production involves heavy components or tools, a compact gantry crane for sale provides efficient lifting without the need for permanent overhead crane systems. It can move freely between stations or be fixed at a specific location for repetitive tasks.
2. Warehouses and Storage Areas
In logistics and storage environments with tight aisles and low ceilings, these cranes are perfect for moving goods, loading/unloading trucks, or organizing inventory racks.
3. Maintenance and Repair Facilities
Compact gantry cranes are ideal for maintenance bays where lifting engines, components, or tools is required. Their mobility and small footprint make them suitable for garages or service centers.
4. Construction Sites
On construction sites with height restrictions or limited space between buildings, a mobile single girder gantry crane can lift and transport materials, precast elements, or tools efficiently.
5. Shipyards and Marinas (for Small Boat Lifting)
Some compact single girder cranes are designed for marine use, such as lifting small boats, engines, or equipment in constrained dock or slip areas.
Advantages of Using Compact Single Girder Gantry Cranes
✅ Space Optimization
They are specifically designed for areas with spatial limitations, ensuring efficient use of both vertical and horizontal dimensions.
✅ Ease of Installation
Most compact models are modular and can be installed without the need for permanent foundations or heavy civil work.
✅ High Maneuverability
Especially in the case of trackless or rubber-tyred designs, these cranes can be easily moved, stored, or repurposed.
✅ Cost-Effective
With lower installation costs and reduced structural requirements, they are ideal for small businesses or temporary lifting needs.
✅ Enhanced Safety
Despite their smaller size, modern compact gantry cranes include safety features such as overload protection, emergency stop systems, limit switches, and anti-derailment mechanisms.
Important Considerations When Choosing a Compact Gantry Crane
- Lifting Capacity: Ensure the crane can handle your maximum load with a suitable safety margin.
- Span and Height Requirements: Measure the available space accurately and match it with crane specifications.
- Type of Movement: Choose between stationary, rail-mounted, or mobile rubber-tired designs based on operational needs.
- Work Environment: Consider whether the crane will be used indoors or outdoors and select corrosion-resistant materials and coatings if necessary.
- Control Options: Decide between manual, pendant, or wireless remote control systems for better operation and safety.
- Customization Needs: Look for manufacturers offering tailored solutions that address your specific space and workflow requirements.
Tailored Compact Crane Solutions from Aicrane
At Aicrane, we specialize in providing tailored lifting solutions, including custom compact single girder gantry cranes for space-constrained environments. Our cranes are engineered to meet exact customer needs, with options for:
- Low headroom hoist configurations
- Adjustable height and span
- Rail-mounted or trackless rubber-tired options
- Weatherproof outdoor versions
- Advanced control systems
Whether you're working in a small metal workshop, a tight warehouse, or an urban jobsite, we can help you implement a crane system that maximizes efficiency without demanding extensive space or structural modifications.
Conclusion
When space is limited but lifting power is essential, compact single girder gantry cranes provide a practical, efficient, and economical solution. Their space-saving design, mobility, and adaptability make them invaluable tools across a wide range of industries. By choosing the right crane system and working with experienced suppliers, businesses can overcome spatial constraints while ensuring smooth and safe lifting operations.
As industrial operations continue to evolve in environments where every square meter counts, compact gantry crane designs are set to play an increasingly vital role in material handling strategies.
