Container gantry cranes are vital in modern port terminals, intermodal yards, and container depots, responsible for loading, unloading, and stacking heavy shipping containers. With the rising demand for operational efficiency and safety in cargo handling, technology integration into crane systems has become more important than ever. Among the most transformative advancements are the use of Programmable Logic Controllers (PLCs) and remote control systems. These two technologies work in tandem to improve precision, safety, and productivity in container gantry crane operations.
This article explores how PLC and remote control systems are used in container gantry cranes and the significant advantages they bring to the container handling process.
1. Overview of Container Gantry Cranes
Container gantry cranes are typically categorized into two types: Rail Mounted Gantry (RMG) cranes and Rubber Tyred Gantry (RTG) cranes. Both types are widely used in container terminals:

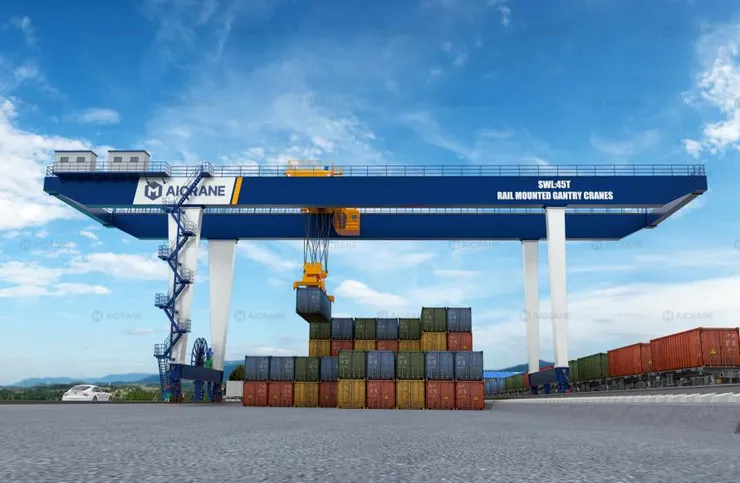

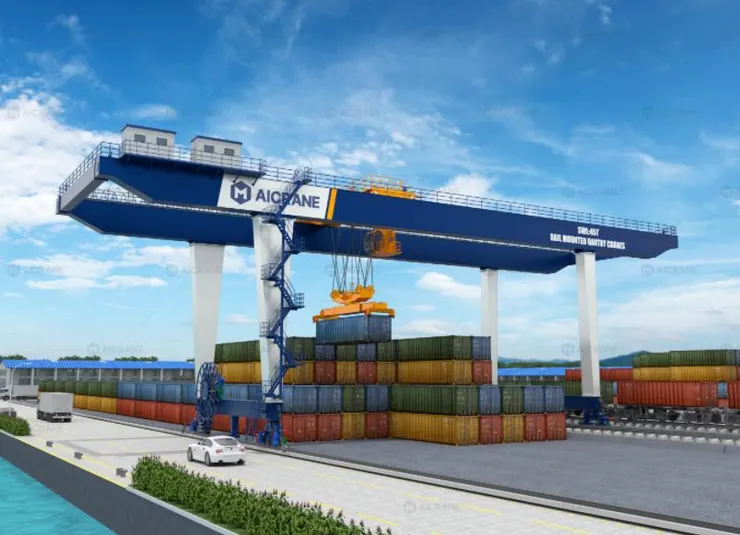

- RMG cranes move along fixed rails and are ideal for well-organized container yards.
- RTG cranes are mobile and powered by diesel or electric motors, suitable for flexible operations across large storage areas.
Despite their structural differences, both rubber tyred and rail mounted gantry crane types now incorporate intelligent systems such as PLCs and remote control technologies to ensure accurate and efficient handling of standard containers.
2. Role of PLC in Container Gantry Cranes
A Programmable Logic Controller (PLC) is an industrial computer used to control electromechanical processes. In container gantry cranes, the PLC acts as the brain of the system, processing real-time data from sensors and executing precise control commands for various crane movements.
Key Functions of PLC in Gantry Cranes:
- Motion Control: The PLC precisely coordinates the movements of the hoist, trolley, gantry travel, and spreader to handle containers with smooth acceleration and deceleration.
- Anti-Sway Control: PLCs use real-time sensor data and algorithms to suppress load sway during lifting and travel operations.
- Collision Avoidance: Through continuous monitoring of crane position and movement, the PLC ensures the crane avoids obstacles and other equipment.
- Safety Monitoring: The system can detect overloads, faults, and abnormal operations and automatically trigger alarms or stop commands.
- Automatic Container Positioning: Advanced PLCs integrate with yard management systems to position containers with high precision, guided by GPS, laser, or vision systems.
- Data Logging and Diagnostics: PLCs collect data for maintenance planning, system diagnostics, and operational analytics.
By integrating all these functions, the PLC ensures the crane operates efficiently and safely, reducing downtime and human error.
3. Remote Control Technology in Gantry Cranes
Remote control systems allow crane operators to control the crane from a distance, rather than from a traditional operator cabin mounted on the crane. This is achieved using wireless remote control units that communicate with the PLC system.
Types of Remote Control:
- Radio Remote Control: Most common system using secure radio frequencies to send commands from handheld devices to the crane’s control system.
- Cabin Remote Operation Stations (ROS): Operators control multiple cranes from a centralized control room using joysticks and video feeds.
- Tablet or Touchscreen Remote Interfaces: Used for semi-automated systems that allow drag-and-drop control of container positioning.
Advantages of Remote Control:
- Operator Safety: Operators can remain on the ground or in a control room, away from dangerous crane operations and environmental hazards.
- Ergonomics and Efficiency: Reduced fatigue and better visibility lead to higher productivity and fewer operational errors.
- Flexibility: Operators can move with the crane or switch between cranes if managing a fleet, improving responsiveness.
- Cost Reduction: Centralized control reduces the number of cabin-equipped cranes and the manpower required.
Remote control systems are particularly useful in RTG and RMG crane operations where multiple units are working simultaneously in high-traffic terminals.
4. Integration of PLC and Remote Control for Precision Handling
The most powerful aspect of modern container crane automation is the seamless integration between PLC and remote control systems. These technologies complement each other to deliver unparalleled control, precision, and automation in crane operation.
Here’s how the integration works:
- The remote control operator issues a command (e.g., lift, lower, move) via the wireless controller.
- The command is received by the crane's onboard receiver and passed to the PLC.
- The PLC verifies system conditions (load weight, position, safety interlocks) and executes the motion through the drive systems.
- Real-time data is sent back to the remote control interface (or control room), providing feedback to the operator through video, audio, or haptic signals.
- If sensors detect a sway, obstacle, or overload, the PLC automatically adjusts the motion or halts the process and sends alerts to the operator.
This loop enables real-time control, feedback, and safety assurance, allowing even the most complex container maneuvers—like stacking at high levels or in tight spaces—to be done smoothly and safely.
5. Case Example: RTG Crane with PLC and Remote Operation
Consider a modern RTG crane operating in a busy intermodal yard. The crane is equipped with:
- PLC-based motion control
- Anti-collision sensors
- GPS-assisted positioning
- Radio remote control system
- Intelligent spreader that auto-locks containers
The operator uses a wireless joystick panel to remotely operate the crane. As they initiate container lifting, the PLC monitors the hoist and spreader positions, adjusts acceleration to prevent sway, and ensures precise container pickup. Once lifted, the PLC dynamically adjusts the crane’s trolley and gantry travel based on remote commands and feedback from positioning systems.
This combination allows the operator to handle more containers per hour while maintaining a high standard of safety.
6. Benefits for Port Operators and Crane Owners
The integration of PLCs and remote control in container gantry cranes brings numerous advantages:
- Higher Throughput: More containers handled in less time.
- Lower Downtime: Predictive maintenance and real-time diagnostics.
- Reduced Labor Costs: Fewer operators needed, and one operator can manage multiple cranes.
- Enhanced Safety: Reduced exposure to accidents and better load handling control.
- Optimized Yard Space Usage: Precise positioning allows higher stacking density.
7. Future Trends
As container terminals continue to automate, expect to see:
- Full automation with AI-assisted decision-making based on PLC and sensor data.
- Remote operations via 5G and cloud platforms, enabling real-time remote management from anywhere.
- Integration with Terminal Operating Systems (TOS) for yard-wide optimization.
- Digital twins of crane systems for simulation, maintenance planning, and training.
Conclusion
Container gantry cranes are undergoing a transformation with the integration of PLC and remote control technologies. These advancements not only improve operational precision but also enhance safety, reduce labor dependency, and boost overall terminal efficiency. As global logistics become more complex and fast-paced, embracing smart crane technologies is not just a competitive edge—but a necessity.
For port operators and container yard managers looking to invest in or upgrade their container handling systems, choosing cranes equipped with advanced PLCs and remote control features is a future-proof decision. If you are seeking tailored solutions for your port or intermodal terminal, Aicrane offers custom-designed container gantry cranes that integrate cutting-edge control systems to meet your operational demands.
