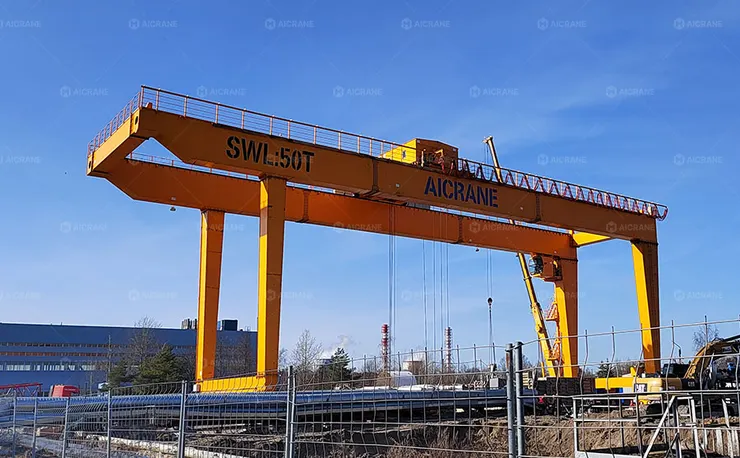

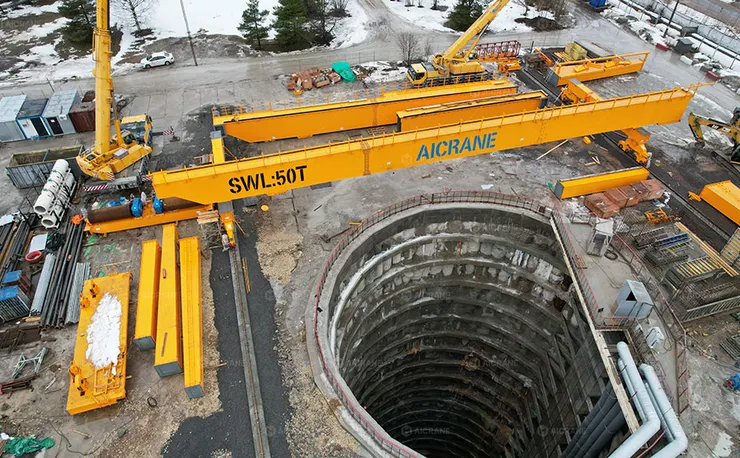

Load Testing for a Newly Installed 50 Ton Gantry Crane

A 50-ton gantry crane is a critical piece of heavy-duty lifting equipment used across industries such as construction, steel fabrication, shipbuilding, precast concrete production, and logistics. Once such a crane has been installed, the next essential step before it can enter regular operation is to conduct a load test. Load testing verifies the structural integrity, mechanical performance, and safety of the crane under working conditions. This article offers a comprehensive guide on how to plan, prepare, and execute load testing for a newly installed 50 ton gantry crane, along with regulatory considerations, safety protocols, and post-test procedures.

Why Load Testing Matters

• Verify that the crane can lift and handle its rated capacity.
• Confirm the structural integrity of the crane after installation.
• Ensure that all mechanical and electrical components function as expected under load.
• Identify any defects or issues before the crane enters daily service.
• Provide a record of compliance with industry and safety standards.

Whether you're installing a double girder gantry crane in a precast plant or a rail mounted gantry crane at a container terminal, load testing provides peace of mind and operational readiness.

Preparation for Load Testing

Before you initiate the actual load test, detailed planning and coordination are critical. Below are the preparation steps:

1. Review Technical Documents

Start by reviewing the crane’s technical documents, including:

• Manufacturer’s specifications
• Rated load capacity
• Span, lifting height, and work duty
• Structural drawings and welding inspection reports
• Motor power ratings and control system information

This helps align your load test plan with the equipment's capabilities.

2. Follow Applicable Standards

Refer to applicable industry standards and local regulations for conducting the test. Standards may include:

• ASME B30.2 (for overhead and gantry cranes)
• OSHA regulations in the United States
• ISO 9927-1 for periodic inspection, including load tests
• FEM guidelines in Europe
• Any national or client-specific standards

The test method and safety factors depend on the regulation you are complying with.

3. Engage Certified Professionals

Only certified crane inspectors, technicians, and testing engineers should perform load testing. Many gantry crane manufacturers also offer on-site load test supervision or complete test services to ensure compliance.

4. Select the Test Loads

Test weights must be accurate and safe. Load types can include:

• Pre-fabricated concrete blocks
• Water bags with calibrated filling
• Steel ingots or concrete slabs
• Custom-made test weights

For a 50-ton crane, the test load typically ranges between 100% and 125% of rated capacity, depending on whether it’s a rated load test or a proof load test.

Types of Load Tests

There are typically two types of load tests conducted:

1. Rated Load Test (100% of Rated Capacity)

This test confirms that the crane can safely lift, hold, and move a load equal to its rated capacity (50 tons in this case). It includes testing:

• Lifting and lowering mechanism
• Trolley travel
• Gantry travel
• Braking systems
• Limit switches

2. Proof Load Test (Typically 125% of Rated Capacity)

This is a more stringent test where the crane lifts 125% of its rated capacity (i.e., 62.5 tons). It helps verify the structural safety margin and mechanical resilience of the system.

Not all projects require proof load testing—it depends on local regulations and the risk profile of the project.

Step-by-Step Load Testing Procedure

Step 1: Final Inspection Before Test

Before load application, conduct a thorough pre-test inspection:

• Inspect all bolts, welds, and structural elements
• Verify the alignment of crane rails (for rail-mounted units)
• Check the integrity of the hoist, trolley, and electrical systems
• Confirm limit switches, emergency stop buttons, and safety interlocks are functional
• Ensure lubrication is in place

Step 2: Safety Precautions

• Establish a safety perimeter and restrict access
• Assign a spotter and test supervisor
• Use communication equipment (radios or hand signals)
• Confirm emergency stop protocol with all team members

Step 3: Load Application

• Attach test weights securely using appropriate slings or lifting devices
• Slowly raise the load a few inches to check for stability and balance
• Gradually lift to full test height
• Move the load across the span and along the runway if applicable

Key observations should include:

• Smoothness of motor operation
• Structural deflection within allowable limits
• Proper brake engagement
• Accurate function of limit switches

Step 4: Holding and Movement Tests

• Hold the load stationary for a specific duration (e.g., 10 minutes)
• Perform horizontal movement across the full crane span
• Test emergency stop functions under load
• Conduct lowering test to ensure controlled descent

Step 5: Post-Test Inspection

After unloading, inspect:

• Structural elements for deformation, cracks, or weld failures
• Motor and gearbox for overheating or unusual noise
• Drum and wire rope for excessive wear or elongation
• Electrical panel for tripped relays or abnormal readings

Document any anomalies for follow-up corrective actions.

Recording and Documentation

Load testing must be documented comprehensively. A proper test report includes:

• Crane model and specifications
• Date and location of test
• Test personnel and inspectors
• Type and weight of test load
• Test procedures followed
• Results and findings
• Photos or videos (if required)
• Signatures of responsible parties

This document becomes part of the crane's permanent service history and is vital for audits, insurance, and future inspections.

Post-Test Adjustments and Certification

If the test is successful:

• Calibrate limit switches and load cells
• Adjust brakes or alignments as needed
• Perform a lubrication check
• Issue a load test certificate

If issues are discovered:

• Address faults through repair or adjustment
• Conduct a re-test after corrective actions

Only after successful load testing and certification should the crane be released for routine operation.

Common Mistakes to Avoid

• Skipping pre-test checks: Even a minor defect in a lifting hook or electrical system can lead to test failure.
• Incorrect load distribution: Uneven or swinging loads can cause false test results and safety hazards.
• Insufficient documentation: Lack of proper test records can invalidate warranty or violate compliance.
• Unqualified personnel: Only trained and certified individuals should be involved in testing.

Conclusion

Load testing is a crucial milestone in commissioning a newly installed 50-ton gantry crane. It ensures that the equipment is not only capable of lifting its rated capacity but is also safe and reliable under real-world operating conditions. By following industry standards, conducting thorough inspections, using the proper testing loads, and documenting the entire process, businesses can ensure compliance, maximize safety, and protect their investment.

Whether you are installing a gantry crane in a heavy industry plant or a precast yard, a professionally executed load test is the final assurance that your crane is ready for action.
