Gantry cranes play a vital role in improving material handling efficiency in workshops of all sizes. Among the various types of gantry cranes available, the mobile gantry crane stands out for its flexibility, portability, and cost-effectiveness. But mobile gantry cranes are not always the best fit for every application. So when should you choose one for your workshop?
This article explores the advantages of mobile gantry cranes, the scenarios in which they are most effective, and the factors to consider before investing in one for your workshop operations.
What is a Mobile Gantry Crane?
A mobile gantry crane, sometimes referred to as a portable gantry crane, is a type of crane with a wheeled frame that allows for easy movement within a workshop or facility. Unlike fixed gantry cranes or overhead cranes, which are permanently installed, mobile gantry cranes can be repositioned to serve different workstations or processes.
Mobile gantry cranes typically consist of a steel or aluminum frame with an I-beam or box girder across the top, and legs supported by casters or wheels. The hoisting mechanism can be either electric or manual, and the frame may be height-adjustable to accommodate different lifting heights.
Key Features of Mobile Gantry Cranes
- Mobility: Equipped with heavy-duty wheels or casters for easy repositioning.
- Portability: Many models are lightweight and can be disassembled for transport.
- Adjustability: Some cranes feature adjustable heights or spans.
- Versatility: Suitable for lifting, assembling, and relocating components in various workshop areas.
- Ease of installation: No need for permanent foundations or runways.
Advantages of Mobile Gantry Cranes in Workshop Applications
1. Flexible Material Handling
Workshops often require moving components, tools, or assemblies between different workstations. A mobile gantry crane provides flexibility to lift and transfer loads where needed without being restricted to a fixed location.
2. Cost-Effective Solution
Compared to overhead cranes or fixed gantry systems, mobile gantry cranes are significantly more affordable, both in terms of initial investment and installation. They do not require building modifications, rails, or dedicated support structures.
3. No Permanent Installation
Mobile gantry cranes are ideal for leased spaces or temporary production setups where permanent crane installation isn’t feasible or desirable.
4. Ease of Relocation
When production needs change or the workshop layout is modified, a mobile gantry crane can be easily relocated without requiring costly dismantling or reinstallation.
5. Ideal for Maintenance and Repair Tasks
Workshops engaged in equipment maintenance or repair often benefit from mobile workshop gantry cranes, as they can move directly to the job site and lift parts or machinery with minimal disruption.
When to Choose a Mobile Gantry Crane
While mobile gantry cranes offer numerous benefits, they are not the universal answer to all lifting needs. Below are scenarios and conditions where choosing a mobile gantry crane makes the most sense:
1. You Need Versatility Across Workstations
If your workshop includes multiple work zones or changing production lines, a mobile gantry crane can serve different areas without the need for multiple fixed lifting systems.
2. Your Lifting Requirements Are Moderate
Mobile gantry cranes are generally designed for light to medium loads, typically ranging from 500 kg to 10 tons. If your lifting tasks fall within this range, a mobile crane is an ideal fit.
3. You're Operating in a Temporary Facility
Mobile gantry cranes are the perfect choice for temporary manufacturing, maintenance, or project-specific workshops where the equipment will only be used for a defined period.
4. You Want to Avoid Structural Modifications
If your facility cannot support overhead cranes due to ceiling height or load-bearing constraints, mobile gantry cranes offer a non-invasive alternative.
5. You Require Easy Setup and Breakdown
Mobile gantry cranes can be assembled quickly without the need for a professional installation team. Some models are even foldable or disassemblable for compact storage or transport.
6. You Have Limited Floor Space
Mobile gantry cranes with a compact footprint and locking casters can be moved out of the way when not in use, maximizing available workspace.
Limitations to Keep in Mind
While mobile gantry cranes offer unmatched flexibility, they do come with a few limitations:
- Not suitable for very heavy loads (over 10-15 tons)
- Limited lifting height compared to fixed or overhead cranes
- May not be ideal for rough or uneven floors - casters require flat, smooth surfaces for safe mobility
- Manual movement may be physically demanding for larger cranes or heavier loads unless motorized options are available
Important Considerations Before Buying
1. Load Capacity
Carefully assess the maximum weight of materials or machinery you’ll be lifting. Choose a crane rated slightly above your highest expected load for safety.
2. Span and Height
Make sure the crane’s width and height are suitable for your workshop layout and the items being lifted. Consider adjustable-height models if you work with components of varying sizes.
3. Floor Conditions
Ensure your workshop has a smooth and even floor surface. Rough or sloped flooring may impede mobility and pose safety risks.
4. Wheel Type
Heavy-duty polyurethane or rubber wheels are ideal for indoor use, while steel wheels may be required for industrial floors or rail tracks.
5. Power Source
Decide between manual, electric, or air-powered hoists based on load weight, frequency of use, and available utilities.
6. Safety Features
Look for cranes with safety locks on casters, overload protection, and emergency stop functions to ensure operator safety.
Common Workshop Applications
- Machinery Assembly & Repair
- Motor and Pump Maintenance
- Tooling Transport

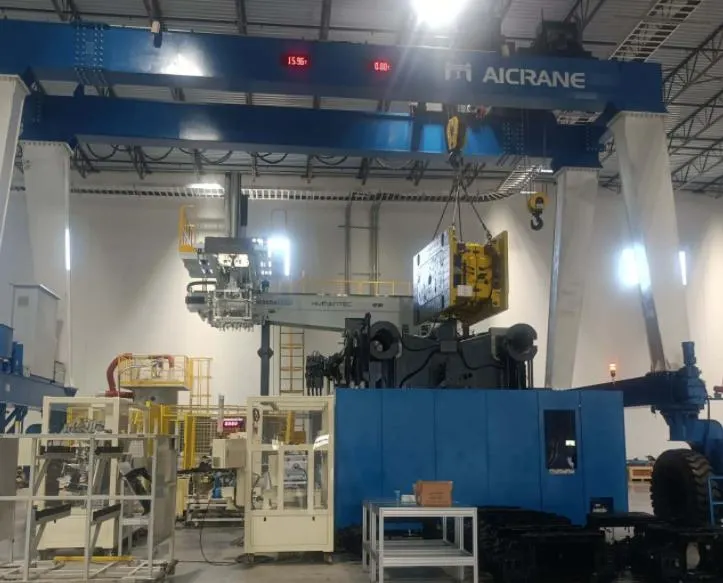

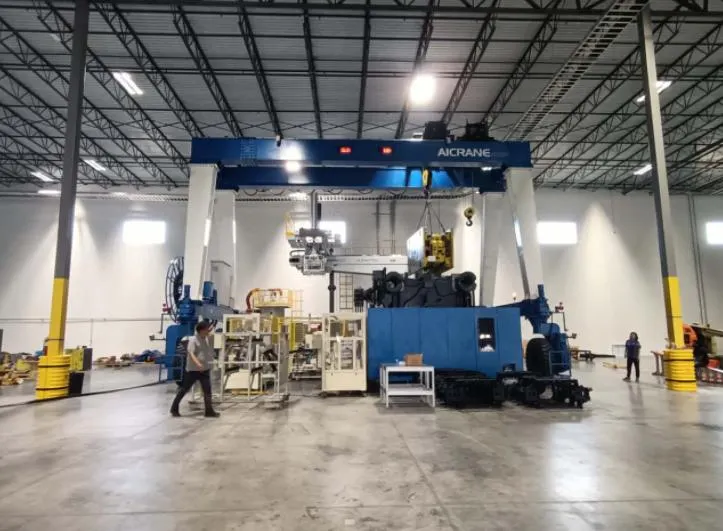

- Mold Handling in Injection Molding Workshops
- Fabrication Shops for Moving Steel Plates and Frames
- Vehicle Service Centers
- Prototype Development Facilities
Conclusion
A mobile gantry crane can be a game-changer for workshop operations that require frequent lifting and transport of materials without the need for permanent infrastructure. They offer unmatched flexibility, cost-efficiency, and ease of deployment - making them an excellent choice for small to mid-sized operations or temporary setups.
However, it's crucial to evaluate your specific lifting needs, floor conditions, and workshop layout before making a decision. When properly selected and maintained, a mobile gantry crane can significantly enhance productivity, reduce manual labor, and improve workplace safety.
If your operation demands adaptability, mobility, and reliable lifting in a dynamic workshop environment, a mobile gantry crane is likely the right tool for the job.
