How to Install a Gantry Crane in Your Workshop

更新 發佈閱讀 23 分鐘

When it comes to lifting heavy loads and improving workflow efficiency, gantry cranes are an indispensable asset for many workshops and industrial facilities. Traditionally, installing overhead cranes requires significant building modifications such as adding crane runways or reinforcing steel structures. However, not every workshop has the space, budget, or structural capacity for such alterations. Fortunately, gantry cranes provide a flexible, cost-effective, and practical alternative that can often be installed without any building modifications.

In this article, we will guide you through the process of installing a gantry crane in your workshop without the need for structural building changes. From understanding the types of gantry cranes available to selecting the right model and safely installing it, this comprehensive guide will help you enhance your lifting capabilities with minimal disruption.

raw-image


Understanding Gantry Cranes and Their Advantages

Before diving into installation steps, it's important to understand what a gantry crane is and why it is ideal for workshops without crane-supportive buildings.

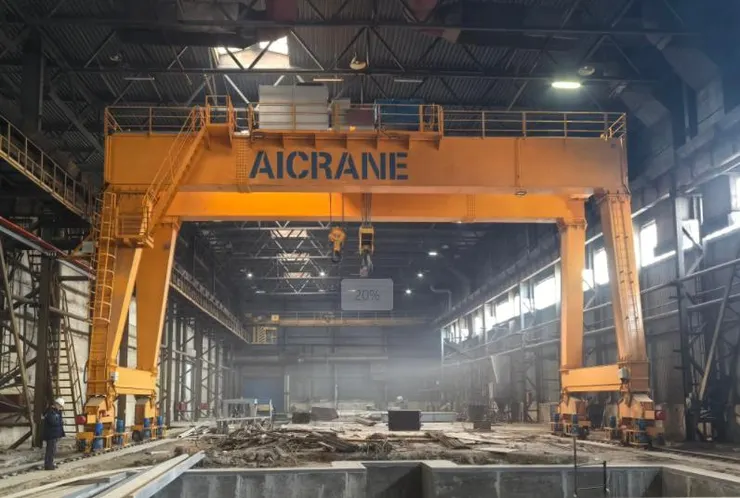

What Is a Gantry Crane?

A gantry crane is a type of overhead lifting equipment featuring a hoist that moves horizontally along a beam or girder, which is supported by two or more legs running on the floor or rails. Unlike traditional overhead cranes fixed to a building structure, gantry cranes are often self-supporting and mobile.

Why Choose a Gantry Crane for Your Workshop?

  • No Building Modifications Needed: Because they are self-supporting and operate independently of your building’s roof or walls, gantry cranes eliminate the need for structural reinforcements or runway installations.
  • Mobility and Flexibility: Many gantry cranes come with wheels or casters, allowing you to move them around your workshop as needed.
  • Cost-Effective: Without the need for expensive building upgrades, gantry cranes are generally more budget-friendly in both installation and maintenance.
  • Versatility: Suitable for various lifting tasks, gantry cranes can be tailored to different spans, lifting heights, and weight capacities.

Step 1: Assess Your Workshop Space and Lifting Needs

Before purchasing or installing a gantry crane, it is crucial to evaluate your workshop’s dimensions, lifting requirements, and workflow patterns.

  • Measure Available Floor Space: Identify where the crane will be positioned. Consider the crane’s footprint and how it will move during operations.
  • Determine Lifting Capacity: Calculate the maximum weight of loads you will lift. This will help you select a gantry crane with appropriate capacity, typically ranging from a few tons up to hundreds of tons.
  • Check Ceiling Height: While gantry cranes don’t need overhead supports, the height of your workshop limits the lifting height.
  • Consider Mobility Needs: Decide if a fixed gantry crane or a mobile gantry crane (with wheels or rails) better suits your workflow.
  • Plan Workflow Integration: Think about how the crane will be used in your daily operations and its impact on other equipment or personnel.
raw-image


Step 2: Choose the Right Type of Gantry Crane

There are several types of gantry cranes suitable for workshops without building modifications. Selecting the right one is essential for smooth installation and effective operation.

Types of Gantry Cranes

  • Portable Gantry Crane: Small and lightweight, usually with wheels, designed for easy movement and lighter loads (1-5 tons). Ideal for small workshops or specific tasks.
  • Adjustable Height Gantry Crane: Allows customization of lifting height with adjustable legs. Offers flexibility for different lifting tasks.
  • Heavy-Duty Gantry Crane: Designed for heavy loads (up to 50+ tons), often with larger, robust legs and sometimes mounted on rails or wheels.

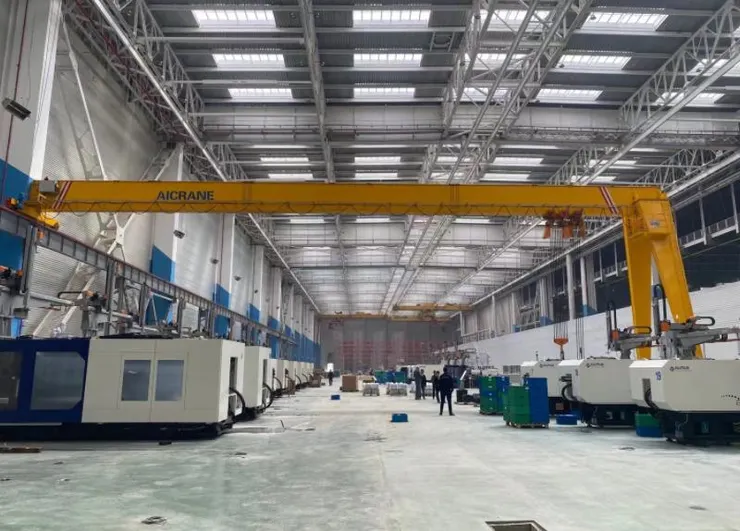

  • Semi-Gantry Crane: One side supported by the workshop structure and the other by a leg, reducing the need for full building modifications.
  • Rubber Tyred Gantry (RTG) Crane: Mobile gantry cranes with rubber tires, suitable for larger facilities and outdoor use.

Key Considerations When Choosing

  • Capacity and Span: Ensure the crane can handle your heaviest loads and cover the necessary distance.
  • Mobility: Decide between fixed and mobile cranes based on your space and operation needs.
  • Power Source: Electric hoists are common but consider manual or hydraulic options if electricity is limited.
  • Safety Features: Look for brakes, limit switches, and emergency stops.
  • Compliance: Make sure the crane meets local safety and operational regulations.

Step 3: Prepare the Workshop Floor

Although gantry cranes don’t require building modifications, the floor conditions must be suitable to support the crane’s legs and its loads safely.

Floor Requirements

  • Flat and Level Surface: The floor must be even to ensure stability and smooth movement of the gantry crane.
  • Load-Bearing Capacity: Verify that your floor can support the weight of the gantry crane plus the maximum lifted load. Consult a structural engineer if necessary.
  • Clear Pathways: Ensure the floor area where the crane will operate is free from obstructions and debris.
  • Optional: Rails or Tracks: For rail mounted gantry cranes, prepare tracks with precise alignment.

If the floor requires repair or leveling, address these issues before installation.

Step 4: Purchase or Rent the Gantry Crane

With your requirements clear, contact reputable gantry crane manufacturers or suppliers. Some manufacturers provide tailored solutions to fit your exact needs.

Tips for Procurement

  • Request detailed technical specifications and certifications.
  • Ask about installation support or services.
  • Ensure availability of spare parts and after-sales service.
  • Check warranty and maintenance options.

Renting a gantry crane can also be an option for short-term or project-specific needs.

Step 5: Assemble the Gantry Crane on Site

Most gantry cranes come in modular parts for easier transport and on-site assembly. You can usually assemble the crane using basic lifting equipment and hand tools.

Typical Assembly Steps

  1. Unpack Components: Inspect all parts for damage.
  2. Install Legs and Support Frame: Securely bolt or weld the legs to the main girder.
  3. Mount the Hoist: Attach the hoist mechanism to the girder, ensuring correct alignment and electrical connections if powered.
  4. Attach Wheels or Casters: If mobile, fix wheels and verify mobility.
  5. Adjust Height and Span: If the crane is adjustable, set it to your required specifications.
  6. Perform Safety Checks: Confirm all bolts and connections are tight.

It’s highly recommended to have qualified technicians or the manufacturer’s engineers assist or supervise the assembly to ensure compliance and safety.

Step 6: Test the Gantry Crane Thoroughly

Before starting regular operation, conduct thorough testing to verify safety and functionality.

Testing Procedures

  • Load Testing: Use test weights equal to or greater than the crane’s rated capacity to check structural integrity.
  • Operational Testing: Check all movements — lifting, lowering, trolley travel, and leg mobility.
  • Safety Devices: Verify emergency stop buttons, limit switches, brakes, and alarms.
  • Operator Training: Train your staff on safe operation and emergency procedures.

Document all test results and keep them for future reference and compliance audits.

Step 7: Incorporate Safety and Maintenance Practices

Even with a gantry crane that requires no building modifications, safety must be a top priority.

Safety Tips

  • Set up clear operating zones with marked pathways.
  • Limit crane operation to trained and authorized personnel.
  • Regularly inspect the crane for wear, loose parts, and electrical faults.
  • Schedule routine maintenance according to manufacturer guidelines.
  • Use personal protective equipment (PPE) such as helmets, gloves, and safety shoes.

Benefits of Installing a Gantry Crane Without Building Modifications

By choosing a gantry crane solution that requires no building alterations, you gain several advantages:

  • Minimal Downtime: Quick installation means less disruption to your workshop operations.
  • Lower Costs: Save on structural engineering, construction, and permits.
  • Flexibility: Easily relocate or reconfigure the crane as your workflow changes.
  • Scalability: Add additional cranes or upgrade capacity without remodeling your facility.

Conclusion

Installing a gantry crane in your workshop without modifying the building is not only feasible but often the smartest choice for small to medium-sized operations seeking to boost lifting capacity with minimal hassle. By carefully assessing your needs, selecting the right gantry crane type, preparing your floor, and following a systematic installation process, you can enjoy the benefits of efficient material handling without costly structural changes.

Whether you need a lightweight portable crane or a heavy-duty mobile gantry crane, professional guidance and adherence to safety standards will ensure a smooth installation and long-lasting operation. Investing in a gantry crane that suits your workshop perfectly can transform your workflow and enhance productivity while maintaining budget control.
