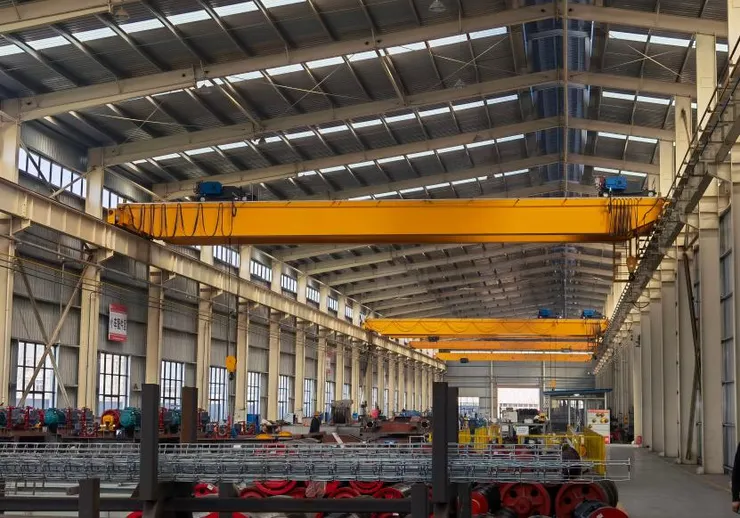

In industrial material handling, overhead cranes play a vital role in lifting and transporting heavy or irregularly shaped loads. However, not all loads are designed for direct vertical lifting from a single point. That’s where spreader beams come into play.
Spreader beams are essential lifting accessories used in conjunction with overhead cranes to enhance lifting capacity, improve load stability, and protect the load and lifting equipment from stress or damage. These versatile tools are commonly seen in industries like steel fabrication, manufacturing, construction, shipbuilding, and logistics - wherever heavy, wide, or delicate loads must be handled with care and precision.
This article explores the design, types, and critical role of spreader beams in improving the performance and safety of industrial overhead cranes.
What Is a Spreader Beam?
A spreader beam is a below-the-hook lifting device designed to distribute the load of a lifted object across multiple lifting points. It consists of a horizontal beam with one or more lower lifting lugs or hooks, connected to the crane via rigging such as chains, slings, or wire ropes.
Instead of lifting a load from a single central point (which can cause compression or bending), the spreader beam enables even weight distribution, controlled lifting geometry, and reduced sling angles, thus enhancing both safety and efficiency.
How Spreader Beams Enhance Overhead Crane Lifting Capacity
While a spreader beam doesn't increase the physical rated load capacity of the crane itself, it extends the practical lifting capacity by optimizing how the load is handled. Here are the primary ways in which spreader beams contribute:
1. Load Distribution and Structural Integrity
When lifting long or heavy components - such as steel beams, pipes, concrete panels, or machinery frames - lifting from a single hook can exert uneven forces, leading to bending, torsion, or even structural failure. A spreader beam:
- Provides multiple lifting points, distributing the weight more evenly.
- Reduces bending stresses on the load.
- Minimizes the risk of damage to sensitive or fragile cargo.
This balanced load distribution allows overhead cranes to lift larger and more complex loads safely, within the rated capacity of the system.
2. Improved Sling Angles and Rigging Efficiency
Without a spreader beam, slings from the crane hook to the load are set at steep angles. These angles increase the tension in the sling, often exceeding safe working limits. A spreader beam increases the vertical spacing between the hook and the load, allowing for:
- Lower sling angles, reducing the forces applied to the slings.
- Decreased horizontal compression on the load.
- Increased overall lifting efficiency, enabling the same crane to handle wider or heavier loads.
By improving sling geometry, spreader beams prevent overloading of rigging equipment and contribute to a safer lifting environment.
3. Greater Load Stability During Lifting
Loads with uneven centers of gravity, or long objects prone to swinging or tipping, can be difficult and dangerous to lift. A spreader beam adds horizontal control, stabilizing the load and preventing movement during hoisting or travel.
This increased stability is especially beneficial when lifting:
- Long metal profiles
- Shipping containers
- Precast concrete slabs
- Boilers or turbines in power plants
- Vehicle chassis in assembly lines
The result is improved control, reduced risk of load sway, and more precise positioning.
4. Expanded Handling Capabilities
Adding a spreader beam to an overhead crane system broadens the range of load types and lifting tasks that the crane can perform. For example:
- Lifting multiple items simultaneously with adjustable hooks.
- Handling non-standard loads that require custom lifting points.
- Performing tandem lifting with dual hoists using a single spreader beam.
This versatility means businesses can achieve more with existing crane infrastructure, reducing the need for additional lifting systems.
Types of Spreader Beams for Overhead Cranes
There are several types of spreader beams, each designed for different applications:
1. Fixed Spreader Beams
- Have a fixed length and are used for standard lifting tasks.
- Simple, robust, and cost-effective.
- Ideal for repetitive tasks with known load dimensions.
2. Adjustable Spreader Beams
- Allow the operator to change the lifting points according to load size.
- Offer greater flexibility for handling loads of varying dimensions.
3. Telescopic Spreader Beams
- Feature extendable sections to adjust beam length on-site.
- Useful in environments where space and lifting dimensions vary.
4. Modular Spreader Beams
- Comprise interchangeable components to configure different lengths and lifting capacities.
- Highly versatile and popular in rental markets.
5. Specialty Spreader Beams
- Designed for unique applications, such as lifting coils, plates, or shipping containers.
- Often custom-engineered to suit specific industry requirements.
Safety Considerations When Using Spreader Beams
Spreader beams are subject to the same rigorous safety standards as cranes and lifting devices. Key considerations include:
- Load Testing and Certification: Each beam must be tested to exceed its rated capacity to ensure reliability.
- Compatibility with Crane and Rigging: Ensure the beam, crane hook, and slings are properly matched for load type and capacity.
- Inspection and Maintenance: Regular inspection for signs of wear, deformation, or cracking is essential.
- Proper Training: Operators must be trained on correct rigging practices and beam handling techniques.
Using spreader beams improperly - such as with incorrect sling angles or incompatible rigging - can compromise crane performance and endanger workers.

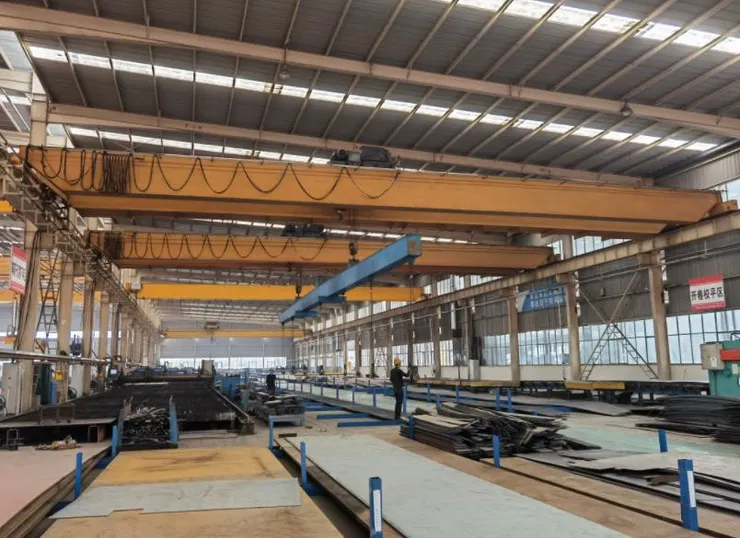

Real-World Application Example: Steel Fabrication Workshop
A steel fabrication company equipped its double girder overhead crane with a modular spreader beam for handling long steel sections up to 12 meters in length. The spreader beam allowed the crane to:
- Lift beams without bending or stress damage.
- Reduce lifting time by 20% with fewer repositioning steps.
- Safely handle awkward loads with minimal operator intervention.
This investment significantly increased material handling speed, reduced product damage, and extended the service life of both the crane and rigging equipment.
Conclusion
Spreader beams are more than just lifting accessories - they are essential tools that unlock the full potential of industrial overhead cranes. By improving load distribution, enhancing lifting geometry, and increasing load stability, spreader beams enable cranes to handle a wider range of materials, with greater safety and efficiency.
For facilities facing diverse lifting requirements or seeking to increase the utility of their overhead cranes, integrating the appropriate spreader beam system can provide measurable performance and safety improvements.
