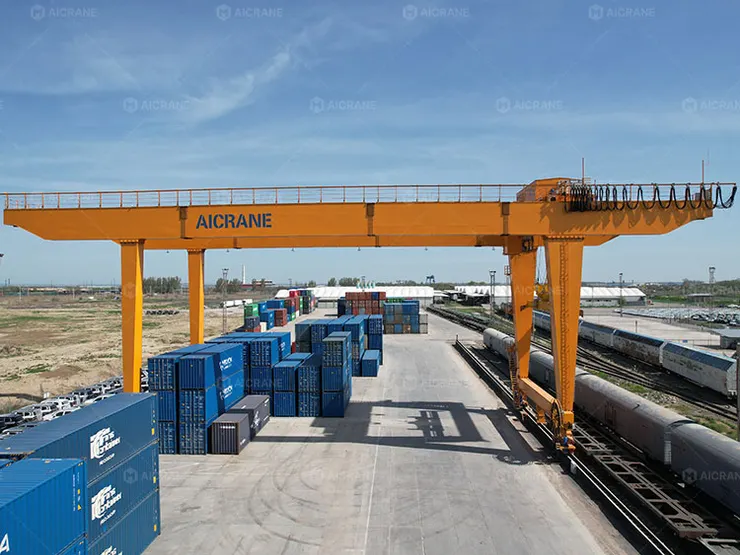

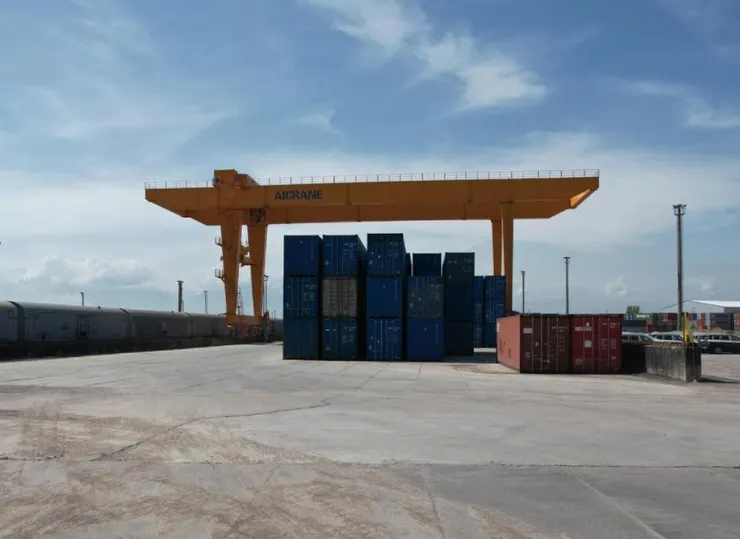

Rail mounted gantry (RMG) cranes are indispensable in modern port terminals, container yards, and industrial logistics facilities. These cranes are designed to lift and transport heavy loads over rails with high precision and efficiency. One of the most critical factors influencing the design, operation, and cost of an RMG crane is its lifting capacity. Understanding how capacity affects price is essential for buyers, engineers, and project planners looking to optimize their investment.
Understanding Rail Mounted Gantry Crane Capacity
RMG crane capacity refers to the maximum weight the crane can safely lift during operation. Typical capacities range from 10 tons to over 200 tons, depending on the type of cargo and operational requirements. The capacity is determined by several factors, including the crane’s structural design, hoist system, span, lifting height, and operational duty.Capacity is not just a single number—it interacts with multiple aspects of crane design:
- Structural components: A higher-capacity crane requires stronger girders, legs, and bracing to withstand the increased loads.
- Hoist and trolley: Hoisting mechanisms must be rated to handle the maximum load, often with additional safety margins.
- Rails and wheels: Track gauge, wheel diameter, and bearing strength must support heavier weights without excessive wear.
- Electrical systems: Motors, brakes, and control systems must deliver sufficient power and precision for larger loads.
Because each of these components scales differently with increased capacity, the cost of RMG cranes rises disproportionately as capacity increases.
Direct Correlation Between Capacity and Cost
The most straightforward relationship between capacity and price is that higher-capacity cranes are more expensive. This occurs for several reasons:
1. Material Requirements
Heavier loads require thicker steel, reinforced welds, and stronger mechanical joints. For example:
- A 20-ton RMG crane may use standard structural steel sections for the girder and legs.
- A 100-ton crane, however, may require custom high-strength steel beams and reinforced leg bracing to handle the load safely.
Material costs increase significantly with larger steel profiles and additional reinforcements, directly impacting the rail mounted gantry crane price.
2. Hoist and Mechanical Systems
The hoist is the heart of any RMG crane. Its capacity must match or exceed the crane’s rated lifting load. Higher-capacity hoists often include:
- Larger wire ropes or chains
- More powerful motors
- Advanced braking systems for safety
- Precision gearboxes and mechanical components
All these enhancements raise both manufacturing and maintenance costs. Additionally, cranes with dual hoists or tandem lifting capability for ultra-heavy loads require more sophisticated coordination systems, adding to the expense.
3. Structural Design Complexity
High-capacity RMG cranes are not just scaled-up versions of smaller cranes—they often require custom structural designs to maintain stability and meet safety regulations. Considerations include:
- Reinforced leg and gantry bracing
- Additional wind load resistance for taller cranes
- Larger foundations and rail supports
- Enhanced anti-sway and torsional rigidity
Engineering complexity translates to higher design and fabrication costs, which are reflected in the final gantry crane price.
4. Electrical and Control Systems
Lifting heavier containers or industrial components demands more powerful electrical drives. This includes:
- High-torque motors for hoist, trolley, and gantry movement
- Advanced variable frequency drives (VFDs) for smooth acceleration and deceleration
- Sophisticated control systems for synchronized motion and safety monitoring
High-capacity cranes may also require redundant control systems to prevent accidents, adding further to cost.
Indirect Factors Influencing Price
Beyond direct material and mechanical considerations, RMG crane capacity affects several indirect cost drivers:
1. Installation and Foundation
Higher-capacity cranes impose greater loads on the rails and foundations. This may necessitate:
- Reinforced rail tracks and sleeper systems
- Stronger support pads or concrete foundations
- Heavier crane wheels and axles
Installation labor and foundation preparation costs rise alongside capacity, often accounting for a significant portion of the total project expenditure.
2. Maintenance and Lifecycle Costs
A higher-capacity RMG crane typically requires more frequent inspections, lubrication, and component replacements due to the increased stress on mechanical and structural parts. While these costs may not affect the initial purchase price directly, they are a consideration for total cost of ownership.
3. Operational Requirements
High-capacity cranes may demand additional safety features, operator training, or automated monitoring systems, which can increase the initial investment. For example:
- Load monitoring sensors
- Anti-sway or active stabilization systems
- Remote operation capabilities
Each feature adds to both the cost and operational complexity, which is typically factored into pricing discussions.
Capacity vs. Price: A Non-Linear Relationship
It’s important to note that the relationship between RMG crane capacity and price is non-linear. In other words, doubling the lifting capacity does not simply double the cost—it often increases it by a factor of 2.5 or more. This non-linear increase arises because:
- Structural components need exponential reinforcement for stability
- Hoist and trolley systems grow in complexity
- Safety margins and regulatory compliance become more stringent
For instance, a 20-ton RMG crane might cost around $150,000, while a 100-ton crane could cost over $500,000 depending on span, height, and additional features. Port operators and industrial buyers must consider this scaling effect when specifying the required crane capacity.
Choosing the Right Capacity: Cost vs. Operational Needs
Selecting an appropriate RMG crane capacity is a balancing act between price, operational requirements, and future scalability:
- Assess Actual Load Requirements
Understanding the heaviest load to be lifted regularly is crucial. Over-specifying capacity increases costs unnecessarily, while under-specifying can lead to operational bottlenecks and safety hazards. - Consider Growth and Flexibility
If future operations are expected to involve heavier cargo, investing in slightly higher capacity may be cost-effective over the long term, even if the upfront cost is higher. - Evaluate Total Cost of Ownership
Higher-capacity cranes often have higher maintenance and operational costs. A detailed lifecycle cost analysis helps justify the initial investment relative to operational benefits. - Factor in Environmental and Site Conditions
Wind, temperature extremes, and yard layout can affect the crane’s lifting stability. High-capacity cranes may require additional features to handle environmental factors safely, influencing both price and selection.
Conclusion
Capacity is a fundamental determinant of the price of rail mounted gantry cranes. From materials and hoist systems to structural design, electrical components, and installation requirements, every aspect of a crane scales with lifting capacity. Buyers must understand that higher capacity does not just mean handling heavier loads - it also brings increased complexity, safety requirements, and operational considerations.
Selecting the right capacity is about balancing cost, operational efficiency, and safety. Over-specifying capacity can lead to unnecessary expense, while under-specifying can hinder productivity and compromise safety. By carefully evaluating load requirements, future growth, and site conditions, port operators and industrial planners can make informed decisions that maximize both efficiency and return on investment.
Ultimately, understanding the relationship between capacity and price allows stakeholders to optimize their RMG crane investments, ensuring safe, reliable, and efficient container and cargo handling for years to come.
