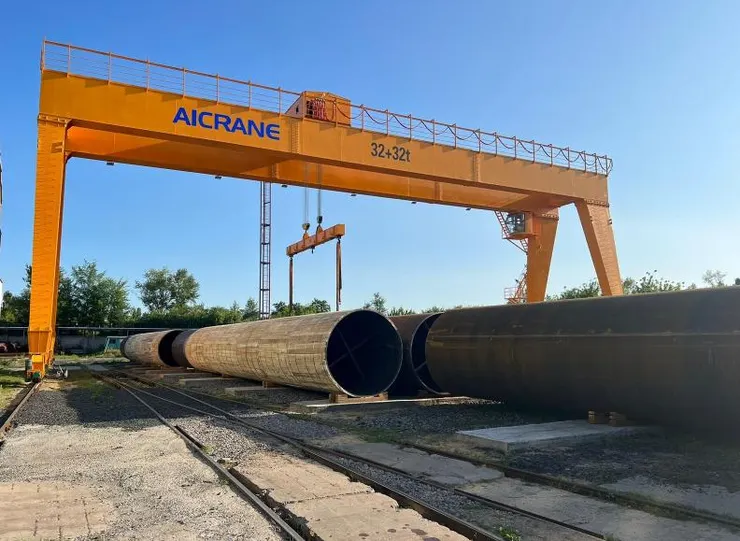

Double girder gantry cranes are widely used in heavy-duty applications across industries such as construction, shipbuilding, logistics, steel production, and precast concrete manufacturing. One of the most critical components that ensures the stable and safe operation of these cranes is the rail system on which the gantry crane travels. The performance and lifespan of the crane largely depend on the structural integrity and precision of the rail foundation and tracks.
This article explores the essential structural requirements for the rail foundations and tracks used by double girder gantry cranes, including design considerations, materials, installation techniques, and maintenance practices.
1. Importance of Proper Rail Foundation Design
Double girder gantry cranes typically have a large span, high lifting capacity (often 20 tons and above), and operate over long travel distances. This makes them highly sensitive to misalignments and uneven loads. The rails must support not only the vertical loads from the crane and the lifted goods but also dynamic forces generated during crane travel, acceleration, braking, and wind loads.
An inadequate foundation or improperly installed rail can result in:
- Crane derailment or wheel damage
- Accelerated wear and tear on wheels and rails
- Reduced crane lifespan
- Increased maintenance costs
- Safety hazards
Therefore, rail foundations and tracks must be engineered with precision and robustness.
2. Load Considerations and Structural Design
Before designing the rail foundation, it's crucial to calculate the various loads the system must withstand:
Static Loads:
- Self-weight of the crane
- Weight of the lifted load
- Weight of auxiliary equipment (trolley, cable reels, etc.)
Dynamic Loads:
- Impact loads from lifting and lowering operations
- Longitudinal and lateral forces during crane travel
- Braking forces
Environmental Loads:
- Wind loads (especially in outdoor applications)
- Seismic forces in earthquake-prone areas
- Thermal expansion/contraction of rails and foundations
Once the total load is calculated, the civil engineering design must ensure that the rail foundation:
- Can distribute these loads uniformly into the soil
- Avoids settlement or deformation under continuous operation
- Maintains alignment of the rails over time
3. Types of Rail Foundations
There are several types of foundations used based on site conditions and crane specifications:
a. Concrete Beam Foundation (Embedded Rails):
This is the most common type. Rails are fixed onto a continuous concrete beam, either flush with the ground or slightly elevated.
- Advantages: High stability, long service life, easy inspection
- Design Tip: Include drainage channels to avoid water accumulation
b. Embedded Steel Rail in Asphalt or Pavers:
Used in certain port or industrial environments where ground paving is required for vehicle movement.
- Challenge: Requires precise joint and expansion gap control
- Use Case: Outdoor container yards or logistics terminals
c. Precast Rail Blocks:
Precast concrete blocks with embedded bolts are aligned along the travel path to hold the rails.
- Benefit: Faster installation and easy replacement
- Caution: Requires a very flat and compacted base
d. Steel Structure on Top of Floor Slab:
In light-duty applications or temporary setups, steel rails can be fastened onto fabricated steel frames.
- Use Case: Mobile gantry cranes or rail extension projects
4. Rail Types and Installation
a. Rail Type Selection:
Rails must be selected based on the crane wheel load, wheel diameter, and operational frequency. Common rail types include:
- QU series (China) – QU70, QU80, QU100, QU120
- DIN rails (Europe) – A65, A75, A100, A120
- CR rails (Standard rail types) – Similar to railway tracks, used in heavy-duty crane systems
b. Installation Guidelines:
- Levelness and Straightness: The allowable deviation in level between two rails must not exceed 10 mm, and the straightness deviation must be under 1 mm per meter.
- Alignment: Rails must be parallel along the entire crane span, with a gauge tolerance usually within ±10 mm.
- Fixation: Rails should be anchored using clips and bolts at proper intervals. Welded joints should be ground flush to avoid wheel impact.
- Expansion Gaps: Provide expansion joints every 20–30 meters depending on climate to prevent rail deformation.
5. Ground Preparation and Soil Conditions
A geotechnical survey should be conducted before designing the rail foundation to understand:
- Soil bearing capacity
- Groundwater level
- Frost susceptibility
- Potential for differential settlement
Based on these factors, the foundation must be designed to ensure long-term structural stability. In soft soils, additional measures may include:
- Soil stabilization (lime or cement treatment)
- Installation of stone columns or piles
- Geo-grid reinforcement
6. Drainage and Environmental Protection

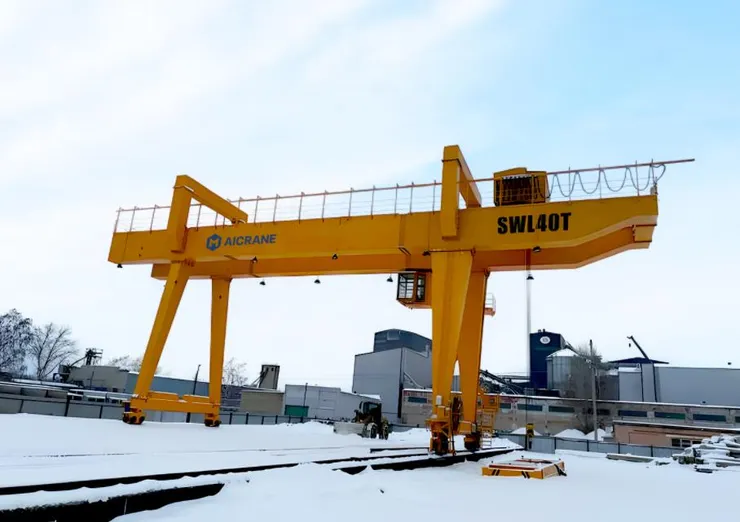

Double girder gantry cranes often operate outdoors where environmental factors can significantly impact the rail foundation.
- Drainage System: Properly designed side and under-rail drainage prevents water accumulation that could weaken the foundation.
- Corrosion Protection: Rails and fasteners should be hot-dip galvanized or treated with anti-corrosion paint.
- Vegetation Control: Keep the track area clear of weeds and organic buildup to avoid misalignment or corrosion.
7. Maintenance and Inspection Requirements
To ensure long-term functionality and safety, regular inspection and maintenance must be scheduled:
a. Rail and Fastener Checks:
- Inspect for loose bolts, broken clips, or worn-out pads
- Check rail wear with gauges
- Monitor for cracks or corrosion
b. Foundation Monitoring:
- Look for uneven settlement or cracks in the concrete
- Confirm rail alignment and elevation with laser leveling tools
- Watch for signs of water damage or freeze-thaw cycles
c. Alignment Recalibration:
- Periodic laser alignment checks
- Realignment and regrouting where deviations are found
8. Case Example: Rail Foundation for a 50-Ton Double Girder Gantry Crane
For a 50-ton AQ-MG type double girder gantry crane with a 30-meter span operating in a steel yard, the following measures were taken:
- Rail Type: QU100
- Foundation: Reinforced concrete beam foundation (depth 1.2 m)
- Drainage: Central trench with steel grating and side channels
- Alignment Tolerance: ±8 mm in level and ±6 mm in rail span
- Anchorage: M24 anchor bolts with resilient rail clips every 500 mm
This setup ensured high stability under harsh outdoor conditions and frequent heavy-duty operations.
Conclusion
The structural requirements for double girder gantry crane rail foundations and tracks are critical to the safe, efficient, and long-term operation of these powerful lifting machines. From understanding soil conditions and load calculations to selecting the appropriate rail type and implementing proper installation techniques, every detail matters. Well-designed and maintained rail systems help avoid operational disruptions, minimize maintenance, and enhance the lifespan of both the crane and the infrastructure.
Investing in a sound rail foundation is not just about meeting technical specifications - it's a strategic decision that directly influences productivity, safety, and return on investment.
