Introduction
Architectural design is evolving faster than ever, and the integration of AI is reshaping how architects visualize, iterate, and deliver work. Archicad’s design ecosystem, when paired with powerful AI imaging tools like ReRender and industry workflows from Graphisoft, creates a new hybrid design pipeline that blends precision BIM modeling with rapid concept generation. This tutorial explores three practical case studies showing how AI can enhance early design thinking, support massing development, and elevate final visualization output—without replacing the architect’s craft.
Section 1: Conceptual Model Development

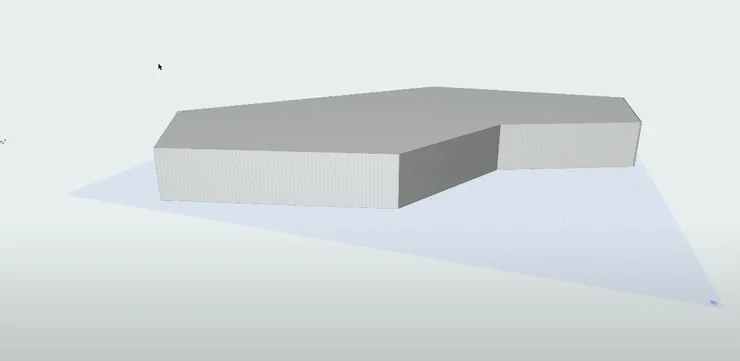

Early-stage ideation often starts with unclear forms, abstract relationships, and rough massing. In this case study, we begin with a simple conceptual model built inside Archicad. By exporting a base geometry or even starting with no model at all, we tested how text prompts could generate meaningful architectural directions. Using Graphisoft’s workflow foundation, we defined massing intent—scale, volume distribution, and spatial atmosphere.

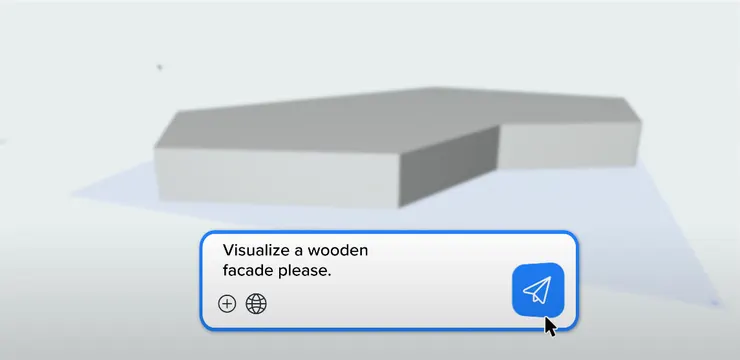

Then, a short descriptive prompt such as “visualize a wooden facade” produced a variety of concept images. The result was a fast, visually rich interpretation that inspired design decisions before committing to detailed modeling. This blend of Archicad structure and ReRender’s creative output allowed a smoother transition from abstract thought to actionable architectural direction.
Conceptual Model
Text Prompt
Graphisoft
ReRender
Section 2: Modern Residential Massing Diagram
For the second workflow, the goal was to study the massing of a modern residential building. Using Archicad’s native modeling tools, we generated a basic block model—clean forms, controlled heights, and clear setbacks. This model served as the foundation for Graphisoft’s analytical diagrams. Instead of spending hours manually rendering, we took simple 3D views and passed them through. A concise prompt such as “modern residential block with brick textures, large windows, and soft dusk lighting” translated the massing diagram into an atmospheric, client-ready visualization.
The AI output maintained the original building proportions while upgrading materiality and lighting, enabling faster decision-making during early design reviews. This workflow proves especially helpful in tight deadlines where concept clarity is more important than full photorealism.

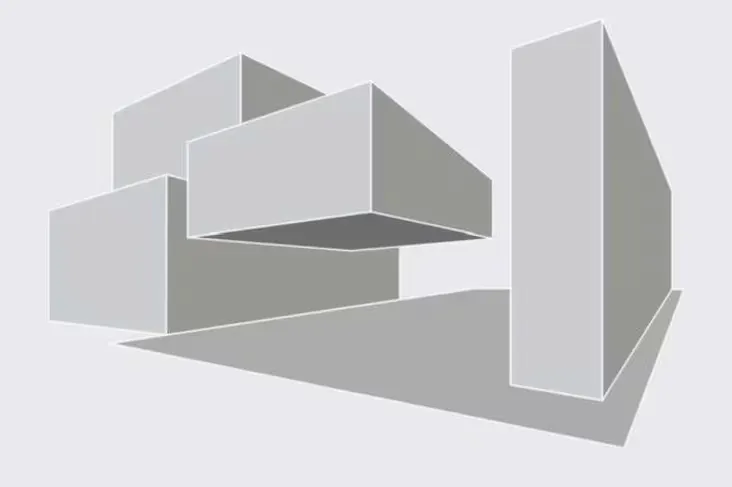

Modern Residential Massing Diagram
Graphisoft
ReRender
Section 3: Archicad 3D Model to Rendering

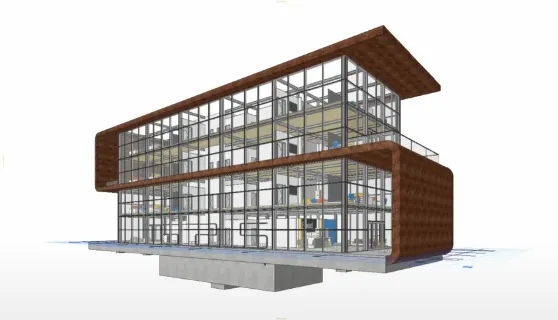

The final scenario examined how a finished Archicad 3D model translates into full render quality. After completing a detailed BIM model—complete with materials, structure, and furnishings—we exported it into D5 Render for real-time lighting and spatial refinement. D5’s engine provided reliable shadow behavior, accurate reflections, and a polished architectural tone.
To compare, we used ReRender to produce an AI-enhanced visualization directly from a model screenshot. While atmospheric by nature, ReRender also proved surprisingly precise: it preserved geometry, respected material intent, and produced clear architectural representations. More importantly, it did so at a fraction of the time required by conventional rendering.This dual-pipeline approach demonstrates a balanced use of AI while retaining the architect’s control over final presentation quality.
ArchiCAD 3D model
D5 render
ReRender
Conclusion
AI is not replacing BIM; it is complementing it. By integrating Archicad with tools like Graphisoft’s workflow structure, D5 Render’s real-time engine, and ReRender’s rapid, precise image generation, architects gain a richer design toolkit. These three case studies show that AI enhances each stage of the architectural process—from early conceptual prompts, to rapid massing visualization, to expressive render alternatives. When used intentionally, AI becomes a powerful assistant that accelerates creativity while preserving professional judgment. The future of architectural design is not only faster but more flexible and more visually expressive—and Archicad AI workflows are at the center of that evolution.
