Ports around the world face the challenge of operating in environments exposed to severe weather — none more threatening than typhoons, hurricanes, and cyclones. For coastal and tropical regions, these storms bring high winds, torrential rain, tidal surges, and rapid structural loading changes. Container gantry cranes — essential for handling cargo in port operations — are large, heavy structures with significant surface area, making them especially vulnerable to extreme wind events.
To protect port infrastructure, ensure safety, and minimize downtime and costly repairs after storms, modern gantry crane design must incorporate typhoon-resistant features. This article explores key design principles, engineering considerations, structural strategies, industry standards, and operational practices that together deliver safe, reliable, and resilient port gantry cranes capable of withstanding typhoon conditions.
Why Typhoon Resistance Matters in Port Crane Design

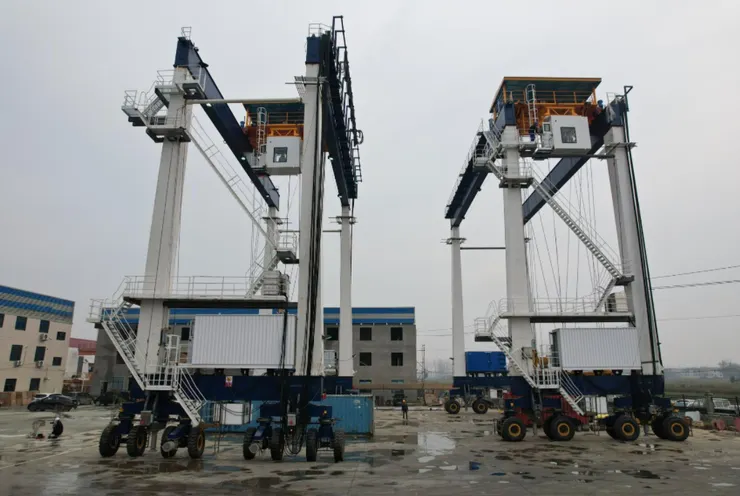

Gantry cranes are among the most critical assets in terminals. A typical ship-to-shore (STS) gantry crane can stand 40–60 meters tall, weigh hundreds of tons, and possess large open lattice booms and towers. The sheer size and surface area mean:
- High wind loads: Typhoon wind speeds of 150–250+ km/h (90–155+ mph) generate enormous lateral forces on structures. Without proper design, cranes can overturn, collapse, or suffer damaging deformation.
- Downtime risk: Damage from storms leads to prolonged shutdowns to repair equipment and assess safety, causing shipping delays and logistical bottlenecks.
- Safety hazards: Structural failure can harm personnel and equipment, disrupt port logistics, and incur significant financial loss.
Thus, typhoon-resistant design is not just engineering optimization — it’s essential for operational continuity and safety.
Understanding Wind Forces on Gantry Cranes
Designing for extreme wind requires understanding how typhoon forces act on crane structures:
1. Static Wind Pressure
Typhoon wind pressure on a flat and open lattice surface varies with wind speed, crane height, and exposure. Designers compute this using standards like:
- ASCE 7 (American Society of Civil Engineers) for wind loads,
- ISO 19901-1 for offshore structures,
- Local maritime codes tailored to typhoon regions (e.g., China’s GB codes, Japan’s JIS wind load standards).
Wind pressure increases with the square of the velocity — meaning small increases in speed drastically raise load on the crane.
2. Dynamic Gust Effects
Typhoons exhibit rapid gust patterns, causing fluctuating forces. Dynamic analysis — accounting for transient loading — ensures stability during sudden gusts rather than just steady wind.
3. Aerodynamic Shape
The shape of crane members affects wind drag. Lattice structures, though lighter, behave differently from enclosed profiles. Design must balance:
- Reduced wind resistance,
- Structural strength,
- Fabrication feasibility.

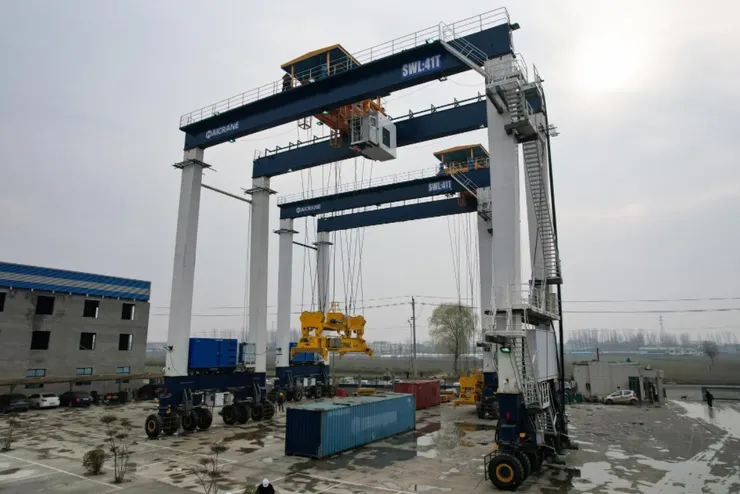

Structural Strategies for Typhoon Resistance
1. Foundation and Mast Strengthening
Deep Foundation and Piling: Ports with soft silty soils often require deep pile foundations to prevent overturning moments and maintain crane stability. Reinforced concrete piers and anchor bolts are designed to transfer lateral and uplift forces into the ground.
Tower Rigidity: Tower columns and crossbeams use high-strength steel with thicker walls or reinforcement at key nodes to resist bending and shear under wind forces. Base connections are engineered with redundancies to preserve integrity even if individual elements yield.
2. Wind Load Reduction Techniques
Open Lattice Boom Design: Using open lattice rather than solid surfaces drastically reduces aerodynamic drag. Wind passes through truss members, lowering overall force.
Optimized Structural Geometry: Engineers use finite element models to shape structural members and brackets in a way that minimizes high-stress zones under wind load.
Wind Perforations: In some designs, partial perforations or mesh panels allow improved airflow without compromising load capacity.
3. Height and Span Considerations
Lower Center of Gravity: Heavy components like motors and trolleys are positioned to lower the overall center of gravity, improving resistance to overturning.
Span Optimization: Wider spans increase surface area and exposure but allow efficient cargo handling. Engineers must balance operational reach with wind resistance, often employing:
- Reinforced cross girders,
- Improved trolley guides,
- Enhanced bracing systems.
4. Redundant Structural Systems
Multiple Load Paths: Instead of relying on single members to resist wind load, modern designs include redundant load paths. If one element yields, others carry the load without catastrophic failure.
Bracing and Diaphragm Systems: Horizontal and diagonal bracing in towers and gantry legs resist lateral displacement and provide stiffness against wind-induced sway.
5. Material Choices and Fatigue Resistance
High-Strength, Weather-Resistant Steel: Materials with superior yield strength and fatigue resistance are essential. Marine environments accelerate corrosion, so:
- Weathering steels,
- Corrosion-resistant coatings,
- Periodic maintenance paint systems
are part of long-term resilience strategies.
Flexible Joints: Some joints use controlled flexibility to absorb dynamic wind effects, reducing stress concentration.
Typhoon-Ready Operational Controls
Design goes beyond structural elements — modern crane systems integrate smart technology for storm response:
1. Automated Wind Sensors & Shutdown Protocols
Cranes now include integrated anemometers that feed into control systems. When wind speeds reach designated thresholds:
- Trolleys are moved to predefined safe positions,
- Booms are oriented to reduce wind profile,
- Operations are suspended to protect equipment and personnel.
Automation ensures swift, consistent responses that human operators might delay.
2. Locking & Immobilization Mechanisms
Mechanical locks secure movable components — trolley, spreader, boom — reducing the risk of uncontrolled motion during wind gusts. Immobilization reduces dynamic amplification of force and prevents damage.
3. Maintenance & Inspection Schedules
Design must incorporate access and safety for routine checks after typhoons. Cranes are inspected for:
- Weld cracks,
- Corrosion,
- Structural deformation,
- Foundation distress.
Regular maintenance ensures readiness before and after storms.
Codes, Standards & Certification
Typhoon-resistant crane design must align with international and regional standards:
- ISO 4301 & ISO 8686 for general crane design,
- ASCE 7 for wind load criteria,
- API & ISO offshore standards where applicable,
- Local maritime regulatory codes.
Third-party certification and compliance audits often form part of procurement and commissioning in typhoon-prone ports.
Case Studies: Ports in Typhoon-Prone Regions
1. East Asia
Ports in southern China, Taiwan, Hong Kong, and Japan are exposed annually to typhoons. Container gantry crane manufacturers supply structures with:
- Increased wall thickness steel,
- Reinforced booms,
- Integrated control systems with automatic shutdown logic.
Operators also implement contingency protocols — crane parking positions, pre-storm inspections, and emergency power backups — to minimize risk.
2. Southeast Asia & Pacific Islands
Ports in the Philippines, Vietnam, and Pacific island nations face frequent tropical cyclones. Here, gantry crane designs incorporate:
- Extra deep pile foundations,
- Tidal surge considerations,
- Coordinated port authority shutdown procedures.
These measures protect long-term investment and port throughput reliability.
Economic and Operational Benefits of Typhoon-Resistant Design
While enhanced storm-proofing adds upfront cost, the benefits are significant:
1. Reduced Downtime
Ports that invest in resilient design avoid prolonged shutdowns, maintaining efficient cargo flow and revenue continuity.
2. Lower Repair and Replacement Costs
Robust designs minimize structural damage, cut repair costs, and extend service life.
3. Enhanced Safety
Personnel safety is a priority; typhoon-resistant cranes reduce risk of collapse, uncontrolled movement, and hazardous conditions.
4. Improved Asset Management
Integration of sensors and predictive maintenance supports long-term planning and cost control.
Challenges and Innovations in Future Design
Despite advances, engineers continue to innovate:
- AI-driven predictive modeling estimates damage risk based on real-time weather data.
- Modular crane components allow easier upgrade and retrofit for storm hardening.
- Active damping systems — analogous to skyscraper technologies — are being explored to absorb dynamic wind loads.
Materials science innovations — including composites and smart alloys — promise lighter, stronger crane structures with improved fatigue resistance.
Conclusion
Typhoon-resistant gantry crane design is a multidisciplinary engineering discipline combining structural engineering, materials science, wind dynamics, control systems, and operational strategy. Ports in typhoon-prone regions can no longer rely on conventional designs; they require purpose-built infrastructure that resists extreme gusts, minimizes downtime, protects workers, and preserves throughput.
By focusing on reinforced structures, optimized aerodynamics, smart controls, compliant standards, and proactive operational procedures, terminal operators and crane manufacturers can achieve resilient port operations that withstand even the strongest storms.
Designing gantry cranes for the harsh realities of nature is not just good engineering — it’s essential for safe, reliable global trade in an era of intensifying weather extremes.
