Purchasing a gantry crane is a major investment for any industrial facility, steel mill, shipping yard, or construction site. Unlike standard machinery, gantry cranes are highly customizable, with specifications that vary widely depending on load capacity, span, lifting height, operating environment, and control requirements. Because of this complexity, obtaining an accurate price quote from a supplier requires careful communication and detailed information. Without this, buyers risk receiving quotes that are inaccurate, incomplete, or misleading.
In this article, we will explore the critical information suppliers need to accurately quote a gantry crane price, helping buyers streamline the procurement process and make informed decisions.
1. Crane Type and Basic Specifications

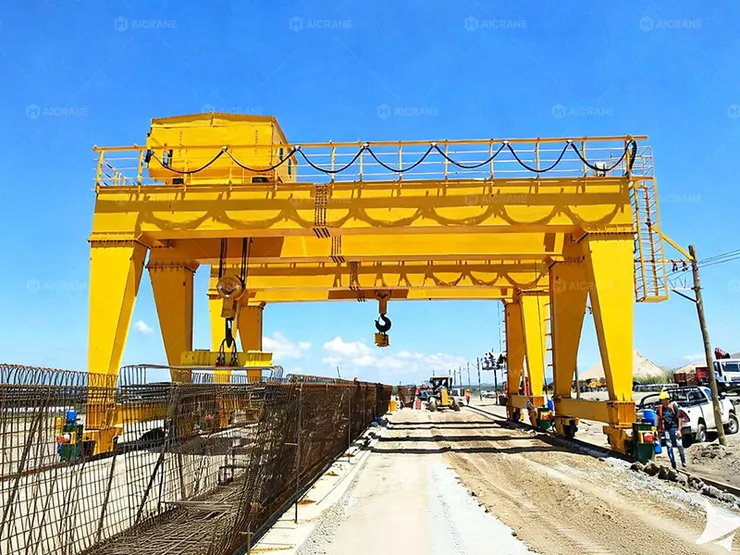

The first step for suppliers is to understand the type of gantry crane required. Gantry cranes can be broadly classified into single girder and double girder designs, each with unique load-bearing capabilities and applications. Additionally, mobility plays a role: gantry cranes can be rail-mounted, rubber-tyred (mobile), or fixed, which affects structural design, wheel selection, and foundation requirements.
Key Information for Suppliers:
- Load capacity: Maximum weight the crane must lift, usually in tons (e.g., 20, 50, 500 tons). Load capacity determines motor sizing, structural strength, and safety systems.
- Span: The distance between the crane rails or the distance covered by the bridge girder. Larger spans require heavier steel structures.
- Lifting height: Vertical distance the hook or lifting mechanism must travel. This influences the hoist design and bridge height.
- Crane type: Single or double girder, fixed, rail-mounted, or mobile.
Providing these basic specifications allows suppliers to determine the structural requirements, lifting mechanisms, and drive systems needed for the crane. Even within the same capacity, different designs may vary significantly in price.
2. Operating Environment
The environment in which the crane will operate has a profound impact on its design and cost. Suppliers need to know whether the crane will be used indoors or outdoors, in normal industrial settings, or in harsh environments such as ports, steel mills, or chemical plants.
Environmental Factors:
- Temperature extremes: High or low temperatures may require specialized lubricants, motors, or steel grades.
- Humidity and corrosion: Coastal or chemical plant environments may require anti-corrosion coatings or stainless-steel components.
- Dust and debris: Industrial dust may require dustproof or enclosed hoist systems.
- Wind load considerations: Outdoor cranes, particularly tall or wide-span units, must be designed to withstand local wind conditions.
Suppliers use this information to adjust material selection, structural design, and protective coatings, which significantly affect the cost of the gantry crane.
3. Work Duty Classification
Work duty, also known as service class, describes the frequency and intensity of crane operation. Standards such as ISO 4301-1 or DIN 15018 categorize cranes into classes such as A1 to A8 or M1 to M7. For example, a crane handling a light load a few times a day requires different design considerations than a crane lifting heavy loads continuously.
Why It Matters:
- Determines motor power and hoist selection.
- Impacts structural steel thickness and fatigue resistance.
- Affects maintenance intervals and lifespan expectations.
Buyers must provide information about expected cycles, duration of operation per day, and load patterns so that suppliers can design a crane that is safe, efficient, and cost-effective.
4. Control and Operation Preferences
Gantry cranes can be operated in multiple ways, and the control method impacts both safety and cost. Suppliers need clarity on the preferred operation mode:
Common Control Options:
- Pendant control: Simple, cost-effective, suitable for smaller cranes.
- Radio remote control: Offers flexibility and operator safety; popular for medium to heavy cranes.
- Cabin operation: Used for very large cranes or where visibility and precision are critical.
Additionally, gantry crane suppliers may need to know if you require advanced features such as variable speed drives, anti-sway systems, load monitoring, or automation for repetitive tasks.
5. Power Supply and Electrical Requirements
The crane’s electrical system is a significant factor in pricing. Suppliers must know the available voltage, phase, and frequency at the installation site. For mobile or outdoor cranes, diesel-electric or hybrid power systems may be preferred.
Considerations:
- Voltage levels (e.g., 380V, 415V, 660V).
- Frequency (50Hz or 60Hz) compatibility.
- Whether a dedicated power supply or substation is available.
- Special electrical requirements for hazardous zones (explosion-proof motors for chemical or grain-handling facilities).
Providing accurate electrical information helps avoid costly modifications or underpowered equipment.
6. Ground and Foundation Conditions
For rail-mounted or heavy-duty gantry cranes, ground conditions and foundation type are critical for design. Suppliers need data on floor load capacity, rail type, concrete grade, and surface leveling. Poor foundation or uneven surfaces can limit the crane’s load capacity, stability, and lifespan.
Information to Share:
- Floor or rail layout drawings.
- Soil and concrete load-bearing capacity.
- Any planned or existing obstacles in the crane’s path.
This ensures the supplier designs wheels, rail systems, and structural supports to meet operational safety standards.
7. Optional Features and Customization
Gantry cranes often include optional features that improve safety, efficiency, or adaptability. Suppliers need clear information on these preferences, which directly affect cost.
Common Options:
- Rotating hooks or spreader beams for complex lifts.
- Anti-sway or shock-absorbing systems for precision handling.
- Remote monitoring and IoT systems for predictive maintenance.
- Weather protection features for outdoor cranes.
Even small differences in optional features can impact both the crane’s price and lead time.
8. Site Layout and Application Scenarios
Suppliers benefit from knowing the site layout and the types of loads the crane will handle. This includes:

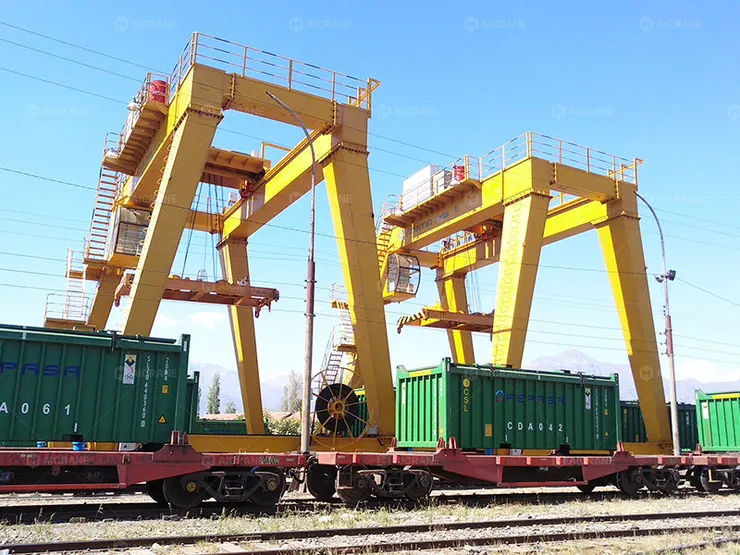

- Load types: Steel coils, precast concrete, shipping containers, machinery.
- Lifting patterns: Frequent short lifts vs. occasional long lifts.
- Operational area restrictions: Height limits, narrow aisles, or overhead obstacles.
This information ensures the crane is designed to operate safely and efficiently within the customer’s facility while minimizing modifications or site adjustments.
9. Delivery and Installation Requirements
Finally, suppliers need to know whether the buyer requires turnkey delivery, on-site installation, or only supply of the crane components. Transportation and installation can be significant cost drivers, especially for oversized or heavy gantry cranes.
Details to Provide:
- Site accessibility for trucks or cranes.
- Installation support availability.
- Local labor or subcontractor involvement.
Clear communication about delivery and installation expectations helps suppliers provide accurate quotes that reflect the total project cost.
Conclusion
Accurately quoting a gantry crane price requires more than just stating the desired load capacity. Suppliers need a detailed understanding of the crane type, load capacity, span, lifting height, environmental conditions, duty classification, electrical supply, foundation conditions, optional features, and installation requirements. The more precise and comprehensive the information provided by the buyer, the more accurate and reliable the quotation will be.
By preparing detailed specifications and operational requirements, buyers can reduce misunderstandings, avoid hidden costs, and select a gantry crane solution that meets their operational needs safely and efficiently. Proper upfront communication benefits both the buyer and the supplier, ensuring a smooth procurement process and a long-lasting investment.
