開始裝潢新家，為了讓智能開關接入 Home Assistant 系統，而展開的刷機之路…

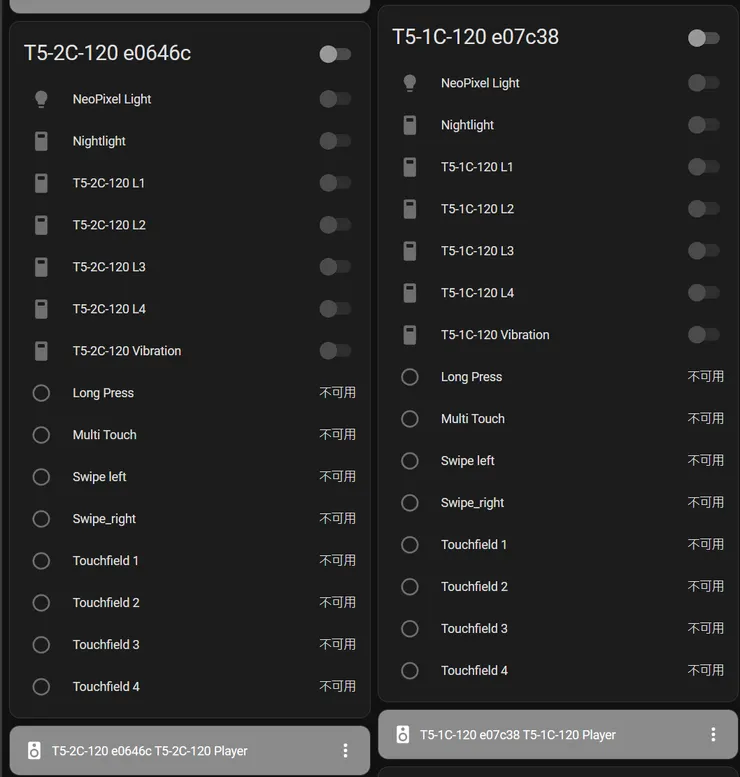

T5 1C 2C 3C 通通有
事前準備

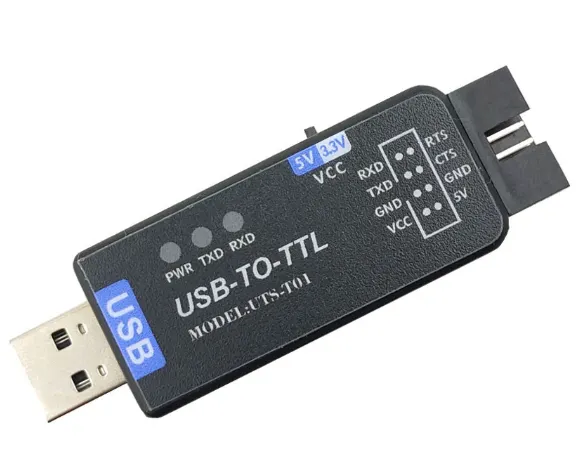

- USB UART
- 杜邦線
接線圖
3.3V <---> 3.3V
RXD <---> TX
TXD <---> RX
GND <---> GND
拆解步驟
- 用一字將底座打開

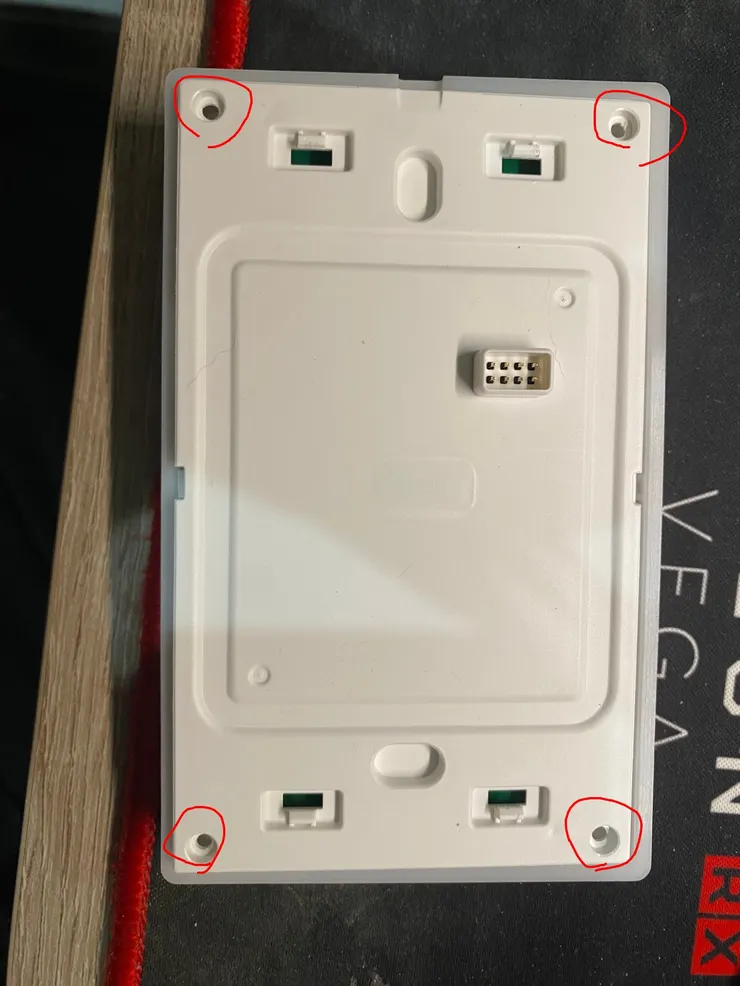

- 解開底板螺絲

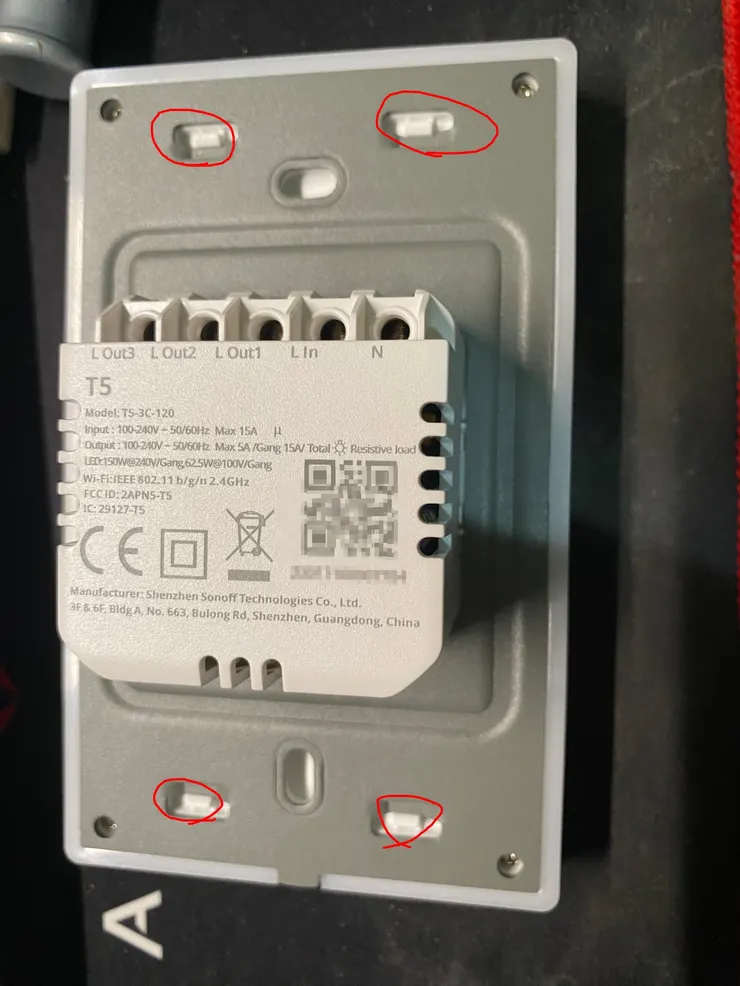

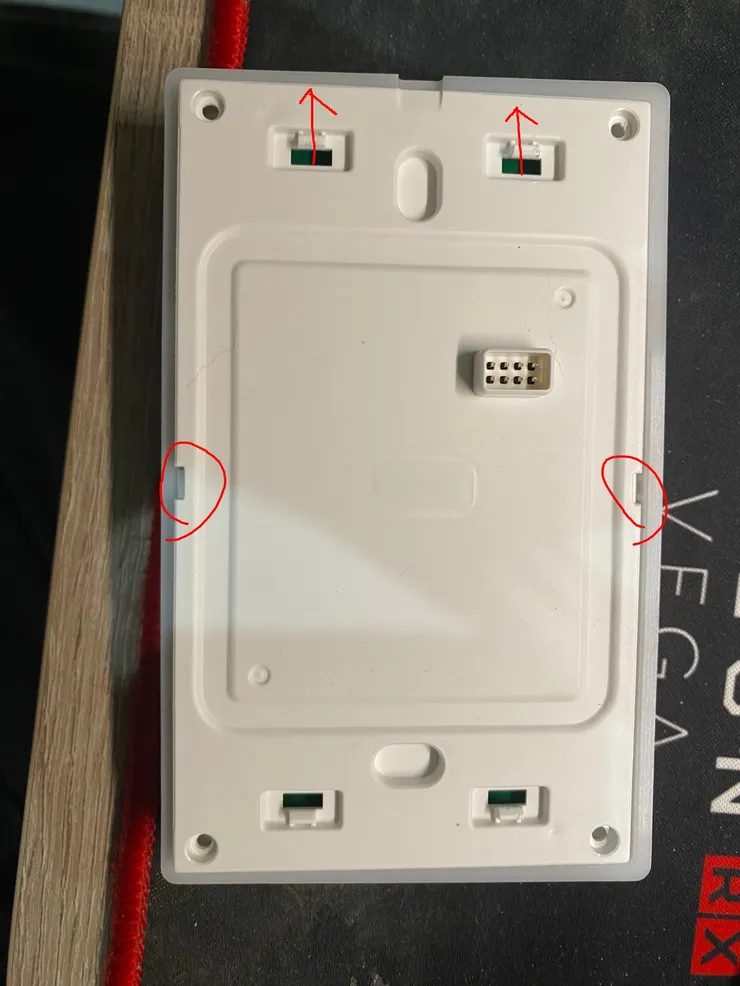

- 從旁邊翹開拿下底板 (箭頭方向字一字翹起，或是從左右側翹起)

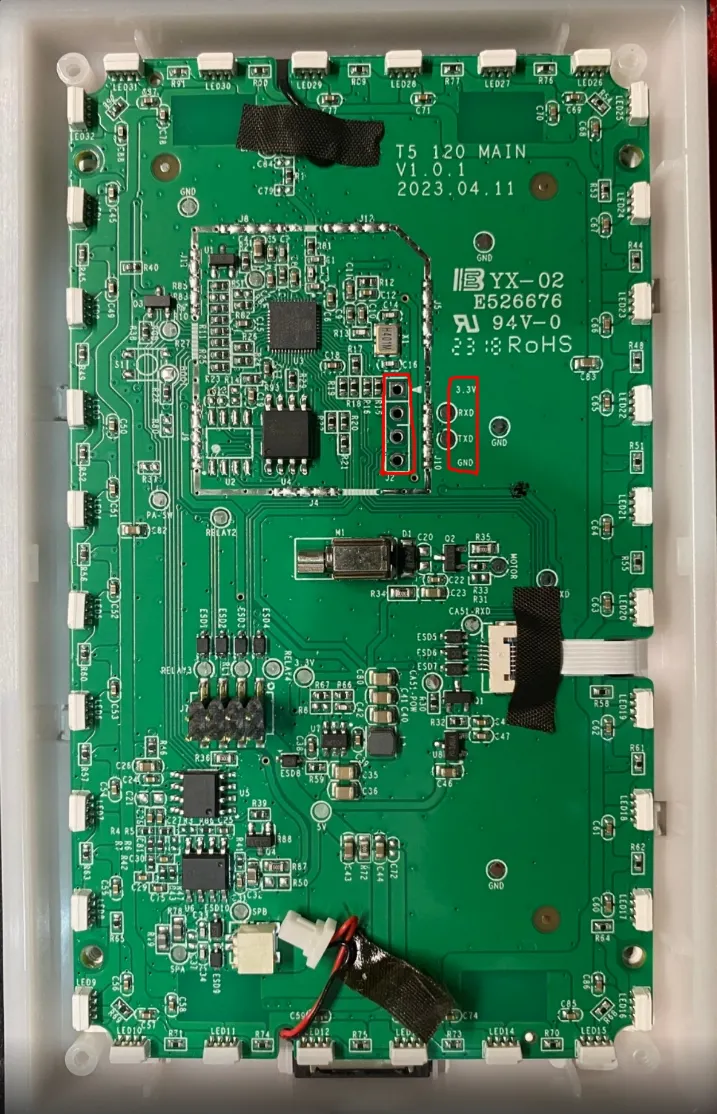

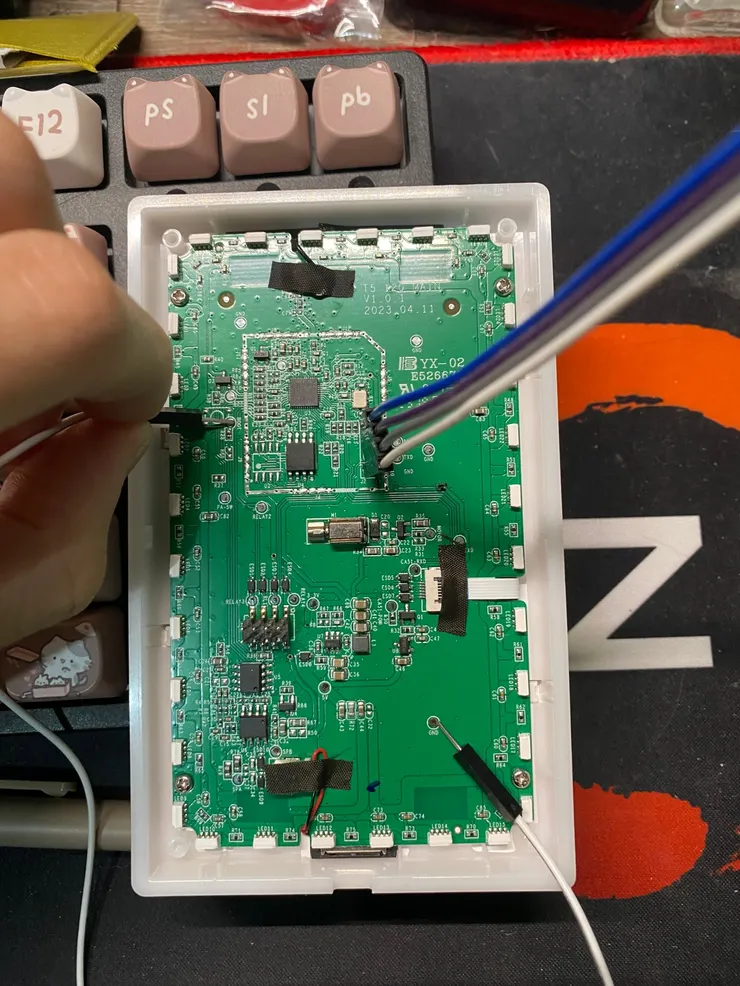

接上線後，就可以開始刷機了
剛打開時，會是進入 Cycle Mode (燈的顏色一直循環) ，這時候要短路 Boot 與 GND 進入刷機模式 (燈的顏色停止循環)
刷機的 YAML 檔
name_add_mac_suffix 是因為我有大量的 TX Ultimate 需要處理
經緯度是因為有日照時間，可以進入 Night Mode
1C
substitutions:
name: t5-1c-120
friendly_name: T5-1C-120
relay_count: "1"
latitude: "24.147736"
longitude: "120.673645"
packages:
smarthomeyourself.tx_ultimate:
url: https://github.com/SmartHome-yourself/sonoff-tx-ultimate-for-esphome
file: tx_ultimate_us.yaml
ref: main
esphome:
name: ${name}
name_add_mac_suffix: true
friendly_name: ${friendly_name}
api:
ota:
platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: ${friendly_name} AP
password: "fallback_password"
web_server:
port: 80
2C
substitutions:
name: t5-2c-120
friendly_name: T5-2C-120
relay_count: "2"
latitude: "24.147736"
longitude: "120.673645"
packages:
smarthomeyourself.tx_ultimate:
url: https://github.com/SmartHome-yourself/sonoff-tx-ultimate-for-esphome
file: tx_ultimate_us.yaml
ref: main
esphome:
name: ${name}
name_add_mac_suffix: true
friendly_name: ${friendly_name}
api:
ota:
platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: ${friendly_name} AP
password: "fallback_password"
web_server:
port: 80
3C
substitutions:
name: t5-3c-120
friendly_name: T5-3C-120
relay_count: "3"
latitude: "24.147736"
longitude: "120.673645"
packages:
smarthomeyourself.tx_ultimate:
url: https://github.com/SmartHome-yourself/sonoff-tx-ultimate-for-esphome
file: tx_ultimate_us.yaml
ref: main
esphome:
name: ${name}
name_add_mac_suffix: true
friendly_name: ${friendly_name}
api:
ota:
platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: ${friendly_name} AP
password: "fallback_password"
web_server:
port: 80
4C
substitutions:
name: t5-4c-120
friendly_name: T5-4C-120
relay_count: "4"
latitude: "24.147736"
longitude: "120.673645"
packages:
smarthomeyourself.tx_ultimate:
url: https://github.com/SmartHome-yourself/sonoff-tx-ultimate-for-esphome
file: tx_ultimate_us.yaml
ref: main
esphome:
name: ${name}
name_add_mac_suffix: true
friendly_name: ${friendly_name}
api:
ota:
platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: ${friendly_name} AP
password: "fallback_password"
web_server:
port: 80

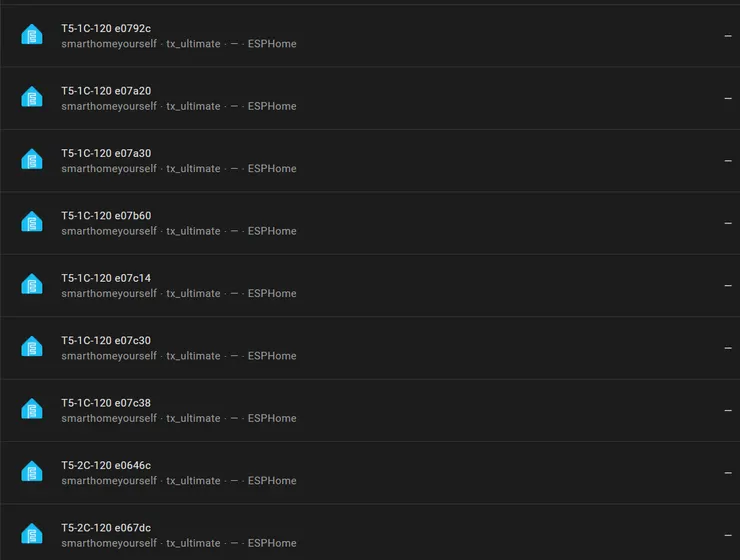

完成後，就可以在 Home Assistant 的通知接入囉！
