在資料結構與演算法裡,
最簡單的線性資料結構除了array之外就是linked list鏈結串列了。
Linked list又有分為單向Singly linked list 和雙向Doubly linked list
在之前的教學中,已經學會了單向鏈結串列Singly linked list。
接著,我們將在今天學會更進階的雙向鏈結串列Doubly linked list。

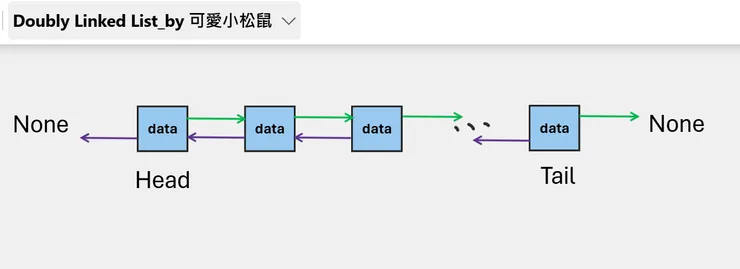

每個節點Node只有三個欄位
data: 儲存這個節點的資料
next: 指向下一個節點的reference (在C/C++ 就是指標pointer) 對應到綠色的箭頭
prev: 指向前一個節點的reference (在C/C++ 就是指標pointer) 對應到紫色的箭頭
而雙向連結串列就是由數個節點所構成,形成由頭部逐一串接到尾巴的串列。
並且支援雙向拜訪,可以從頭拜訪到尾,也可以從尾巴拜訪到頭部。
1.在頭部、尾巴、或者已知節點的新增、刪除、修改都是O(1) 常數時間。
2.可以根據需求動態延伸或縮短,有效利用記憶體空間。
3.支援雙向拜訪,可以從頭拜訪到尾,也可以從尾巴拜訪到頭部。
1.不支援random acess,不支援Linkedlist[ index ] 這種操作。
2.如果要搜尋或者訪問某個元素,一定要從頭部或者尾巴開始拜訪(或搜尋)整個串列。
run-time成本相當昂貴,需要O(n)線性時間。
class Node:
def __init__(self, data):
# 儲存節點的資料
self.data = data
# 指向下一個節點,初始化為空 None
self.next = None
# 指向前一個節點,初始化為空 None
self.prev = None
class LinkedList:
def __init__(self):
# 頭部節點初始化為空
self.head = None
# 尾巴節點初始化為空
self.tail = None
# 串列長度初始化為0
self.size = 0
實作上的細節要留意,串列是空的還是已經有節點存在了。
如果是空的,直接加入即可。
如果已經有節點存在了,插入新節點之後,記得更新head頭部位置。
時間複雜度: O(1) 常數時間
def insertAtHead(self,data):
new_node = Node(data)
self.size += 1
# If the list is empty
if self.tail is None:
self.head = new_node
self.tail = new_node
else:
# Update linkage
new_node.next = self.head
self.head.prev = new_node
self.head = new_node
return
實作上的細節要留意,串列是空的還是已經有節點存在了。
如果是空的,直接加入即可。
如果已經有節點存在了,插入新節點之後,記得更新tail尾巴位置。
時間複雜度: O(1) 常數時間
def insertAtTail(self, data):
new_node = Node(data)
self.size += 1
# If the list is empty
if self.head is None:
self.head = new_node
self.tail = new_node
else:
# Update linkage
self.tail.next = new_node
new_node.prev = self.tail
self.tail = new_node
return
實作上的細節要留意,串列是空的還是已經有節點存在了。
如果是空的,直接不做事return即可。
如果已經有節點存在了,刪除舊節點之後,記得更新head頭部位置。
時間複雜度: O(1) 常數時間
def removeAtHead(self):
if self.head is None:
return
else:
self.size -= 1
oldHead = self.head
# Update linkage
if self.head == self.tail:
self.tail = None
self.head = None
else:
self.head = self.head.next
# Break linkage
oldHead.next = None
if self.head:
self.head.prev = None
return oldHead
實作上的細節要留意,串列是空的還是已經有節點存在了。
如果是空的,直接不做事return即可。
如果已經有節點存在了,刪除舊節點之後,記得更新tail尾巴位置。
時間複雜度: O(1) 常數時間
def removeAtTail(self):
if self.tail is None:
return
else:
self.size -= 1
oldTail = self.tail
# Update linkage
if self.tail == self.head:
self.tail = None
self.head = None
else:
self.tail = self.tail.prev
# Break linkage
oldTail.prev = None
if self.tail:
self.tail.next = None
return oldTail
從頭拜訪整個串列,直到尾巴。
最後順便輸出整個串列長度。
時間複雜度: O(n) 線性時間
def traverse(self):
print("Forward traversal")
cur = self.head
while cur:
print(cur.data, end=' -> ')
cur = cur.next
print("None")
print(f"Size of singly linked list: {self.size} \n", )
return
從尾巴反向拜訪整個串列,直到頭部。
最後順便輸出整個串列長度。
時間複雜度: O(n) 線性時間
def backward_traverse(self):
print("Backward traversal")
cur = self.tail
while cur:
print(cur.data, end=' -> ')
cur = cur.prev
print("None")
print(f"Size of singly linked list: {self.size} \n", )
return
從頭拜訪整個串列,查詢某筆資料是否存在。
如果存在,返回該節點。
如果不存在,返回None(空)。
時間複雜度: O(n) 線性時間
def search(self, target):
cur = self.head
while cur:
if cur.data == target:
return cur
cur = cur.next
return None
實作上的細節要留意。
記得把串列長度減一。
並且串接後面剩下的節點。
時間複雜度: O(1) 常數時間
def removeAfter(self, node):
self.size -= 1
removed = node.next
the_one_after_removal = node.next.next if node.next else None
# Update linkage
if the_one_after_removal:
the_one_after_removal.prev = node
node.next = the_one_after_removal
# Break linkage
if removed:
removed.next = None
removed.prev = None
return removed
實作上的細節要留意。
記得把串列長度加一。
並且在新節點之後串接上原本後面的節點。
時間複雜度: O(1) 常數時間
def insertAfter(self, node, new_node):
self.size += 1
the_one_after_insertion = node.next
# Update linkage
node.next = new_node
new_node.prev = node
the_one_after_insertion.prev = new_node
new_node.next = the_one_after_insertion
return
class Node:
def __init__(self, data):
# 儲存節點的資料
self.data = data
# 指向下一個節點,初始化為空 None
self.next = None
# 指向前一個節點,初始化為空 None
self.prev = None
class LinkedList:
def __init__(self):
# 頭部節點初始化為空
self.head = None
# 尾巴節點初始化為空
self.tail = None
# 串列長度初始化為0
self.size = 0
def insertAtHead(self,data):
new_node = Node(data)
self.size += 1
# If the list is empty
if self.tail is None:
self.head = new_node
self.tail = new_node
else:
# Update linkage
new_node.next = self.head
self.head.prev = new_node
self.head = new_node
return
def insertAtTail(self, data):
new_node = Node(data)
self.size += 1
# If the list is empty
if self.head is None:
self.head = new_node
self.tail = new_node
else:
# Update linkage
self.tail.next = new_node
new_node.prev = self.tail
self.tail = new_node
return
def removeAtHead(self):
if self.head is None:
return
else:
self.size -= 1
oldHead = self.head
# Update linkage
if self.head == self.tail:
self.tail = None
self.head = None
else:
self.head = self.head.next
# Break linkage
oldHead.next = None
if self.head:
self.head.prev = None
return oldHead
def removeAtTail(self):
if self.tail is None:
return
else:
self.size -= 1
oldTail = self.tail
# Update linkage
if self.tail == self.head:
self.tail = None
self.head = None
else:
self.tail = self.tail.prev
# Break linkage
oldTail.prev = None
if self.tail:
self.tail.next = None
return oldTail
def traverse(self):
print("Forward traversal")
cur = self.head
while cur:
print(cur.data, end=' <-> ')
cur = cur.next
print("None")
print(f"Size of singly linked list: {self.size} \n", )
return
def backward_traverse(self):
print("Backward traversal")
cur = self.tail
while cur:
print(cur.data, end=' <-> ')
cur = cur.prev
print("None")
print(f"Size of singly linked list: {self.size} \n", )
return
def search(self, target):
cur = self.head
while cur:
if cur.data == target:
return cur
cur = cur.next
return None
def removeAfter(self, node):
self.size -= 1
removed = node.next
the_one_after_removal = node.next.next if node.next else None
# Update linkage
if the_one_after_removal:
the_one_after_removal.prev = node
node.next = the_one_after_removal
# Break linkage
if removed:
removed.next = None
removed.prev = None
return removed
def insertAfter(self, node, new_node):
self.size += 1
the_one_after_insertion = node.next
# Update linkage
node.next = new_node
new_node.prev = node
the_one_after_insertion.prev = new_node
new_node.next = the_one_after_insertion
return
def test():
print(f"Empty list\n")
linkedlist = LinkedList()
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Insert 3 on tail\n")
linkedlist.insertAtTail(3)
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Insert 4 on tail\n")
linkedlist.insertAtTail(4)
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Insert 5 on tail\n")
linkedlist.insertAtTail(5)
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Insert 2 on head\n")
linkedlist.insertAtHead(2)
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Insert 1 on head\n")
linkedlist.insertAtHead(1)
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Search 3 in linked list\n")
result = linkedlist.search(3)
print( result.data )
print("--------------------")
print(f"Remove node 4, which is after node 3\n")
linkedlist.removeAfter(result)
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
node_100 = Node(100)
print(f"Insert node 100 after node 3\n")
linkedlist.insertAfter(result, node_100)
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Remove 1 on Head\n")
linkedlist.removeAtHead()
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Remove 2 on Head\n")
linkedlist.removeAtHead()
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Remove 3 on Head\n")
linkedlist.removeAtHead()
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Remove 5 on Tail\n")
linkedlist.removeAtTail()
linkedlist.traverse()
linkedlist.backward_traverse()
print("--------------------")
print(f"Remove 100 on Tail\n")
result = linkedlist.removeAtTail()
print(f"Removed node value = {result.data} \n")
linkedlist.traverse()
linkedlist.backward_traverse()
return
if __name__ == "__main__":
test()
Empty list
Forward traversal
None
Size of singly linked list: 0
Backward traversal
None
Size of singly linked list: 0
--------------------
Insert 3 on tail
Forward traversal
3 <-> None
Size of singly linked list: 1
Backward traversal
3 <-> None
Size of singly linked list: 1
--------------------
Insert 4 on tail
Forward traversal
3 <-> 4 <-> None
Size of singly linked list: 2
Backward traversal
4 <-> 3 <-> None
Size of singly linked list: 2
--------------------
Insert 5 on tail
Forward traversal
3 <-> 4 <-> 5 <-> None
Size of singly linked list: 3
Backward traversal
5 <-> 4 <-> 3 <-> None
Size of singly linked list: 3
--------------------
Insert 2 on head
Forward traversal
2 <-> 3 <-> 4 <-> 5 <-> None
Size of singly linked list: 4
Backward traversal
5 <-> 4 <-> 3 <-> 2 <-> None
Size of singly linked list: 4
--------------------
Insert 1 on head
Forward traversal
1 <-> 2 <-> 3 <-> 4 <-> 5 <-> None
Size of singly linked list: 5
Backward traversal
5 <-> 4 <-> 3 <-> 2 <-> 1 <-> None
Size of singly linked list: 5
--------------------
Search 3 in linked list
3
--------------------
Remove node 4, which is after node 3
Forward traversal
1 <-> 2 <-> 3 <-> 5 <-> None
Size of singly linked list: 4
Backward traversal
5 <-> 3 <-> 2 <-> 1 <-> None
Size of singly linked list: 4
--------------------
Insert node 100 after node 3
Forward traversal
1 <-> 2 <-> 3 <-> 100 <-> 5 <-> None
Size of singly linked list: 5
Backward traversal
5 <-> 100 <-> 3 <-> 2 <-> 1 <-> None
Size of singly linked list: 5
--------------------
Remove 1 on Head
Forward traversal
2 <-> 3 <-> 100 <-> 5 <-> None
Size of singly linked list: 4
Backward traversal
5 <-> 100 <-> 3 <-> 2 <-> None
Size of singly linked list: 4
--------------------
Remove 2 on Head
Forward traversal
3 <-> 100 <-> 5 <-> None
Size of singly linked list: 3
Backward traversal
5 <-> 100 <-> 3 <-> None
Size of singly linked list: 3
--------------------
Remove 3 on Head
Forward traversal
100 <-> 5 <-> None
Size of singly linked list: 2
Backward traversal
5 <-> 100 <-> None
Size of singly linked list: 2
--------------------
Remove 5 on Tail
Forward traversal
100 <-> None
Size of singly linked list: 1
Backward traversal
100 <-> None
Size of singly linked list: 1
--------------------
Remove 100 on Tail
Removed node value = 100
Forward traversal
None
Size of singly linked list: 0
Backward traversal
None
Size of singly linked list: 0
一開始接觸linked list可能會覺得有點卡卡的,不像array 那樣操作起來那麼直覺。
可以透過紙筆追蹤演算法和程式執行邏輯,測試幾個簡單的小範例,
會有更深刻的了解和體會!
經典串列題 合併已排序好的兩條串列 Merge Two Sorted Lists Leetcode #21
串列應用題 移除尾巴數來的第n個節點 Leetcode #19
鍊表應用: 簡化鏈結串列 Remove Zero Sum Nodes_Leetcode #1171
嵌套娃娃 用遞迴解 串列化簡題 Leetcode #2487
串列應用: 合併非零的節點 Merge Nodes in Between Zeros_Leetcode #2181
複製客製化鏈結串列 Copy List w/ Random Pointer_Leetcode #138
一魚多吃 用雙指針找出串列的中點 Middle of Linked list_Leetcode #876
串列應用: 反轉整個串列Reverse Linked List_Leetcode #206_Leetcode 精選75
串列應用: 刪除鏈結串列的中央節點_Leetcode #2095_Leetcode精選75題
鏈結串列中的Twin Sum的最大值_Leetcode #2130_Leetcode 75題精選
重組為奇串列和偶串列 Odd Even Linked List_Leetcode #328 精選75題
