Stationary concrete pumps are essential for large-scale construction projects, offering high-pressure pumping, continuous concrete flow, and precise placement. However, maintaining stability during operation is critical to prevent accidents, equipment damage, and poor concrete quality. A stable pump ensures smooth operation, extended lifespan, and worksite safety.
This guide provides a comprehensive approach to stabilizing a stationary concrete pump, covering site preparation, setup, reinforcement techniques, and operational best practices.
Site Preparation for Maximum Stability
A. Choosing the Right Location
Level Ground: The pump must be placed on a flat, compacted surface to prevent tilting.
Avoid Soft Soil: If the ground is unstable, use steel plates, timber mats, or compacted gravel to distribute weight.
Clear Obstructions: Ensure no debris, trenches, or loose materials are near the setup area.
B. Foundation Requirements
Concrete Pads: For long-term projects, pour a reinforced concrete base (minimum 20cm thickness).
Grout Pads: Temporary setups can use precast concrete blocks or heavy-duty steel platforms.
C. Environmental Considerations
Wind Exposure: In high-wind areas, install windbreaks or anchor the pump.
Vibration Control: Keep the pump away from heavy machinery that may cause ground vibrations.
Proper Setup & Anchoring Techniques

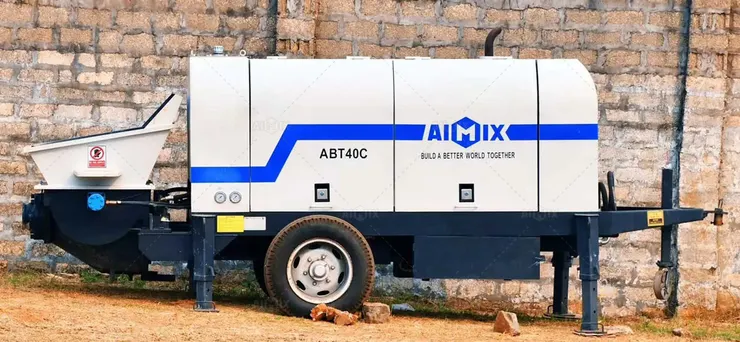

A. Outrigger Deployment
Extend All Outriggers Fully: Ensure they are evenly distributed and locked in place.
Use Load Distribution Pads: Place steel plates (min. 1-inch thick) under each outrigger to prevent sinking.
Check Hydraulic Pressure: Verify that all outriggers are equally pressurized (use a hydraulic gauge if available).
B. Anchoring to the Ground
Anchor Bolts: For permanent setups, secure the pump with M20 or larger anchor bolts embedded in concrete.
Ground Screws: In softer soil, use helical piles or ground screws for extra stability.
Guy Wires (for Tall Pumps): If the pump has a long boom, install steel cables to anchor it to fixed structures.
C. Pipeline Support & Alignment
Use Pipeline Stands: Secure delivery pipes every 3-4 meters to prevent swaying.
Avoid Sharp Bends: Keep pipeline angles below 30° to reduce stress on the pump.
Operational Best Practices for Stability
A. Pumping Speed & Pressure Control
Start Slowly: Begin at low pressure (20-30 bar) and gradually increase to avoid sudden jerks.
Avoid Overloading: Do not exceed the pump’s maximum pressure rating (check the manual).
B. Concrete Mix Consistency
Optimal Slump (80-120mm): Too dry = high pressure = instability.
Avoid Segregation: Poorly mixed concrete can cause pipeline blockages, leading to pump vibrations.
C. Monitoring & Adjustments During Operation
Check Outriggers Regularly: Ensure none are lifting or sinking during pumping.
Look for Hydraulic Leaks: Loss of pressure can destabilize the pump.
Listen for Unusual Noises: Grinding or knocking sounds may indicate structural stress.
Reinforcement Techniques for High-Pressure Pumping
A. Additional Bracing for Long Booms
Support Towers: For pumps with 30m+ booms, install temporary support stands.
Counterweights: Some models allow bolt-on weights to balance heavy loads.
B. Vibration Dampening Solutions
Rubber Isolation Pads: Place under the pump base to absorb shocks.
Dynamic Stabilizers: Advanced pumps may have active damping systems.
C. Emergency Stability Measures
Quick-Stop Function: Train operators to halt pumping immediately if instability is detected.
Manual Stabilizers: Some pumps have secondary screw jacks for emergency support.
Common Causes of Instability & Solutions
| Issue | Cause | Solution |
|-------------------------|----------------------------|----------------------------------|
| Pump tilting | Uneven outrigger pressure | Re-level and reset all outriggers |
| Excessive vibration | Loose pipelines or clamps | Tighten all connections |
| Hydraulic drift | Leaking cylinders/valves | Replace seals, check fluid levels |
| Boom swaying | High winds or poor support | Install guy wires or reduce boom length |
Long-Term Maintenance for Stability
A. Structural Inspections
Monthly Checks: Examine welds, bolts, and frame integrity.
Annual NDT Testing: Use ultrasonic or magnetic particle inspection for hidden cracks.
B. Outrigger & Hydraulic Maintenance
Lubricate Moving Parts: Apply high-pressure grease to outrigger pins weekly.
Check Hydraulic Fluid: Contaminated oil can cause jerky movements.
C. Pipeline & Hopper Stability
Inspect Pipe Clamps: Replace worn or rusted clamps.
Clean Hopper Regularly: Buildup can shift the pump’s center of gravity.
Safety Protocols for Stable Operation
✔ Never operate on slopes >3° without engineering approval.
✔ Use a spirit level to confirm the pump is perfectly horizontal.
✔ Conduct a stability test (no-load run) before pumping concrete.
Keeping a stationary concrete pump stable requires:
✔ Proper site preparation & anchoring
✔ Regular operational checks
✔ Correct concrete mix consistency
✔ Proactive maintenance
By following these guidelines, operators can prevent accidents, extend equipment life, and ensure efficient pumping.
