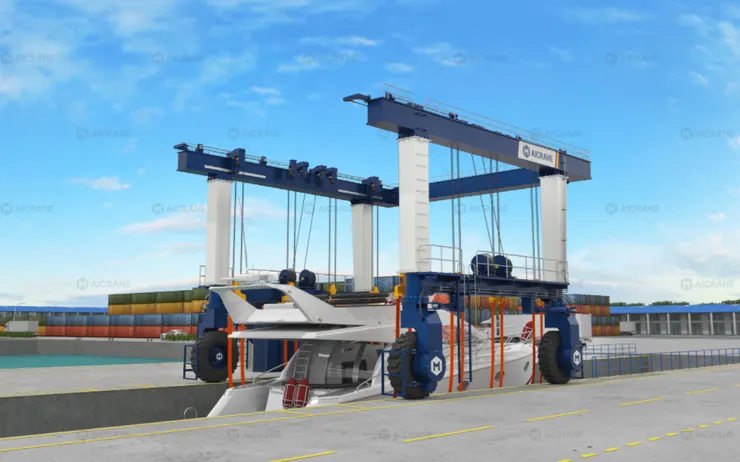

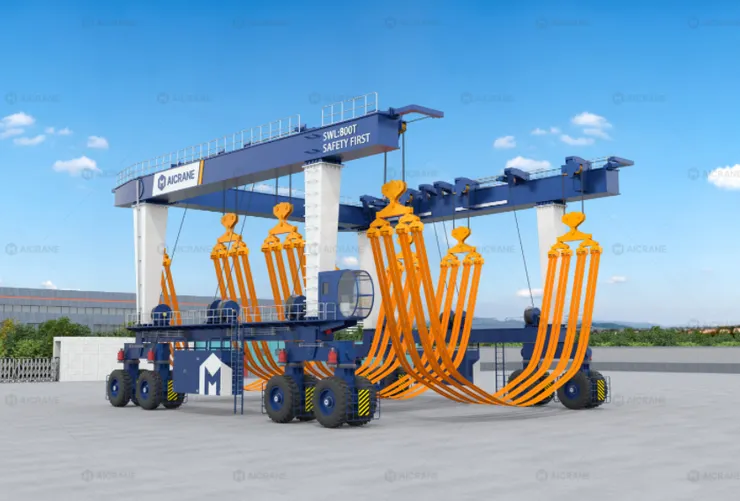

A mobile boat lift crane (often called a boat hoist or boat travel lift) is a specialized lifting system used in shipyards, marinas, and maintenance docks to launch, haul out, transport, and position boats of various sizes. Unlike fixed cranes, its key advantage is mobility, allowing it to move along docks, yards, and sometimes even on unpaved surfaces while carrying heavy marine vessels.
At the core of its performance lies the travel mechanism and mobility design system. This determines how smoothly, safely, and precisely the crane can move while carrying loads that may range from 10 tons to over 1,000 tons in large shipyard applications.In this article, we will break down how the travel system works, what design elements make mobility possible, and why different steering modes are critical for modern marine lifting operations.
1. What Makes Mobile Boat Lift Cranes Different?
Unlike overhead cranes or gantry cranes that operate on fixed rails, a mobile boat lift crane is designed to:
- Move freely within a yard or dock area
- Carry irregular loads (boats with varying hull shapes)
- Operate in marine environments (salt, humidity, uneven ground)
The key challenge is that the crane must remain:
- Stable under heavy load
- Highly maneuverable in tight marina spaces
- Safe on potentially uneven or slippery surfaces
This is why the travel mechanism is one of the most critical engineering systems in the entire machine.
2. Main Components of the Travel Mechanism
The mobility system of a mobile boat lift crane typically consists of four core subsystems:
2.1 Wheel Assembly System
The wheel system is the foundation of mobility.
Most mobile boat lifts use:
- Heavy-duty rubber tires
- Multi-axle wheel sets
- Hydraulic or electric drive motors
Each wheel set is designed to distribute the crane’s massive load evenly across the ground.
Key design considerations:
- Tire load rating
- Ground pressure distribution
- Anti-slip tread design for wet surfaces
- Shock absorption on uneven terrain
👉 Without properly designed wheel systems, structural stress could damage both the crane and the ground surface.
2.2 Drive System (Power for Movement)
The drive system provides the force needed to move the crane.
Two main types are used:
- Diesel-hydraulic drive systems
- Electric drive systems (battery or cable powered)
Diesel-hydraulic systems:
- Strong torque output
- Suitable for outdoor and remote shipyards
- Less dependent on infrastructure
Electric systems:
- Lower emissions
- More precise control
- Lower operating cost over time
The drive motors are typically connected to gearboxes that transmit power to each wheel or wheel group.
2.3 Steering System (Mobility Intelligence)
The steering system is what makes a mobile boat lift crane highly maneuverable.
Modern systems often include multiple steering modes:
- Straight-line steering
- Diagonal (crab) steering
- Front-wheel steering
- Rear-wheel steering
- Multi-axle coordinated steering
This flexibility allows the crane to:
- Move sideways in tight marina spaces
- Align precisely with boat hulls
- Turn within narrow docks
- Position vessels with millimeter-level accuracy
👉 The steering system is usually controlled by a central PLC system that synchronizes all wheel movements.
2.4 Suspension and Load Balancing System
Because boat hulls are not uniform loads, the crane must constantly balance:
- Vertical load distribution
- Side-to-side stability
- Dynamic movement during transport
Some advanced systems use:
- Hydraulic leveling systems
- Real-time load sensors
- Automatic compensation controls
This ensures the crane remains stable even when:
- The ground is uneven
- The boat is asymmetrical
- The crane is turning under load
3. Steering Modes and Their Real-World Applications
One of the most important features of modern mobile boat hoists is multi-mode steering technology.
3.1 Straight Steering Mode
This is the simplest mode where all wheels move in a single direction.
Used for:
- Long-distance transport within shipyards
- Moving boats from storage to water
- Straight docking operations
3.2 Crab Steering Mode
In crab steering, all wheels turn in the same angle, allowing the crane to move diagonally.
Used for:
- Narrow marina pathways
- Sideways positioning of boats
- Dock alignment adjustments
👉 This is one of the most valuable features in congested shipyards.
3.3 Front or Rear Steering Mode
Only front or rear axles steer while others remain fixed.
Used for:
- Turning in wider areas
- Controlled directional changes
- Yard navigation
3.4 Multi-Axle Coordinated Steering
All wheels are independently controlled and synchronized.
Used for:
- Precision boat placement
- Complex maneuvering in tight docking zones
- Large capacity cranes (500T+ systems)
👉 This system requires advanced PLC programming and sensor feedback.
4. Structural Design and Mobility Balance
Mobility is not just about wheels and motors—it is deeply connected to structural design.
A mobile boat lift crane must balance:
- Structural rigidity
- Flexibility during movement
- Load distribution under dynamic conditions
Key structural elements:
- U-shaped or C-shaped frame design
- Reinforced lifting beams
- Cross-bracing for torsional stability
The structure must prevent:
- Frame twisting during turns
- Uneven load stress
- Fatigue damage over repeated cycles
👉 A well-designed structure ensures smooth travel even under full load conditions.
5. Ground Conditions and Mobility Challenges
Unlike rail-mounted cranes, mobile boat lifts operate directly on ground surfaces.
This introduces challenges such as:
- Soft or uneven soil
- Wet dock surfaces
- Sloped or non-level yards
Solutions include:
- Large-diameter pneumatic tires
- Wide wheel spacing
- Hydraulic leveling systems
- Reinforced yard pavement design
In advanced shipyards, ground infrastructure is designed specifically to support crane movement paths.
6. Control System Integration
Modern mobility systems are controlled by:
- PLC controllers
- Remote control systems
- Joystick-based operator cabins
Some advanced cranes also include:
- Automatic steering alignment
- GPS-based positioning systems
- Load monitoring integration
Benefits:
- Higher precision movement
- Reduced operator fatigue
- Increased safety during transport
7. Safety Features in Travel Mechanism Design
Because mobile boat lifts carry extremely heavy and valuable loads, safety is a critical part of mobility design.
Key safety systems include:
- Anti-rollover protection
- Emergency braking system
- Wheel slip detection
- Load imbalance alarms
- Speed limitation under load
👉 These systems ensure the crane remains stable even in emergency situations.
8. Efficiency and Operational Performance
A well-designed travel mechanism directly improves:
- Yard productivity
- Boat handling speed
- Fuel or energy efficiency
- Operational safety
For example:
- Faster steering reduces repositioning time
- Smooth acceleration reduces mechanical wear
- Optimized wheel synchronization reduces energy waste
9. Maintenance Considerations for Travel Systems
To ensure long-term performance, regular maintenance is required for:
- Tires and wheel bearings
- Hydraulic systems
- Steering sensors
- Gearboxes and motors
Shipyard environments are harsh, so salt corrosion and moisture must also be controlled through:
- Anti-corrosion coatings
- Sealed electrical components
- Regular lubrication schedules
Conclusion: Mobility Is the Core of Boat Lift Performance
The travel mechanism of a mobile boat lift crane is far more than a simple driving system—it is a fully integrated engineering solution combining:
- Structural design
- Power transmission
- Steering intelligence
- Load balancing systems
Together, these systems determine how safely and efficiently the crane can operate in real marine environments.
Key takeaway:
A high-performance mobile boat lift crane is defined not only by its lifting capacity, but by its ability to move smoothly, turn precisely, and remain stable under extreme loads.
As shipyards continue to demand higher efficiency and flexibility, advanced mobility systems—especially multi-mode steering and intelligent control—are becoming the standard for modern marine lifting operations.
