2-Wheel and 4-Wheel Steering in Rubber Tyred Gantry Cranes
Rubber Tyred Gantry (RTG) cranes are essential in container handling operations, offering flexibility, mobility, and efficiency. A key feature that enhances their operational capabilities is the steering system. RTG cranes primarily use two types of steering systems: 2-wheel steering and 4-wheel steering. Understanding the differences, benefits, and applications of these systems is crucial for selecting the right crane for specific operational needs.
Overview of Rubber Tyred Gantry Cranes

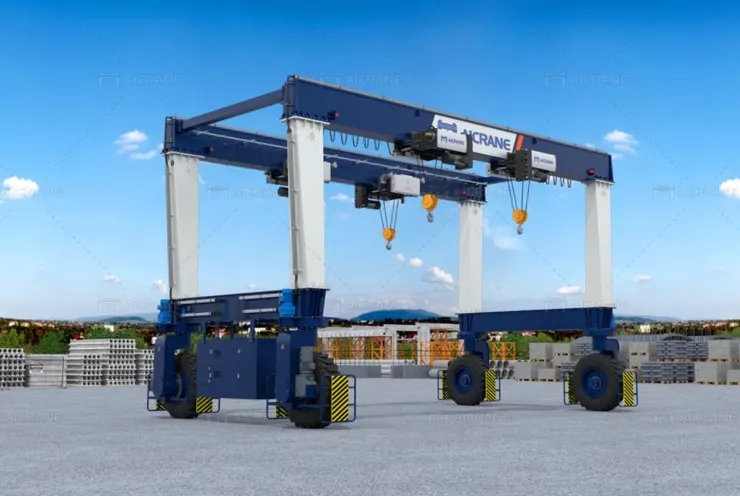

RTG cranes are mobile gantry cranes that run on rubber tires, making them highly maneuverable compared to rail-mounted gantry cranes. They are widely used in container terminals, intermodal yards, and logistics hubs for stacking and moving containers. The mobility of rubber tire gantry crane depends significantly on their steering mechanisms, which determine how effectively they can navigate confined spaces and adapt to various operational layouts.
2-Wheel Steering System
In a 2-wheel steering system, only the front or rear wheels are responsible for steering the crane, while the remaining wheels are fixed. This configuration is similar to that of standard road vehicles.
Key Features:
- Simplicity: The system is mechanically simpler, with fewer components involved in steering, which can reduce maintenance needs.
- Cost-Effective: Due to its straightforward design, 2-wheel steering systems are generally less expensive to manufacture and maintain.
- Straight-Line Stability: Provides excellent stability when moving in straight lines, making it ideal for long-distance travel within container yards.
Advantages:
- Lower Maintenance Costs: Fewer moving parts mean reduced wear and tear.
- Ease of Operation: Operators often find it easier to control, especially in linear pathways.
- Fuel Efficiency: Less energy is required to operate the steering mechanism, leading to improved fuel economy.
Limitations:
- Limited Maneuverability: The turning radius is larger, which can be a disadvantage in confined spaces.
- Less Flexibility: Not suitable for complex layouts where sharp turns and precise movements are required.
4-Wheel Steering System
The 4-wheel steering system allows both the front and rear wheels to turn, providing enhanced maneuverability. This system is particularly beneficial in environments where space is limited, and precise handling is necessary.
Key Features:
- Crab Steering Mode: Enables the crane to move diagonally, which is useful for repositioning without changing the crane’s orientation.
- Tight Turning Radius: Allows the crane to make sharper turns, improving its ability to navigate tight spaces.
- Omnidirectional Movement: Some advanced systems offer 360-degree movement capabilities.
Advantages:
- Superior Maneuverability: Ideal for compact yards with narrow aisles.
- Versatile Movements: The crane can move sideways, diagonally, and even rotate in place.
- Increased Productivity: Reduces the time needed for repositioning, leading to faster container handling operations.
Limitations:
- Higher Costs: More complex design and additional components lead to higher initial costs and maintenance expenses.
- Complex Operation: Requires skilled operators to fully utilize the system’s capabilities.
- Potential for Increased Wear: More moving parts can result in faster wear and tear, necessitating regular maintenance.
Applications of 2-Wheel and 4-Wheel Steering RTG Cranes
- 2-Wheel Steering RTG Cranes: Best suited for container terminals with wide, open spaces where the RTG container crane can move in straight lines with minimal turning. They are also ideal for operations focused on long-distance travel within the yard.
- 4-Wheel Steering RTG Cranes: Preferred in high-density container yards, intermodal terminals, and areas with complex layouts. They excel in operations requiring frequent repositioning and precise maneuvering.
Choosing the Right Steering System
When selecting an RTG crane, consider the following factors:
- Yard Layout: Evaluate the space constraints and turning requirements.
- Operational Efficiency: Determine the need for speed versus maneuverability.
- Budget: Balance the initial investment with long-term operational costs.
- Operator Skill Level: Ensure that operators are trained to handle advanced steering systems if opting for 4-wheel steering.
- Maintenance Capability: Consider the availability of maintenance resources for more complex systems.
Technological Innovations in RTG Steering Systems
Recent advancements have introduced hybrid and fully electric RTG cranes with sophisticated steering systems. These innovations focus on energy efficiency, automated control, and integration with terminal operating systems.
- Automated Steering Systems: Some RTGs now feature semi-automated or fully automated steering, reducing the reliance on operator skill.
- Energy Regeneration: Advanced steering mechanisms can contribute to energy recovery systems, enhancing overall efficiency.
- Telematics Integration: Real-time data monitoring allows for predictive maintenance, reducing downtime.
Conclusion
The choice between 2-wheel and 4-wheel steering in RTG cranes significantly impacts operational efficiency, cost, and flexibility. While 2-wheel steering offers simplicity and cost-effectiveness for straightforward layouts, 4-wheel steering provides unmatched maneuverability for complex environments. By carefully assessing operational needs, budget constraints, and yard layouts, businesses can select the most suitable RTG crane to optimize their container handling operations.
