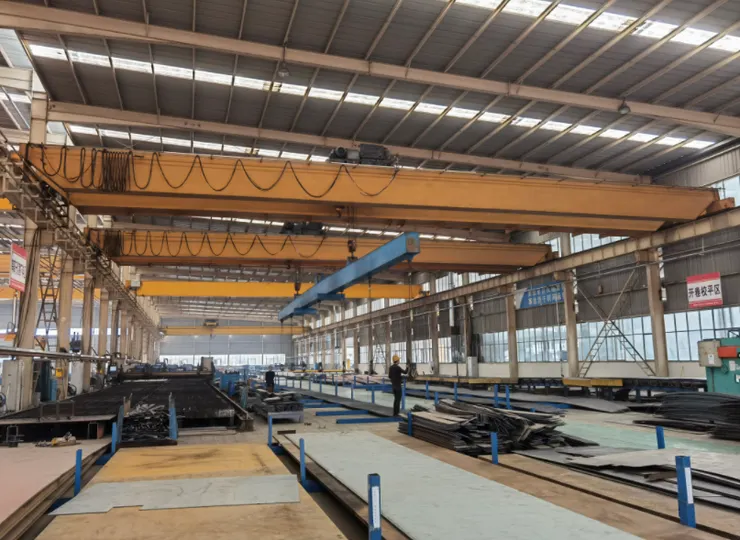

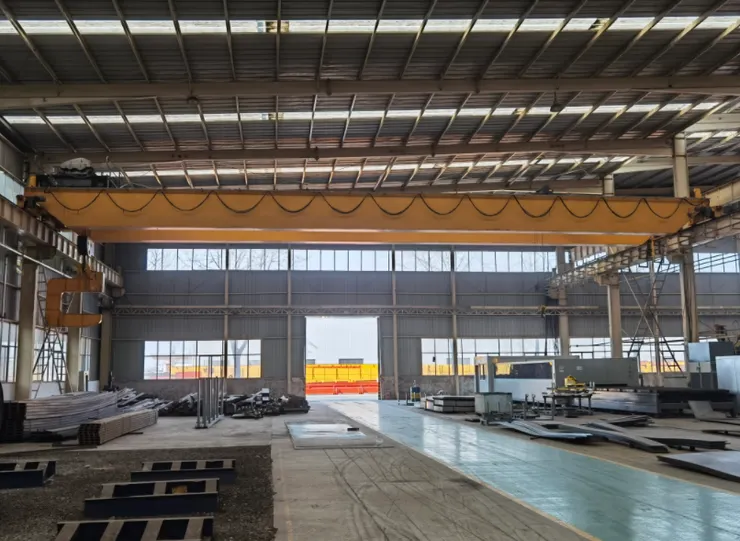

Overhead cranes are essential tools in modern industrial workshops, providing a safe and efficient method for lifting and transporting heavy materials. As industries grow and production demands increase, many workshops face the challenge of planning for future expansions that include overhead crane installations. Proper planning during the building design or expansion phase can prevent costly retrofits, operational disruptions, and safety hazards. This article explores the critical considerations for integrating overhead cranes into a workshop with future expansion in mind, covering structural, spatial, operational, and regulatory aspects.
1. Understanding the Purpose and Type of Overhead Crane
Before planning a building expansion for workshop overhead crane installation, it is essential to determine the type of crane that will be required in the future. Overhead cranes come in several types, including:- Single Girder Cranes: Ideal for light to medium loads with simpler structural requirements.
- Double Girder Cranes: Suitable for heavier loads and long spans, offering higher lifting capacities.
- Gantry Cranes: Often used in outdoor workshops or for mobile operations.
- Jib Cranes: Suitable for localized lifting within a specific area of a workshop.
Determining the crane type affects the building design because each type has unique load requirements, spatial needs, and installation challenges. For example, a double girder crane with a 20-ton capacity will demand a higher building height, stronger structural support, and larger bay widths than a 5-ton single girder crane.
2. Assessing Current and Future Workflow
Understanding current production processes is not enough; planners must anticipate future workflow changes. Expansion considerations should include:
- Material Handling Requirements: Identify potential increases in material weight, size, or volume.
- Workflow Patterns: Plan overhead crane paths to align with current and anticipated production lines.
- Space Allocation: Ensure that aisles, storage areas, and workstations can accommodate future crane movements without causing bottlenecks or safety risks.
By forecasting future workflow changes, designers can allocate sufficient space for crane runways, buffer zones, and operational safety distances, reducing the likelihood of interference between crane operations and other workshop activities.
3. Structural Capacity of the Building
One of the most critical considerations for future crane installation is the structural capacity of the building. Overhead cranes impose significant loads on a workshop steel structure, including:
- Dead Load: The weight of the crane itself.
- Live Load: The dynamic load of lifting heavy materials.
- Impact Load: Sudden forces from starting, stopping, or misaligned loads.
When planning a building expansion, engineers must ensure that the columns, beams, and roof structures can support these loads. This may involve:
- Designing reinforced columns and beams capable of supporting future cranes.
- Incorporating additional support structures, such as tie beams or crane girders, that can accommodate higher capacities.
- Conducting structural simulations to predict stress and deflection under various operational scenarios.
Failing to consider future crane loads during expansion can result in costly retrofitting, operational restrictions, or, in the worst case, structural failure.
4. Ceiling Height and Clearance
Ceiling height and vertical clearance are pivotal factors for overhead crane operations. The building must provide:
- Adequate Lifting Height: Enough space for the crane to lift loads safely without hitting the roof or other structures.
- Maintenance Access: Sufficient room for maintenance personnel to access crane components safely.
- Future Expansion Flexibility: Additional clearance to accommodate larger cranes or increased lifting heights in the future.
For example, if a current crane lifts up to 6 meters, but future production requires a 10-meter lift, the building roof and crane runway heights should be designed to accommodate this change without major reconstruction.
5. Crane Runway Alignment
Proper alignment of crane runways is essential for safe and efficient operations. Future expansion requires careful planning of:
- Runway Positioning: Align crane runways with production lines, storage areas, and loading/unloading zones.
- Span Widths: Ensure sufficient bay width to handle the anticipated crane span.
- Expansion Provisions: Consider the possibility of adding parallel runways or extending the crane path in future expansions.
Misaligned runways or insufficient span widths can limit crane efficiency and increase the risk of accidents.
6. Electrical and Power Requirements
Overhead cranes rely on significant electrical power, and future expansion should account for:
- Current Load Capacity: Ensure that the existing electrical infrastructure can handle future crane power demands.
- Power Distribution: Design wiring, transformers, and circuit breakers to support additional cranes without overloading the system.
- Energy Efficiency: Incorporate modern features like variable frequency drives (VFDs) to optimize energy use and reduce operational costs.
Planning electrical systems in advance minimizes disruptions and ensures a smooth transition when additional cranes are installed.
7. Safety Considerations
Safety is paramount when designing workshops for future overhead crane installation. Key safety measures include:
- Load Paths: Ensure that crane travel paths do not interfere with pedestrian zones or high-traffic areas.
- Emergency Stops: Plan for strategically located emergency stop controls along crane routes.
- Fall Protection: Provide safe access for crane maintenance at height.
- Fire Safety: Incorporate fire-resistant materials and maintain clear evacuation routes in case of emergencies.
A well-planned safety framework can prevent accidents and comply with occupational safety regulations.
8. Regulatory Compliance
Workshops must comply with local building codes and crane standards, which may evolve over time. During expansion planning, consider:
- Structural Codes: Ensure that new or reinforced structures meet current load-bearing standards.
- Crane Standards: Follow regulations like ISO, OSHA, or local equivalents for crane installation and operation.
- Environmental Requirements: Factor in ventilation, lighting, and noise considerations for the expanded workshop.
Proactive compliance prevents future legal or operational issues during crane installation.
9. Modular and Flexible Design
To future-proof a workshop, adopting modular and flexible design principles is highly recommended. This includes:
- Pre-installed Crane Beams: Incorporating crane-supporting beams during initial construction.
- Expandable Bays: Designing bays that can accommodate additional cranes or larger spans.
- Reconfigurable Layouts: Allowing for future relocation of workstations, storage, or assembly lines without affecting crane operations.
Flexibility ensures that workshops can adapt to changing production needs without significant structural modifications.
10. Budgeting and Cost Considerations
Planning for future crane installation also requires financial foresight. Budgeting should account for:
- Structural Reinforcements: Upgrading columns, beams, and foundations.
- Electrical Upgrades: Power systems and control panels.
- Safety Systems: Emergency stops, signage, and fall protection.
- Future Installation Costs: Minimizing downtime and labor costs for crane installation.
While upfront investment may seem higher, proper planning reduces long-term costs associated with retrofitting or operational disruptions.
Conclusion
Building expansion for future overhead crane installation is a multi-faceted process that demands careful planning, foresight, and collaboration between structural engineers, workshop planners, and crane manufacturers. By considering the type of crane, workflow patterns, structural capacity, ceiling height, crane runway alignment, electrical requirements, safety, compliance, flexibility, and budgeting, workshops can ensure seamless integration of overhead cranes both now and in the future. This proactive approach not only enhances operational efficiency but also safeguards worker safety, maximizes production capacity, and protects long-term investments. With thoughtful planning, a workshop can evolve into a highly productive, future-ready facility capable of meeting the demands of modern industry.
