[筆記] Kiosk 網頁展示 | Raspberry Pi 應用筆記

文前碎碎唸

正文開始

【硬體及作業系統】

【安裝最基礎圖形化環境】

sudo apt-get install --no-install-recommends xserver-xorg x11-xserver-utils xinit openbox

【安裝Chromium】

sudo apt-get install --no-install-recommends chromium-browser

【設定 xserver 啟動以後要做的事情】

# (PT1)  Disable any form of screen saver / screen blanking / power management
xset s off
xset s noblank
xset -dpms
# (PT2)  Allow quitting the X server with CTRL-ATL-Backspace
setxkbmap -option terminate:ctrl_alt_bksp
# (PT3)  Start Chromium in kiosk mode
sed -i 's/"exited_cleanly":false/"exited_cleanly":true/' ~/.config/chromium/'Local State'
sed -i 's/"exited_cleanly":false/"exited_cleanly":true/; s/"exit_type":"[^"]\+"/"exit_type":"Normal"/' ~/.config/chromium/Default/Preferences
chromium-browser --disable-infobars --kiosk 'http://your-url-here'

【開機自動執行Xserver】

sudo nano .profile

[[ -z $DISPLAY && $XDG_VTNR -eq 1 ]] && startx -- -nocursor

sudo nano /etc/inittab

# 1:2345:respawn:/sbin/getty 115200 tty1

1:2345:respawn:/bin/login -f pi tty1 </dev/tty1 >/dev/tty1 2>&1

• Setup a Raspberry Pi to run a Web Browser in Kiosk Mode
• Setup a Raspberry Pi Zero W to run a Web Browser in Kiosk Mode with Dakboard

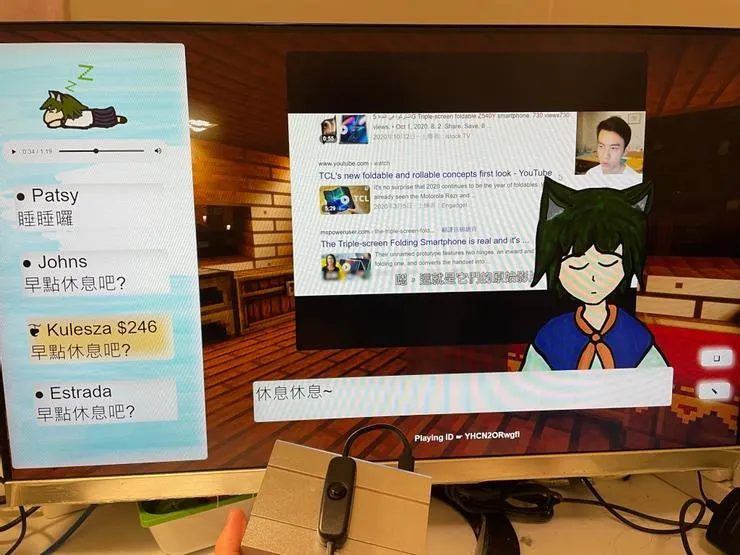

【實際效果】

【同場加映筆記】

sudo nano /etc/rc.local

sudo date -s "$(wget -qSO- --max-redirect=0 www.google.com 2>&1 | grep Date: | cut -d' ' -f5-8)Z"
