As global trade continues to grow, container terminals are under immense pressure to improve operational efficiency, reduce vessel turnaround time, and enhance cargo handling precision. Among the various technologies that facilitate this transformation, gantry cranes-especially container gantry cranes-play a pivotal role. These cranes are responsible for the majority of container loading and unloading operations at ports and intermodal terminals.
Understanding the workflow of container handling with gantry cranes is essential for terminal operators, logistics planners, crane manufacturers, and anyone involved in port operations. This article provides a comprehensive overview of the typical workflow, the types of container handling gantry cranes used, technologies that support the process, and the strategies to optimize operations.
Types of Gantry Cranes Used in Container Handling
Before exploring the workflow, it’s important to understand the main types of gantry cranes used in container terminals:
1. Ship-to-Shore (STS) Gantry Cranes

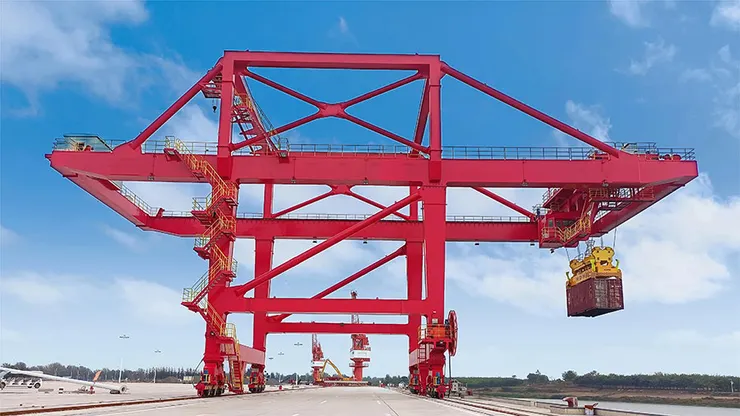

These massive cranes are used to load and unload containers from ships at the quayside. They span across the width of a vessel and are capable of lifting containers from the ship’s hold or deck and placing them on trucks or automated guided vehicles (AGVs).
2. Rail-Mounted Gantry (RMG) Cranes

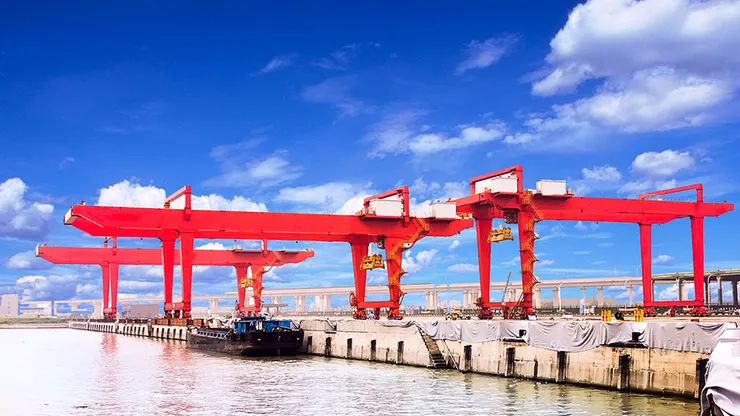

RMG cranes operate on rails and are typically used in container yards for stacking containers, as well as loading/unloading them from rail cars.
3. Rubber-Tyred Gantry (RTG) Cranes
RTG cranes are mobile and run on rubber tires. They offer flexibility in container stacking and movement across yard blocks without the need for fixed tracks.
Each type of gantry crane plays a distinct role within the broader container handling workflow.
Overview of Container Handling Workflow
The workflow of container handling with gantry cranes can be broken down into several key stages:
1. Berthing and Planning
When a container ship arrives at the terminal, port authorities and terminal operators finalize the berth allocation and handling plan. This includes:
- Assigning gantry cranes to vessel bays
- Sequencing container discharge and load operations
- Allocating yard slots for each container
Advanced terminal management systems (TMS) and vessel stowage plans guide these decisions.
2. Discharging Containers from Ship (STS Cranes)
Once the ship is berthed:
- STS gantry cranes lift containers from the ship’s hold or deck.
- The crane trolley moves horizontally along the boom, positioning itself above the container.
- Using a spreader, the crane locks onto the container’s corner castings and lifts it vertically.
- The trolley then moves the container to the landside (dockside) of the crane.
- The container is lowered onto a truck chassis, straddle carrier crane, or AGV.
This phase requires precision to avoid damaging containers, maintain vessel stability, and ensure safety.
3. Transport to Yard
Containers are transported from the quayside to the yard using:
- Terminal trucks or prime movers
- Straddle carriers
- AGVs (in automated terminals)
Each transport method is integrated with TMS to ensure that containers are delivered to the correct yard location for stacking.
4. Stacking Containers in the Yard (RMG or RTG Cranes)
Once containers arrive at the yard:
- RMG or RTG cranes take over.
- The crane identifies the container using RFID tags or OCR systems.
- It lifts the container and places it in the assigned slot in the stack, which may be one of several tiers high.
- Stacking decisions are made based on container size, weight, priority (import/export/transshipment), and expected dwell time.
Efficient stacking reduces reshuffling and retrieval time during the loading phase.
5. Loading Containers for Outbound Shipment
For export operations:
- Containers are retrieved from the stack based on the vessel stowage plan.
- RTG or RMG cranes lift containers from the yard and load them onto transport vehicles.
- Vehicles carry them to the ship-to-shore area.
- STS cranes then lift and place them onto the vessel in specific bays and tiers.
Loading operations are carefully sequenced to ensure vessel balance, structural integrity, and optimal use of space.
6. Rail and Truck Loading
Aside from maritime shipping, gantry cranes are also involved in intermodal operations:
- RMG cranes are commonly used at rail yards to transfer containers between railcars and the yard.
- RTG cranes may load containers directly onto trucks for road transportation.
This flexibility supports the growing demand for multimodal logistics solutions.
Technologies That Support Gantry Crane Workflow
Modern container handling is highly data-driven and automated. Key supporting technologies include:
1. Terminal Operating Systems (TOS)
TOS coordinates container movements, assigns equipment, and optimizes stacking and retrieval based on real-time data.
2. Optical Character Recognition (OCR)
OCR cameras mounted on cranes automatically read container numbers and ensure accurate handling.
3. Position Detection Systems
Laser scanners, GPS, and RFID ensure cranes accurately locate and place containers, improving speed and reducing errors.
4. Anti-Sway Systems
Installed in modern cranes to stabilize load movement and allow faster, safer operations.
5. Remote and Automated Controls
Remote operation of cranes reduces reliance on cabin operators and enhances safety. Fully automated terminals use cranes that operate without human intervention, based on TOS instructions.
Common Challenges in the Workflow
Despite technological advancements, several challenges can disrupt smooth container handling:
1. Equipment Downtime
Crane breakdowns can cause bottlenecks. Preventive maintenance and real-time diagnostics are essential.
2. Yard Congestion
Poor stacking strategies or lack of yard space can slow down operations.
3. Unplanned Changes
Vessel delays, last-minute container additions, or missing documentation can disrupt the preplanned workflow.
4. Safety Risks
High crane speeds, poor visibility, or manual errors can lead to accidents if not properly managed.
Optimizing the Workflow
To ensure a smooth and efficient container handling process with gantry cranes, terminals should consider the following strategies:
1. Crane Scheduling Optimization
Dynamic scheduling tools can assign the right crane to the right task at the right time, minimizing idle time and maximizing utilization.
2. Yard Planning and Simulation
Simulation software helps plan yard layout, container stacking strategies, and crane movements for improved productivity.
3. Real-time Monitoring
Integrated dashboards provide real-time visibility of crane operations, container status, and yard congestion, allowing rapid response.
4. Automation and Training
Automation reduces human error and increases efficiency, while regular operator training ensures that staff can handle manual overrides and emergencies.
Conclusion
The workflow of container handling with gantry cranes is a complex but well-orchestrated process involving various crane types, smart technologies, and synchronized logistics. From the moment a container is lifted from a ship to the point it is stacked, retrieved, or loaded onto another transport mode, gantry cranes serve as the mechanical backbone of modern port operations.
As global supply chains continue to evolve and terminal volumes grow, understanding and optimizing this workflow becomes even more critical. By leveraging automation, data-driven systems, and operational best practices, terminal operators can ensure that container gantry cranes perform at their highest potential—driving efficiency, safety, and throughput in the heart of global trade.
